Interior Trim & Ornamentation - Front Header Trim, 'S'

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Front Header Trim, 'S'

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

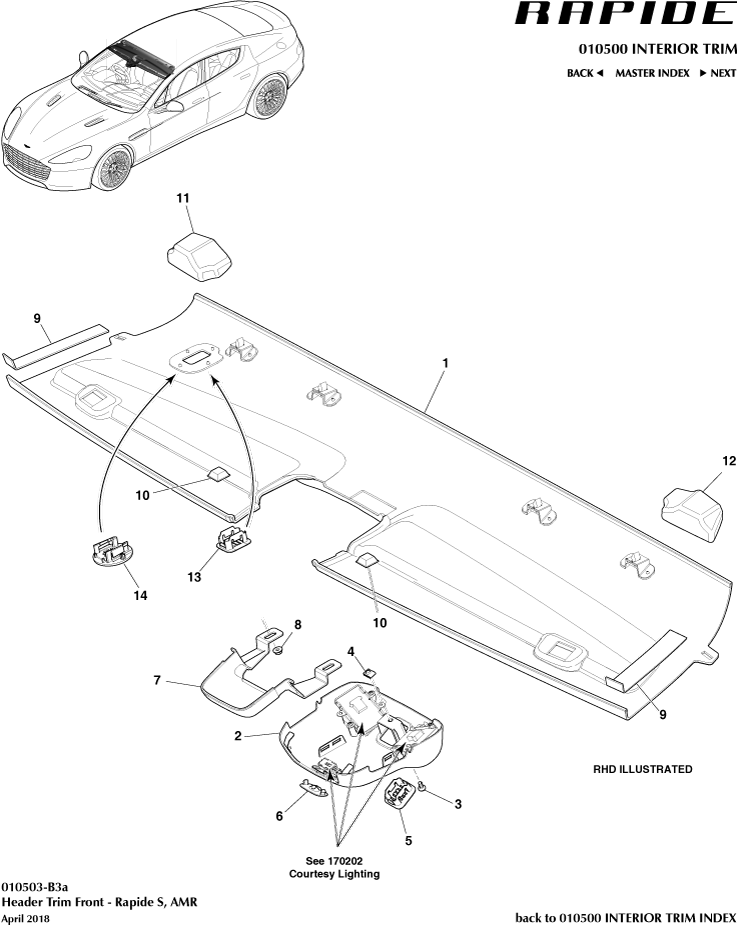

Interior Trim & Ornamentation - Front Header Trim, 'S' of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- KD4303407BAW
PANEL ASSY WINDSHEIL
RHD, AMR 		- 1 Enquire
- BD4303407ACW
PNL ASSY WSHIELD HDR
LHD except AMR 		- 1 Enquire
- KD4303407AAW
PANEL ASSY WINDSHLD
LHD, AMR 		- 1 Enquire
- SY9Y35398AA
FRT FRAME XMBR HARN
Includes Items 5 and 6 		- 1 Enquire
1 BD4303407BCW
PNL ASSY WSHIELD HDR
RHD except AMR 		- 1 Enquire
2 SY9Y24443AA
BDY TO RQI BRKT LH
Includes Items 5 and 6 		- 1 Enquire
3 701441PK
Screw, 4.2 x 13, Small Washer Head
Pack of 10 		- 1 Enquire
4 701653
Spring Nut, U Type, 4.2 x 0.7-2
- 		- 1 Enquire
5 AD3319G379AA
Retainer, Microphone Bezel
- 		- 1 Enquire
6 AD3313E714AA
BZL LMP ASY AMBNT
- 		- 1 Enquire
7 SY9Y3N238AA
BRKT ASY DRVS FT RST
- 		- 1 Enquire
7 51215B876E7
Set of keys with BDC control unit
- 		- 1 Enquire
8 702994
Nut, M6, Hex Head Thin
- 		- 2 Enquire
9 SY9Y32450AC
GPF PRESS HOSE ASSY
- 		- 2 Enquire
10 6G3303837AA
BUMPON SQUARE BLOCK
- 		- 2 Enquire
13 AG4319G379BB
Bezel, Microphone
'S' 		- 1 Enquire
14 KY6319G379AB
MICROPHONE BEZEL
AMR 		- 1 Enquire
