Instrument and Console Panels - IP Trimmed Panels of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - IP Trimmed Panels

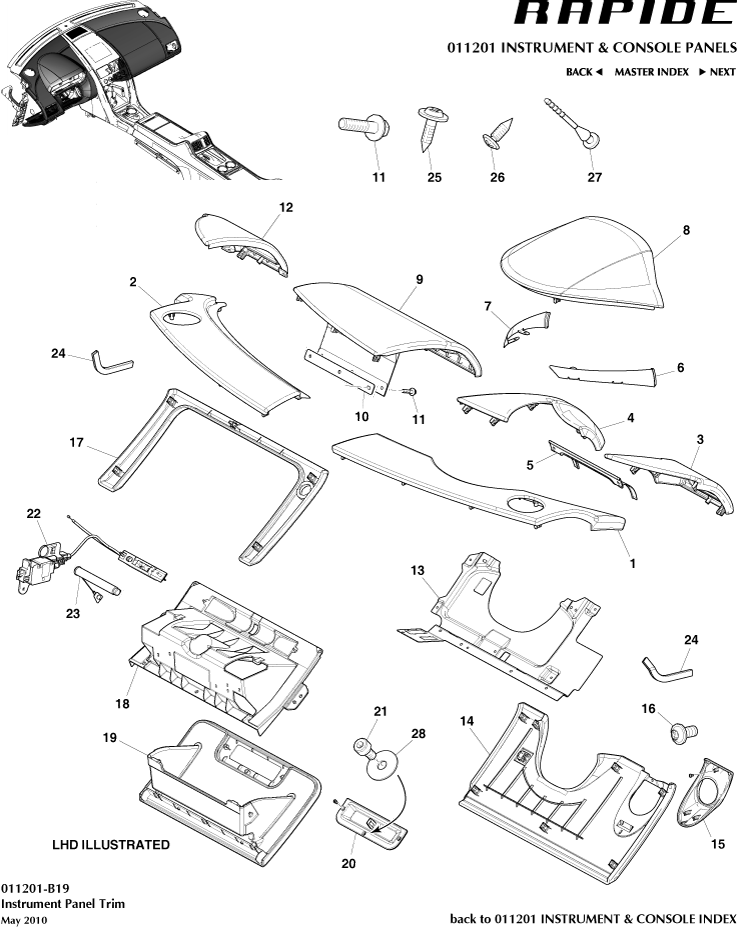

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD43047B26BBW	CVR ASY IPNL UPR DR	AD43047B26BBW CVR ASY IPNL UPR DR -	-	1	Enquire
-	AD43047B24BBW	COVER ASY INSTRUMENT	AD43047B24BBW COVER ASY INSTRUMENT -	-	1	Enquire
-	AD43045R22BBW	PNL ASY INSTR UPPR	AD43045R22BBW PNL ASY INSTR UPPR -	-	1	Enquire
-	AD43045R24ABW	Panel Assy, Upper Driver Side Inner- RHD	AD43045R24ABW Panel Assy, Upper Driver Side Inner- RHD -	-	1	Enquire
-	AD43C044H59BBW	PNL AND DR ADDY IPNL	AD43C044H59BBW PNL AND DR ADDY IPNL -	-	1	Enquire
-	AD43C04635AAW	PNL ASY INSTR UPR PA	AD43C04635AAW PNL ASY INSTR UPR PA -	-	1	Enquire
-	4G4360K51DA	Knee Protector, RHD	4G4360K51DA Knee Protector, RHD -	-	1	Enquire
-	AD43C04326BBW	PNL ASY INSTR LWR	AD43C04326BBW PNL ASY INSTR LWR -	-	1	Enquire
-	SY9Y7J467AB	TCU BRKT	SY9Y7J467AB TCU BRKT 19MY, AMR	-	1	Enquire
-	AD43C043K93BBW	PNL ASY INSTR LWR PA	AD43C043K93BBW PNL ASY INSTR LWR PA -	-	1	Enquire
-	11241025681	Bearing shell Blue	11241025681 Bearing shell Blue 19MY, AMR	-	1	Enquire
-	FD2356241AA	SHIELD - SIGHT G/B	FD2356241AA SHIELD - SIGHT G/B From 15MY	-	1	Enquire
-	61445B4FD87	Adapter charging cable	61445B4FD87 Adapter charging cable 19MY, AMR, LHD	-	1	Enquire
-	FD43C06011ABW	CMPT ASY GLOVE	FD43C06011ABW CMPT ASY GLOVE RHD	-	1	Enquire
-	61138387151	Comb type connector	61138387151 Comb type connector 19MY, AMR, LHD	-	1	Enquire
-	4G432K625AA	Abutment, Fuel Filler Cable	4G432K625AA Abutment, Fuel Filler Cable -	-	1	Enquire
-	4G436810703	CBL-FUEL FILLR FLAP	4G436810703 CBL-FUEL FILLR FLAP -	-	1	Enquire
1	AD43047B27BBW	CVR ASY IPNL UPR DR	AD43047B27BBW CVR ASY IPNL UPR DR -	-	1	Enquire
2	AD43047B25BBW	CVR ASY IPNL UPR	AD43047B25BBW CVR ASY IPNL UPR -	-	1	Enquire
3	AD43045R23BBW	PNL ASY INSTRU UPR	AD43045R23BBW PNL ASY INSTRU UPR -	-	1	Enquire
4	AD43045R25ABW	PNL ASY INSTR UPR	AD43045R25ABW PNL ASY INSTR UPR -	-	1	Enquire
5	SY9Y61J31CB	F-HTS RAD3-RAD5-HVAC	SY9Y61J31CB F-HTS RAD3-RAD5-HVAC -	-	1	Enquire
6	4G43C045C90AC	APPLIQUE CLUSTER BZL - LH	4G43C045C90AC APPLIQUE CLUSTER BZL - LH -	-	1	Enquire
7	4G43C045C90BC	APPLIQUE CLUSTER BZL - RH	4G43C045C90BC APPLIQUE CLUSTER BZL - RH -	-	1	Enquire
8	AD4310862BBW	HOOD ASSY INSTR CLUS	AD4310862BBW HOOD ASSY INSTR CLUS -	-	1	Enquire
9	AD43C044H58BBW	PNL AND DR ASY IPNL	AD43C044H58BBW PNL AND DR ASY IPNL -	-	1	Enquire
10	6G334073AAA	PAS A/BAG DR CLMP	6G334073AAA PAS A/BAG DR CLMP -	-	1	Enquire
11	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head Panel, Airbag LHD	-	3	Enquire
12	AD43C04634ABW	PNL ASY INST UPR PA	AD43C04634ABW PNL ASY INST UPR PA -	-	1	Enquire
13	4G4360K51CA	Knee Protector, LHD	4G4360K51CA Knee Protector, LHD -	-	1	Enquire
14	AD43C04325BBW	PNL ASY INST LWR	AD43C04325BBW PNL ASY INST LWR -	-	1	Enquire
15	4G4311A665AD	Bezel, Light Switch	4G4311A665AD Bezel, Light Switch -	-	1	Enquire
16	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) Light Switch Bezel	-	1	Enquire
17	64506924243	Holder	64506924243 Holder -	-	1	Enquire
18	6G3356241AE	Sight Shield, Glove Compartment Assy	6G3356241AE Sight Shield, Glove Compartment Assy Up To 15MY	-	1	Enquire
19	FD43C06010ABW	CMPT ASY GLOVE-LHD	FD43C06010ABW CMPT ASY GLOVE-LHD LHD	-	1	Enquire
20	4G43C06157AD	Striker, Glove Compartment Door Latch	4G43C06157AD Striker, Glove Compartment Door Latch -	-	1	Enquire
21	4G43105104AA	Screw, M4 x 8, Cap Head, Black	4G43105104AA Screw, M4 x 8, Cap Head, Black Striker, Glovebox Door Latch	-	3	Enquire
22	6G33F9C070AA	ACTUATOR FUEL FILLER	6G33F9C070AA ACTUATOR FUEL FILLER -	-	1	Enquire

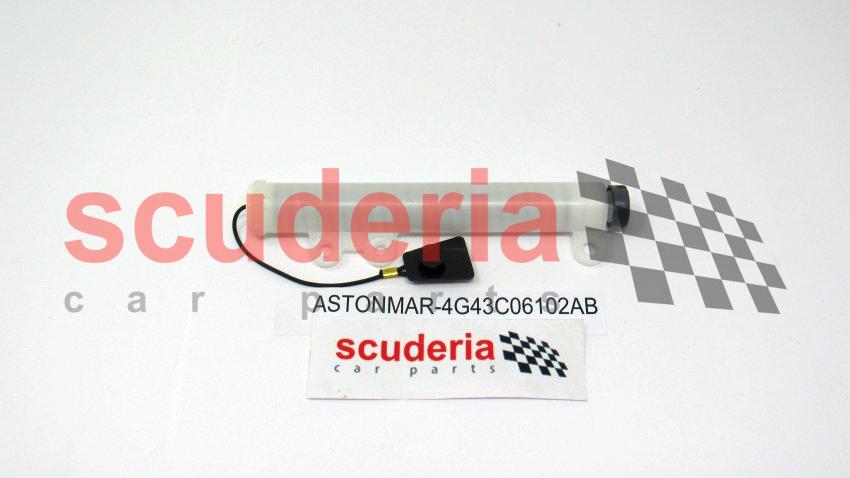

23	4G43C06102AB	Damper, Glovebox	4G43C06102AB Damper, Glovebox -	-	1	Enquire
24	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel -	-	2	Enquire
25	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	24	Enquire

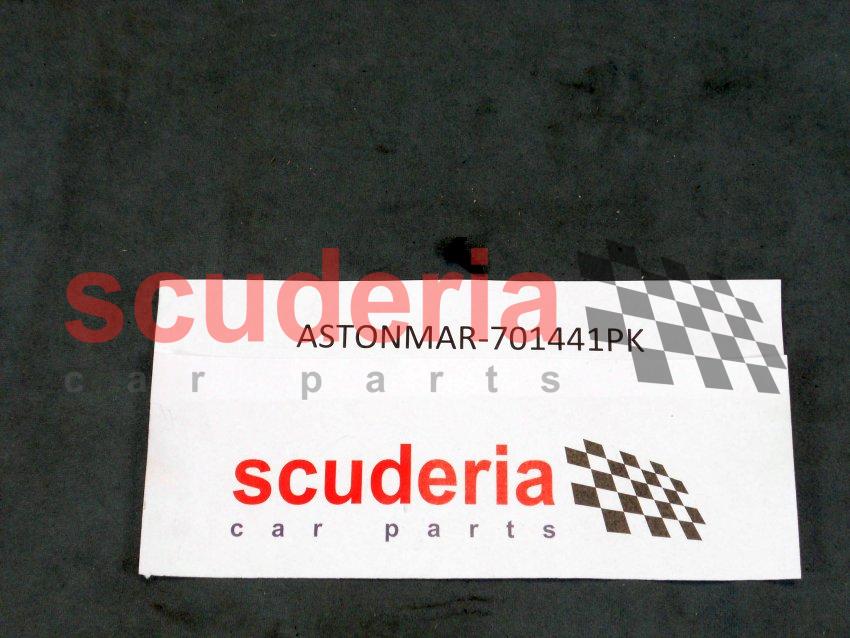

26	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head -	-	6	Enquire
27	4G436910112	BUFFER-GLOVE BOX DR	4G436910112 BUFFER-GLOVE BOX DR -	-	2	Enquire
28	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk -	-	1	Enquire
