Occupant Restraining Devices - Front Seat Belts of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Occupant Restraining Devices - Front Seat Belts

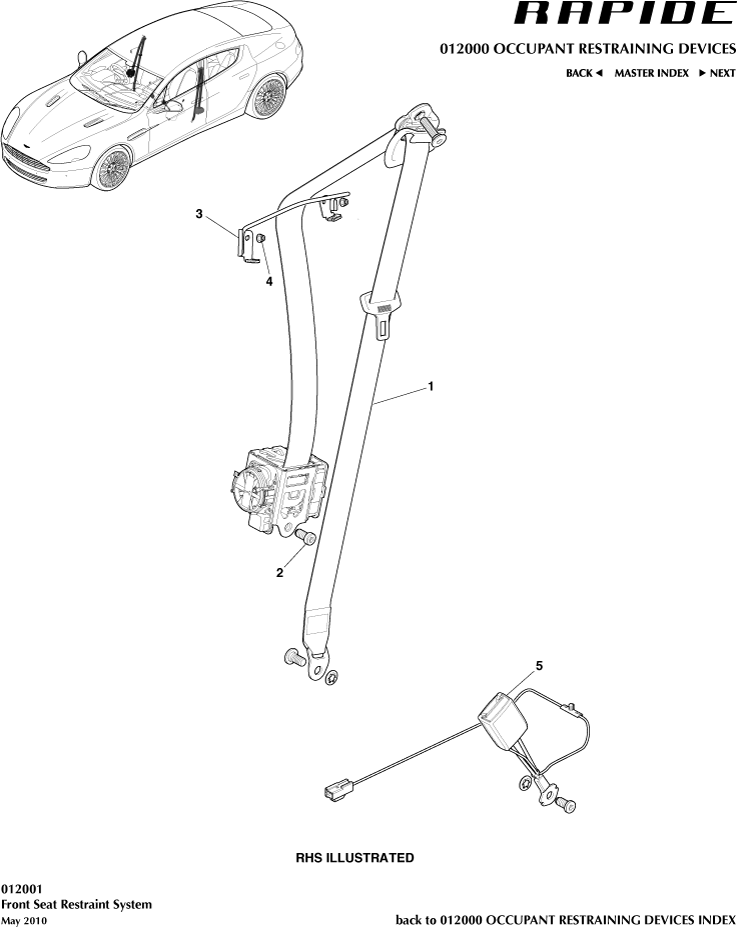

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD43611B71AAW	BLT RTR FRT ST RHD D	FD43611B71AAW BLT RTR FRT ST RHD D From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B71BDW	BLT RTR FRT ST RHD D	AD43611B71BDW BLT RTR FRT ST RHD D Up To 15MY, Flint	-	1	Enquire
-	FD43611B71BBW	BLT RTR FRT ST RHD D	FD43611B71BBW BLT RTR FRT ST RHD D From 15MY, Flint	-	1	Enquire
-	KD43611B71AAW	BLT RTR FRT ST RHD D	KD43611B71AAW BLT RTR FRT ST RHD D From 19MY, AMR	-	1	Enquire
-	AD43611B70ADW	BLT RTR FRT ST LHD D	AD43611B70ADW BLT RTR FRT ST LHD D Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B70AAW	BLT RTR FRT ST LHD D	FD43611B70AAW BLT RTR FRT ST LHD D From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B70BDW	BLT RTR FRT ST LHD D	AD43611B70BDW BLT RTR FRT ST LHD D Up To 15MY, Flint	-	1	Enquire
-	FD43611B70BBW	BLT RTR FRT ST LHD D	FD43611B70BBW BLT RTR FRT ST LHD D From 15MY, Flint	-	1	Enquire
-	SY9Y8N501AB	LINES LTS-SLTS BRACK	SY9Y8N501AB LINES LTS-SLTS BRACK From 19MY, AMR	-	1	Enquire
-	AD43611B69ADW	BLT RTR FRT ST RHD P	AD43611B69ADW BLT RTR FRT ST RHD P Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B69ABW	BLT RTR FRT ST RHD P	FD43611B69ABW BLT RTR FRT ST RHD P From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B69BDW	BELT AND RTR ASY FRT ST RHD PASS FLINT	AD43611B69BDW BELT AND RTR ASY FRT ST RHD PASS FLINT Up To 15MY, Flint	-	1	Enquire
-	FD43611B69BAW	BLT RTR FRT ST RHD P	FD43611B69BAW BLT RTR FRT ST RHD P From 15MY, Flint	-	1	Enquire
-	KD43611B69AAW	BLT RTR FRT ST RHD P	KD43611B69AAW BLT RTR FRT ST RHD P From 19MY, AMR	-	1	Enquire
-	AD43611B68ADW	BLT RTR FRT ST LHD P	AD43611B68ADW BLT RTR FRT ST LHD P Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B68AAW	BLT RTR FRT ST LHD P	FD43611B68AAW BLT RTR FRT ST LHD P From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B68BDW	BLT RTR FRT ST LHD P	AD43611B68BDW BLT RTR FRT ST LHD P Up To 15MY, Flint	-	1	Enquire
-	FD43611B68BAW	BLT RTR FRT ST LHD P	FD43611B68BAW BLT RTR FRT ST LHD P From 15MY, Flint	-	1	Enquire
-	84105B76FB1	Telematic Communication Box 4	84105B76FB1 Telematic Communication Box 4 From 19MY, AMR	-	1	Enquire
-	AD4361042AA	INT SEAT BELT GUIDE LH FRONT	AD4361042AA INT SEAT BELT GUIDE LH FRONT -	-	1	Enquire
1	AD43611B71ADW	BLT RTR FRT ST RHD D	AD43611B71ADW BLT RTR FRT ST RHD D Up To 15MY, Warm charcoal	-	1	Enquire
2	SY9Y66747AB	HRNS SUP LHS RL BRKT	SY9Y66747AB HRNS SUP LHS RL BRKT -	-	1	Enquire
3	AD4361043AA	INT ST BELT GUIDE RH FRONT	AD4361043AA INT ST BELT GUIDE RH FRONT -	-	1	Enquire
4	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	2	Enquire
5	AD43613K22AC	BKLE ASY FRT ST BELT	AD43613K22AC BKLE ASY FRT ST BELT -	-	2	Enquire
