Front End Structure - Front Structure, 'S'

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Front End Structure - front Structure, 'S'

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

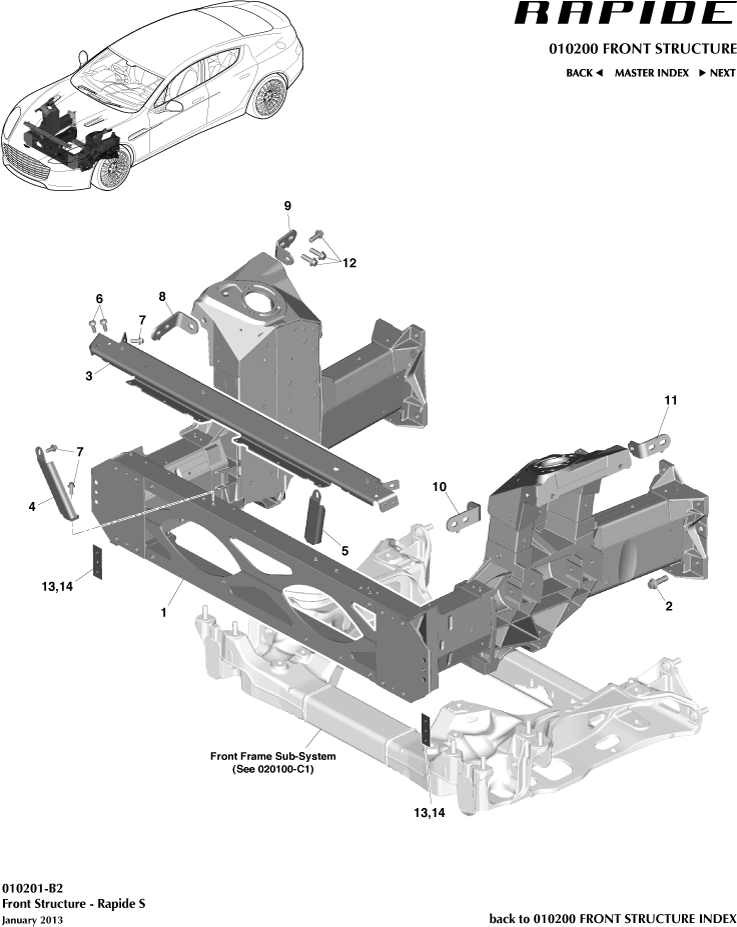

Front End Structure - front Structure, 'S' of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DD43V17750AA
CRASH STRUCT FT SRV
Structural Cat. A Only 		- 1 Enquire
2 703184
Screw M12 x 40 Hex Flange Head
- 		- 8 Enquire
3 DG4310853AB
Front Cross Member, Latch Mounting
- 		- 1 Enquire
4 GO8G4310072AA
Reinforcement, Front Strut Mounting, RH
- 		- 1 Enquire
5 GODG4310073AB
Reinforcement, Front Strut Mounting, LH
- 		- 1 Enquire
6 9G33505544AA
Screw, M8 x 25, Patch
- 		- 4 Enquire
7 703121
Screw, M8 x 25, Hex Flange Head
- 		- 6 Enquire
8 6G3310594AA
Bracket, Front Side Member to Front Suspension Housing, RH
- 		- 1 Enquire
9 DG43130A32AA
Bracket, Front Side Member, Rear, RH
- 		- 1 Enquire
10 6G3310595AA
Bracket, Front Side Member to Front Suspension Housing, LH
- 		- 1 Enquire
11 DG43130A33AA
Bracket, Front Side Member, Rear, LH
- 		- 1 Enquire
12 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 12 Enquire
13 4G4371480AC
Nutplate, Front Crush Structure, Outer
- 		- 2 Enquire
14 703074
Rivet, 4.65 x 13.8
- 		- 2 Enquire
