Interior Trim & Ornamentation - Main Floor Trim, RHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Main Floor Trim, RHD

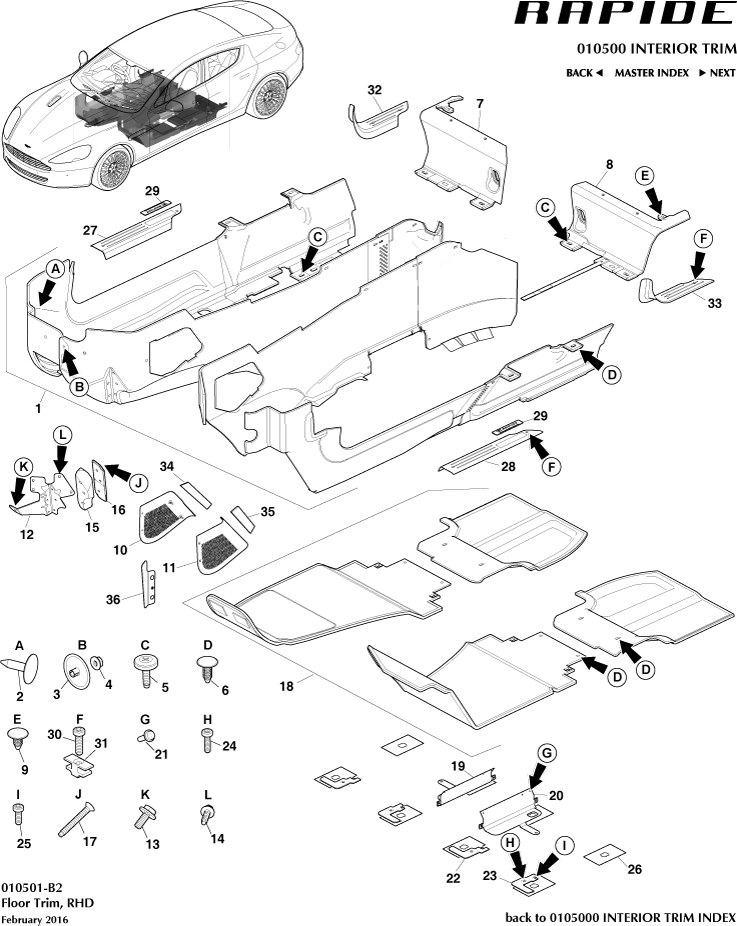

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD43281B10ABW	KIT ASSY SD CRP RHD	FD43281B10ABW KIT ASSY SD CRP RHD From 15MY, 720gsm	-	1	Enquire
-	FD43281B10GA	KIT ASSY SD CRP RHD	FD43281B10GA KIT ASSY SD CRP RHD From 17.5MY, Black, 600gsm	-	1	Enquire
-	61278889719	Cell supervision circuit	61278889719 Cell supervision circuit Black. From 17.5MY	-	1	Enquire
-	SY9Y2L202PA	DISTRIBUTOR SOL 1	SY9Y2L202PA DISTRIBUTOR SOL 1 Black. From 17.5MY	-	1	Enquire
-	GD43311A76CC	FOOTWELL SPKR GRL RH	GD43311A76CC FOOTWELL SPKR GRL RH With Fixings, Silver.	-	1	Enquire
-	HD43311A76CA	FOOTWELL SPKR GRL RH	HD43311A76CA FOOTWELL SPKR GRL RH From 17.5MY, With Fixings, Black.	-	1	Enquire
-	GD43311A77CC	FOOTWELL SPKR GRL LH	GD43311A77CC FOOTWELL SPKR GRL LH With Fixings, Silver	-	1	Enquire
-	HD43311A77CA	FOOTWELL SPKR GRL LH	HD43311A77CA FOOTWELL SPKR GRL LH From 17.5MY, With Fixings, Black.	-	1	Enquire
-	CD3312021CA	Cover Plate, Foot Rest, RH	CD3312021CA Cover Plate, Foot Rest, RH Rapide S Option	-	1	Enquire
-	SY9Y23944EBW	DOOR ASSY TRIM RH	SY9Y23944EBW DOOR ASSY TRIM RH From 17.5MY, Black	-	1	Enquire
-	SY9Y14B326AB	DCDC GND STRP	SY9Y14B326AB DCDC GND STRP AMR	-	1	Enquire
-	SY9Y10174AA	FRNT WNG MAIN PLNE	SY9Y10174AA FRNT WNG MAIN PLNE AMR	-	1	Enquire
-	AD438010005	SILL NAME PLATE FRONT PERSONALISED RAPIDE	AD438010005 SILL NAME PLATE FRONT PERSONALISED RAPIDE -	-	2	Enquire
-	BD43132A51AA	NW PLATE FRT SILL	BD43132A51AA NW PLATE FRT SILL -	-	2	Enquire
-	SY9Y3600JCW	STEERING WHEEL	SY9Y3600JCW STEERING WHEEL Rapide S	-	2	Enquire
-	ED43132A51AA	NM PLAT FRT SILL	ED43132A51AA NM PLAT FRT SILL Rapide S Centenary Edition	-	2	Enquire
-	HDA3132A51CA	NM PLT FRT SILL	HDA3132A51CA NM PLT FRT SILL Rapide S 17.5MY Shadow Edition	-	2	Enquire
-	KD43132A51AA	NM PLT FRT SILL	KD43132A51AA NM PLT FRT SILL Rapide AMR 19MY	-	2	Enquire
-	83305B7B7D9	Stepped drill	83305B7B7D9 Stepped drill AMR	-	1	Enquire
-	SY53120609BB	DB12 DUP OWN FRA	SY53120609BB DB12 DUP OWN FRA AMR	-	1	Enquire
-	6G3303837AA	BUMPON SQUARE BLOCK	6G3303837AA BUMPON SQUARE BLOCK lower console to carpet	-	A/R	Enquire
1	SY83044K16BA	CNSL CNTR INISHER LH	SY83044K16BA CNSL CNTR INISHER LH Up To 15MY	-	1	Enquire
2	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) -	-	3	Enquire
3	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35 -	-	3	Enquire
4	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	3	Enquire
5	SY9Y17F074AB	FRT AIR TRIP INR RH	SY9Y17F074AB FRT AIR TRIP INR RH -	-	8	Enquire
6	SY9Y454B62AB	SIDE PDC ACES PNL RH	SY9Y454B62AB SIDE PDC ACES PNL RH -	-	24	Enquire
7	AD43130A34ACW	CRPT ASY FLR RR RHS	AD43130A34ACW CRPT ASY FLR RR RHS -	-	1	Enquire
8	AD43130A35ACW	CRPT ASY FLR RR LHS	AD43130A35ACW CRPT ASY FLR RR LHS -	-	1	Enquire
9	SY9Y454B62AB	SIDE PDC ACES PNL RH	SY9Y454B62AB SIDE PDC ACES PNL RH -	-	5	Enquire
10	AD43311A76BA	FOOTWELL SPKR GRL RH	AD43311A76BA FOOTWELL SPKR GRL RH Up To 17.5MY, With Fixings, B&O	-	1	Enquire
11	AD43311A77BA	FOOTWELL SPKR GRL LH	AD43311A77BA FOOTWELL SPKR GRL LH Up To 17.5MY, With fixings, B&O	-	1	Enquire
12	6G333N234AA	BRACKET FOOTREST RHD	6G333N234AA BRACKET FOOTREST RHD -	-	1	Enquire
13	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
14	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	4	Enquire
15	6G33044J08AA	Energy Absorber, Footrest	6G33044J08AA Energy Absorber, Footrest -	-	1	Enquire
16	6G3312021AA	RH F/R COVER PLATE	6G3312021AA RH F/R COVER PLATE -	-	1	Enquire
17	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35 -	-	3	Enquire
18	AD438310114	CARPET KT RHD-RAPIDE	AD438310114 CARPET KT RHD-RAPIDE -	-	1	Enquire
19	AD43605B28AC	ATNL MNT LWF SCF PLT	AD43605B28AC ATNL MNT LWF SCF PLT -	-	1	Enquire
20	AD43605B29AC	TNL MNT LWR SCF PLT	AD43605B29AC TNL MNT LWR SCF PLT -	-	1	Enquire
21	4G432705AA	Rivet Plastic	4G432705AA Rivet Plastic -	-	4	Enquire
22	AD43666A41AB	CARPET FINISHER LHS COMMON	AD43666A41AB CARPET FINISHER LHS COMMON -	-	2	Enquire
23	AD43666A40AB	CARPET FINISHER RHS COMMON	AD43666A40AB CARPET FINISHER RHS COMMON -	-	2	Enquire
25	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
26	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	8	Enquire
27	AD43132A12AAW	PLT FRNT DR SCF RH	AD43132A12AAW PLT FRNT DR SCF RH -	-	1	Enquire
28	AD43132A13AAW	PLT FRT DR SCF LH	AD43132A13AAW PLT FRT DR SCF LH -	-	1	Enquire
29	AD438010004	NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE	AD438010004 NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE -	-	2	Enquire
30	HY5347124AJ	PANEL TRUNK FLOOR	HY5347124AJ PANEL TRUNK FLOOR Silver, Pack of 2	-	4	Enquire
31	AD4317F790AB	SCUFF PLATE MTG BLOCK	AD4317F790AB SCUFF PLATE MTG BLOCK -	-	8	Enquire
32	AD43132A48ABW	PLR RR DR SCF RH	AD43132A48ABW PLR RR DR SCF RH -	-	1	Enquire
33	AD43132A49ABW	PLT RR DR SCF LH	AD43132A49ABW PLT RR DR SCF LH -	-	1	Enquire
34	SY9Y10578AA	OUTER AIR TRIP EXT R	SY9Y10578AA OUTER AIR TRIP EXT R 16MY	-	1	Enquire
35	SY83C237898AB	RR DR HDL CMN SAT	SY83C237898AB RR DR HDL CMN SAT 16MY	-	1	Enquire
36	9D33201A49AA	Sheild, Speaker Grille Protection LH	9D33201A49AA Sheild, Speaker Grille Protection LH 15MY	-	1	Enquire
