Body Structure - Underbody of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

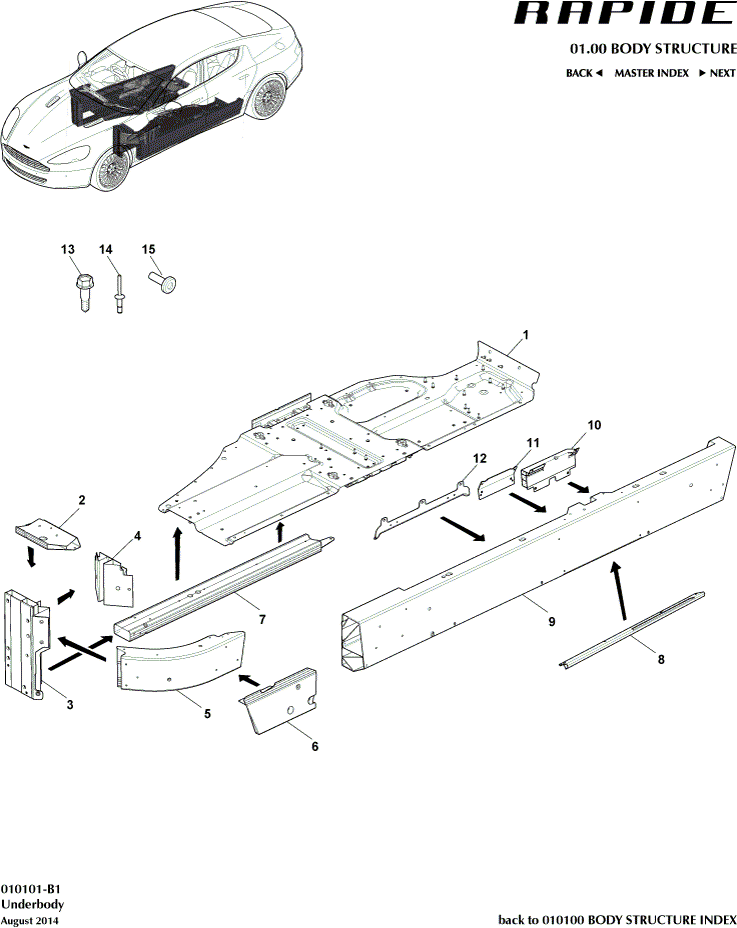

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD43F10021AA	FLOOR ASSY LH SERVICE	AD43F10021AA FLOOR ASSY LH SERVICE Up To 15MY, Service Assy,Structural Cat. A only.	-	1	Enquire
-	FD43F10021AB	FLR ASSY LH SERV	FD43F10021AB FLR ASSY LH SERV From 15MY, Service Assy,Structural Cat. A only.	-	1	Enquire
-	SY8313E799AC	CNSL ROLL SW RGT HEA	SY8313E799AC CNSL ROLL SW RGT HEA Structural Cat. A only	-	1	Enquire
-	AD43111E47AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	AD43111E47AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE Service assy,Structural Cat. A only	-	1	Enquire
-	SY9Y13W029BC	H/LAMP RHS LHD	SY9Y13W029BC H/LAMP RHS LHD Structural Cat. A only	-	1	Enquire
-	SY9Y69321LDW	SUNVISOR LH CANADA L	SY9Y69321LDW SUNVISOR LH CANADA L Structural Cat. A only	-	1	Enquire
-	GOFD43106A79AB	EXT SILL CATCHER LH	GOFD43106A79AB EXT SILL CATCHER LH From 15MY,Structural Cat. A only.	-	1	Enquire
-	AD43F101D11AA	MEMBER FLOOR SIDE LOWER ASSY LH SERVICE	AD43F101D11AA MEMBER FLOOR SIDE LOWER ASSY LH SERVICE Upto 15MY, Service assy,Structural Cat. A only.	-	1	Enquire
-	FD43F101D11AC	MBR FLR LWR LH SERV	FD43F101D11AC MBR FLR LWR LH SERV From 15MY, Service assy,Structural Cat. A only.	-	1	Enquire
-	GOFD43270A51AC	EXT SDE IMPT PSHR BK	GOFD43270A51AC EXT SDE IMPT PSHR BK From 15MY,Structural Cat. A only.	-	1	Enquire
-	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder From 15MY	-	8	Enquire
1	AD43F10020AAS	FLR ASSY RH SERV-STP	AD43F10020AAS FLR ASSY RH SERV-STP Up To 15MY, Service Assy,Structural Cat. A only.	-	1	Enquire
1	FD43F10020AB	FLR ASSY RH SERV	FD43F10020AB FLR ASSY RH SERV From 15MY, Service Assy,Structural Cat. A only.	-	1	Enquire
2	SY9Y14H311CB	HV CBL MNTG BRKT C	SY9Y14H311CB HV CBL MNTG BRKT C Structural Cat. A only	-	1	Enquire
3	AD43111E46AA	BRACE TUNNEL UPPER OUTER ASSY LH SERVICE	AD43111E46AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE Service assy,Structural Cat. A only	-	1	Enquire
4	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural Cat. A only	-	2	Enquire
5	SY9Y11458AB	OIL COOLER MNT BRAKT	SY9Y11458AB OIL COOLER MNT BRAKT Structural Cat. A only	-	1	Enquire
6	GOAD43100A94AA	LWR REINF MBR FRT RH	GOAD43100A94AA LWR REINF MBR FRT RH Structural Cat. A only	-	1	Enquire
7	AD43F10120AB	MBR FLR SD FRT	AD43F10120AB MBR FLR SD FRT Structural Cat. A only	-	2	Enquire
8	GOFD43106A78AB	EXT SILL CATCHER	GOFD43106A78AB EXT SILL CATCHER From 15MY,Structural Cat. A only.	-	1	Enquire
9	AD43F101D10AA	MEMBER FLOOR SIDE LOWER ASSY RH SERVICE	AD43F101D10AA MEMBER FLOOR SIDE LOWER ASSY RH SERVICE Up To 15MY, Service assy,Structural Cat. A only.	-	1	Enquire
9	FD43F101D10AC	MBR FLR LWR RH SERV	FD43F101D10AC MBR FLR LWR RH SERV From 15MY, Service assy,Structural Cat. A only.	-	1	Enquire
10	GOFD43270A50AC	EXT SDE IMPT PSHR BK	GOFD43270A50AC EXT SDE IMPT PSHR BK From 15MY,Structural Cat. A only.	-	1	Enquire
11	GOFD43106A96AA	INBOARD SILL REINF	GOFD43106A96AA INBOARD SILL REINF From 15MY,Structural Cat. A only.	-	2	Enquire
12	GOAD43F54671AA	SEAT MOUNT REINFORCE ANGLE	GOAD43F54671AA SEAT MOUNT REINFORCE ANGLE Structural Cat. A only	-	2	Enquire
13	6G33375732AA	SCR SS HEX FL HD	6G33375732AA SCR SS HEX FL HD -	-	8	Enquire
14	6G3368676AA	MONOBOLT 6.5x14 BLND	6G3368676AA MONOBOLT 6.5x14 BLND -	-	A/R	Enquire
15	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	2	Enquire
