Interior Trim & Ornamentation - Load Compartment Trim of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

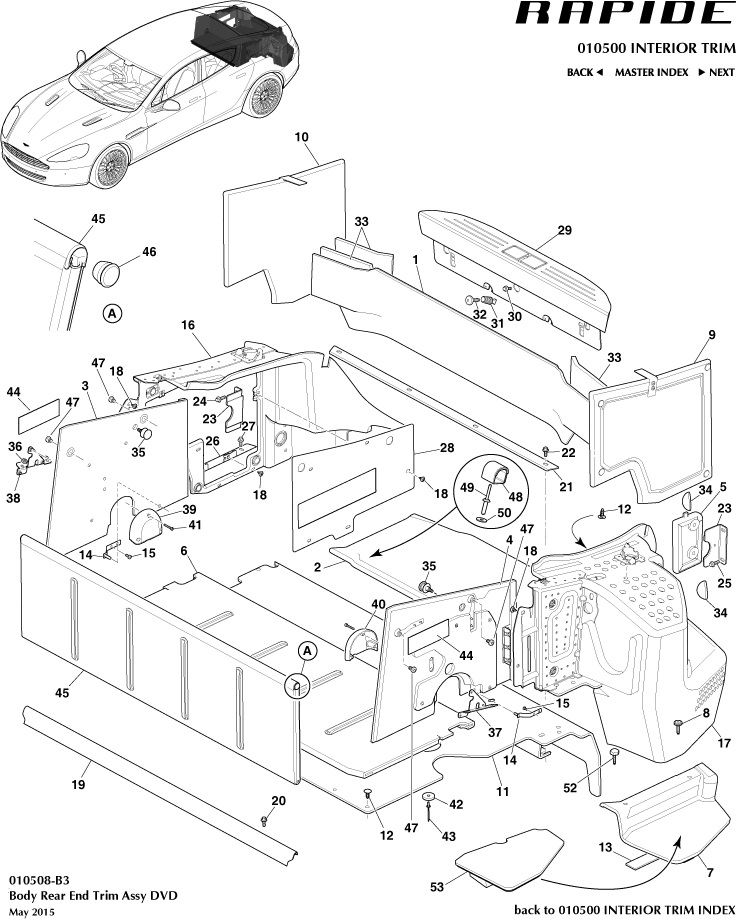

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Load Compartment Trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD43130A58AEW	CRPT LC RR	AD43130A58AEW CRPT LC RR Colours	-	1	Enquire
-	CD43130A60GA	CRPT ASY FLR L/C RR	CD43130A60GA CRPT ASY FLR L/C RR From VIN F04012, Black	-	1	Enquire
-	CD43130A60ADW	CRPT ASY FLR L/C RR	CD43130A60ADW CRPT ASY FLR L/C RR From VIN F04012, Colours	-	1	Enquire
-	SY9Y255A59AB	RR QUATR CLSG PNL LH	SY9Y255A59AB RR QUATR CLSG PNL LH From VIN F04012, With 1 Magnet, Black	-	1	Enquire
-	FD4345422ABW	TRM ASY LC SD LWR RH	FD4345422ABW TRM ASY LC SD LWR RH From VIN F04012, With 1 Magnet, Colours	-	1	Enquire
-	34505B6C405	Control unit MPAD	34505B6C405 Control unit MPAD From VIN F04012, With 1 Magnet, Black	-	1	Enquire
-	FD4345423ABW	TRM ASY LC LWR LH	FD4345423ABW TRM ASY LC LWR LH From VIN F04012, With 1 Magnet, Colours	-	1	Enquire
-	CD4345456ACW	CRPT ASY FLR L/C FRT	CD4345456ACW CRPT ASY FLR L/C FRT From VIN F04012 To 16MY	-	1	Enquire
-	CD4345456ADW	CRPT ASY FLR L/C FRT	CD4345456ADW CRPT ASY FLR L/C FRT From 16MY, Less Rubbing Strips, Colours	-	1	Enquire
-	CD4345456GA	CRPT ASY FLR L/C FRT	CD4345456GA CRPT ASY FLR L/C FRT From 17.5MY, Less Rubbing Strips, Black	-	1	Enquire
-	54345B8C6B3	Retrofit, RR25 coloured starlight	54345B8C6B3 Retrofit, RR25 coloured starlight From 17MY, Black	-	1	Enquire
-	52205A26DC5	Cover, belt outlet, left	52205A26DC5 Cover, belt outlet, left From 17MY, Colours	-	1	Enquire
-	CD43454A23ACW	DR SAY L/C LHS	CD43454A23ACW DR SAY L/C LHS From VIN F04012. Up to 16MY	-	1	Enquire
-	31108882465	Strut, engine mount, left	31108882465 Strut, engine mount, left From VIN F04012, Colours	-	1	Enquire
-	54345B8C734	Retrofit, RR31 coloured starlight, LCI	54345B8C734 Retrofit, RR31 coloured starlight, LCI From 17.5MY, Black	-	1	Enquire
-	AD43407A76GA	TRM ASY LC RR CTR	AD43407A76GA TRM ASY LC RR CTR From 17.5MY, Black	-	1	Enquire
-	AD43F31148AEW	CRPT ASY RH LMP MLDG	AD43F31148AEW CRPT ASY RH LMP MLDG 16MY on, Colours	-	1	Enquire
-	AD43F31148GA	CRPT ASY RH LMP MLDG	AD43F31148GA CRPT ASY RH LMP MLDG Black	-	1	Enquire
-	GD43F31149ABW	CRPT ASY LH LMP MLDG	GD43F31149ABW CRPT ASY LH LMP MLDG 16MY on	-	1	Enquire
-	SY9Y3G592DB	INTERIOR FDM	SY9Y3G592DB INTERIOR FDM From 17MY, Colours	-	1	Enquire
-	HD43F31149GA	CRPT ASY LH LMP MLDG	HD43F31149GA CRPT ASY LH LMP MLDG From 17.5MY, Black	-	1	Enquire
-	65775B83CC4	Airbag control unit	65775B83CC4 Airbag control unit AMR, Black	-	1	Enquire
-	KD4342626AAW	PLT ASY RR LC SCF	KD4342626AAW PLT ASY RR LC SCF AMR	-	1	Enquire
-	SY9Y23944ABW	DOOR ASSY TRIM RH	SY9Y23944ABW DOOR ASSY TRIM RH 19MY AMR	-	2	Enquire
-	KD43454C54BA	L/C DMP STRT CVR RHS	KD43454C54BA L/C DMP STRT CVR RHS 19MY AMR	-	1	Enquire
-	KD43454C55BA	L/C DMP STRT CVR LHS	KD43454C55BA L/C DMP STRT CVR LHS 19MY AMR	-	1	Enquire
-	CD4345586ACW	FLDG FLR PNL ASY	CD4345586ACW FLDG FLR PNL ASY From VIN F04012	-	1	Enquire
-	CD4345586ADW	FLDG FLR PNL ASY	CD4345586ADW FLDG FLR PNL ASY From 16MY, less Rubbing Strips, Colours	-	1	Enquire
-	66205B76802	Control unit, Parking Assistant	66205B76802 Control unit, Parking Assistant From 17.5MY, less Rubbing Strips, Black.	-	1	Enquire
-	KD4345586AAW	FLDG FLR PNL ASY	KD4345586AAW FLDG FLR PNL ASY AMR, From 19MY, less Rubbing Strips, Black.	-	1	Enquire
1	54345B8DCE3	Retrofit, RR21/22 coloured starlight	54345B8DCE3 Retrofit, RR21/22 coloured starlight Black	-	1	Enquire
2	AD43130A60ABW	REAR LOADSPACE FLOOR ASSY	AD43130A60ABW REAR LOADSPACE FLOOR ASSY Up To VIN F04011	-	1	Enquire
3	AD4345422ABW	TRM ASY LC SD LWR RH	AD4345422ABW TRM ASY LC SD LWR RH Up To VIN F04011, With 2 Magnets	-	1	Enquire
4	AD4345423ABW	TRM ASY LC LWR LH	AD4345423ABW TRM ASY LC LWR LH Up To VIN F04011, With 2 Magnets	-	1	Enquire
5	AD4345431ABW	CARPET PANEL ASY LHS INFIL	AD4345431ABW CARPET PANEL ASY LHS INFIL Up to 16MY	-	1	Enquire
6	AD4345456ABW	FRONT FLOOR ASSY WITH RUNNERS	AD4345456ABW FRONT FLOOR ASSY WITH RUNNERS Up To VIN F04011	-	1	Enquire
7	AD43454A15AAW	CRPT ASY FLR RR LHS	AD43454A15AAW CRPT ASY FLR RR LHS -	-	1	Enquire
8	5R13FA0036AA	Screw and Washer M6x28 Pan hd IN STOCK	5R13FA0036AA Screw and Washer M6x28 Pan hd - IN STOCK	-	1	Enquire
9	AD43454A23AAW	DR ASY L/C LHS	AD43454A23AAW DR ASY L/C LHS Up To VN F04011	-	1	Enquire
10	AD43454A22AAW	DR ASY LC RHS	AD43454A22AAW DR ASY LC RHS Up To VIN F04011	-	1	Enquire
11	AD43407A76AAW	TRM ASY LC RR CTR	AD43407A76AAW TRM ASY LC RR CTR Colours	-	1	Enquire
12	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) -	-	5	Enquire
13	83305B699A1	Sleeve	83305B699A1 Sleeve -	-	1	Enquire
14	54345B8C730	Retrofit, RR25 coloured starlight	54345B8C730 Retrofit, RR25 coloured starlight -	-	2	Enquire
15	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head 2 per brkt	-	4	Enquire
16	AD43F31148ACW	CRPT ASY RH LMP MLDG	AD43F31148ACW CRPT ASY RH LMP MLDG Up to 16MY, Colours	-	1	Enquire
17	AD43F31149ACW	CRPT ASY LH LMP MLDG	AD43F31149ACW CRPT ASY LH LMP MLDG Up to 16MY	-	1	Enquire
18	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) - IN STOCK	-	11	Enquire
19	AD43454A16AA	RETENTION PANEL ASY L/C FLOOR	AD43454A16AA RETENTION PANEL ASY L/C FLOOR -	-	1	Enquire
20	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head - IN STOCK	-	4	Enquire
21	AD43130W46AA	FUEL TANK CARPET GRIPPER	AD43130W46AA FUEL TANK CARPET GRIPPER -	-	1	Enquire
22	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free - IN STOCK	-	4	Enquire
23	AD4341852AB	RR FIX BRKT ASY	AD4341852AB RR FIX BRKT ASY Up to 16MY	-	2	Enquire
24	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head - IN STOCK	-	2	Enquire
25	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free - IN STOCK	-	2	Enquire
26	11155A94CD9	Ventilation connection	11155A94CD9 Ventilation connection -	-	1	Enquire
27	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head - IN STOCK	-	2	Enquire
28	AD4340122AB	RHS MMM COVER PLATE	AD4340122AB RHS MMM COVER PLATE Up to 14MY	-	1	Enquire
29	AD4342626ABW	PLT ASY RR LC SCF	AD4342626ABW PLT ASY RR LC SCF -	-	1	Enquire
30	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head - IN STOCK	-	3	Enquire
32	704442	BOLT-M8x25.5 PN TITE SPL8	704442 BOLT-M8x25.5 PN TITE SPL8 -	-	2	Enquire
33	54345B8C732	Retrofit, RR31 Coloured starlight	54345B8C732 Retrofit, RR31 Coloured starlight -	-	3	Enquire
34	6G33454A28AB	REAR LAMP BOLT COVER IN STOCK	6G33454A28AB REAR LAMP BOLT COVER - IN STOCK	-	2	Enquire
35	AD4318580AAW	L/C FOL FLR END ST A	AD4318580AAW L/C FOL FLR END ST A -	-	2	Enquire
36	61125B722B6	Battery cable negative terminal	61125B722B6 Battery cable negative terminal -	-	1	Enquire
37	31108882468	Strut, engine mount, right	31108882468 Strut, engine mount, right -	-	1	Enquire
38	4G43E820201AA	M8 HALF NUT HEX BRASS	4G43E820201AA M8 HALF NUT HEX BRASS 2 per bracket	-	4	Enquire
39	54345B8C731	Retrofit, RR31 Coloured starlight	54345B8C731 Retrofit, RR31 Coloured starlight -	-	1	Enquire
40	61355B5EC03	Seat module	61355B5EC03 Seat module -	-	1	Enquire
41	AD43C4086AA	M4 x 25 FLD HEAD TOR	AD43C4086AA M4 x 25 FLD HEAD TOR 3 per cover	-	6	Enquire
42	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD -	-	7	Enquire
43	701356	Rivet, Blind, M4x10 IN STOCK	701356 Rivet, Blind, M4x10 - IN STOCK	-	7	Enquire
44	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel -	-	2	Enquire
45	AD4345586ABW	FOLDING FLOOR PANEL ASSY	AD4345586ABW FOLDING FLOOR PANEL ASSY Up To VIN F04011	-	1	Enquire
46	AD43433A54AA	FLD FLR STL SLG	AD43433A54AA FLD FLR STL SLG -	-	2	Enquire
47	8G43487464AA	Screw and Washer, M5 x 6, Pan Head	8G43487464AA Screw and Washer, M5 x 6, Pan Head -	-	4	Enquire
48	CD430937AA	RET STRAP ASY UMB HN	CD430937AA RET STRAP ASY UMB HN -	-	2	Enquire
49	4G43P2100014BAA	RIVET R-LOK 6.3 X 4-10	4G43P2100014BAA RIVET R-LOK 6.3 X 4-10 -	-	2	Enquire
50	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
51	7G43700712BB	AML BLK STD UMBRELLA	7G43700712BB AML BLK STD UMBRELLA Not Illustrated	-	1	Enquire
53	GD4310E982ABW	COVER MODULE NAV	GD4310E982ABW COVER MODULE NAV From 16MY	-	1	Enquire
