Sound & Heat Control - Noise Insulation, Front of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Sound & Heat Control - Noise Insulation, Front

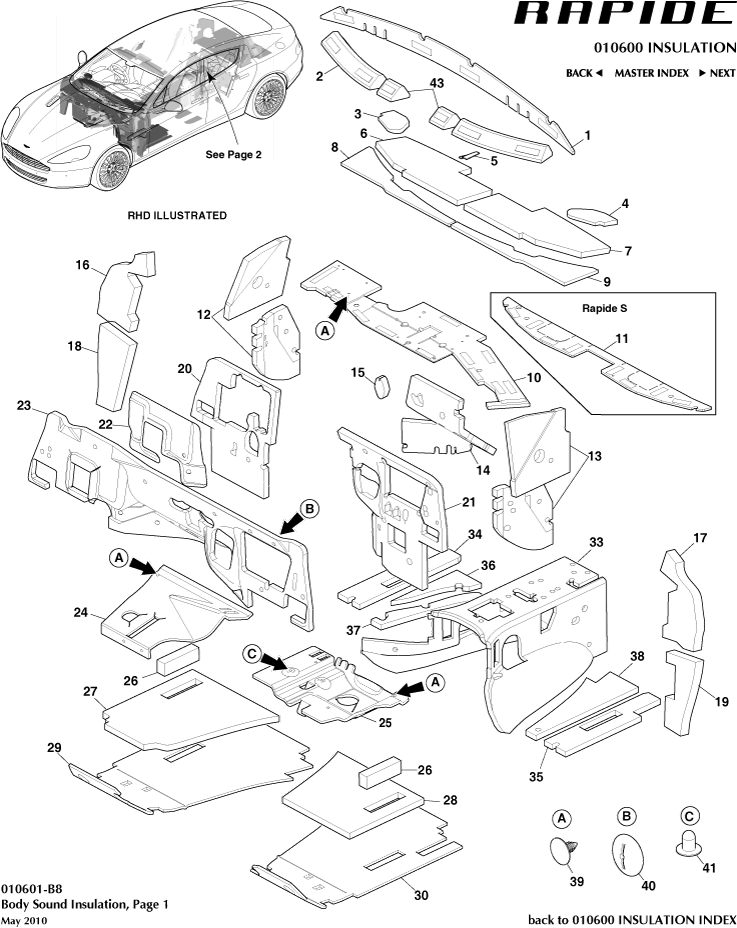

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre LHD	-	1	Enquire
-	DG4328112AA	NVH Foam Pad, Fender Upper	DG4328112AA NVH Foam Pad, Fender Upper Rapide S, LH and RH	-	2	Enquire
-	DG4328110AA	NVH Foam Pad Assembly, Fender Lower, RH	DG4328110AA NVH Foam Pad Assembly, Fender Lower, RH Rapide S	-	1	Enquire
-	DG4328111AA	NVH Foam Pad Assembly, Fender Lower, LH	DG4328111AA NVH Foam Pad Assembly, Fender Lower, LH Rapide S	-	1	Enquire
-	51215B876E6	Set of keys with BDC control unit	51215B876E6 Set of keys with BDC control unit RHD 14MY	-	1	Enquire
-	SY9Y3063473AA	MIRROR GLASS CNVX LH	SY9Y3063473AA MIRROR GLASS CNVX LH LHD	-	1	Enquire
-	51415B875B3	Retrofit kit, illuminated doors	51415B875B3 Retrofit kit, illuminated doors LHD 14MY	-	1	Enquire
-	35405A47464	Accelerator pedal module	35405A47464 Accelerator pedal module RHD 14MY	-	1	Enquire
-	22AB052GP	PNL FNDR FRT HEADLAMP MTG INR RH	22AB052GP PNL FNDR FRT HEADLAMP MTG INR RH LHD	-	1	Enquire
-	ED43015A23AA	BAF BDY FRT PNL LHD	ED43015A23AA BAF BDY FRT PNL LHD LHD 14MY	-	1	Enquire
-	AD43114C00AA	Pad, damping pedal box, LHD	AD43114C00AA Pad, damping pedal box, LHD LHD	-	1	Enquire
-	AD43102B00AD	INS ENG HSG SND LHD	AD43102B00AD INS ENG HSG SND LHD LHD	-	1	Enquire
-	17125A87A88	Line, engine-radiator	17125A87A88 Line, engine-radiator LHD	-	1	Enquire
-	AD43534A1AC	Panel Assembly, Dash Lower Passengers Side	AD43534A1AC Panel Assembly, Dash Lower Passengers Side LHD	-	1	Enquire
1	54345B8C693	Retrofit, RR11/12 coloured starlight	54345B8C693 Retrofit, RR11/12 coloured starlight -	-	1	Enquire
2	SY9Y2E463DB	CAL ASSY FRT WHL LH	SY9Y2E463DB CAL ASSY FRT WHL LH 2x Only When Pedestrian Impact System Fitted	-	3	Enquire
3	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH -	-	1	Enquire
4	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH -	-	1	Enquire
5	51165B682C7	Trim, USB port	51165B682C7 Trim, USB port -	-	1	Enquire
6	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH -	-	1	Enquire
7	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH -	-	1	Enquire
8	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH -	-	1	Enquire
9	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH -	-	1	Enquire
10	AD4300152BB	RHD UNDER WIPER MOTOR NVH	AD4300152BB RHD UNDER WIPER MOTOR NVH RHD	-	1	Enquire
11	DD3300152AA	Insulation, Body To Front	DD3300152AA Insulation, Body To Front Rapide S	-	1	Enquire
12	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH -	-	1	Enquire
13	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH -	-	1	Enquire
14	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	8G43021A58AB BAFFLE BODY FRONT PANEL RHD CENTRE RHD	-	1	Enquire
15	8G4304564AA	NVH, Autobox Clutch Pedal	8G4304564AA NVH, Autobox Clutch Pedal -	-	1	Enquire
16	AD4328112AB	NVH FOAM PAD ASY FENDER RH UPPER	AD4328112AB NVH FOAM PAD ASY FENDER RH UPPER -	-	1	Enquire
17	AD4328111AB	NVH FOAM PAD ASSY FENDER LH LOWER	AD4328111AB NVH FOAM PAD ASSY FENDER LH LOWER -	-	1	Enquire
18	AD4328120AB	FNDR BAF INS RH LWR	AD4328120AB FNDR BAF INS RH LWR -	-	1	Enquire
19	AD4328121AB	NVH FOAM PAD FENDER LEFT LOWER	AD4328121AB NVH FOAM PAD FENDER LEFT LOWER -	-	1	Enquire
20	SY9Y2C026CA	RR WHL DISC BRK-RH	SY9Y2C026CA RR WHL DISC BRK-RH RHD	-	1	Enquire
21	51479909391	Countersunk screw	51479909391 Countersunk screw RHD	-	1	Enquire
22	AD43114C00BA	Pad, damping pedal box, RHD	AD43114C00BA Pad, damping pedal box, RHD RHD	-	1	Enquire
23	AD43102B00BC	INS ENG HSG SND RHD	AD43102B00BC INS ENG HSG SND RHD RHD	-	1	Enquire
24	66555B76BE5	Control unit Automated Parking camera	66555B76BE5 Control unit Automated Parking camera RHD	-	1	Enquire
25	SY9Y8333CA	F-HTS-SF1-RAD3-RAD4	SY9Y8333CA F-HTS-SF1-RAD3-RAD4 RHD	-	1	Enquire
26	51485A7AEB8	Sound insulation, backing	51485A7AEB8 Sound insulation, backing -	-	2	Enquire
27	52106993532	Clip nut	52106993532 Clip nut -	-	1	Enquire
28	51245A0B472	Right trunk lid hinge	51245A0B472 Right trunk lid hinge -	-	1	Enquire
29	12515B6D599	wiring harness, engine grbx. module	12515B6D599 wiring harness, engine grbx. module -	-	1	Enquire
30	SY9Y73198AA	EMR. CABLE GROM.	SY9Y73198AA EMR. CABLE GROM. -	-	1	Enquire
33	AD4311446AD	INS FLR PAN GR SH LV	AD4311446AD INS FLR PAN GR SH LV -	-	1	Enquire
34	61355B5EC01	Seat module	61355B5EC01 Seat module -	-	1	Enquire
35	65125A5EE59	RP Head Unit High 2	65125A5EE59 RP Head Unit High 2 -	-	1	Enquire
36	61278888391	High-volt connect.panel charging socket	61278888391 High-volt connect.panel charging socket -	-	1	Enquire
37	AD43101A82AA	FLR PAN NVH RHS INR	AD43101A82AA FLR PAN NVH RHS INR -	-	1	Enquire
38	64115B3A5D8	Evaporator	64115B3A5D8 Evaporator -	-	1	Enquire
39	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree -	-	12	Enquire
40	697564	Retainer, Push On	697564 Retainer, Push On -	-	-	Enquire
41	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic -	-	1	Enquire
43	RY6315B484BA	REAR BUMPER HARNESS	RY6315B484BA REAR BUMPER HARNESS When Pedestrian Impact System Fitted	-	2	Enquire
