Body Exterior Trim & Ornamentation - Sill Applique

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Body Exterior Trim & Ornamentation - Sill Applique

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

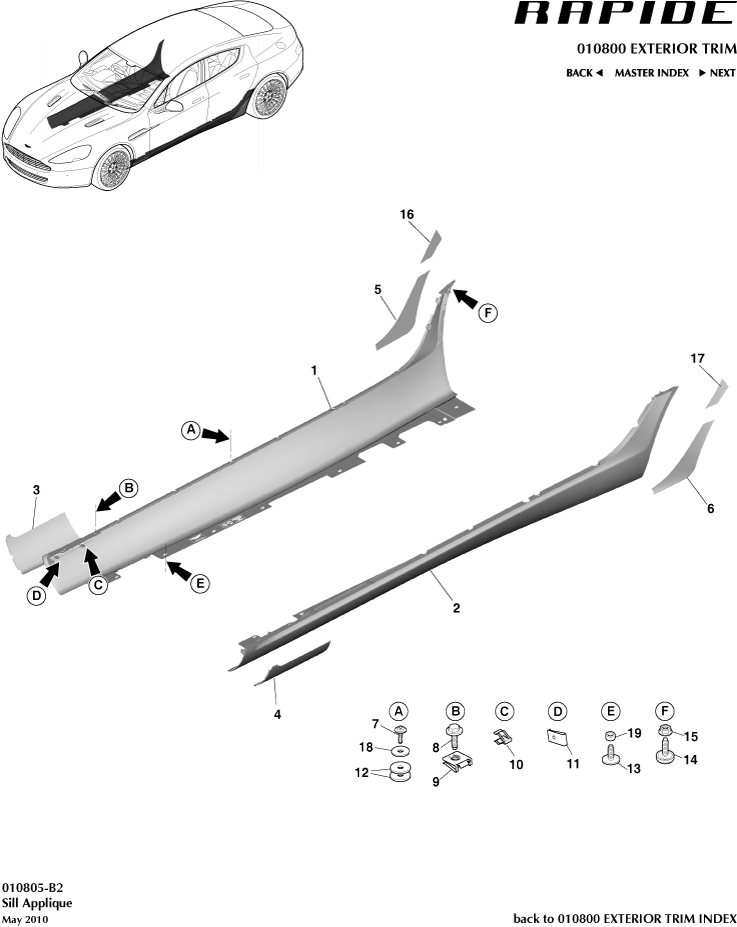

Body Exterior Trim & Ornamentation - Sill Applique of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD4310608AC
SILL APP MLDG RH
12.5MY 		- 1 Enquire
- AD4310609AC
SILL APP MLDG LH
12.5MY 		- 1 Enquire
1 AD4310608AB
SILL APP MLDG RH
- 		- 1 Enquire
2 AD4310609AB
SILL APP MLDG LH
- 		- 1 Enquire
3 AD4310626AB
SILL FRONT TAPE RH
- 		- 1 Enquire
4 AD4310627AB
SILL FRONT TAPE LH
- 		- 1 Enquire
5 AD4310624BB
Sill Rear Tape RH
- 		- 1 Enquire
6 AD4310625BB
SILL REAR TAPE LH
- 		- 1 Enquire
7 701573
Screw and Washer, M4 x 16, Pan Head
7 per sill 		- 14 Enquire
8 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
2 per sill 		- 4 Enquire
9 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
2 per sill
ARRIVING SOON 		- 4 Enquire
10 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
3 per sill 		- 6 Enquire
12 8G336078574AA
Flat Washer, Nylon, 22.2 x 12.9 x 1.5
14 per sill 		- 28 Enquire
13 702514
SCREW M6 x 14 PAN HEAD
7 per sill 		- 14 Enquire
14 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
1 per sill 		- 2 Enquire
15 702944
Nut, M6, Hex Flanged Head
1 per sill 		- 2 Enquire
16 AD4310630BB
REAR QTR TAPE RH
- 		- 1 Enquire
17 AD4310631BB
REAR QTR TAPE LH
- 		- 1 Enquire
18 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK
7 per sill 		- 14 Enquire
19 AD435144AA
SPACER - SILL APPLIQUE
7 per sill. Up to 12.5MY 		- 14 Enquire
