Sound & Heat Control - Noise Insulation, Rear

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Sound & Heat Control - Noise Insulation, Rear

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

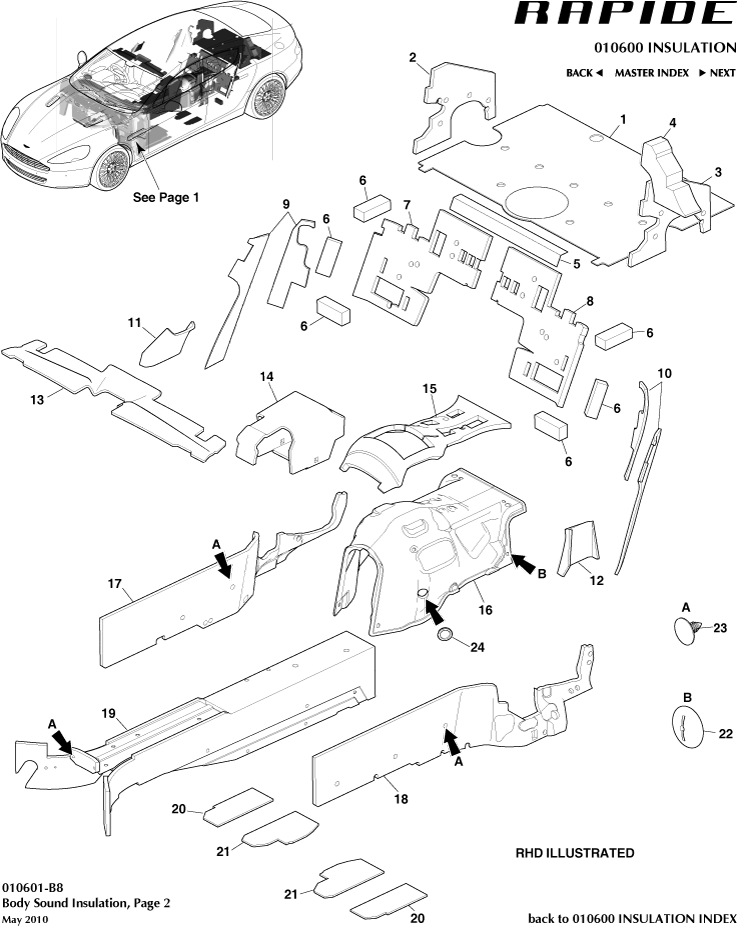

Sound & Heat Control - Noise Insulation, Rear of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- FD437Z309AA
INS TRANS CSE CVR
From 15MY 		- 1 Enquire
- 12520056942
Bushing contact MQS with cable
AMR, 19MY 		- 1 Enquire
- 32105B68FF7
Steering gear, electric
AMR, 19MY 		- 1 Enquire
1 7149200940
Clip
- 		- 1 Enquire
2 12515B6D598
wiring harness, engine grbx. module
- 		- 1 Enquire
3 11538632664
Gasket ring
- 		- 1 Enquire
4 65125B86C91
Head Unit High 5
- 		- 1 Enquire
5 7147398300
Hex Bolt
- 		- 1 Enquire
6 7149450181
Multi-purpose bolt
- 		- 6 Enquire
7 SY9Y484973BB
ETC CARD RDR BKT
- 		- 1 Enquire
8 11155A82637
Bracket oil separator
- 		- 1 Enquire
9 1405B64BC5
Supplem. Owner's Handbook, license texts
- 		- 1 Enquire
10 7129907359
Isa screw with washer
- 		- 1 Enquire
11 61278888387
High-voltage connector panel drive unit
- 		- 1 Enquire
12 7147568538
Clip
- 		- 1 Enquire
13 SY9Y9142XA
FAN STONE PROTECTION
- 		- 1 Enquire
14 AD43016C26AB
INS RR AIR CVR
- 		- 1 Enquire
15 71215A43100
Manufacturer certification
- 		- 1 Enquire
16 AD437Z309AB
GEARBOX NVH SURROUND
Up To 15MY 		- 1 Enquire
17 AD4324926BA
PAD TNL SD RH
- 		- 1 Enquire
18 AD4324927BA
PAD TNL SD LH
- 		- 1 Enquire
19 AD43114B26AC
INSULATION TUNNEL
- 		- 1 Enquire
20 AD43102A86AC
FLR PAN NVH LHS INR
- 		- 2 Enquire
21 AD43102A84AC
FLR PAN NVH RHS INR
- 		- 2 Enquire
23 697654
BOLT-M10 x 85 FLG HD
- 		- 8 Enquire
24 22AA048GP
PNL FNDR FRT HEADLAMP MTG RH
From 15MY 		$50.04 1
