Body Structure - Body Dash & Cowl, 'S' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Body Dash & Cowl, 'S'

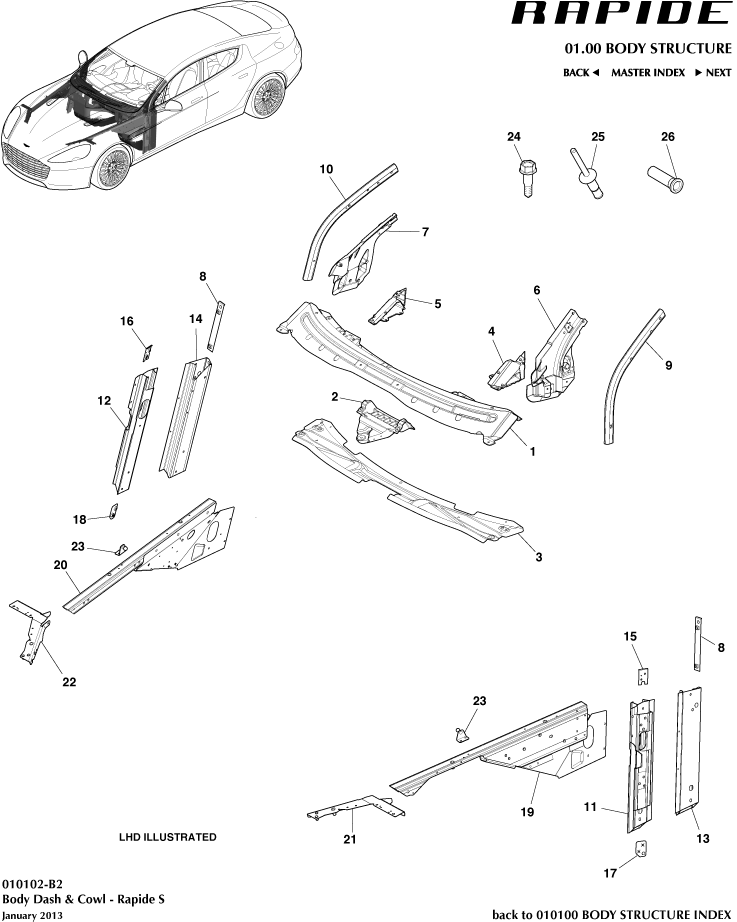

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	SY9Y10154AA	BLT M10X1.50X80.0	SY9Y10154AA BLT M10X1.50X80.0 Structural Cat. A Only	-	1	Enquire
2	GODD4371023AE	Cowl, Reinforcement Casting	GODD4371023AE Cowl, Reinforcement Casting Structural Cat. A Only	-	1	Enquire
3	SY9Y042A75HCW	CNSL PNL CENTRE ASSY	SY9Y042A75HCW CNSL PNL CENTRE ASSY Structural Cat. A Only	-	1	Enquire
4	GOAD43F8875AA	Casting, Plenum Interface LH	GOAD43F8875AA Casting, Plenum Interface LH Structural Cat. A Only	-	1	Enquire
5	GOAD43F8874AA	PLENUM INTERFACE RH	GOAD43F8874AA PLENUM INTERFACE RH Structural Cat. A Only	-	1	Enquire
6	AD43A02571AB	A PILL LWR CST LH	AD43A02571AB A PILL LWR CST LH Structural Cat. A Only	-	1	Enquire
7	AD43A02570AB	A PILL LWR CST RH	AD43A02570AB A PILL LWR CST RH Structural Cat. A Only	-	1	Enquire
8	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A Only	-	2	Enquire
9	GOAD43F02527AC	REINF FRT BDY PLR LH	GOAD43F02527AC REINF FRT BDY PLR LH Structural Cat. A Only	-	1	Enquire
10	GOAD43F02526AC	REINF FRT BDY PLR RH	GOAD43F02526AC REINF FRT BDY PLR RH Structural Cat. A Only	-	1	Enquire
11	GOAD43F02661AA	PLR FRT BDY LWR FRT LH	GOAD43F02661AA PLR FRT BDY LWR FRT LH Structural Cat. A Only	-	1	Enquire
12	GOAD43F02660AA	PLR FRT BDY LWR FRT RH	GOAD43F02660AA PLR FRT BDY LWR FRT RH Structural Cat. A Only	-	1	Enquire
13	GOAD43F02663AA	Pillar, External Front Body Lower LH	GOAD43F02663AA Pillar, External Front Body Lower LH Structural Cat. A Only	-	1	Enquire
14	GOAD43F02662AA	EXT FRT BDY PLR RH	GOAD43F02662AA EXT FRT BDY PLR RH Structural Cat. A Only	-	1	Enquire
15	34322333206	Hose clamp	34322333206 Hose clamp Structural Cat. A Only	-	1	Enquire
16	AD43F71490AA	Nutplate, A Post Hinge Upper RH	AD43F71490AA Nutplate, A Post Hinge Upper RH Structural Cat. A Only	-	1	Enquire
17	22AB326GP	TAILGATE COOLING AIR DUCT RH	22AB326GP TAILGATE COOLING AIR DUCT RH Structural Cat. A Only	-	1	Enquire
18	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural Cat. A Only	-	1	Enquire
19	DD4316B247AA	FNDR F UP ASY LH SRV	DD4316B247AA FNDR F UP ASY LH SRV Service Assembly,Structural Cat. A Only	-	1	Enquire
20	DD4316B246AA	FNDR F UP ASSY SRV	DD4316B246AA FNDR F UP ASSY SRV Service Assembly,Structural Cat. A Only	-	1	Enquire
21	DG4316431AA	Reinforcement, Hood Striker Plate, LH	DG4316431AA Reinforcement, Hood Striker Plate, LH Structural Cat. A Only	-	1	Enquire
22	DG4316430AA	Reinforcement, Hood Striker Plate, RH	DG4316430AA Reinforcement, Hood Striker Plate, RH Structural Cat. A Only	-	1	Enquire
23	DG4318178BA	Bracket, Gas Damper Mounting	DG4318178BA Bracket, Gas Damper Mounting Structural Cat. A Only	-	2	Enquire
24	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	4	Enquire
25	18305A9A289	RP petrol particulate filter w/ fr. pipe	18305A9A289 RP petrol particulate filter w/ fr. pipe -	-	A/R	Enquire
26	GOAD43F025B06AB	Sleeve, Front Body Pillar Tub Upper	GOAD43F025B06AB Sleeve, Front Body Pillar Tub Upper -	-	4	Enquire
