Front Bumper Structure, 'S' Fed, Gcc, China

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Front Bumper Structure, 'S' Fed, GCC, China

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

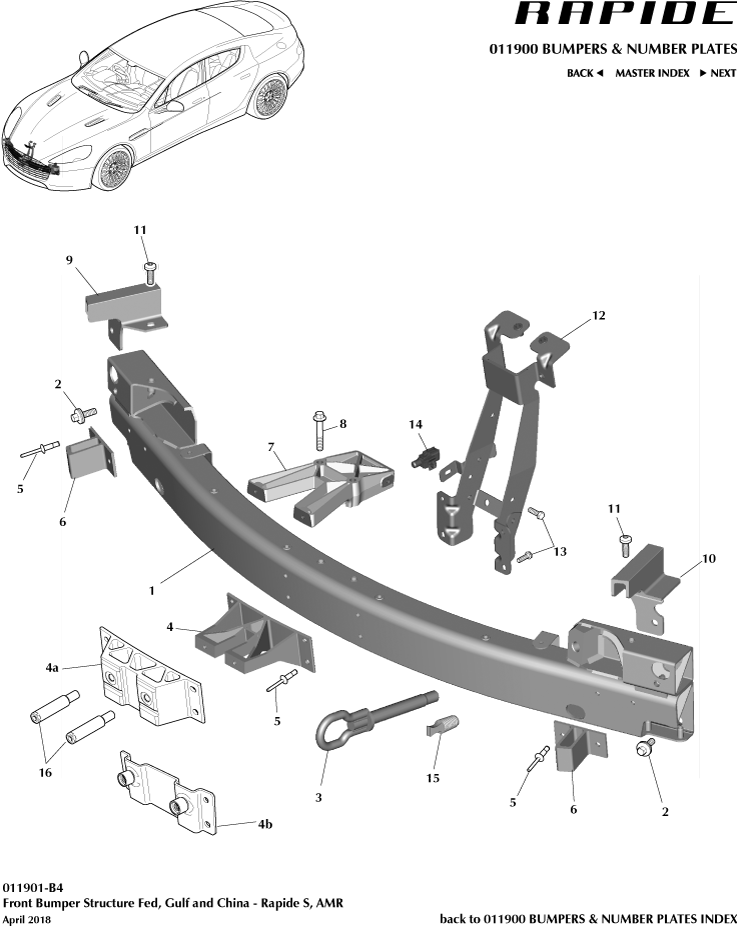

Front Bumper Structure, 'S' Fed, GCC, China of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DD4317757CB
BUMPER BM FRT
From VIN F06207 		- 1 Enquire
- CD3317B804BA
TOWING EYE-M16X 2-G
See SA-01-0247V2, RH Thread 		- 1 Enquire
1 DD4317757CA
BUMPER BM FRT
Up to VIN F06206. See SA-01-0247V2 		- 1 Enquire
2 703155
SCREW/WASHER M8x25 CHROME FREE
- 		- 6 Enquire
3 CD3317B804AC
Towing Eye
See SA-01-0247V2, LH Thread 		- 1 Enquire
4 DD4317E952AB
FRT BUMPER OVERRIDER
- 		- 1 Enquire
4a DD4317E952BB
FRT BUMPER OVERRIDER
Federal 'S' 		- 1 Enquire
4b SY9Y48003CA
DIFF ACCESS HATCH LH
Federal, AMR 		- 1 Enquire
5 6G3368676AC
Rivet Structural 6.5 x 14, Blind
- 		- 8 Enquire
6 DG4317E898BA
Isolator, Front Bumper Outboard Lower
- 		- 2 Enquire
7 DD4317E953AA
FRT BUMPER OVERRIDER
- 		- 1 Enquire
8 W500113S442
BOLT M8 X 50
- 		- 2 Enquire
9 DG4317E936BB
Insert, Front Bumper Isolator, RH
- 		- 1 Enquire
10 DG4317E937BB
Insert, Front Bumper Isolator, LH
- 		- 1 Enquire
12 CD333804AC
Bracket, Bonnet Latch Mounting
-
ARRIVING SOON 		- 1 Enquire
13 700607
Screw Hex Flange Head M6 x 16mm
- 		- 6 Enquire
14 7G3319E642AA
Sensor, Ambient Air
- 		- 1 Enquire
15 DG4317K906AA
Plug & Grip, 15mm
- 		- 1 Enquire
16 6G3316E146DC
Bolster Stud
- 		- 2 Enquire
