Body Exterior Trim & Ornamentation - Rear End Trim

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Body Exterior Trim & Ornamentation - Rear End Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

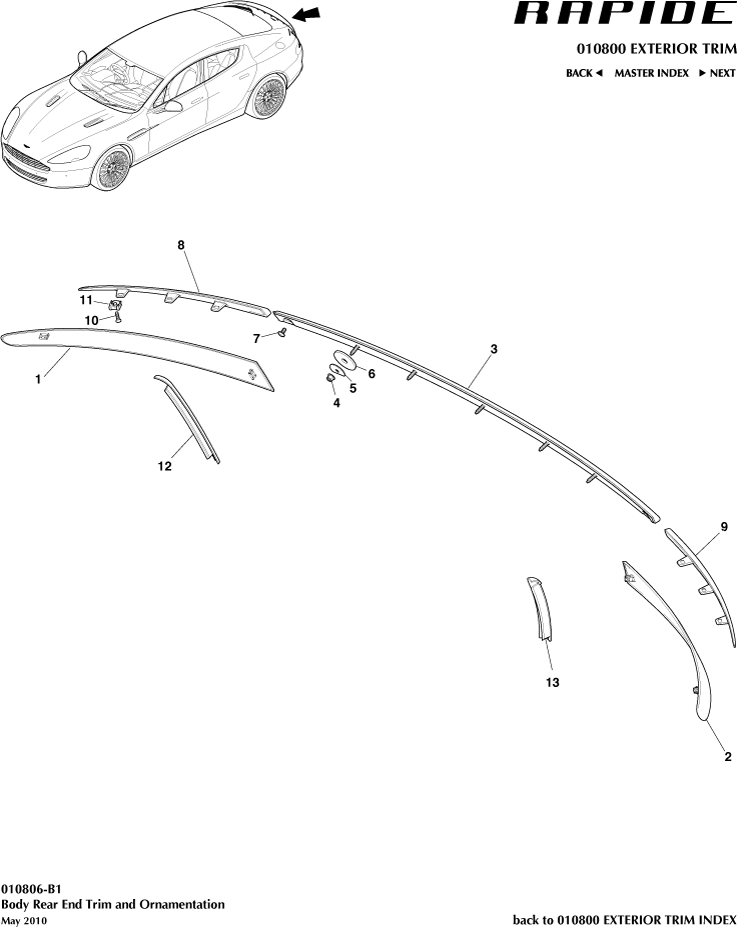

Body Exterior Trim & Ornamentation - Rear End Trim of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3313A538AA
REAR LAMP TRIM FINISHER RH CARBON
Carbon 		- 1 Enquire
- 66202409652
Ultrasonic sensor colour code
19MY, Gloss Black. Must be painted locally; use 4G43-13A538-CB 		- 1 Enquire
- CD3313A539AA
REAR LAMP TRIM FINISHER LH CARBON
Carbon 		- 1 Enquire
- 1405B569F3
Booklet RR21, RR22
19MY, Gloss Black. Must be painted locally; use 4G43-13A539-CB 		- 1 Enquire
- KD4313554AA
DECKLID FINISHER CTR
19MY, AMR 		- 1 Enquire
- KD4313555AA
DECKLID FINISHER RH
19MY, AMR 		- 1 Enquire
- KD4313556AA
DECKLID FINISHER LH
19MY. AMR 		- 1 Enquire
1 52102183075
Headrest kit, Bespoke logo
Body Colour 		- 1 Enquire
2 AD4313A539BD
RR LMP TRIM FIN LH
Body Colour 		- 1 Enquire
3 AD4313554AA
DECKLID FINISHER CENTRE
- 		- 1 Enquire
4 703165
NUT M5 HEX FLG PLAS CHROME FREE
- 		- 5 Enquire
5 8D338979AC
WASHER DECKLID FINISHER
- 		- 3 Enquire

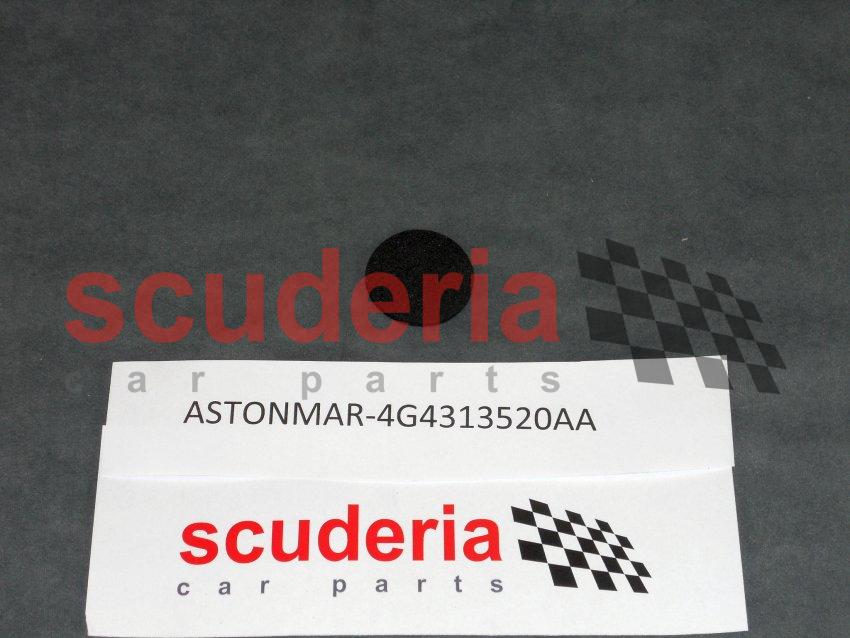

6 4G4313520AA
TAIL LAMP FIX SEAL
- 		- 5 Enquire
7 8D3346058AA
M5x10 PAN HEAD FLANGE TORX SCREW PATCHED
- 		- 2 Enquire
8 AD4313555AA
DECKLID FINISHER RH
- 		- 1 Enquire
9 AD4313556AA
DECKLID FINISHER LH
- 		- 1 Enquire
10 4G43103081BA
Screw, M4 x 16, Countersunk, Stainless Black
3 per finisher 		- 6 Enquire
11 4G43015371AA
CAPTIVE U NUT M4 LOCKING
3 per finisher 		- 6 Enquire
12 AD4313520AA
SEAL-RR LAMP BODY RH
- 		- 1 Enquire
13 AD4313521AA
SEAL-RR LAMP BODY LH
- 		- 1 Enquire

Haven't found what you're looking for?
