Aston Martin Vanquish (2001-2007) - Heat Deflectors and Shields 4

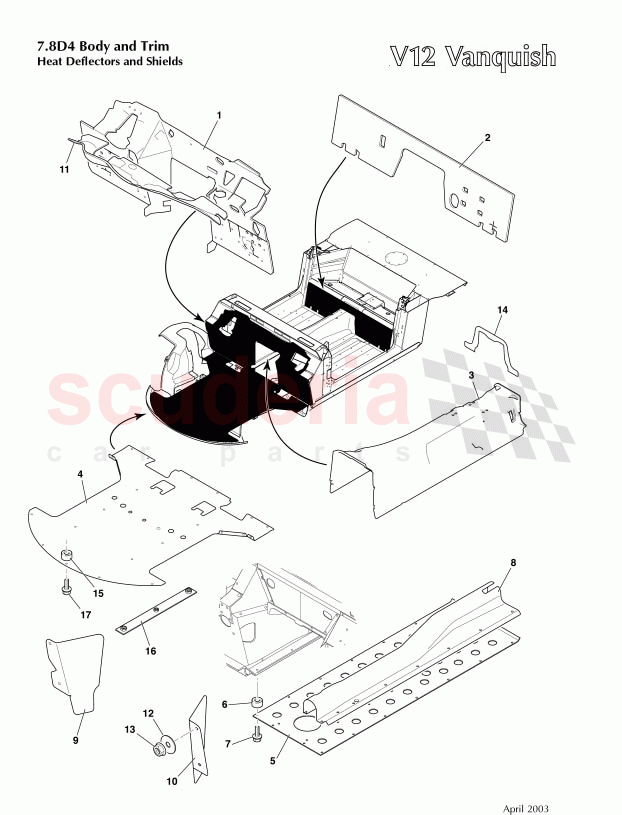

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12104566AE	ASSY FRONT BULKHEAD INSULATION RHD	Enquire	To Order
	1R12104567AE	ASSY FRONT BULKHEAD INSULATION LHD	Enquire	To Order
	4184347	WASHER M8 x 25mm OD HARDENED	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12104324AD	ASSY REAR BULKHEAD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91775	ASSY-TUNNEL INSULATN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R135E209AA	AERO CLOSER PANEL - FRONT	Enquire	To Order
	5R1317F018AA	WHEEL TAB RH	Enquire	To Order
	5R1317F017AA	WHEEL TAB-LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12160589AD	TUNNEL SHEAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162658AA	SPACER - TUNNEL SHEAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700260	BOLT M8 x 40 HEX FLG HEAD GRD 10.9	Enquire	To Order
	699527	O RING (DOWTY - 2025084470)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12862743AE	DUCTING TUNNEL LH	Enquire	To Order
	1R12862744AE	DUCTING TUNNEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12104112AB	PROTECTOR HEATSHIELD BULKHEAD FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12104113AB	PROTECTOR HEATSHIELD BULKHEAD FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632498AE	HEATSHIELD-PLENUM RHD/LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703129	Washer Large OD M12 Chrome Free	Enquire	To Order
	4184347	WASHER M8 x 25mm OD HARDENED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12104310AA	PATCH - TUNNEL TO REAR BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162704AA	SPACER-AERO PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12105287AB	Service foam repair kit, tunnel insulation	Enquire	To Order
	1R12105286AB	SERVICE PATCH KIT TUNNEL INSULATION	Enquire	To Order
	699297	SCREW M4 X 16 FLAT CSK 8	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12224068AB	ASSY - REINF REAR FRAME	Enquire	To Order
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12104566AE	ASSY FRONT BULKHEAD INSULATION RHD	1R12104566AE ASSY FRONT BULKHEAD INSULATION RHD RHD	-	1	Enquire
1	1R12104567AE	ASSY FRONT BULKHEAD INSULATION LHD	1R12104567AE ASSY FRONT BULKHEAD INSULATION LHD LHD	-	1	Enquire
1	4184347	WASHER M8 x 25mm OD HARDENED	4184347 WASHER M8 x 25mm OD HARDENED	-	4	Enquire
1	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	4	Enquire
2	1R12104324AD	ASSY REAR BULKHEAD INSULATION	1R12104324AD ASSY REAR BULKHEAD INSULATION	-	1	Enquire
3	91775	ASSY-TUNNEL INSULATN	91775 ASSY-TUNNEL INSULATN	-	1	Enquire
4	5R135E209AA	AERO CLOSER PANEL - FRONT	5R135E209AA AERO CLOSER PANEL - FRONT Vanquish S From (V) 501506	-	1	Enquire
4	5R1317F018AA	WHEEL TAB RH	5R1317F018AA WHEEL TAB RH Vanquish S From (V) 501506	-	1	Enquire
4	5R1317F017AA	WHEEL TAB-LH	5R1317F017AA WHEEL TAB-LH Vanquish S From (V) 501506	-	1	Enquire
4	1R12181950AH	AERO CLOSER PNL FRT	1R12181950AH AERO CLOSER PNL FRT	-	1	Enquire
5	1R12160589AD	TUNNEL SHEAR PANEL	1R12160589AD TUNNEL SHEAR PANEL	-	1	Enquire
6	1R12162658AA	SPACER - TUNNEL SHEAR PANEL	1R12162658AA SPACER - TUNNEL SHEAR PANEL	-	14	Enquire
7	700260	BOLT M8 x 40 HEX FLG HEAD GRD 10.9	700260 BOLT M8 x 40 HEX FLG HEAD GRD 10.9	-	14	Enquire
7	699527	O RING (DOWTY - 2025084470)	699527 O RING (DOWTY - 2025084470)	-	14	Enquire
8	1R12862743AE	DUCTING TUNNEL LH	1R12862743AE DUCTING TUNNEL LH	-	1	Enquire
8	1R12862744AE	DUCTING TUNNEL RH	1R12862744AE DUCTING TUNNEL RH	-	1	Enquire
9	1R12104112AB	PROTECTOR HEATSHIELD BULKHEAD FRONT	1R12104112AB PROTECTOR HEATSHIELD BULKHEAD FRONT	-	1	Enquire
10	1R12104113AB	PROTECTOR HEATSHIELD BULKHEAD FRONT	1R12104113AB PROTECTOR HEATSHIELD BULKHEAD FRONT	-	1	Enquire
11	1R12632498AE	HEATSHIELD-PLENUM RHD/LHD	1R12632498AE HEATSHIELD-PLENUM RHD/LHD	-	1	Enquire
12	703129	Washer Large OD M12 Chrome Free	703129 Washer Large OD M12 Chrome Free	-	1	Enquire
12	4184347	WASHER M8 x 25mm OD HARDENED	4184347 WASHER M8 x 25mm OD HARDENED	-	2	Enquire
13	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	4	Enquire
14	1R12104310AA	PATCH - TUNNEL TO REAR BULKHEAD	1R12104310AA PATCH - TUNNEL TO REAR BULKHEAD	-	1	Enquire
15	1R12162704AA	SPACER-AERO PANEL	1R12162704AA SPACER-AERO PANEL	-	2	Enquire
16	1R12105287AB	Service foam repair kit, tunnel insulation	1R12105287AB Service foam repair kit, tunnel insulation	-	1	Enquire
16	1R12105286AB	SERVICE PATCH KIT TUNNEL INSULATION	1R12105286AB SERVICE PATCH KIT TUNNEL INSULATION	-	1	Enquire
16	699297	SCREW M4 X 16 FLAT CSK 8	699297 SCREW M4 X 16 FLAT CSK 8	-	1	Enquire
16	700247	SCREW &WSHR M6x20	700247 SCREW &WSHR M6x20	-	15	Enquire
16	1R12182014AA	NUTPLATE AERO CLOSER PANEL	1R12182014AA NUTPLATE AERO CLOSER PANEL	-	2	Enquire
16	1R12104326AB	Self adhesive patch	1R12104326AB Self adhesive patch	-	9	Enquire
17	1R12224068AB	ASSY - REINF REAR FRAME	1R12224068AB ASSY - REINF REAR FRAME	-	1	Enquire
17	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	17	Enquire
