Front Wings of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Front Wings

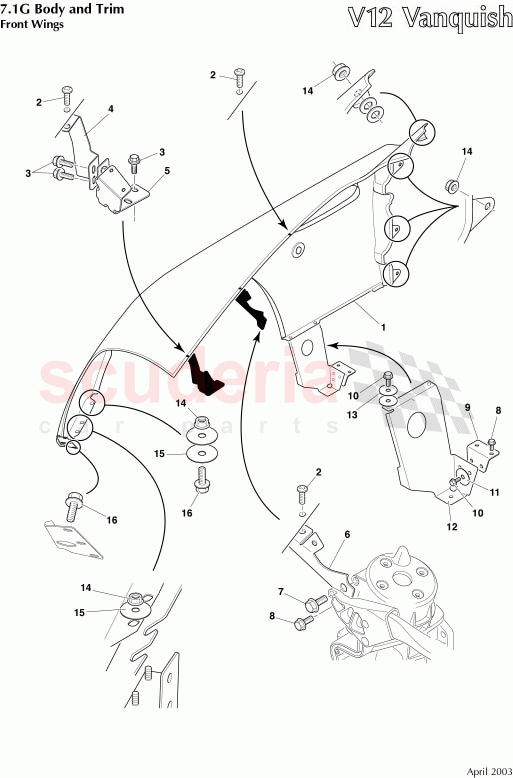

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12631026AK	ASSY FRT FENDER RH	Enquire	To Order
	1R12631027AK	ASSY FRT FENDER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13FA0036AA	Screw and Washer M6x28 Pan hd	Enquire	To Order
	703143	BUTTON TORX WASHER CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632224AF	BRACKET-FENDER FRONT SUPPORT RH	Enquire	To Order
	1R12632225AF	BRACKET-FENDER FRONT SUPPORT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632476AD	BRACKET - STRUCTURE TO FENDER RH	Enquire	To Order
	1R12632477AD	BRACKET - STRUCTURE TO FENDER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632222AB	BRACKET-FENDER CENTER SUPPORT RH	Enquire	To Order
	1R12632223AB	BRACKET-FENDER CENTER SUPPORT LH	Enquire	To Order
	697781	NUT M6 FLG	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700224	SCREW M8x30 HEX FLG8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634764AA	BRACKET B POST FENDER & SILL RH	Enquire	To Order
	1R12634765AA	BRACKET 'B' POST FENDER & SILL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634739AB	C WASHER OD 20 X 6.4 SLOT X 1.0	Enquire	To Order
	1R12635201AA	C WASHER OD 20 X 6.4 SLOT X 1.5	Enquire	To Order
	1R12635202AA	C WASHER OD 20 x 6.4 SLOT x 2.0	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12631204AG	BRACKET - FRONT FENDER & SILL RH	Enquire	To Order
	1R12631205AG	BRACKET - FRONT FENDER & SILL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831338AB	MESH-SIDE STRAKE RH	Enquire	To Order
	1R12831339AB	MESH-SIDE STRAKE LH	Enquire	To Order
	1R12632221AC	BRACKET-APRON SUPPORT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12631026AK	ASSY FRT FENDER RH	1R12631026AK ASSY FRT FENDER RH	-	1	Enquire
1	1R12631027AK	ASSY FRT FENDER LH	1R12631027AK ASSY FRT FENDER LH	-	1	Enquire
2	5R13FA0036AA	Screw and Washer M6x28 Pan hd	5R13FA0036AA Screw and Washer M6x28 Pan hd Vanquish S From (V) 501506	-	6	Enquire
2	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE Up to (V) 501505	-	6	Enquire
3	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	12	Enquire
4	1R12632224AF	BRACKET-FENDER FRONT SUPPORT RH	1R12632224AF BRACKET-FENDER FRONT SUPPORT RH	-	1	Enquire
4	1R12632225AF	BRACKET-FENDER FRONT SUPPORT LH	1R12632225AF BRACKET-FENDER FRONT SUPPORT LH	-	1	Enquire
5	1R12632476AD	BRACKET - STRUCTURE TO FENDER RH	1R12632476AD BRACKET - STRUCTURE TO FENDER RH	-	1	Enquire
5	1R12632477AD	BRACKET - STRUCTURE TO FENDER LH	1R12632477AD BRACKET - STRUCTURE TO FENDER LH	-	1	Enquire
6	1R12632222AB	BRACKET-FENDER CENTER SUPPORT RH	1R12632222AB BRACKET-FENDER CENTER SUPPORT RH	-	1	Enquire
6	1R12632223AB	BRACKET-FENDER CENTER SUPPORT LH	1R12632223AB BRACKET-FENDER CENTER SUPPORT LH	-	1	Enquire
6	697781	NUT M6 FLG	697781 NUT M6 FLG	-	14	Enquire
6	697819	SCREW PAN TORX M6x20 PIL (BLACK)	697819 SCREW PAN TORX M6x20 PIL (BLACK)	-	6	Enquire
7	700224	SCREW M8x30 HEX FLG8	700224 SCREW M8x30 HEX FLG8	-	2	Enquire
8	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	8	Enquire
9	1R12634764AA	BRACKET B POST FENDER & SILL RH	1R12634764AA BRACKET B POST FENDER & SILL RH	-	1	Enquire
9	1R12634765AA	BRACKET 'B' POST FENDER & SILL LH	1R12634765AA BRACKET 'B' POST FENDER & SILL LH	-	1	Enquire
10	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	4	Enquire
11	1R12634739AB	C WASHER OD 20 X 6.4 SLOT X 1.0	1R12634739AB C WASHER OD 20 X 6.4 SLOT X 1.0	-	13	Enquire
11	1R12635201AA	C WASHER OD 20 X 6.4 SLOT X 1.5	1R12635201AA C WASHER OD 20 X 6.4 SLOT X 1.5	-	3	Enquire
11	1R12635202AA	C WASHER OD 20 x 6.4 SLOT x 2.0	1R12635202AA C WASHER OD 20 x 6.4 SLOT x 2.0	-	3	Enquire
11	1R12635203AA	C WASHER OD 20 X 6.4 SLOT X 2.5	1R12635203AA C WASHER OD 20 X 6.4 SLOT X 2.5	-	3	Enquire
11	1R12635260AA	C WASHER OD 20 X 6.4 SLOT X 0.5	1R12635260AA C WASHER OD 20 X 6.4 SLOT X 0.5	-	3	Enquire
11	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	-	4	Enquire
12	1R12631204AG	BRACKET - FRONT FENDER & SILL RH	1R12631204AG BRACKET - FRONT FENDER & SILL RH	-	1	Enquire
12	1R12631205AG	BRACKET - FRONT FENDER & SILL LH	1R12631205AG BRACKET - FRONT FENDER & SILL LH	-	1	Enquire
13	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	4	Enquire
14	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	8	Enquire
15	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	4	Enquire
16	1R12831338AB	MESH-SIDE STRAKE RH	1R12831338AB MESH-SIDE STRAKE RH	-	1	Enquire
16	1R12831339AB	MESH-SIDE STRAKE LH	1R12831339AB MESH-SIDE STRAKE LH	-	1	Enquire
16	1R12632221AC	BRACKET-APRON SUPPORT	1R12632221AC BRACKET-APRON SUPPORT	-	2	Enquire
16	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	4	Enquire
16	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
16	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	8	Enquire
