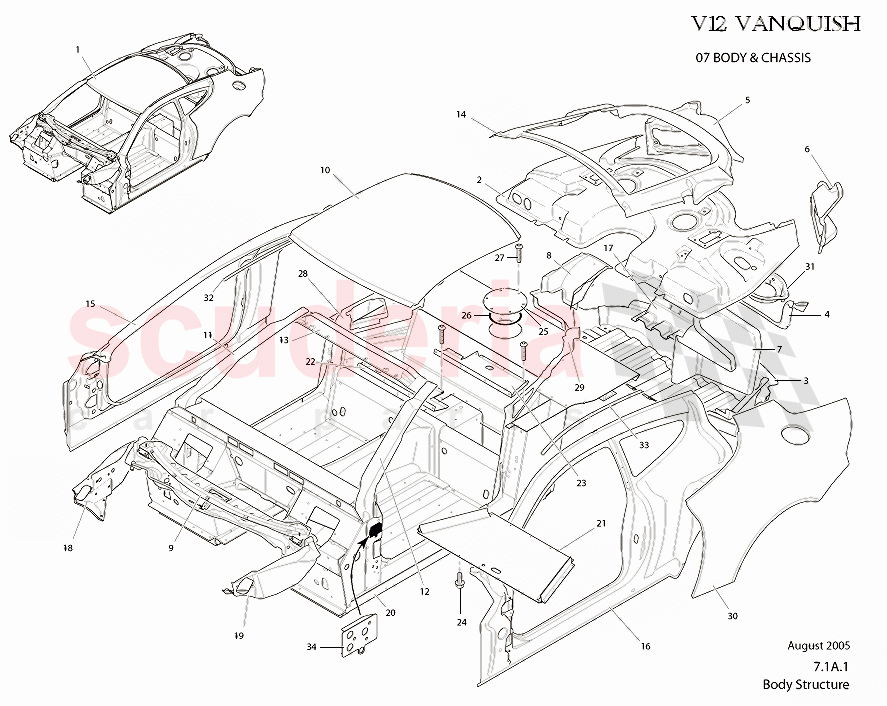

Aston Martin Vanquish (2001-2007) - Body Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R126010372	BODY STRUC ASY- C/W ROOF;RR WINGS; DRS & BT LD. PART IN STOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165668AA	Upper cargo deck assy	Enquire	To Order
	3R12165605AA	UPPER CARGO DECK	Enquire	To Order
	6R13165668AA	Upper cargo deck assy	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R1347000AA	ASSY - LOWER CARGO DECK - CANADIAN	Enquire	To Order
	1R12162965AH	ASY LOWER CARGO DECK	Enquire	To Order
	3R12165879AB	INFILL - LOWER CARGO DECK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12161055AG	SEAL CARRIER-UCD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165690AA	LAMP REINFORCEMENT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165691AA	LAMP REINFORCEMENT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161056AC	FILLER PIPE COVER - TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162371AE	BRACE - REAR SCREEN SURROUND	Enquire	To Order
	4R12162371AA	Brace, rear screen surround	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632310AP	ASSY - PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12212100AC	A PILLAR REINF RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12212101AC	A PILLAR REINF LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1342200AA	Surround assy, rear screen (rework)	Enquire	To Order
	1R12210663AF	REINFORCEMENT-FRONT HEADER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12213357AG	ASSY REAR SCREEN SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630092AT	PANEL - BODY SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630091AT	PANEL-BODYSIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162366AB	Brace, lower cargo deck, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632310AP	ASSY - PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632310AP	ASSY - PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165714AA	Bonded monocoque assy	Enquire	To Order
	3R12165714AC	Bonded monocoque assy	Enquire	To Order
	1R12160332AJ	ASSY - BONDED MONOCOQUE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12160584AF	ASSY-TANK SHEAR PNL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160590AF	PANEL-UNDERSEAT SHEAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160591AF	PANEL-UNDERSEAT SHEAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700170	Screw, flg, M8 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161115AB	Panel, tank sender access	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161114AA	SEAL - TANK SENDER ACCESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630288AK	PANEL REAR QUARTER INNER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630289AK	PANEL REAR QUARTER INNER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12631029AC	PANEL-REAR QUARTER OUTER ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630090AF	PANEL - REAR QUARTER OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12784198AD	MLDING ROOF SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12784199AD	MOULDING ROOF SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704076	ADHESIVE 7222/9323	Enquire	To Order
	699283	ADHESIVE - ASHLAND PLIOGRIP 7770/660	Enquire	To Order
	704496	PAINT-STORM BLACK TINTED CLEAR-2 Ltrs	Enquire	To Order

...and 12 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R126010372	BODY STRUC ASY- C/W ROOF;RR WINGS; DRS & BT LD. PART IN STOCK	1R126010372 BODY STRUC ASY- C/W ROOF;RR WINGS; DRS & BT LD. PART IN STOCK C/W roof, rr wings, doors & boot lid, Structural Cat. A only	-	1	Enquire
2	3R12165668AA	Upper cargo deck assy	3R12165668AA Upper cargo deck assy From (V) 500516-21+526on, up to (V) 501285, Structural Cat. A only	-	1	Enquire
2	3R12165605AA	UPPER CARGO DECK	3R12165605AA UPPER CARGO DECK Up to (V) 500515+500522-525, S tructural Cat. A only	-	1	Enquire
2	6R13165668AA	Upper cargo deck assy	6R13165668AA Upper cargo deck assy 06MY from (V) 501949, Structural Cat. A only	-	1	Enquire
2	6R13165605AA	UPPER CARGO DECK	6R13165605AA UPPER CARGO DECK From (V) 500286, Structural Cat. A only	-	1	Enquire
3	5R1347000AA	ASSY - LOWER CARGO DECK - CANADIAN	5R1347000AA ASSY - LOWER CARGO DECK - CANADIAN Vanquish S from (V) 501506, Structural Cat. A only	-	1	Enquire
3	1R12162965AH	ASY LOWER CARGO DECK	1R12162965AH ASY LOWER CARGO DECK Structural Cat. A only	-	1	Enquire
3	3R12165879AB	INFILL - LOWER CARGO DECK	3R12165879AB INFILL - LOWER CARGO DECK Structural Cat. A only	-	2	Enquire
3	700414	BLANKING GROMMET 32MM	700414 BLANKING GROMMET 32MM	-	1	Enquire
4	1R12161055AG	SEAL CARRIER-UCD	1R12161055AG SEAL CARRIER-UCD Structural Cat. A only	-	1	Enquire
5	3R12165690AA	LAMP REINFORCEMENT RH	3R12165690AA LAMP REINFORCEMENT RH Structural Cat. A only	-	1	Enquire
6	3R12165691AA	LAMP REINFORCEMENT LH	3R12165691AA LAMP REINFORCEMENT LH Structural Cat. A only	-	1	Enquire
7	1R12161056AC	FILLER PIPE COVER - TRUNK	1R12161056AC FILLER PIPE COVER - TRUNK Structural Cat. A only	-	1	Enquire
8	1R12162371AE	BRACE - REAR SCREEN SURROUND	1R12162371AE BRACE - REAR SCREEN SURROUND Up to (V) 501285, Structural Cat. A only	-	1	Enquire
8	4R12162371AA	Brace, rear screen surround	4R12162371AA Brace, rear screen surround From (V) 501286, Structural Cat. A only	-	1	Enquire
9	1R12632310AP	ASSY - PLENUM CHAMBER	1R12632310AP ASSY - PLENUM CHAMBER Structural Cat. A only	-	1	Enquire
10	1R12634587AA	ASSY ROOF	1R12634587AA ASSY ROOF Vanquish S from (V) 501506, Structural Cat. A only	-	1	Enquire
10	1R12634587AA	ASSY ROOF	1R12634587AA ASSY ROOF Structural Cat. A only	-	1	Enquire
11	1R12212100AC	A PILLAR REINF RH	1R12212100AC A PILLAR REINF RH NSS	-	1	Enquire
12	1R12212101AC	A PILLAR REINF LH	1R12212101AC A PILLAR REINF LH NSS	-	1	Enquire
13	5R1342200AA	Surround assy, rear screen (rework)	5R1342200AA Surround assy, rear screen (rework) Vanquish S from (V) 501506, Structural Cat. A only	-	1	Enquire
13	1R12210663AF	REINFORCEMENT-FRONT HEADER	1R12210663AF REINFORCEMENT-FRONT HEADER Structural Cat. A only	-	1	Enquire
14	1R12213357AG	ASSY REAR SCREEN SURROUND	1R12213357AG ASSY REAR SCREEN SURROUND Structural Cat. A only	-	1	Enquire
15	1R12630092AT	PANEL - BODY SIDE RH	1R12630092AT PANEL - BODY SIDE RH Structural Cat. A only	-	1	Enquire
16	1R12630091AT	PANEL-BODYSIDE LH	1R12630091AT PANEL-BODYSIDE LH Structrual Cat. A only	-	1	Enquire
17	1R12162366AB	Brace, lower cargo deck, rear	1R12162366AB Brace, lower cargo deck, rear Structural Cat. A only	-	1	Enquire
18	1R12632310AP	ASSY - PLENUM CHAMBER	1R12632310AP ASSY - PLENUM CHAMBER Structural Cat. A only	-	1	Enquire
19	1R12632310AP	ASSY - PLENUM CHAMBER	1R12632310AP ASSY - PLENUM CHAMBER Structural Cat. A only	-	1	Enquire
20	3R12165714AA	Bonded monocoque assy	3R12165714AA Bonded monocoque assy From V 500516-21+526 on, up to (V) 500820, Structural Cat. A only	-	1	Enquire
20	3R12165714AC	Bonded monocoque assy	3R12165714AC Bonded monocoque assy From V TBA up to (V) 501400, Structural Cat. A only	-	1	Enquire
20	1R12160332AJ	ASSY - BONDED MONOCOQUE	1R12160332AJ ASSY - BONDED MONOCOQUE Up to V 500515+500522-525, Structural Cat. A only	-	1	Enquire
20	3R12165714AB	Bonded monocoque assy	3R12165714AB Bonded monocoque assy From V 500821 up to TBA, Structural Cat. A only	-	1	Enquire
20	3R12165714AD	Bonded monocoque assy	3R12165714AD Bonded monocoque assy From V 501401, Structural Cat. A only	-	1	Enquire
21	1R12160584AF	ASSY-TANK SHEAR PNL	1R12160584AF ASSY-TANK SHEAR PNL Structural Cat. A only	-	1	Enquire
22	1R12160590AF	PANEL-UNDERSEAT SHEAR RH	1R12160590AF PANEL-UNDERSEAT SHEAR RH Structural Cat. A only	-	1	Enquire
23	1R12160591AF	PANEL-UNDERSEAT SHEAR LH	1R12160591AF PANEL-UNDERSEAT SHEAR LH Structural Cat. A only	-	1	Enquire
24	700170	Screw, flg, M8 x 16	700170 Screw, flg, M8 x 16 Structural Cat. A only	-	40	Enquire
25	1R12161115AB	Panel, tank sender access	1R12161115AB Panel, tank sender access	-	1	Enquire
26	1R12161114AA	SEAL - TANK SENDER ACCESS	1R12161114AA SEAL - TANK SENDER ACCESS	-	1	Enquire
27	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	6	Enquire
28	1R12630288AK	PANEL REAR QUARTER INNER RH	1R12630288AK PANEL REAR QUARTER INNER RH Structural Cat. A only	-	1	Enquire
29	1R12630289AK	PANEL REAR QUARTER INNER LH	1R12630289AK PANEL REAR QUARTER INNER LH Structural Cat. A only	-	1	Enquire
30	1R12631029AC	PANEL-REAR QUARTER OUTER ASSY LH	1R12631029AC PANEL-REAR QUARTER OUTER ASSY LH Structural Cat. A only	-	1	Enquire
31	1R12630090AF	PANEL - REAR QUARTER OUTER RH	1R12630090AF PANEL - REAR QUARTER OUTER RH Structural Cat. A only	-	1	Enquire
32	1R12784198AD	MLDING ROOF SIDE RH	1R12784198AD MLDING ROOF SIDE RH Structural Cat. A only	-	1	Enquire
33	1R12784199AD	MOULDING ROOF SIDE	1R12784199AD MOULDING ROOF SIDE Structural Cat. A only	-	1	Enquire
34	704076	ADHESIVE 7222/9323	704076 ADHESIVE 7222/9323 -Structural aluminium adhesive, Structural Cat. A only	-	1	Enquire
34	699283	ADHESIVE - ASHLAND PLIOGRIP 7770/660	699283 ADHESIVE - ASHLAND PLIOGRIP 7770/660 -Vanquish crash structure, Structural Cat. A only	-	1	Enquire
34	704496	PAINT-STORM BLACK TINTED CLEAR-2 Ltrs	704496 PAINT-STORM BLACK TINTED CLEAR-2 Ltrs Premixed, 2 ltr minimum order quantity	-	1	Enquire
34	700484	MA300 PLEXUS STRUCTURAL ADHESIVE	700484 MA300 PLEXUS STRUCTURAL ADHESIVE -Can be used for plastic repair	-	1	Enquire
34	700774	BETAMATE 2096 200ml CARTRIDGE	700774 BETAMATE 2096 200ml CARTRIDGE Structural Cat. A only	-	1	Enquire
34	1R12161128AE	NUTPLATE - DOOR HINGE UPPER RH	1R12161128AE NUTPLATE - DOOR HINGE UPPER RH Structural Cat. A only	-	1	Enquire
34	1R12161129AE	NUTPLATE - DOOR HINGE UPPER LH	1R12161129AE NUTPLATE - DOOR HINGE UPPER LH Structural Cat. A only	-	1	Enquire
34	699302	ADHESIVE-BETAMATE 2700	699302 ADHESIVE-BETAMATE 2700 Structural Cat. A only	-	1	Enquire
34	699501	BETAPRIME 5404	699501 BETAPRIME 5404 Structural Cat. A only	-	1	Enquire
34	8D33M11B2502AA	ZYMOL FIELD GLAZE CS1993	8D33M11B2502AA ZYMOL FIELD GLAZE CS1993 -Final finish product	-	1	Enquire
34	8D33M11B24AA	ZMOL WAX Z503	8D33M11B24AA ZMOL WAX Z503 -Final finish product	-	1	Enquire
34	699648	SEALANT-GURIT ESSEX	699648 SEALANT-GURIT ESSEX -Body wipe sealant	-	1	Enquire
34	700474	DOW GS-PRO 750ML FOAM - CAN	700474 DOW GS-PRO 750ML FOAM - CAN -Body cavity foam	-	1	Enquire
34	700784	BETAWIPE VP0 4604	700784 BETAWIPE VP0 4604	-	1	Enquire
34	699500	BETACLEAN 3900	699500 BETACLEAN 3900	-	1	Enquire
