Heat Deflectors and Shields 3 of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Heat Deflectors and Shields 3

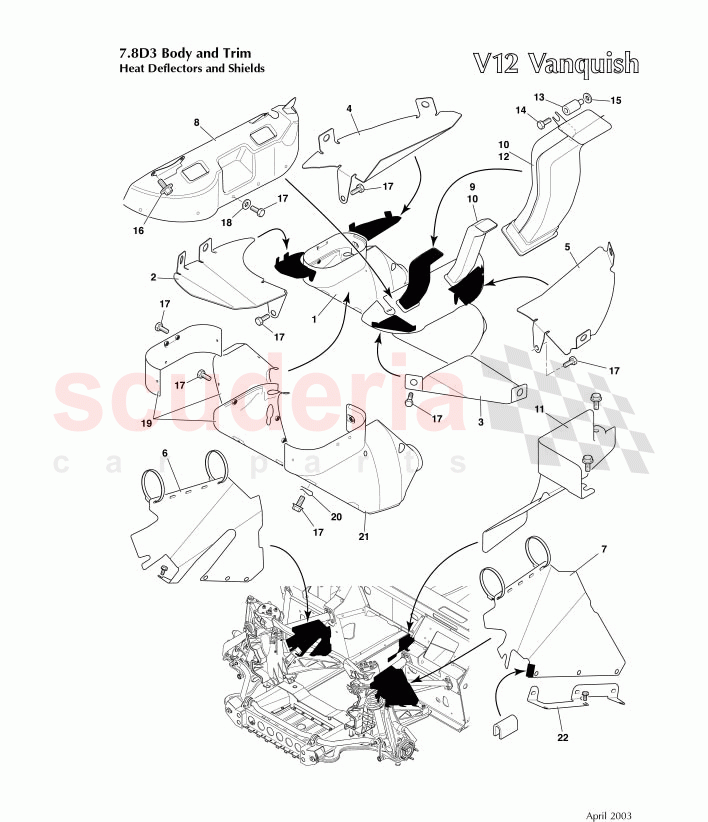

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12863813AB	EXHAUST H/SHIELD LWR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F237AA	ASSY - DEFLECTOR HEAT RH -FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F237BA	ASSY DEFLECTOR HEAT LH - FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F238AA	ASSY - DEFLECTOR HEAT RH - RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F238BA	ASSY -DEFLECTOR HEAT LH -RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136A738AA	HEATSHIELD ENGINE BAY RH RHD	Enquire	To Order
	5R136A738BA	Heatshield, engine bay, RH	Enquire	To Order
	1R12863722AC	HEATSHIELD - ENG BAY RHS - RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12863723AC	HEATSHIELD - ENG BAY LHS - RHD	Enquire	To Order
	1R12863721AC	HEATSHIELD - ENG BAY LHS - LHD	Enquire	To Order
	1R12863810AB	EXH H/SHLD UPR RH RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12863809AB	EXH H/SHIELD UPRLH F	Enquire	To Order
	1R12864036AB	CHIMNEY HEATSHIELD RH REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12864037AB	CHIMNEY HEATSHIELD LH REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12862742AA	SEAL-CHIMNEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372683AD	H/SHIELD-F/BOX LHD	Enquire	To Order
	1R12864034AB	CHIMNEY HEATSHIELD RH FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12864035AB	CHIMNEY HEATSHIELD LH FRONT	Enquire	To Order
	694891	P-CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699688	ISOLATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695857	SCREW M6 x 8 CAP SKT GRD 12.9 ZINC/PASS BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699706	SHAKE PROOF WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703217	Bolt, M6 x 12 st stl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F254AA	Heatshield, exhaust, lower inner, RH	Enquire	To Order
	699733	WASHER M6 ST STL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F255AA	Heatshield, exhaust, lower inner, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R135F254BA	Heatshield, exhaust, outer, RH	Enquire	To Order
	4R135253AA	Clip	Enquire	To Order
	699736	Clip, Exhaust Heatshields	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12864320AA	BRACKET - HEATSHIELD ENGINE BAY	Enquire	To Order
	4R135F255BA	Heatshield, exhaust, outer, LH	Enquire	To Order
	699681	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692000	CLIP 1 3/4-2 1/4	Enquire	To Order
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12863814AB	EXHAUST H/SHIELD LWR	1R12863814AB EXHAUST H/SHIELD LWR	-	1	Enquire
1	1R12863813AB	EXHAUST H/SHIELD LWR	1R12863813AB EXHAUST H/SHIELD LWR	-	1	Enquire
2	4R135F237AA	ASSY - DEFLECTOR HEAT RH -FRT	4R135F237AA ASSY - DEFLECTOR HEAT RH -FRT	-	1	Enquire
3	4R135F237BA	ASSY DEFLECTOR HEAT LH - FRT	4R135F237BA ASSY DEFLECTOR HEAT LH - FRT	-	1	Enquire
4	4R135F238AA	ASSY - DEFLECTOR HEAT RH - RR	4R135F238AA ASSY - DEFLECTOR HEAT RH - RR	-	1	Enquire
5	4R135F238BA	ASSY -DEFLECTOR HEAT LH -RR	4R135F238BA ASSY -DEFLECTOR HEAT LH -RR	-	1	Enquire
6	5R136A738AA	HEATSHIELD ENGINE BAY RH RHD	5R136A738AA HEATSHIELD ENGINE BAY RH RHD RHD Vanquish S From (V) 501506	-	1	Enquire
6	5R136A738BA	Heatshield, engine bay, RH	5R136A738BA Heatshield, engine bay, RH LHD Vanquish S From (V) 501506	-	1	Enquire
6	1R12863722AC	HEATSHIELD - ENG BAY RHS - RHD	1R12863722AC HEATSHIELD - ENG BAY RHS - RHD RHD	-	1	Enquire
6	1R12863720AC	HEATSHIELD - ENG BAY RHS - LHD	1R12863720AC HEATSHIELD - ENG BAY RHS - LHD LHD	-	1	Enquire
7	1R12863723AC	HEATSHIELD - ENG BAY LHS - RHD	1R12863723AC HEATSHIELD - ENG BAY LHS - RHD RHD	-	1	Enquire
7	1R12863721AC	HEATSHIELD - ENG BAY LHS - LHD	1R12863721AC HEATSHIELD - ENG BAY LHS - LHD LHD	-	1	Enquire
7	1R12863810AB	EXH H/SHLD UPR RH RR	1R12863810AB EXH H/SHLD UPR RH RR	-	1	Enquire
8	1R12863809AB	EXH H/SHIELD UPRLH F	1R12863809AB EXH H/SHIELD UPRLH F	-	1	Enquire
8	1R12864036AB	CHIMNEY HEATSHIELD RH REAR	1R12864036AB CHIMNEY HEATSHIELD RH REAR	-	1	Enquire
9	1R12864037AB	CHIMNEY HEATSHIELD LH REAR	1R12864037AB CHIMNEY HEATSHIELD LH REAR	-	1	Enquire
10	1R12862742AA	SEAL-CHIMNEY	1R12862742AA SEAL-CHIMNEY	-	4	Enquire
11	1R12372683AD	H/SHIELD-F/BOX LHD	1R12372683AD H/SHIELD-F/BOX LHD LHD	-	1	Enquire
11	1R12864034AB	CHIMNEY HEATSHIELD RH FRONT	1R12864034AB CHIMNEY HEATSHIELD RH FRONT	-	1	Enquire
12	1R12864035AB	CHIMNEY HEATSHIELD LH FRONT	1R12864035AB CHIMNEY HEATSHIELD LH FRONT	-	1	Enquire
12	694891	P-CLIP	694891 P-CLIP	-	4	Enquire
13	699688	ISOLATOR	699688 ISOLATOR	-	4	Enquire
14	695857	SCREW M6 x 8 CAP SKT GRD 12.9 ZINC/PASS BLACK	695857 SCREW M6 x 8 CAP SKT GRD 12.9 ZINC/PASS BLACK	-	4	Enquire
15	699706	SHAKE PROOF WASHER	699706 SHAKE PROOF WASHER	-	4	Enquire
16	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
17	703217	Bolt, M6 x 12 st stl	703217 Bolt, M6 x 12 st stl	-	18	Enquire
18	4R135F254AA	Heatshield, exhaust, lower inner, RH	4R135F254AA Heatshield, exhaust, lower inner, RH	-	1	Enquire
18	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL	-	18	Enquire
19	4R135F255AA	Heatshield, exhaust, lower inner, LH	4R135F255AA Heatshield, exhaust, lower inner, LH	-	1	Enquire
20	4R135F254BA	Heatshield, exhaust, outer, RH	4R135F254BA Heatshield, exhaust, outer, RH	-	1	Enquire
20	4R135253AA	Clip	4R135253AA Clip	-	1	Enquire
20	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	-	18	Enquire
21	1R12864320AA	BRACKET - HEATSHIELD ENGINE BAY	1R12864320AA BRACKET - HEATSHIELD ENGINE BAY	-	1	Enquire
21	4R135F255BA	Heatshield, exhaust, outer, LH	4R135F255BA Heatshield, exhaust, outer, LH	-	1	Enquire
21	699681	WASHER	699681 WASHER	-	4	Enquire
22	692000	CLIP 1 3/4-2 1/4	692000 CLIP 1 3/4-2 1/4 Vanquish S From (V) 501506	-	4	Enquire
22	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Vanquish S From (V) 501506	-	5	Enquire
22	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 Vanquish S From (V) 501506	-	6	Enquire
22	1R12864321AA	BRACKET - HEATSHIELD ENGINE BAY	1R12864321AA BRACKET - HEATSHIELD ENGINE BAY	-	1	Enquire
