Front Impact Structure of Aston Martin Aston Martin Vanquish (2001-2007)

View All

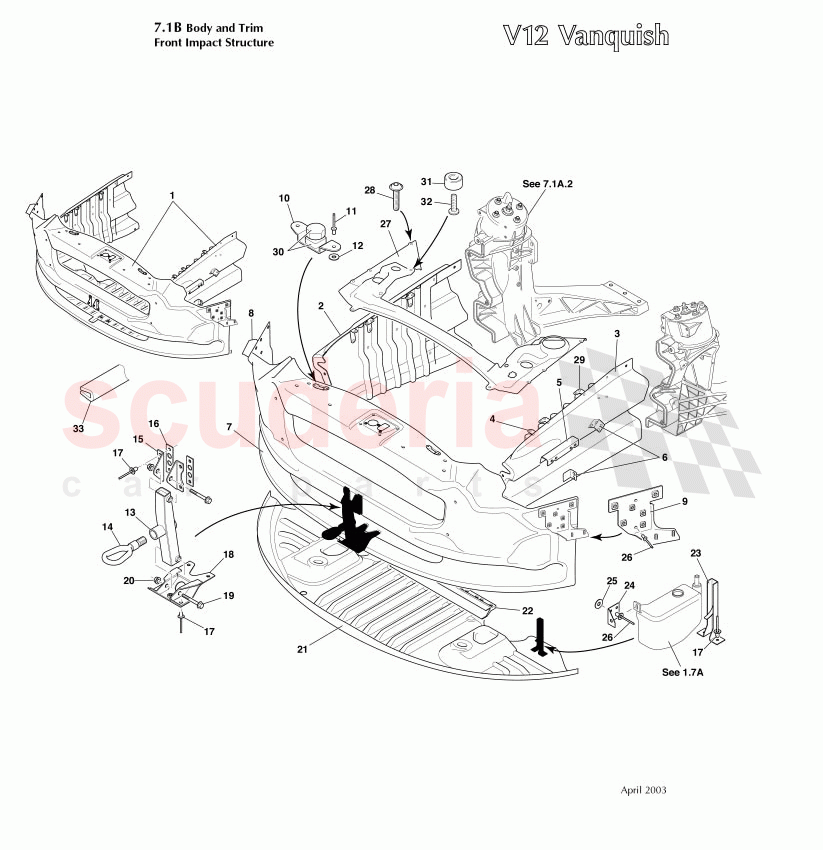

Aston Martin Vanquish (2001-2007) - Front Impact Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12200621AL	ASSY FRONT COMPOSITE IMPACT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122010226	ASY-SIDE CRASH PANEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R122010227	ASY-SIDE CRASH PANEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373274AA	BRACKET -HEADLAMP RH	Enquire	To Order
	1R12322774AA	BRACKET-RAD PANEL UPPER TO RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373275AA	BRACKET -HEADLAMP LH	Enquire	To Order
	1R12372954AB	BRACKET - FORWARD HARNESS RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372955AB	BRACKET - FORWARD HARNESS LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12200079AK	PANEL-FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12720174AF	SIDE BRACKET BUMPER FRONT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12720173AF	SIDE BRACKET BUMPER FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651799AB	NUT PLATE - HOOD BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699807	POP RIVET 4.8x14.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699615	Washer, 19 x 5 x 1.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12165738AA	ASSY-BRACKET TOWING EYE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R124010760	TOWING EYE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162688AA	UPPER MOUNT - TOWING EYE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162689AA	BACKING PLATE - TOWING EYE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700162	RIVET POP 4.9mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162687AA	LOWER MOUNT - TOWING EYE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700130	NUT M8 HEX P/T PLAS8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12200029AH	UNDERPANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12201057AC	MOUNTING RAIL UNDER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12322081AD	BRACKET LOWER - RECOVERY BOTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12322080AC	BRACKET UPPER - RECOVERY BOTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699515	RIVET (HUCK ABP-R8-M3)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12322822AG	ASSY RADIATOR PANEL UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699818PK	SCREW M6x20 SKT (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634011AA	Bracket, radiator panel upper, to rail cover, LH	Enquire	To Order
	1R12634010AA	Bracket, radiator panel upper, to rail cover, RH	Enquire	To Order
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R126410183	SUPPORT ASSY- BONNET BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12082144AA	ISOLATOR - AIRBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699810	M6x8 SKT BUTTON HD SCREW BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12324877AA	EDGE FINISHER RADIATOR PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12200621AL	ASSY FRONT COMPOSITE IMPACT STRUCTURE	1R12200621AL ASSY FRONT COMPOSITE IMPACT STRUCTURE Structural Cat. A only	-	1	Enquire
2	1R122010226	ASY-SIDE CRASH PANEL RH	1R122010226 ASY-SIDE CRASH PANEL RH Structural Cat. A only	-	1	Enquire
3	1R122010227	ASY-SIDE CRASH PANEL LH	1R122010227 ASY-SIDE CRASH PANEL LH Structural Cat. A only	-	1	Enquire
4	1R12373274AA	BRACKET -HEADLAMP RH	1R12373274AA BRACKET -HEADLAMP RH Structural Cat. A only	-	1	Enquire
4	1R12322774AA	BRACKET-RAD PANEL UPPER TO RAIL	1R12322774AA BRACKET-RAD PANEL UPPER TO RAIL Structural Cat. A only	-	6	Enquire
5	1R12373275AA	BRACKET -HEADLAMP LH	1R12373275AA BRACKET -HEADLAMP LH Structural Cat. A only	-	1	Enquire
5	1R12372954AB	BRACKET - FORWARD HARNESS RH	1R12372954AB BRACKET - FORWARD HARNESS RH Structural Cat. A only	-	1	Enquire
6	1R12372955AB	BRACKET - FORWARD HARNESS LH	1R12372955AB BRACKET - FORWARD HARNESS LH Structural Cat. A only	-	1	Enquire
7	1R12200079AK	PANEL-FRONT	1R12200079AK PANEL-FRONT Structural Cat. A only	-	1	Enquire
8	1R12720174AF	SIDE BRACKET BUMPER FRONT RH	1R12720174AF SIDE BRACKET BUMPER FRONT RH Structural Cat. A only	-	1	Enquire
9	1R12720173AF	SIDE BRACKET BUMPER FRONT LH	1R12720173AF SIDE BRACKET BUMPER FRONT LH Structural Cat. A only	-	1	Enquire
10	1R12651799AB	NUT PLATE - HOOD BUFFER	1R12651799AB NUT PLATE - HOOD BUFFER	-	2	Enquire
11	699807	POP RIVET 4.8x14.5	699807 POP RIVET 4.8x14.5	-	4	Enquire
12	699615	Washer, 19 x 5 x 1.4	699615 Washer, 19 x 5 x 1.4	-	4	Enquire
13	1R12165738AA	ASSY-BRACKET TOWING EYE	1R12165738AA ASSY-BRACKET TOWING EYE	-	1	Enquire
14	1R124010760	TOWING EYE	1R124010760 TOWING EYE	-	1	Enquire
15	1R12162688AA	UPPER MOUNT - TOWING EYE BRACKET	1R12162688AA UPPER MOUNT - TOWING EYE BRACKET	-	2	Enquire
16	1R12162689AA	BACKING PLATE - TOWING EYE BRACKET	1R12162689AA BACKING PLATE - TOWING EYE BRACKET	-	2	Enquire
17	700162	RIVET POP 4.9mm	700162 RIVET POP 4.9mm	-	8	Enquire
18	1R12162687AA	LOWER MOUNT - TOWING EYE BRACKET	1R12162687AA LOWER MOUNT - TOWING EYE BRACKET Structural Cat. A only	-	1	Enquire
19	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE Structural Cat. A only	-	2	Enquire
20	700130	NUT M8 HEX P/T PLAS8	700130 NUT M8 HEX P/T PLAS8 Structural Cat. A only	-	2	Enquire
21	1R12200029AH	UNDERPANEL	1R12200029AH UNDERPANEL Structural Cat. A only	-	1	Enquire
22	1R12201057AC	MOUNTING RAIL UNDER PANEL	1R12201057AC MOUNTING RAIL UNDER PANEL Structural Cat. A only	-	1	Enquire
23	1R12322081AD	BRACKET LOWER - RECOVERY BOTTLE	1R12322081AD BRACKET LOWER - RECOVERY BOTTLE Structural Cat. A only	-	1	Enquire
24	1R12322080AC	BRACKET UPPER - RECOVERY BOTTLE	1R12322080AC BRACKET UPPER - RECOVERY BOTTLE Structural Cat. A only	-	1	Enquire
25	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS Structural Cat. A only	-	2	Enquire
26	699515	RIVET (HUCK ABP-R8-M3)	699515 RIVET (HUCK ABP-R8-M3) Structural Cat. A only	-	6	Enquire
27	1R12322822AG	ASSY RADIATOR PANEL UPPER	1R12322822AG ASSY RADIATOR PANEL UPPER	-	1	Enquire
28	699818PK	SCREW M6x20 SKT (10)	699818PK SCREW M6x20 SKT (10) Radiator panel attach	-	8	Enquire
29	1R12634011AA	Bracket, radiator panel upper, to rail cover, LH	1R12634011AA Bracket, radiator panel upper, to rail cover, LH Structural Cat. A only	-	2	Enquire
29	1R12634010AA	Bracket, radiator panel upper, to rail cover, RH	1R12634010AA Bracket, radiator panel upper, to rail cover, RH Structural Cat. A only	-	2	Enquire
29	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Structural Cat. A only	-	8	Enquire
29	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	1	Enquire
29	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
29	697781	NUT M6 FLG	697781 NUT M6 FLG	-	2	Enquire
29	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON	-	4	Enquire
29	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
30	1R126410183	SUPPORT ASSY- BONNET BUMPER	1R126410183 SUPPORT ASSY- BONNET BUMPER Structural Cat. A only	-	2	Enquire
31	1R12082144AA	ISOLATOR - AIRBOX	1R12082144AA ISOLATOR - AIRBOX	-	2	Enquire
32	699810	M6x8 SKT BUTTON HD SCREW BLACK	699810 M6x8 SKT BUTTON HD SCREW BLACK	-	2	Enquire
33	1R12324877AA	EDGE FINISHER RADIATOR PANEL	1R12324877AA EDGE FINISHER RADIATOR PANEL	-	1	Enquire
