Sound Deadening of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Sound Deadening

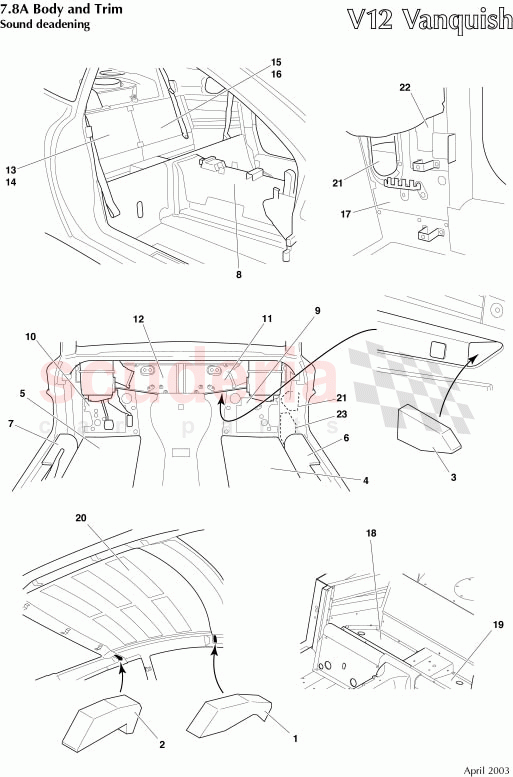

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12213265AA	FOAM INFILL REAR SCREEN SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12214125AA	FOAM INFILL - 'A' PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12164174AA	FOAM INFILL SCUTTLE BEAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12855167AA	SOUND INSULATION FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854264AC	SOUND INSULATION SILL INNER PANEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854263AC	SOUND INSULATION SILL INNER PANEL LH	Enquire	To Order
	1R12854264AC	SOUND INSULATION SILL INNER PANEL RH	Enquire	To Order
	1R12854265AC	SOUND INSULATION SILL INNER PANEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13831912AA	INSULATION-TUNNEL INTERNAL	Enquire	To Order
	1R12831912AL	INSULATION-TUNNEL INTERNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854448AB	SOUND INSULATION - FRT B/HEAD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854449AA	SOUND INSULATION FRT B/HD LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854446AA	SOUND INSULATION - FRT B/HEAD UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854447AB	SOUND INSULATION - FRT B/HEAD UPPER LH	Enquire	To Order
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853180AB	SOUND INSULATION REAR BULKHEAD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853182AA	SOUND INSULATION REAR BULKHEAD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853181AB	SOUND INSULATION REAR BULKHEAD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854450AA	SOUND INSULATION - SIDE PANEL LOWER RH	Enquire	To Order
	1R12853183AA	SOUND INSULATION REAR BULKHEAD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12854451AB	SOUND INSULATION - SIDE PANEL LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853166AA	SOUND INSULATION - REAR SEAT SHEAR PANEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853167AA	SOUND INSULATION - REAR SEAT SHEAR PANEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853174AA	SOUND INSULATION ROOF PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12164173AC	A POST CLOSER FOAM UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834336AB	'A' POST NVH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12855544AA	Foam insulation, rear parcel tray, front	Enquire	To Order
	1R12855545AA	Foam insulation, rear parcel tray, front	Enquire	To Order
	1R12855546AA	Foam insulation, rear parcel tray, rear	Enquire	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12213265AA	FOAM INFILL REAR SCREEN SURROUND	1R12213265AA FOAM INFILL REAR SCREEN SURROUND	-	2	Enquire
2	1R12214125AA	FOAM INFILL - 'A' PILLAR	1R12214125AA FOAM INFILL - 'A' PILLAR	-	2	Enquire
3	1R12164174AA	FOAM INFILL SCUTTLE BEAM	1R12164174AA FOAM INFILL SCUTTLE BEAM	-	2	Enquire
5	1R12855167AA	SOUND INSULATION FLOOR LH	1R12855167AA SOUND INSULATION FLOOR LH	-	1	Enquire
6	1R12854264AC	SOUND INSULATION SILL INNER PANEL RH	1R12854264AC SOUND INSULATION SILL INNER PANEL RH RHD	-	1	Enquire
7	1R12854263AC	SOUND INSULATION SILL INNER PANEL LH	1R12854263AC SOUND INSULATION SILL INNER PANEL LH RHD	-	1	Enquire
7	1R12854264AC	SOUND INSULATION SILL INNER PANEL RH	1R12854264AC SOUND INSULATION SILL INNER PANEL RH LHD	-	1	Enquire
7	1R12854265AC	SOUND INSULATION SILL INNER PANEL LH	1R12854265AC SOUND INSULATION SILL INNER PANEL LH LHD	-	1	Enquire
8	6R13831912AA	INSULATION-TUNNEL INTERNAL	6R13831912AA INSULATION-TUNNEL INTERNAL 06MY from (V) 501949	-	1	Enquire
8	1R12831912AL	INSULATION-TUNNEL INTERNAL	1R12831912AL INSULATION-TUNNEL INTERNAL Up to (V) 501948	-	1	Enquire
9	1R12854448AB	SOUND INSULATION - FRT B/HEAD LOWER RH	1R12854448AB SOUND INSULATION - FRT B/HEAD LOWER RH	-	1	Enquire
10	1R12854449AA	SOUND INSULATION FRT B/HD LOWER LH	1R12854449AA SOUND INSULATION FRT B/HD LOWER LH	-	1	Enquire
11	1R12854446AA	SOUND INSULATION - FRT B/HEAD UPPER RH	1R12854446AA SOUND INSULATION - FRT B/HEAD UPPER RH	-	1	Enquire
12	1R12854447AB	SOUND INSULATION - FRT B/HEAD UPPER LH	1R12854447AB SOUND INSULATION - FRT B/HEAD UPPER LH	-	1	Enquire
12	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	4	Enquire
13	1R12853180AB	SOUND INSULATION REAR BULKHEAD RH	1R12853180AB SOUND INSULATION REAR BULKHEAD RH 2 Plus 0	-	1	Enquire
14	1R12853182AA	SOUND INSULATION REAR BULKHEAD RH	1R12853182AA SOUND INSULATION REAR BULKHEAD RH	-	1	Enquire
15	1R12853181AB	SOUND INSULATION REAR BULKHEAD LH	1R12853181AB SOUND INSULATION REAR BULKHEAD LH 2 Plus 0	-	1	Enquire
16	1R12854450AA	SOUND INSULATION - SIDE PANEL LOWER RH	1R12854450AA SOUND INSULATION - SIDE PANEL LOWER RH	-	1	Enquire
16	1R12853183AA	SOUND INSULATION REAR BULKHEAD LH	1R12853183AA SOUND INSULATION REAR BULKHEAD LH	-	1	Enquire
17	1R12854451AB	SOUND INSULATION - SIDE PANEL LOWER LH	1R12854451AB SOUND INSULATION - SIDE PANEL LOWER LH	-	1	Enquire
18	1R12853166AA	SOUND INSULATION - REAR SEAT SHEAR PANEL RH	1R12853166AA SOUND INSULATION - REAR SEAT SHEAR PANEL RH	-	1	Enquire
19	1R12853167AA	SOUND INSULATION - REAR SEAT SHEAR PANEL LH	1R12853167AA SOUND INSULATION - REAR SEAT SHEAR PANEL LH	-	1	Enquire
20	1R12853174AA	SOUND INSULATION ROOF PANEL	1R12853174AA SOUND INSULATION ROOF PANEL	-	6	Enquire
21	1R12164173AC	A POST CLOSER FOAM UPPER	1R12164173AC A POST CLOSER FOAM UPPER	-	2	Enquire
22	1R12834336AB	'A' POST NVH COVER	1R12834336AB 'A' POST NVH COVER	-	2	Enquire
23	1R12855544AA	Foam insulation, rear parcel tray, front	1R12855544AA Foam insulation, rear parcel tray, front From (V) 500516-21 + 526 onwards	-	1	Enquire
23	1R12855545AA	Foam insulation, rear parcel tray, front	1R12855545AA Foam insulation, rear parcel tray, front From (V) 500516-21 + 526 onwards	-	1	Enquire
23	1R12855546AA	Foam insulation, rear parcel tray, rear	1R12855546AA Foam insulation, rear parcel tray, rear From (V) 500516-21 + 526 onwards	-	1	Enquire
23	1R12853176AA	FOAM INSULATION - REAR PARCEL SHELF	1R12853176AA FOAM INSULATION - REAR PARCEL SHELF Up to (V) 500515 + 500522-525	-	1	Enquire
23	1R12834494AC	SPACER - TUNNEL TO PEDAL	1R12834494AC SPACER - TUNNEL TO PEDAL LHD	-	1	Enquire
23	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 LHD	-	2	Enquire
23	3R12635822AA	Cover assy, NVH, rear quarter, RH	3R12635822AA Cover assy, NVH, rear quarter, RH	-	1	Enquire
23	3R12635823AA	Cover assy, NVH, rear quarter, LH	3R12635823AA Cover assy, NVH, rear quarter, LH	-	1	Enquire
23	1R12164172AC	A POST CLOSER FOAM LOWER	1R12164172AC A POST CLOSER FOAM LOWER	-	2	Enquire
