Aston Martin Vanquish (2001-2007) - Centre Console and Trim (To VIN 501948)

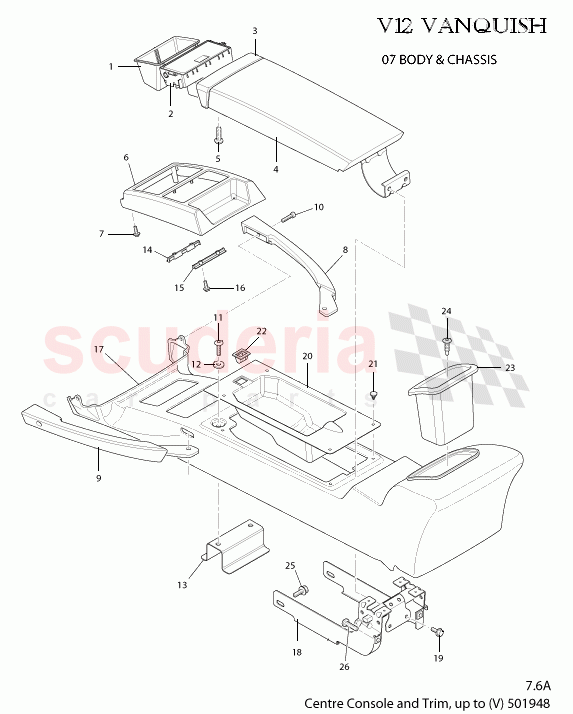

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12835076AA	INSERT TRAY - NON SMOKER	Enquire	To Order
	1R12834238AA	Lid, ashtray	Enquire	To Order
	1R12834232AA	ASHTRAY CDW 132	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12831901AB	HANDLE-TUNNEL CONSOLE LID	Enquire	To Order
	3R12835833AA	ASSY-TUNNEL CONSOLE LID HANDLE	Enquire	To Order
	1R12831901AD	HANDLE-TUNNEL CONSOLE LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830929ADW	LID-TUNNEL STOWAGE BOX ASSY	Enquire	To Order
	3R12830929ABW	LID-TUNNEL STOWAGE BOX ASSY	Enquire	To Order
	1R12830929ACW	LID-TUNNEL STOWAGE BOX ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12835703AAW	Panel, ash tray painted	Enquire	To Order
	693824	SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12834239AA	ASH TRAY PANEL ASSY	Enquire	To Order
	4R12830920AA	Panel, ash tray and switch mounting	Enquire	To Order
	1R12834239AA	ASH TRAY PANEL ASSY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830918AF	RAIL-CENTRE GRAB RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834644AE	RAIL CENTRE GRAB RH	Enquire	To Order
	1R12834645AE	RAIL CENTRE GRAB LH	Enquire	To Order
	1R12830918AG	RAIL-CENTRE GRAB RH	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831611AC	Bracket, grab rail mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834233AA	Clamp plate, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834234AA	Clamp plate, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695145	SCREW No10 x 1/2 FLANGED HEAD TYPE B	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835561AAW	Panel, tunnel, console, trimmed, 2+2 (non smoke)	Enquire	To Order
	3R12835622AAW	Panel, tunnel, console, trimmed, 2+0 (non smoke)	Enquire	To Order
	3R12835606AAW	TRINKET TRAY ASSEMBLY COMPLETE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12833162AA	Bracket, hinge support, tunnel console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835798AA	TUNNEL STOWAGE BOX INNER	Enquire	To Order
	1R12830927AE	TUNNEL STOWAGE BOX INNER - STANDARD TYPE	Enquire	To Order
	5R13C11600BAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700076	FIR TREE FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910191	LATCH-FEMALE	Enquire	To Order
	3R12835930	Washer, magnetic latch	Enquire	To Order
	3R12805834AA	LATCH MAGNETIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13048W42AAW	REAR STOWAGE BOX (TRIMMED) CENTRE CONSOLE (2+0)	Enquire	To Order
	1R12834192AA	STOWAGE BOX - REAR CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699798	SCREW M6x16 SKT BTN FLG BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	Enquire	To Order
	6R13834466AA	BRACKET-MOUNTING- CTR CONSOLE LOWER	Enquire	To Order
	699736	Clip, Exhaust Heatshields	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3R12835621AAW	Tunnel, console assy (tray) 2+0	3R12835621AAW Tunnel, console assy (tray) 2+0 From (V) 500516-21 + 526 on Up To 500820	-	1	Enquire
-	3R12835560AAW	Tunnel, console assy (tray)	3R12835560AAW Tunnel, console assy (tray) From (V) 500516-21 + 526 on Up To 500820	-	1	Enquire
-	5R13C04350CAW	Centre console assy, painted	5R13C04350CAW Centre console assy, painted Vanquish S From (V) 501506 Up To 501948	-	1	Enquire
-	5R13C04350ABW	TRIMMED PANEL - CENTRE CONSOLE ASSY	5R13C04350ABW TRIMMED PANEL - CENTRE CONSOLE ASSY Vanquish S From (V) 501506 Up To 501948	-	1	Enquire
-	3R12833473ABW	Tunnel, console assy (tray) 2+0	3R12833473ABW Tunnel, console assy (tray) 2+0 (Magnetic latch) From (V) 500821	-	1	Enquire
-	3R12835560ABW	Tunnel, console assy (tray)	3R12835560ABW Tunnel, console assy (tray) (Magnetic Latch) From (V) 500821	-	1	Enquire
-	1R12833473ABW	Tunnel, console assy, 2+0	1R12833473ABW Tunnel, console assy, 2+0 Up to (V) 500515 + 500522-525	-	1	Enquire
-	1R12830922AGW	TUNNEL CONSOLE ASSY	1R12830922AGW TUNNEL CONSOLE ASSY Up to (V) 500515 + 500522-525	-	1	Enquire
-	5R13044J84AAW	Centre console assy (2+2) trinket tray	5R13044J84AAW Centre console assy (2+2) trinket tray Vanquish S From (V) 501506	-	1	Enquire
-	5R13044J84DAW	Centre console assy (2+0) trinket tray	5R13044J84DAW Centre console assy (2+0) trinket tray Vanquish S From (V) 501506	-	1	Enquire
-	5R13044J84CAW	CENTRE CONSOLE ASSY (2+2-CUP HOLDER	5R13044J84CAW CENTRE CONSOLE ASSY (2+2-CUP HOLDER Vanquish S From (V) 501506	-	1	Enquire
-	5R13044J84FAW	Centre console assy (2+0) cup holder	5R13044J84FAW Centre console assy (2+0) cup holder Vanquish S From (V) 501506	-	1	Enquire
-	5R13044J84BAW	Centre console assy (2+2) smokers	5R13044J84BAW Centre console assy (2+2) smokers Vanquish S From (V) 501506	-	1	Enquire
-	5R13044J84EAW	Centre console assy (2+0) smokers	5R13044J84EAW Centre console assy (2+0) smokers Vanquish S From (V) 501506	-	1	Enquire
-	6R13C04350AAW	TRIMMED PANEL - CENTRE CONSOLE ASSY	6R13C04350AAW TRIMMED PANEL - CENTRE CONSOLE ASSY 06MY From (V) 501949	-	1	Enquire
-	6R13836022AA	CUP HOLDER	6R13836022AA CUP HOLDER 06MY From (V) 501949	-	1	Enquire
-	4R12836028AAW	Tunnel, console assy, cup holder 2+0	4R12836028AAW Tunnel, console assy, cup holder 2+0 Optional	-	1	Enquire
-	4R12836024AAW	Tunnel, console assy, cup holder	4R12836024AAW Tunnel, console assy, cup holder Optional	-	1	Enquire
-	4R12836025AAW	CUP HOLDER ASSY COMPLETE	4R12836025AAW CUP HOLDER ASSY COMPLETE Optional	-	1	Enquire
1	6R13835552AA	FOAM PANEL TRINKET TRAY SURROUND SIDE RH	6R13835552AA FOAM PANEL TRINKET TRAY SURROUND SIDE RH 06MY From (V) 501949	-	1	Enquire
1	6R13835553AA	FOAM PANEL TRINKET TRAY SURROUND SIDE LH	6R13835553AA FOAM PANEL TRINKET TRAY SURROUND SIDE LH 06MY From (V) 501949	-	1	Enquire
1	6R13836023AB	TRINKET TRAY TOP FINISHER RH	6R13836023AB TRINKET TRAY TOP FINISHER RH 06MY From (V) 501949	-	1	Enquire
1	6R13836023BB	TRINKET TRAY TOP FINISHER LH	6R13836023BB TRINKET TRAY TOP FINISHER LH 06MY From (V) 501949	-	1	Enquire
1	1R12835244AA	TRINKET TRAY ASSY	1R12835244AA TRINKET TRAY ASSY	-	1	Enquire
2	1R12835076AA	INSERT TRAY - NON SMOKER	1R12835076AA INSERT TRAY - NON SMOKER Up to (V) 500515 + 500522-525	-	1	Enquire
2	1R12834238AA	Lid, ashtray	1R12834238AA Lid, ashtray	-	1	Enquire
2	1R12834232AA	ASHTRAY CDW 132	1R12834232AA ASHTRAY CDW 132	-	1	Enquire
3	3R12831901AB	HANDLE-TUNNEL CONSOLE LID	3R12831901AB HANDLE-TUNNEL CONSOLE LID From (V) 500516-21+526 on Up To 500820	-	1	Enquire
3	3R12835833AA	ASSY-TUNNEL CONSOLE LID HANDLE	3R12835833AA ASSY-TUNNEL CONSOLE LID HANDLE (Magnetic latch) From (V) 500821	-	1	Enquire
3	1R12831901AD	HANDLE-TUNNEL CONSOLE LID	1R12831901AD HANDLE-TUNNEL CONSOLE LID Up to (V) 500515 + 500522-525	-	1	Enquire
4	1R12830929ADW	LID-TUNNEL STOWAGE BOX ASSY	1R12830929ADW LID-TUNNEL STOWAGE BOX ASSY From (V) 500516-21 + 526 on Up To 500820	-	1	Enquire
4	3R12830929ABW	LID-TUNNEL STOWAGE BOX ASSY	3R12830929ABW LID-TUNNEL STOWAGE BOX ASSY (Magnetic latch) From (V) 500821	-	1	Enquire
4	1R12830929ACW	LID-TUNNEL STOWAGE BOX ASSY	1R12830929ACW LID-TUNNEL STOWAGE BOX ASSY Up to (V) 500515 + 500522-525	-	1	Enquire
4	1R12830930AD	LID - TUNNEL STOWAGE BOX INNER	1R12830930AD LID - TUNNEL STOWAGE BOX INNER	-	1	Enquire
5	3R12835703AAW	Panel, ash tray painted	3R12835703AAW Panel, ash tray painted From (V) 500516-21+526 on Up To 501948	-	1	Enquire
5	693824	SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE	693824 SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE Handle to lid	-	2	Enquire
6	4R12834239AA	ASH TRAY PANEL ASSY	4R12834239AA ASH TRAY PANEL ASSY From (V) 501286 Up to (V) 501948	-	1	Enquire
6	4R12830920AA	Panel, ash tray and switch mounting	4R12830920AA Panel, ash tray and switch mounting Up to (V) 501948	-	1	Enquire
6	1R12834239AA	ASH TRAY PANEL ASSY	1R12834239AA ASH TRAY PANEL ASSY Up to (V) 501285	-	1	Enquire
6	6R13834239AA	Panel assy, ash tray	6R13834239AA Panel assy, ash tray From(V) 501949	-	1	Enquire
6	6R1304788AA	ASHTRAY	6R1304788AA ASHTRAY From(V) 501949	-	1	Enquire
7	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	697630 SCREW No.8 x 5/8in PAN HEAD AB S.T.	-	4	Enquire
8	1R12830918AF	RAIL-CENTRE GRAB RH	1R12830918AF RAIL-CENTRE GRAB RH Up to (V) 500515 + 500522-525	-	1	Enquire
9	1R12834644AE	RAIL CENTRE GRAB RH	1R12834644AE RAIL CENTRE GRAB RH From (V) 500516-21 + 526 on Up To 03	-	1	Enquire
9	1R12834645AE	RAIL CENTRE GRAB LH	1R12834645AE RAIL CENTRE GRAB LH From (V) 500516-21 + 526 on Up To 03	-	1	Enquire
9	1R12830918AG	RAIL-CENTRE GRAB RH	1R12830918AG RAIL-CENTRE GRAB RH From (V) 500516-21 + 526 on Up To 03	-	1	Enquire
9	1R12830919AG	RAIL-CENTRE GRAB LH	1R12830919AG RAIL-CENTRE GRAB LH From (V) 500516-21 + 526 on Up To 03	-	1	Enquire
9	1R12834644AB	RAIL CENTRE GRAB RH	1R12834644AB RAIL CENTRE GRAB RH Up to (V) 500515 + 500522-525	-	1	Enquire
9	1R12834645AB	RAIL CENTRE GRAB LH	1R12834645AB RAIL CENTRE GRAB LH Up to (V) 500515 + 500522-525	-	1	Enquire
9	1R12830919AF	RAIL-CENTRE GRAB LH	1R12830919AF RAIL-CENTRE GRAB LH Up to (V) 500515 + 500522-525	-	1	Enquire
9	3R12836194AA	RAIL CENTRE GRAB RH	3R12836194AA RAIL CENTRE GRAB RH From (V) 501286	-	1	Enquire
9	3R12836195AA	RAIL CENTRE GRAB LH	3R12836195AA RAIL CENTRE GRAB LH From (V) 501286	-	1	Enquire
10	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	1R12834615AA SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912 Grab rail attach	-	2	Enquire
11	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON Grab rail attach	-	2	Enquire
12	697286	Washer M6 Large OD	697286 Washer M6 Large OD Grab rail attach	-	2	Enquire
13	1R12831611AC	Bracket, grab rail mounting	1R12831611AC Bracket, grab rail mounting	-	1	Enquire
14	1R12834233AA	Clamp plate, front	1R12834233AA Clamp plate, front	-	1	Enquire
15	1R12834234AA	Clamp plate, rear	1R12834234AA Clamp plate, rear	-	1	Enquire
16	695145	SCREW No10 x 1/2 FLANGED HEAD TYPE B	695145 SCREW No10 x 1/2 FLANGED HEAD TYPE B Clamp plates to ash tray panel	-	4	Enquire
17	3R12835561AAW	Panel, tunnel, console, trimmed, 2+2 (non smoke)	3R12835561AAW Panel, tunnel, console, trimmed, 2+2 (non smoke) From (V) 500516-21 + 526 on	-	1	Enquire
17	3R12835622AAW	Panel, tunnel, console, trimmed, 2+0 (non smoke)	3R12835622AAW Panel, tunnel, console, trimmed, 2+0 (non smoke) From (V) 500516-21 + 526 on	-	1	Enquire
17	3R12835606AAW	TRINKET TRAY ASSEMBLY COMPLETE	3R12835606AAW TRINKET TRAY ASSEMBLY COMPLETE From (V) 500516-21 + 526 on	-	1	Enquire
17	1R12830923AFW	PANEL TUNNEL CONSOLE TRIMMED	1R12830923AFW PANEL TUNNEL CONSOLE TRIMMED	-	1	Enquire
18	1R12833162AA	Bracket, hinge support, tunnel console	1R12833162AA Bracket, hinge support, tunnel console	-	1	Enquire
19	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
20	3R12835798AA	TUNNEL STOWAGE BOX INNER	3R12835798AA TUNNEL STOWAGE BOX INNER (Magnetic latch) From (V) 500821	-	1	Enquire
20	1R12830927AE	TUNNEL STOWAGE BOX INNER - STANDARD TYPE	1R12830927AE TUNNEL STOWAGE BOX INNER - STANDARD TYPE Up to (V) 500515 + 500522-525	-	1	Enquire
20	5R13C11600BAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER	5R13C11600BAW CENTRE CONSOLE TUNNEL STOWAGE BOX INNER Vanquish S From (V) 501506	-	1	Enquire
20	5R13C11600AAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER - EURO	5R13C11600AAW CENTRE CONSOLE TUNNEL STOWAGE BOX INNER - EURO Vanquish S From (V) 501506	-	1	Enquire
20	4R12835798AA	TUNNEL STOWAGE BOX INNER - FEDERAL	4R12835798AA TUNNEL STOWAGE BOX INNER - FEDERAL From (V) 501286	-	1	Enquire
21	700076	FIR TREE FASTENER	700076 FIR TREE FASTENER	-	4	Enquire
22	1R126910191	LATCH-FEMALE	1R126910191 LATCH-FEMALE Up to (V) 500820	-	1	Enquire
22	3R12835930	Washer, magnetic latch	3R12835930 Washer, magnetic latch From (V) 500821	-	1	Enquire
22	3R12805834AA	LATCH MAGNETIC	3R12805834AA LATCH MAGNETIC From (V) 500821	-	1	Enquire
23	5R13048W42AAW	REAR STOWAGE BOX (TRIMMED) CENTRE CONSOLE (2+0)	5R13048W42AAW REAR STOWAGE BOX (TRIMMED) CENTRE CONSOLE (2+0) Vanquish S From (V) 501506	-	1	Enquire
23	1R12834192AA	STOWAGE BOX - REAR CENTRE CONSOLE	1R12834192AA STOWAGE BOX - REAR CENTRE CONSOLE	-	1	Enquire
24	699798	SCREW M6x16 SKT BTN FLG BLK	699798 SCREW M6x16 SKT BTN FLG BLK Stowage box to insert	-	1	Enquire
25	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	-	2	Enquire
26	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8 Console rear attach, 2 +2 only	-	1	Enquire
26	6R13834466AA	BRACKET-MOUNTING- CTR CONSOLE LOWER	6R13834466AA BRACKET-MOUNTING- CTR CONSOLE LOWER 06MY From (V) 501949	-	1	Enquire
26	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields 06MY From (V) 501949	-	2	Enquire
26	700987	Screw M4 x 16 pan hd	700987 Screw M4 x 16 pan hd	-	2	Enquire
