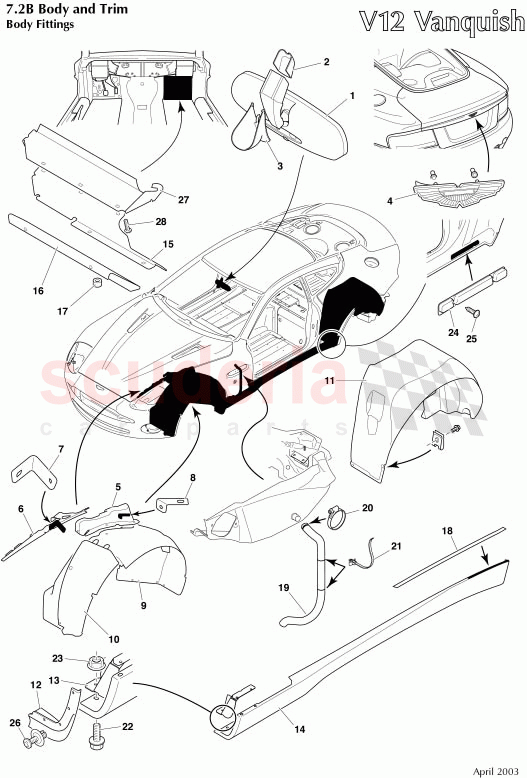

Aston Martin Vanquish (2001-2007) - Body Fittings 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12975401AA	KEYCARD INTERIOR REAR VIEW MIRROR	Enquire	To Order
	1R128010150	REAR VIEW MIRROR	Enquire	To Order
	1R123710684	RAIN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128010152	BRACKET-COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128010151	RAIN SENSOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13001B40BA	VANQUISH BADGE	Enquire	To Order
	5R13001B40CA	VANQUISH S BADGE	Enquire	To Order
	7881469	BADGE ASSY - ASTON MARTIN	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12634004ADP	PANEL - U/HOOD CVR-P	Enquire	To Order
	1R12632227AD	PANEL-WISHBONE COVER FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	Enquire	To Order
	1R12634005ADP	PANEL - U HOOD CVR-P	Enquire	To Order
	1R12634006AB	BRACKET - WISHBONE COVER - APRON RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634007AB	BRACKET - WISHBONE COVER - APRON LH	Enquire	To Order
	1R12634008AB	BRACKET - WISHBONE COVER - RAIL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634009AB	BRACKET - WISHBONE COVER - RAIL LH	Enquire	To Order
	1R12780178AH	FULL FRONT WHEEL- ARCH LINER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13166562BA	FRONT WHEELARCH COVER ASSY RH	Enquire	To Order
	1R12780177AH	FULL FRONT WHEEL- ARCH LINER LH	Enquire	To Order
	5R13166562BA	FRONT WHEELARCH COVER ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13166563BA	FRONT WHEELARCH COVER ASSY LH	Enquire	To Order
	1R12780884AE	FULL REAR WHEELARCH LINER RH	Enquire	To Order
	5R13166563BA	FRONT WHEELARCH COVER ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12780885AE	FULL REAR WHEELARCH LINER LH	Enquire	To Order
	1R12830144AC	MUDGUARD FRONT RH	Enquire	To Order
	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12631204AG	BRACKET - FRONT FENDER & SILL RH	Enquire	To Order
	1R12830145AC	MUDGUARD FRONT LH	Enquire	To Order
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830140AF	MOULDING ASSY - BODY ROCKER PANEL RH	Enquire	To Order
	1R12631205AG	BRACKET - FRONT FENDER & SILL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830141AF	MOULDING ASSY - BODY ROCKER PANEL LH	Enquire	To Order
	700439	EDGE PANEL FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12803595AE	PANEL - FOOTWELL LH	Enquire	To Order
	1R12803594AE	PANEL - FOOTWELL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12803597AE	PANEL - HEELREST LH	Enquire	To Order
	1R12803596AE	PANEL - HEELREST RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12723544AC	SPACER - ROCKER TO REAR QUARTER RH	Enquire	To Order
	1R12803598AA	SPACER - HEELREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12723545AD	SPACER - ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632220AE	DRAIN TUBE-PLENUM OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697659	CLIP HOSE-SPR/LOADED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700178	TIE STRAP - RELEASEABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12633380AA	BRACKET - SILL TO BODYSIDE RH	Enquire	To Order
	697781	NUT M6 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12633381AA	BRACKET - SILL TO BODYSIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700100	SCREW M4x12 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12804151AA	SUPPORT BEAM - FOOTWELL PLATE	Enquire	To Order
	1R12804150AA	SUPPORT BEAM - FOOTWELL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order
	3R12635844AA	GASKET-MOULDING HARNESS COVER RH	Enquire	To Order
	3R12635845AA	GASKET-MOULDING HARNESS COVER LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12975401AA	KEYCARD INTERIOR REAR VIEW MIRROR	1R12975401AA KEYCARD INTERIOR REAR VIEW MIRROR Label	-	1	Enquire
1	1R128010150	REAR VIEW MIRROR	1R128010150 REAR VIEW MIRROR	-	1	Enquire
1	1R123710684	RAIN SENSOR	1R123710684 RAIN SENSOR	-	1	Enquire
2	1R128010152	BRACKET-COVER	1R128010152 BRACKET-COVER	-	1	Enquire
3	1R128010151	RAIN SENSOR COVER	1R128010151 RAIN SENSOR COVER	-	1	Enquire
4	5R13001B40BA	VANQUISH BADGE	5R13001B40BA VANQUISH BADGE Vanquish S From (V) 501506	-	1	Enquire
4	5R13001B40CA	VANQUISH S BADGE	5R13001B40CA VANQUISH S BADGE Vanquish S From (V) 501506	-	1	Enquire
4	7881469	BADGE ASSY - ASTON MARTIN	7881469 BADGE ASSY - ASTON MARTIN Up to (V) 501285	-	2	Enquire
4	4G43407A74BB	Badge, Wings ARRIVING SOON	4G43407A74BB Badge, Wings From (V) 501286 ARRIVING SOON	-	2	Enquire
4	1R12632226AD	PANEL-WISHBONE COVER FRONT RH	1R12632226AD PANEL-WISHBONE COVER FRONT RH	-	1	Enquire
5	1R12634004ADP	PANEL - U/HOOD CVR-P	1R12634004ADP PANEL - U/HOOD CVR-P	-	1	Enquire
5	1R12632227AD	PANEL-WISHBONE COVER FRONT LH	1R12632227AD PANEL-WISHBONE COVER FRONT LH	-	1	Enquire
6	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON Under hood cosmetic covers attach	-	8	Enquire
6	1R12634005ADP	PANEL - U HOOD CVR-P	1R12634005ADP PANEL - U HOOD CVR-P	-	1	Enquire
6	1R12634006AB	BRACKET - WISHBONE COVER - APRON RH	1R12634006AB BRACKET - WISHBONE COVER - APRON RH	-	1	Enquire
7	1R12634007AB	BRACKET - WISHBONE COVER - APRON LH	1R12634007AB BRACKET - WISHBONE COVER - APRON LH	-	1	Enquire
7	1R12634008AB	BRACKET - WISHBONE COVER - RAIL RH	1R12634008AB BRACKET - WISHBONE COVER - RAIL RH	-	1	Enquire
8	1R12634009AB	BRACKET - WISHBONE COVER - RAIL LH	1R12634009AB BRACKET - WISHBONE COVER - RAIL LH	-	1	Enquire
8	1R12780178AH	FULL FRONT WHEEL- ARCH LINER RH	1R12780178AH FULL FRONT WHEEL- ARCH LINER RH	-	1	Enquire
9	5R13166562BA	FRONT WHEELARCH COVER ASSY RH	5R13166562BA FRONT WHEELARCH COVER ASSY RH Vanquish S From (V) 501506	-	1	Enquire
9	1R12780177AH	FULL FRONT WHEEL- ARCH LINER LH	1R12780177AH FULL FRONT WHEEL- ARCH LINER LH	-	1	Enquire
9	5R13166562BA	FRONT WHEELARCH COVER ASSY RH	5R13166562BA FRONT WHEELARCH COVER ASSY RH	-	1	Enquire
10	5R13166563BA	FRONT WHEELARCH COVER ASSY LH	5R13166563BA FRONT WHEELARCH COVER ASSY LH Vanquish S From (V) 501506	-	1	Enquire
10	1R12780884AE	FULL REAR WHEELARCH LINER RH	1R12780884AE FULL REAR WHEELARCH LINER RH	-	1	Enquire
10	5R13166563BA	FRONT WHEELARCH COVER ASSY LH	5R13166563BA FRONT WHEELARCH COVER ASSY LH	-	1	Enquire
11	1R12780885AE	FULL REAR WHEELARCH LINER LH	1R12780885AE FULL REAR WHEELARCH LINER LH	-	1	Enquire
11	1R12830144AC	MUDGUARD FRONT RH	1R12830144AC MUDGUARD FRONT RH	-	1	Enquire
11	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	-	16	Enquire
11	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	18	Enquire
11	697565	Spire Nut	697565 Spire Nut	-	18	Enquire
11	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	26	Enquire
11	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T	-	4	Enquire
11	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	6	Enquire
11	700246	SCREW M6x14 PAN 4.8	700246 SCREW M6x14 PAN 4.8	-	6	Enquire
12	1R12631204AG	BRACKET - FRONT FENDER & SILL RH	1R12631204AG BRACKET - FRONT FENDER & SILL RH	-	1	Enquire
12	1R12830145AC	MUDGUARD FRONT LH	1R12830145AC MUDGUARD FRONT LH	-	1	Enquire
12	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	8	Enquire
13	1R12830140AF	MOULDING ASSY - BODY ROCKER PANEL RH	1R12830140AF MOULDING ASSY - BODY ROCKER PANEL RH	-	1	Enquire
13	1R12631205AG	BRACKET - FRONT FENDER & SILL LH	1R12631205AG BRACKET - FRONT FENDER & SILL LH	-	1	Enquire
14	1R12830141AF	MOULDING ASSY - BODY ROCKER PANEL LH	1R12830141AF MOULDING ASSY - BODY ROCKER PANEL LH	-	1	Enquire
14	700439	EDGE PANEL FASTENER	700439 EDGE PANEL FASTENER	-	8	Enquire
15	1R12803595AE	PANEL - FOOTWELL LH	1R12803595AE PANEL - FOOTWELL LH RHD	-	1	Enquire
15	1R12803594AE	PANEL - FOOTWELL RH	1R12803594AE PANEL - FOOTWELL RH LHD	-	1	Enquire
16	1R12803597AE	PANEL - HEELREST LH	1R12803597AE PANEL - HEELREST LH LHD	-	1	Enquire
16	1R12803596AE	PANEL - HEELREST RH	1R12803596AE PANEL - HEELREST RH RHD	-	1	Enquire
17	1R12723544AC	SPACER - ROCKER TO REAR QUARTER RH	1R12723544AC SPACER - ROCKER TO REAR QUARTER RH	-	1	Enquire
17	1R12803598AA	SPACER - HEELREST	1R12803598AA SPACER - HEELREST	-	6	Enquire
18	1R12723545AD	SPACER - ROCKER	1R12723545AD SPACER - ROCKER	-	1	Enquire
19	1R12632220AE	DRAIN TUBE-PLENUM OUTER	1R12632220AE DRAIN TUBE-PLENUM OUTER	-	2	Enquire
20	697659	CLIP HOSE-SPR/LOADED	697659 CLIP HOSE-SPR/LOADED	-	1	Enquire
21	700178	TIE STRAP - RELEASEABLE	700178 TIE STRAP - RELEASEABLE	-	2	Enquire
22	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
23	1R12633380AA	BRACKET - SILL TO BODYSIDE RH	1R12633380AA BRACKET - SILL TO BODYSIDE RH	-	1	Enquire
23	697781	NUT M6 FLG	697781 NUT M6 FLG	-	2	Enquire
24	1R12633381AA	BRACKET - SILL TO BODYSIDE LH	1R12633381AA BRACKET - SILL TO BODYSIDE LH	-	1	Enquire
25	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN	-	4	Enquire
26	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	2	Enquire
27	1R12804151AA	SUPPORT BEAM - FOOTWELL PLATE	1R12804151AA SUPPORT BEAM - FOOTWELL PLATE RHD	-	1	Enquire
27	1R12804150AA	SUPPORT BEAM - FOOTWELL PLATE	1R12804150AA SUPPORT BEAM - FOOTWELL PLATE LHD	-	1	Enquire
28	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head Blanking rivnut holes in tub	-	3	Enquire
28	3R12635844AA	GASKET-MOULDING HARNESS COVER RH	3R12635844AA GASKET-MOULDING HARNESS COVER RH A post	-	1	Enquire
28	3R12635845AA	GASKET-MOULDING HARNESS COVER LH	3R12635845AA GASKET-MOULDING HARNESS COVER LH A post	-	1	Enquire
28	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	6	Enquire
