Aston Martin Vanquish (2001-2007) - Rear Trim (2 seater)

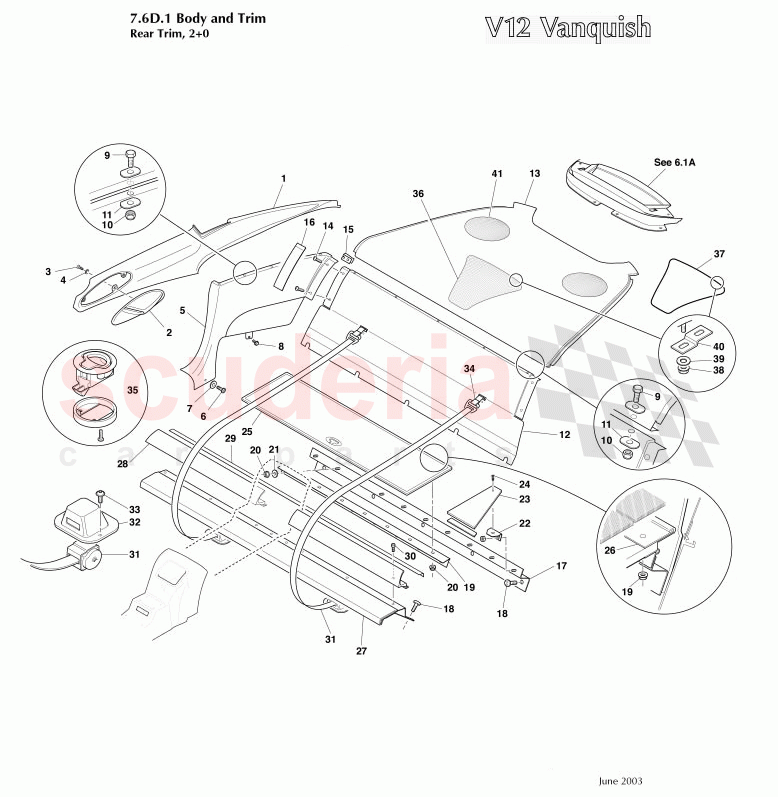

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12831270AAW TRIM REAR QUARTER UPPER RH ASSY $2,191.77 To Order
1R12831271AAW TRIM REAR QUARTER UPPER LH ASSY $2,191.77 To Order
Photo Part No Description Price (each) Stock
1R12833306AA BEZEL SEATBELT FRT RH $272.92 To Order
1R12833305AA BEZEL SEATBELT FRT LH $272.92 To Order
4R12833306AA BEZEL SEATBELT FRT RH $251.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
697495 SCREW No8 x 13 FLANGED AB S.T $0.11 To Order
Photo Part No Description Price (each) Stock
699806 NYLON WASHER-WHITE $0.09 To Order
Photo Part No Description Price (each) Stock
1R12833426ABW ASSY PANEL REAR QUARTER LOWER TRIMMED RH $1,676.59 To Order
1R12833427ABW ASSY PANEL REAR QUARTER LOWER TRIMMED LH $1,676.59 To Order
Photo Part No Description Price (each) Stock
700614 SCREW M6x35 PAN BLK $0.48 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $23.61 To Order
Photo Part No Description Price (each) Stock
699586 SCREW M8 x 20 PAN HEAD $0.73 To Order
Photo Part No Description Price (each) Stock
693432 SCREW M5 x 25 HEX $1.02 To Order
Photo Part No Description Price (each) Stock
697470 NUT M5 NYLOC $0.05 To Order
Photo Part No Description Price (each) Stock
697514 WASHER OVAL 1 x 1/2 x 7/32 $5.26 To Order
Photo Part No Description Price (each) Stock
1R12833420AAW ASSY REAR BULKHEAD TRIM PANEL $718.63 To Order
Photo Part No Description Price (each) Stock
1R12355514AA Bezel assy, rear parcel shelf, RH, satin chrome Enquire To Order
1R12355513AA Bezel assy, rear parcel shelf, LH, satin chrome Enquire To Order
3R12835635ABW ASSY REAR PARCEL SHELF STD ICE TETHER 2+0 $2,008.92 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL $0.50 To Order
Photo Part No Description Price (each) Stock
697621 SPRING NUT $0.48 To Order
Photo Part No Description Price (each) Stock
1R12833878ABW ASSY FINISHER B/HEAD TRIM PANEL RH $789.27 To Order
1R12833879ABW ASSY FINISHER - BULKHEAD TRIM PANEL LH $789.27 To Order
Photo Part No Description Price (each) Stock
1R12833514AB ASSY - LUGGAGE DECK HINGE RAIL $94.01 To Order
Photo Part No Description Price (each) Stock
699592 WASHER M8 19 OD x 1.2 GRD 4.8 ZINC BLK PASS $0.12 To Order
699586 SCREW M8 x 20 PAN HEAD $0.73 To Order
Photo Part No Description Price (each) Stock
1R12833521AA HINGE - LUGGAGE DECKLID $43.25 To Order
Photo Part No Description Price (each) Stock
700062 M4 NUT DOMED GRD 4.7 BLACK POWDER COAT DIN 1587 $0.77 To Order
Photo Part No Description Price (each) Stock
699587 WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS $0.37 To Order
Photo Part No Description Price (each) Stock
1R12833522ACW ASSY LUGGAGE DECK LID EXTN TRIMMED RH $757.28 To Order
1R12833829AA ASSY BRACKET LUGGAGE DECK EXTENSION SUPPORT REAR $53.42 To Order
Photo Part No Description Price (each) Stock
1R12833523ACW ASSY LUGGAGE - DECK LID EXTN TRIMMED LH $757.28 To Order
1R12833524AAW Carpet, deck lid extension, RH Enquire To Order
1R12833525AAW Carpet, deck lid extension, LH Enquire To Order
Photo Part No Description Price (each) Stock
692517 SCREW M4 x 16 CSK RECESS CHEM. BLACK $0.29 To Order
Photo Part No Description Price (each) Stock
1R12835671AAW Lid assy, luggage deck, trimmed Enquire To Order
1R12833517AAW ASSY LUGGAGE DECKLID TRIMMED $1,156.99 To Order
Photo Part No Description Price (each) Stock
1R12833831AA ASSY FLANGE HINGE MOUNTING $61.78 To Order
Photo Part No Description Price (each) Stock
1R12833531AB ASSY - RAIL LUGGAGE DECK FRONT $219.76 To Order
Photo Part No Description Price (each) Stock
1R12833832AA RAIL LUGGAGE RESTRAINT RH $367.65 To Order
1R12833833AA RAIL LUGGAGE RESTRAINT LH $367.65 To Order
4R12833832AAW Rail, luggage restraint, painted, RH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12833843AA Edge finisher, luggage restraint Enquire To Order
Photo Part No Description Price (each) Stock
699589 SCREW M6 x 12 CAP HEAD HEX SOCKET SPECIAL POLISHED $0.21 To Order
Photo Part No Description Price (each) Stock
1R12835232AA ASSY LUGGAGE STRAP REEL AND COVER RH $338.78 To Order
1R12835233AA ASSY LUGGAGE STRAP REEL AND COVER LH $338.78 To Order
1R12835246AA FEMALE RESTRAINING BUTTON $0.18 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12833461AA LUGGAGE RESTRAINT COVER $38.15 To Order
Photo Part No Description Price (each) Stock
697819 SCREW PAN TORX M6x20 PIL (BLACK) $0.62 To Order
Photo Part No Description Price (each) Stock
1R12834415AA CATCH - PAINTED $66.23 To Order
1R12834641AAW Loop assy, luggage restraint, rear bulkhead Enquire To Order
Photo Part No Description Price (each) Stock
3R12835590AB CATCH 2+0 LUGGAGE LID - ENCLOSURE $9.77 To Order
3R12835563AA CATCH 2+0 LUGGAGE LID $51.13 To Order
3R12835669AA CATCH STRIKER PLATE $8.95 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12834080AB ASSY SPEAKER GRILLE SUBWOOFER $459.49 To Order
Photo Part No Description Price (each) Stock
1R12833416ABW ASSY PANEL PARCEL SHELF INFILL $1,111.01 To Order
Photo Part No Description Price (each) Stock
700605 NUT M4 HEX FLG BLACK GRD 8 $1.39 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $23.61 To Order
Photo Part No Description Price (each) Stock
1R12834810AB Bracket, 2+0 woofer grille fixing Enquire To Order
Photo Part No Description Price (each) Stock
699626 GROMMET M8 BLANKING PLUG $0.61 To Order
1R12833892AA PLUG - SEAT BELT ANCHORAGE $0.12 To Order
3R12375507AB Bezel assy, bass driver, satin chrome Enquire To Order
...and 10 more part variants. See table on right for more details.
View All
Rear Trim (2 seater) of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 1R12831424ABW
Panel assy, rear quarter upper and lower, RH 		- 1 Enquire
- 1R12831425ABW
Panel assy, rear quarter upper and lower, LH 		- 1 Enquire
- 1R12833436AAW
CARPET REAR REAR QUARTER PANEL RH 		- 1 Enquire
- 1R12833437AAW
CARPET REAR - REAR QUARTER PANEL LH 		$39.95 1
1 1R12831270AAW
TRIM REAR QUARTER UPPER RH ASSY 		$2,191.77 1
1 1R12831271AAW
TRIM REAR QUARTER UPPER LH ASSY 		$2,191.77 1
2 1R12833306AA
BEZEL SEATBELT FRT RH
Up to (V) 501285 		$272.92 1
2 1R12833305AA
BEZEL SEATBELT FRT LH
Up to (V) 501285 		$272.92 1
2 4R12833306AA
BEZEL SEATBELT FRT RH
From (V) 501286 		$251.17 1
2 4R12833305AA
BEZEL SEATBELT FRT LH
From (V) 501286 		$251.17 1
3 697495
SCREW No8 x 13 FLANGED AB S.T 		$0.11 6
4 699806
NYLON WASHER-WHITE 		$0.09 6
5 1R12833426ABW
ASSY PANEL REAR QUARTER LOWER TRIMMED RH 		$1,676.59 1
5 1R12833427ABW
ASSY PANEL REAR QUARTER LOWER TRIMMED LH 		$1,676.59 1
6 700614
SCREW M6x35 PAN BLK 		$0.48 2
7 697517PK
WASHER-M6 LGE OD BLK PACK OF 20 		$23.61 -
8 699586
SCREW M8 x 20 PAN HEAD 		$0.73 6
9 693432
SCREW M5 x 25 HEX 		$1.02 10
10 697470
NUT M5 NYLOC 		$0.05 10
11 697514
WASHER OVAL 1 x 1/2 x 7/32 		$5.26 20
12 1R12833420AAW
ASSY REAR BULKHEAD TRIM PANEL 		$718.63 1
13 1R12355514AA
Bezel assy, rear parcel shelf, RH, satin chrome
From (V) 500516-21 + 526 onwards 		- 1 Enquire
13 1R12355513AA
Bezel assy, rear parcel shelf, LH, satin chrome
From (V) 500516-21 + 526 onwards 		- 1 Enquire
13 3R12835635ABW
ASSY REAR PARCEL SHELF STD ICE TETHER 2+0
From (V) 500516-21 + 526 onwards 		$2,008.92 1
13 1R12355512AA
Bezel assy, rear parcel shelf, RH black
From (V) 500516-21 + 526 onwards 		- 1 Enquire
13 1R12355511AA
Bezel assy, rear parcel shelf, LH black
From (V) 500516-21 + 526 onwards 		- 1 Enquire
13 3R12835634AAW
ASSY REAR PARCEL SHELF NON TETHER 2+0
From (V) 500516-21 + 526 onwards 		$2,362.02 1
13 700428
SCREW M4 x 20 STAINLESS STEEL
From (V) 500516-21 + 526 onwards 		$1.75 8
13 700429
Screw, M4 x 20 black
From (V) 500516-21 + 526 onwards 		- 8 Enquire
13 1R12834185AAW
Rear parcel shelf assy (Standard ICE non tether)
Up to (V) 500515 + 500522-525 		- 1 Enquire
13 1R12834602AAW
ASSY REAR PARCEL SHELF - PREMIUM ICE NON TETHER (2+0)
Up to (V) 500515 + 500522-525 		$2,362.02 1
13 1R12834186AAW
ASY REAR PARCEL SHELF-STD ICE TETHER (2+0)
Up to (V) 500515 + 500522-525 		- 1 Enquire
13 1R12834603AAW
ASSY REAR PARCEL SHELF - PREM ICE TETHER (2+0)
Up to (V) 500515 + 500522-525 		$2,864.48 1
13 5R1346668DAW
ASSY REAR PARCEL SHELF 2+0 NON TETHER
Vanquish S From (V) 501508 		$1,687.97 1
13 5R1346668BAW
ASSY REAR PARCEL SHELF 2+0 TETHER
Vanquish S From (V) 501508 		$1,687.97 1
14 692011
SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL 		$0.50 4
15 697621
SPRING NUT 		$0.48 4
16 1R12833878ABW
ASSY FINISHER B/HEAD TRIM PANEL RH 		$789.27 1
16 1R12833879ABW
ASSY FINISHER - BULKHEAD TRIM PANEL LH 		$789.27 1
17 1R12833514AB
ASSY - LUGGAGE DECK HINGE RAIL 		$94.01 1
18 699592
WASHER M8 19 OD x 1.2 GRD 4.8 ZINC BLK PASS 		$0.12 10
18 699586
SCREW M8 x 20 PAN HEAD 		$0.73 10
19 1R12833521AA
HINGE - LUGGAGE DECKLID 		$43.25 1
20 700062
M4 NUT DOMED GRD 4.7 BLACK POWDER COAT DIN 1587 		$0.77 7
21 699587
WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS 		$0.37 7
22 1R12833522ACW
ASSY LUGGAGE DECK LID EXTN TRIMMED RH 		$757.28 1
22 1R12833829AA
ASSY BRACKET LUGGAGE DECK EXTENSION SUPPORT REAR 		$53.42 2
23 1R12833523ACW
ASSY LUGGAGE - DECK LID EXTN TRIMMED LH 		$757.28 1
23 1R12833524AAW
Carpet, deck lid extension, RH 		- 1 Enquire
23 1R12833525AAW
Carpet, deck lid extension, LH 		- 1 Enquire
24 692517
SCREW M4 x 16 CSK RECESS CHEM. BLACK 		$0.29 2
25 1R12835671AAW
Lid assy, luggage deck, trimmed
From (V) 500516-21 + 526 onwards 		- 1 Enquire
25 1R12833517AAW
ASSY LUGGAGE DECKLID TRIMMED
Up to (V) 500515 + 500522-525 		$1,156.99 1
26 1R12833831AA
ASSY FLANGE HINGE MOUNTING 		$61.78 1
27 1R12833531AB
ASSY - RAIL LUGGAGE DECK FRONT 		$219.76 1
28 1R12833832AA
RAIL LUGGAGE RESTRAINT RH
Up to (V) 501285 		$367.65 1
28 1R12833833AA
RAIL LUGGAGE RESTRAINT LH
Up to (V) 501285 		$367.65 1
28 4R12833832AAW
Rail, luggage restraint, painted, RH
From (V) 501286 		- 1 Enquire
28 4R12833833AAW
Rail, luggage restraint, painted, LH
From (V) 501286 		- 1 Enquire
28 4R12833832AA
RAIL LUGGAGE RESTRAINT RH
From (V) 501286 		$2,124.97 1
28 4R12833833AA
RAIL LUGGAGE RESTRAINT LH
From (V) 501286 		$2,124.97 1
29 1R12833843AA
Edge finisher, luggage restraint 		- 1 Enquire
30 699589
SCREW M6 x 12 CAP HEAD HEX SOCKET SPECIAL POLISHED 		$0.21 6
31 1R12835232AA
ASSY LUGGAGE STRAP REEL AND COVER RH 		$338.78 1
31 1R12835233AA
ASSY LUGGAGE STRAP REEL AND COVER LH 		$338.78 1
31 1R12835246AA
FEMALE RESTRAINING BUTTON 		$0.18 1
31 1R12835245AA
Button restraining, male 		$0.14 1
32 1R12833461AA
LUGGAGE RESTRAINT COVER 		$38.15 1
33 697819
SCREW PAN TORX M6x20 PIL (BLACK) 		$0.62 6
34 1R12834415AA
CATCH - PAINTED
Up to (V) 500515 + 500522-525 		$66.23 1
34 1R12834641AAW
Loop assy, luggage restraint, rear bulkhead 		- 2 Enquire
35 3R12835590AB
CATCH 2+0 LUGGAGE LID - ENCLOSURE
From (V) 500516-21 + 526 onwards 		$9.77 1
35 3R12835563AA
CATCH 2+0 LUGGAGE LID
From (V) 500516-21 + 526 onwards 		$51.13 1
35 3R12835669AA
CATCH STRIKER PLATE
From (V) 500516-21 + 526 onwards 		$8.95 1
35 1R12833520AA
CATCH-LID LUGGAGE DECK
Up to (V) 500515 + 500522-525 		$65.20 1
35 1R12833519AAW
ASSY CARPET LUGGAGE DECKLID 		$219.76 1
36 1R12834080AB
ASSY SPEAKER GRILLE SUBWOOFER 		$459.49 1
37 1R12833416ABW
ASSY PANEL PARCEL SHELF INFILL 		$1,111.01 1
38 700605
NUT M4 HEX FLG BLACK GRD 8 		$1.39 4
39 697517PK
WASHER-M6 LGE OD BLK PACK OF 20 		$23.61 8
40 1R12834810AB
Bracket, 2+0 woofer grille fixing 		- 4 Enquire
41 699626
GROMMET M8 BLANKING PLUG
Blanking redundant seat belt holes 		$0.61 4
41 1R12833892AA
PLUG - SEAT BELT ANCHORAGE
Blanking redundant seat belt holes 		$0.12 4
41 3R12375507AB
Bezel assy, bass driver, satin chrome
From (V) 500516-21 + 526 onwards 		- 1 Enquire
41 3R12375506AB
2+0 BASS DRIVER BEZEL ASSY-BLACK
From (V) 500516-21 + 526 onwards 		$279.82 2
41 700446
Screw, M4 x 40, black
From (V) 500516-21 + 526 onwards 		- 2 Enquire
41 700431
SCREW M4 x 25 BLACK
From (V) 500516-21 + 526 onwards 		$0.59 4
41 700430
SCREW M4 x 25 STAINLESS STEEL
From (V) 500516-21 + 526 onwards 		$1.93 6
41 1R12831176AD
SPEAKER GRILLE REAR
Up to (V) 500515 + 500522-525 		$70.48 2
41 697286
Washer M6 Large OD
Rear parcel shelf to ucd 		$1.55 2
41 703265
Screw, M6 x 16, Hex Flange Head
Rear parcel shelf to ucd 		$0.36 2
41 697286
Washer M6 Large OD
Rear parcel shelf to ucd 		$1.55 4
41 700126
SCREW M6x20 HEX FLG
Rear parcel shelf to ucd 		$3.17 4
41 1R12834231AA
Foam packer, lower rear quarter 		$3.83 2

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
