Aston Martin Vanquish (2001-2007) - Body Fittings 1

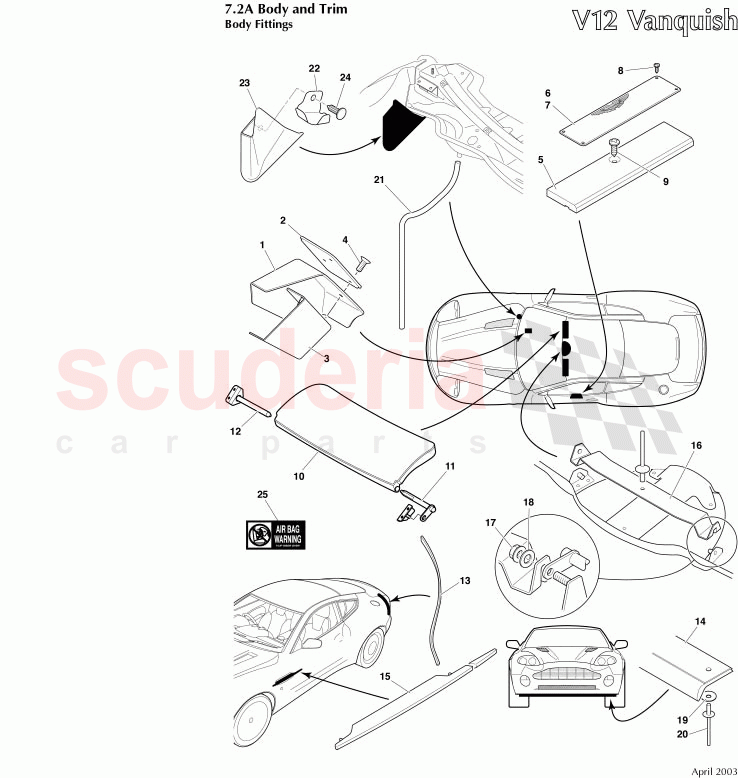

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12804558AAW	ASSY FOOTREST RHD	Enquire	To Order
	1R12804559AAW	ASSY FOOTREST LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12803600AB	Pad, footrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12803328AA	BRACKET - FOOTREST RHD	Enquire	To Order
	1R12803329AA	BRACKET - FOOTREST LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700448	Screw, M5 x 30, csk Pedal pad	Enquire	To Order
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834478AB	MOUNTING SILL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13132A51AA	SILL PLATE ASSY VEHICLE NAME VANQUISH S	Enquire	To Order
	1R12830989AB	SILL PLATE-V12 VANQ VEHICLE NAME	Enquire	To Order
	4R12836204AA	SILL PLATE VEHICLE NAME(PAIR)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128010477	SILL PLATE VANQ S	Enquire	To Order
	1R128010476	SILL PLATE VANQ V12	Enquire	To Order
	1R128010476	SILL PLATE VANQ V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699108	SCREW No4 x 12 C/SNK RSD HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697603	Screw, M6 x 25, Csk Socket Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830226AEW	Sunvisor assy, trimmed, RH	Enquire	To Order
	1R12830225AEW	Sunvisor assy, trimmed, LH	Enquire	To Order
	4R12830226AAW	SUNVISOR ASSY RHS TRIMMED - MIRROR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12835394AB	SUN VISOR MOUNTING PIN INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833592AC	REAR LAMP - FINISHER RH	Enquire	To Order
	1R12832496AC	SUNVISOR MNTG PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833593AC	REAR LAMP FINISHER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831340AF	SIDE STRAKE ASSY RH FENDER	Enquire	To Order
	1R12784295AB	FRONT AIRDAM EXTRUSION	Enquire	To Order
	1R12831392AE	Side strake rear, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834648AB	SIDE STRAKE ASSY FENDER RH SATIN CHROME	Enquire	To Order
	1R12834649AB	SIDE STRAKE ASSY FENDER LH SATIN CHROME	Enquire	To Order
	1R12831392AF	SIDE STRAKE-DOOR-RH	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12835044AA	REINF BAR - FRONT HEADER SUBSTRATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697431	NUT M4 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699969PK	RIVET-R LOK PACK 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12632802AB	DRAIN HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12634144AC	LEAF SCREEN - PLENUM CUP RH	Enquire	To Order
	1R12634145AC	LEAF SCREEN - PLENUM CUP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12633944AB	DRAIN - CUP PLENUM	Enquire	To Order
	1R12633945AB	DRAIN CUP - PLENUM	Enquire	To Order
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699508	PINE TREE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9790423	AIRBAG WARNING LABEL ENGLISH	Enquire	To Order
	9790425	AIRBAG WARNING LABEL	Enquire	To Order
	9790434	AIRBAG WARNING LABEL FRENCH	Enquire	To Order

...and 10 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12804558AAW	ASSY FOOTREST RHD	1R12804558AAW ASSY FOOTREST RHD RHD	-	1	Enquire
1	1R12804559AAW	ASSY FOOTREST LHD	1R12804559AAW ASSY FOOTREST LHD LHD	-	1	Enquire
2	1R12803600AB	Pad, footrest	1R12803600AB Pad, footrest	-	1	Enquire
3	1R12803328AA	BRACKET - FOOTREST RHD	1R12803328AA BRACKET - FOOTREST RHD RHD	-	1	Enquire
3	1R12803329AA	BRACKET - FOOTREST LHD	1R12803329AA BRACKET - FOOTREST LHD LHD	-	1	Enquire
4	700448	Screw, M5 x 30, csk Pedal pad	700448 Screw, M5 x 30, csk Pedal pad	-	3	Enquire
4	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	3	Enquire
5	1R12834478AB	MOUNTING SILL PLATE	1R12834478AB MOUNTING SILL PLATE	-	2	Enquire
6	5R13132A51AA	SILL PLATE ASSY VEHICLE NAME VANQUISH S	5R13132A51AA SILL PLATE ASSY VEHICLE NAME VANQUISH S Vanquish S from (V) 501506	-	2	Enquire
6	1R12830989AB	SILL PLATE-V12 VANQ VEHICLE NAME	1R12830989AB SILL PLATE-V12 VANQ VEHICLE NAME Up to (V) 501285	-	2	Enquire
6	4R12836204AA	SILL PLATE VEHICLE NAME(PAIR)	4R12836204AA SILL PLATE VEHICLE NAME(PAIR) From (V) 501286	-	2	Enquire
7	1R128010477	SILL PLATE VANQ S	1R128010477 SILL PLATE VANQ S Vanquish S from (V) 501506	-	2	Enquire
7	1R128010476	SILL PLATE VANQ V12	1R128010476 SILL PLATE VANQ V12 Up to (V) 501285	-	2	Enquire
7	1R128010476	SILL PLATE VANQ V12	1R128010476 SILL PLATE VANQ V12 From (V) 501286	-	2	Enquire
8	699108	SCREW No4 x 12 C/SNK RSD HD	699108 SCREW No4 x 12 C/SNK RSD HD	-	8	Enquire
9	697603	Screw, M6 x 25, Csk Socket Hd	697603 Screw, M6 x 25, Csk Socket Hd	-	4	Enquire
10	1R12830226AEW	Sunvisor assy, trimmed, RH	1R12830226AEW Sunvisor assy, trimmed, RH Up to (V) 501285	-	1	Enquire
10	1R12830225AEW	Sunvisor assy, trimmed, LH	1R12830225AEW Sunvisor assy, trimmed, LH Up to (V) 501285	-	1	Enquire
10	4R12830226AAW	SUNVISOR ASSY RHS TRIMMED - MIRROR	4R12830226AAW SUNVISOR ASSY RHS TRIMMED - MIRROR From (V) 501286	-	1	Enquire
10	4R12830225AAW	SUNVISOR ASSY LHS TRIMMED - MIRROR	4R12830225AAW SUNVISOR ASSY LHS TRIMMED - MIRROR From (V) 501286	-	1	Enquire
11	1R12835394AB	SUN VISOR MOUNTING PIN INNER	1R12835394AB SUN VISOR MOUNTING PIN INNER	-	2	Enquire
12	1R12833592AC	REAR LAMP - FINISHER RH	1R12833592AC REAR LAMP - FINISHER RH	-	1	Enquire
12	1R12832496AC	SUNVISOR MNTG PIN	1R12832496AC SUNVISOR MNTG PIN	-	2	Enquire
13	1R12833593AC	REAR LAMP FINISHER LH	1R12833593AC REAR LAMP FINISHER LH	-	1	Enquire
14	1R12831340AF	SIDE STRAKE ASSY RH FENDER	1R12831340AF SIDE STRAKE ASSY RH FENDER	-	1	Enquire
14	1R12784295AB	FRONT AIRDAM EXTRUSION	1R12784295AB FRONT AIRDAM EXTRUSION	-	1	Enquire
14	1R12831392AE	Side strake rear, RH	1R12831392AE Side strake rear, RH	-	1	Enquire
14	5R1313550PIA2	DOUBLE SIDED TAPE 3M 5361	5R1313550PIA2 DOUBLE SIDED TAPE 3M 5361	-	-	Enquire
15	1R12834648AB	SIDE STRAKE ASSY FENDER RH SATIN CHROME	1R12834648AB SIDE STRAKE ASSY FENDER RH SATIN CHROME Optional	-	1	Enquire
15	1R12834649AB	SIDE STRAKE ASSY FENDER LH SATIN CHROME	1R12834649AB SIDE STRAKE ASSY FENDER LH SATIN CHROME Optional	-	1	Enquire
15	1R12831392AF	SIDE STRAKE-DOOR-RH	1R12831392AF SIDE STRAKE-DOOR-RH Optional	-	1	Enquire
15	1R12831393AF	SIDE STRAKE-DOOR-LH	1R12831393AF SIDE STRAKE-DOOR-LH Optional	-	1	Enquire
15	1R12831341AF	SIDE STRAKE ASSY- FENDER LH	1R12831341AF SIDE STRAKE ASSY- FENDER LH	-	1	Enquire
15	1R12831392AF	SIDE STRAKE-DOOR-RH	1R12831392AF SIDE STRAKE-DOOR-RH	-	1	Enquire
15	1R12831393AF	SIDE STRAKE-DOOR-LH	1R12831393AF SIDE STRAKE-DOOR-LH	-	1	Enquire
15	1R12831393AE	Side strake rear, LH	1R12831393AE Side strake rear, LH	-	1	Enquire
15	5R1313550PIA2	DOUBLE SIDED TAPE 3M 5361	5R1313550PIA2 DOUBLE SIDED TAPE 3M 5361	-	-	Enquire
16	1R12835044AA	REINF BAR - FRONT HEADER SUBSTRATE	1R12835044AA REINF BAR - FRONT HEADER SUBSTRATE	-	1	Enquire
17	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	2	Enquire
18	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT	-	2	Enquire
19	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Airdam attach	-	9	Enquire
20	699969PK	RIVET-R LOK PACK 10	699969PK RIVET-R LOK PACK 10 Airdam attach	-	9	Enquire
21	1R12632802AB	DRAIN HOSE	1R12632802AB DRAIN HOSE	-	1	Enquire
22	1R12634144AC	LEAF SCREEN - PLENUM CUP RH	1R12634144AC LEAF SCREEN - PLENUM CUP RH	-	1	Enquire
22	1R12634145AC	LEAF SCREEN - PLENUM CUP LH	1R12634145AC LEAF SCREEN - PLENUM CUP LH	-	1	Enquire
23	1R12633944AB	DRAIN - CUP PLENUM	1R12633944AB DRAIN - CUP PLENUM	-	1	Enquire
23	1R12633945AB	DRAIN CUP - PLENUM	1R12633945AB DRAIN CUP - PLENUM	-	1	Enquire
23	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	2	Enquire
23	1R12632220AE	DRAIN TUBE-PLENUM OUTER	1R12632220AE DRAIN TUBE-PLENUM OUTER	-	2	Enquire
24	699508	PINE TREE CLIP	699508 PINE TREE CLIP	-	2	Enquire
25	9790423	AIRBAG WARNING LABEL ENGLISH	9790423 AIRBAG WARNING LABEL ENGLISH USA/Canada only	-	2	Enquire
25	9790425	AIRBAG WARNING LABEL	9790425 AIRBAG WARNING LABEL USA/Canada only	-	2	Enquire
25	9790434	AIRBAG WARNING LABEL FRENCH	9790434 AIRBAG WARNING LABEL FRENCH Canada only	-	2	Enquire
25	9790424	AIRBAG WARNING LABEL FRENCH	9790424 AIRBAG WARNING LABEL FRENCH Canada only	-	2	Enquire
25	1R12785178AB	WATER DEFLECTOR RH	1R12785178AB WATER DEFLECTOR RH	-	1	Enquire
25	1R12785177AB	WATER DEFLECTOR LH	1R12785177AB WATER DEFLECTOR LH	-	1	Enquire
25	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	10	Enquire
25	700270	SCREW M6x10 FLG	700270 SCREW M6x10 FLG	-	2	Enquire
25	699620	GROMMET (BLIND) SUPPLIER PART No 89736	699620 GROMMET (BLIND) SUPPLIER PART No 89736	-	2	Enquire
25	1R12632656AB	COLLAR-HINGE SPACING	1R12632656AB COLLAR-HINGE SPACING	-	4	Enquire
25	700226	WASHER PLAIN M6x17	700226 WASHER PLAIN M6x17	-	6	Enquire
25	1R12634756AA	CLIP - HEATSHIELD	1R12634756AA CLIP - HEATSHIELD	-	6	Enquire
25	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	8	Enquire
