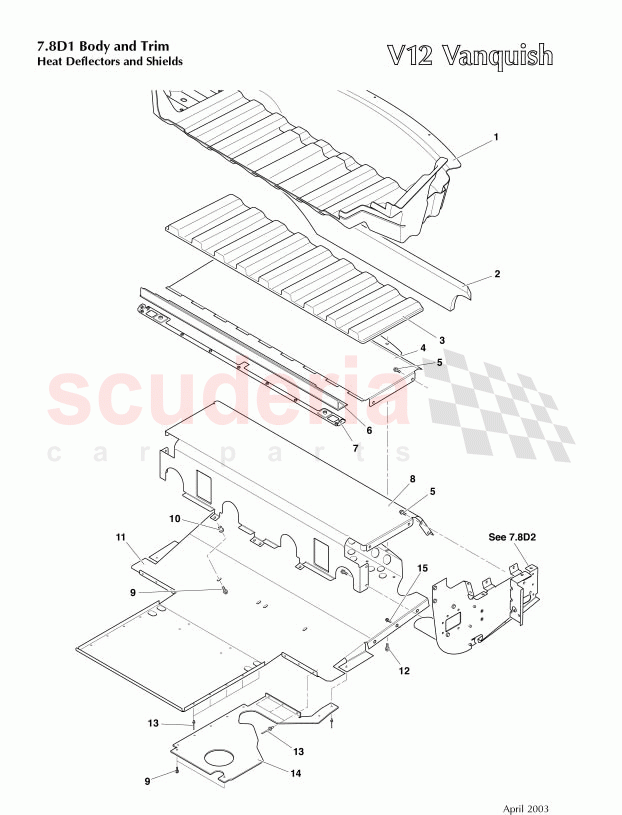

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12162965AH	ASY LOWER CARGO DECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102932AB	INSULATION REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102370AB	INSULATION UNDERSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102884AF	SECURING PANEL - LCD INS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160347AF	Tankbay crossmember (Part of monocoque)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160952AC	Nutplate, tankbay crossmember	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102659AG	DUCTING - MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700622	SCREW & WASHER M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699282	RIVNUT - M6 STEEL - XYLAN COATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12185742AA	DIFFUSER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699587	WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	Enquire	To Order
	700247	SCREW &WSHR M6x20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700162	RIVET POP 4.9mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12185742AA	DIFFUSER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702872	SCREW 4.8 x16 PAN SS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12162965AH	ASY LOWER CARGO DECK	1R12162965AH ASY LOWER CARGO DECK	-	1	Enquire
2	1R12102932AB	INSULATION REAR	1R12102932AB INSULATION REAR	-	1	Enquire
3	1R12102370AB	INSULATION UNDERSIDE	1R12102370AB INSULATION UNDERSIDE	-	1	Enquire
4	1R12102884AF	SECURING PANEL - LCD INS	1R12102884AF SECURING PANEL - LCD INS	-	1	Enquire
5	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	12	Enquire
6	1R12160347AF	Tankbay crossmember (Part of monocoque)	1R12160347AF Tankbay crossmember (Part of monocoque)	-	1	Enquire
7	1R12160952AC	Nutplate, tankbay crossmember	1R12160952AC Nutplate, tankbay crossmember	-	1	Enquire
8	1R12102659AG	DUCTING - MUFFLER	1R12102659AG DUCTING - MUFFLER	-	1	Enquire
9	700622	SCREW & WASHER M6 x 16	700622 SCREW & WASHER M6 x 16	-	14	Enquire
10	699282	RIVNUT - M6 STEEL - XYLAN COATED	699282 RIVNUT - M6 STEEL - XYLAN COATED	-	10	Enquire
11	1R12185742AA	DIFFUSER ASSY	1R12185742AA DIFFUSER ASSY Part of item 14	-	1	Enquire
12	699587	WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	699587 WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS	-	4	Enquire
12	700247	SCREW &WSHR M6x20	700247 SCREW &WSHR M6x20	-	4	Enquire
13	700162	RIVET POP 4.9mm	700162 RIVET POP 4.9mm	-	18	Enquire
14	1R12185742AA	DIFFUSER ASSY	1R12185742AA DIFFUSER ASSY	-	1	Enquire
15	702872	SCREW 4.8 x16 PAN SS	702872 SCREW 4.8 x16 PAN SS	-	6	Enquire
