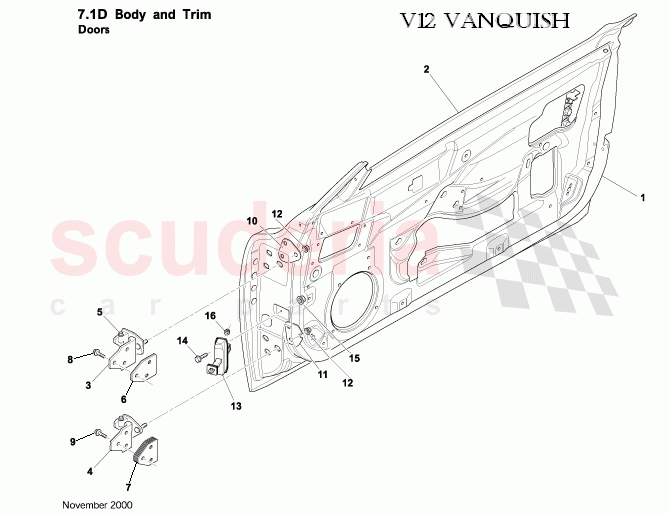

Aston Martin Vanquish (2001-2007) - Doors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12651164AJ	ASSY - DOOR COMPLETE RH	Enquire	To Order
	1R12651165AJ	ASSY - DOOR COMPLETE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12650104AG	Panel, door outer, RH	Enquire	To Order
	1R12650105AG	Panel, door outer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126510344	DOOR HINGE-UPPER RH	Enquire	To Order
	1R126510345	DOOR HINGE-UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126510346	DOOR HINGE-LOWER RH	Enquire	To Order
	1R126510347	DOOR HINGE-LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700609	SCREW M6x35	Enquire	To Order
	701885	LOCTITE 243-10ml BTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651360AA	SPACER - UPPER DOOR HINGE - A PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12630294AA	SPACER - LOWER DOOR HINGE - A PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700260	BOLT M8 x 40 HEX FLG HEAD GRD 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FJE2580AA	Washer plate, door upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126510141	WASHER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126510142	DOOR CHECKARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700037	NUT M8 HEX DURLOCK FL GR 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12651164AJ	ASSY - DOOR COMPLETE RH	1R12651164AJ ASSY - DOOR COMPLETE RH	-	1	Enquire
1	1R12651165AJ	ASSY - DOOR COMPLETE LH	1R12651165AJ ASSY - DOOR COMPLETE LH	-	1	Enquire
2	1R12650104AG	Panel, door outer, RH	1R12650104AG Panel, door outer, RH	-	1	Enquire
2	1R12650105AG	Panel, door outer, LH	1R12650105AG Panel, door outer, LH	-	1	Enquire
3	1R126510344	DOOR HINGE-UPPER RH	1R126510344 DOOR HINGE-UPPER RH	-	1	Enquire
3	1R126510345	DOOR HINGE-UPPER LH	1R126510345 DOOR HINGE-UPPER LH	-	1	Enquire
4	1R126510346	DOOR HINGE-LOWER RH	1R126510346 DOOR HINGE-LOWER RH	-	1	Enquire
4	1R126510347	DOOR HINGE-LOWER LH	1R126510347 DOOR HINGE-LOWER LH	-	1	Enquire
5	700609	SCREW M6x35	700609 SCREW M6x35	-	4	Enquire
5	701885	LOCTITE 243-10ml BTL	701885 LOCTITE 243-10ml BTL	-	-	Enquire
6	1R12651360AA	SPACER - UPPER DOOR HINGE - A PILLAR	1R12651360AA SPACER - UPPER DOOR HINGE - A PILLAR	-	4	Enquire
7	1R12630294AA	SPACER - LOWER DOOR HINGE - A PILLAR	1R12630294AA SPACER - LOWER DOOR HINGE - A PILLAR	-	10	Enquire
8	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	703153 BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	-	6	Enquire
9	700260	BOLT M8 x 40 HEX FLG HEAD GRD 10.9	700260 BOLT M8 x 40 HEX FLG HEAD GRD 10.9	-	6	Enquire
10	FJE2580AA	Washer plate, door upper	FJE2580AA Washer plate, door upper	-	2	Enquire
11	1R126510141	WASHER PLATE	1R126510141 WASHER PLATE	-	2	Enquire
12	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	12	Enquire
13	1R126510142	DOOR CHECKARM	1R126510142 DOOR CHECKARM	-	2	Enquire
14	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd	-	2	Enquire
15	700037	NUT M8 HEX DURLOCK FL GR 12	700037 NUT M8 HEX DURLOCK FL GR 12	-	2	Enquire
16	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
