Door Latch Mechanism of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Door Latch Mechanism

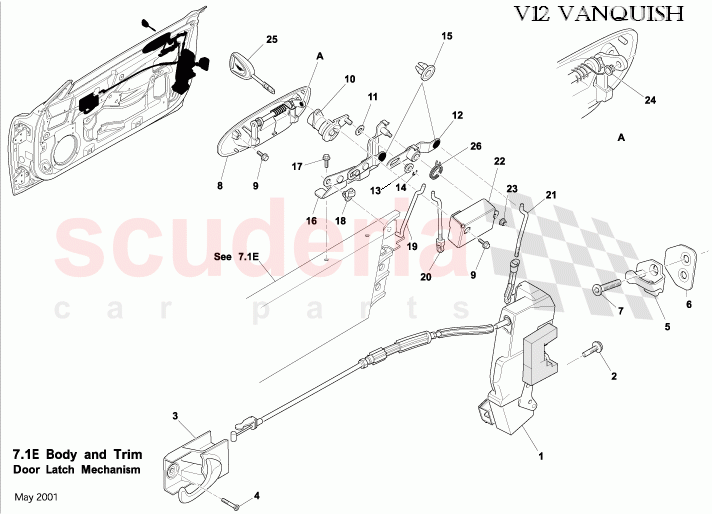

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12652128AC	ASSY-LATCH DOOR RH RHD	Enquire	To Order
	1R12652129AC	ASSY-LATCH DOOR LH RHD	Enquire	To Order
	1R12652126AC	ASSY-LATCH DOOR RH LHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700232	SCREW M6x16 PAN TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651984AB	ASSY HANDLE REMOTE CONTROL RH	Enquire	To Order
	1R12651985AB	ASSY HANDLE REMOTE CONTROL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700459	SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM	Enquire	To Order
	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	Enquire	To Order
	3R12656233AA	BRACKET - RETAINING -DOOR CABLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R126510355	DOOR STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651228AD	Spacer, striker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697163	WASHER M8 X 20.5 PLAIN FORM C	Enquire	To Order
	692045	WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	Enquire	To Order
	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12655388AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED	Enquire	To Order
	1R12655389AAW	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED	Enquire	To Order
	1R12655386AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651800AB/N	LOCK BARREL-RHD TO NUMBER	Enquire	To Order
	1R12651801AB/N	LOCK BARREL LHD TO NUMBER	Enquire	To Order
	1R12651800AB	LOCK BARREL DOOR RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699295	M5 NYLON WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12654878AC	ASSY LEVER DOOR LOCK RHD	Enquire	To Order
	1R12654879AC	ASSY LEVER DOOR LOCK LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582284	BUSH PIVOT BELLCRANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699641	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700234	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652422AE	ASSY BRACKET DOOR LINKAGE RH	Enquire	To Order
	1R12652423AE	ASSY BRACKET DOOR LINKAGE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700819	Screw, flg, M5x8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582287	CLIP-LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12650326AA	Door Link, Handle RH	Enquire	To Order
	1R12650325AA	Door Link, Handle LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652420AB	LINK ASSY DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652130AB	LINK DOOR LOCK RH	Enquire	To Order
	1R12652131AB	LINK DOOR LOCK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13656364AA	Security shield, door lock	Enquire	To Order
	5R13656365AA	Security shield, door lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697431	NUT M4 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699642	PLASTIC BUSH - LINK ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12656217AAN	KEY ASSY-TO NUMBER	Enquire	To Order
	4R12656217AA	Key Assy	Enquire	To Order
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12652444AB	LOCK SET RHD	Enquire	To Order
	1R12652445AB	LOCK SET LHD	Enquire	To Order
	4R12652444AA	LOCK SET RHD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12652128AC	ASSY-LATCH DOOR RH RHD	1R12652128AC ASSY-LATCH DOOR RH RHD RHD	-	1	Enquire
1	1R12652129AC	ASSY-LATCH DOOR LH RHD	1R12652129AC ASSY-LATCH DOOR LH RHD RHD	-	1	Enquire
1	1R12652126AC	ASSY-LATCH DOOR RH LHD	1R12652126AC ASSY-LATCH DOOR RH LHD LHD	-	1	Enquire
1	1R12652127AC	ASSY-LATCH DOOR LH LHD	1R12652127AC ASSY-LATCH DOOR LH LHD LHD	-	1	Enquire
2	700232	SCREW M6x16 PAN TORX	700232 SCREW M6x16 PAN TORX	-	6	Enquire
3	1R12651984AB	ASSY HANDLE REMOTE CONTROL RH	1R12651984AB ASSY HANDLE REMOTE CONTROL RH	-	1	Enquire
3	1R12651985AB	ASSY HANDLE REMOTE CONTROL LH	1R12651985AB ASSY HANDLE REMOTE CONTROL LH	-	1	Enquire
4	700459	SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM	700459 SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM Retaining brkt attach	-	2	Enquire
4	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	1R12834228AA SCREW M5x25 SKT HD - POLISHED	-	2	Enquire
4	3R12656233AA	BRACKET - RETAINING -DOOR CABLE	3R12656233AA BRACKET - RETAINING -DOOR CABLE	-	2	Enquire
4	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	1R12834615AA SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	-	2	Enquire
4	1R12834616AA	Screw M6x50 Stainless Steel Socket Head Cap Screw	1R12834616AA Screw M6x50 Stainless Steel Socket Head Cap Screw	-	2	Enquire
5	1R126510355	DOOR STRIKER	1R126510355 DOOR STRIKER	-	2	Enquire
6	1R12651228AD	Spacer, striker	1R12651228AD Spacer, striker	-	2	Enquire
7	697163	WASHER M8 X 20.5 PLAIN FORM C	697163 WASHER M8 X 20.5 PLAIN FORM C Use selectively to adjust striker	-	8	Enquire
7	692045	WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	692045 WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	-	2	Enquire
7	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	703147 SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	-	4	Enquire
8	1R12655388AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED	1R12655388AAW HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED RHD Optional	-	1	Enquire
8	1R12655389AAW	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED	1R12655389AAW HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED RHD Optional	-	1	Enquire
8	1R12655386AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED	1R12655386AAW HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED LHD Optional	-	1	Enquire
8	1R12655387AAW	Handle, door exterior, chrome flap, painted LH LHD	1R12655387AAW Handle, door exterior, chrome flap, painted LH LHD LHD Optional	-	1	Enquire
8	1R12654288AA	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD	1R12654288AA HANDLE DOOR EXTERIOR CHROME FLAP RH RHD RHD Optional	-	1	Enquire
8	1R12654289AA	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD	1R12654289AA HANDLE DOOR EXTERIOR CHROME FLAP LH RHD RHD Optional	-	1	Enquire
8	1R12654286AA	HANDLE DOOR EXTERIOR - CHROME FLAP RH LHD	1R12654286AA HANDLE DOOR EXTERIOR - CHROME FLAP RH LHD LHD Optional	-	1	Enquire
8	1R12654287AA	HANDLE EXTERIOR - CHROME FLAP LH LHD	1R12654287AA HANDLE EXTERIOR - CHROME FLAP LH LHD LHD Optional	-	1	Enquire
8	1R12652124AA	HANDLE DOOR EXTERIOR RH RHD	1R12652124AA HANDLE DOOR EXTERIOR RH RHD RHD	-	1	Enquire
8	1R12652125AA	HANDLE DOOR EXTERIOR LH RHD	1R12652125AA HANDLE DOOR EXTERIOR LH RHD RHD	-	1	Enquire
8	1R12652122AA	HANDLE DOOR EXTERIOR RH LHD	1R12652122AA HANDLE DOOR EXTERIOR RH LHD LHD	-	1	Enquire
8	1R12652123AA	HANDLE DOOR EXTERIOR LH LHD	1R12652123AA HANDLE DOOR EXTERIOR LH LHD LHD	-	1	Enquire
9	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	4	Enquire
10	1R12651800AB/N	LOCK BARREL-RHD TO NUMBER	1R12651800AB/N LOCK BARREL-RHD TO NUMBER	-	1	Enquire
10	1R12651801AB/N	LOCK BARREL LHD TO NUMBER	1R12651801AB/N LOCK BARREL LHD TO NUMBER	-	1	Enquire
10	1R12651800AB	LOCK BARREL DOOR RHD	1R12651800AB LOCK BARREL DOOR RHD	-	1	Enquire
10	1R12651801AB	Lock Barrel Door LHD	1R12651801AB Lock Barrel Door LHD	-	1	Enquire
11	699295	M5 NYLON WASHER	699295 M5 NYLON WASHER	-	1	Enquire
12	1R12654878AC	ASSY LEVER DOOR LOCK RHD	1R12654878AC ASSY LEVER DOOR LOCK RHD RHD	-	1	Enquire
12	1R12654879AC	ASSY LEVER DOOR LOCK LHD	1R12654879AC ASSY LEVER DOOR LOCK LHD LHD	-	1	Enquire
13	6582284	BUSH PIVOT BELLCRANK	6582284 BUSH PIVOT BELLCRANK	-	2	Enquire
14	699641	CIRCLIP	699641 CIRCLIP	-	1	Enquire
15	700234	CLIP	700234 CLIP	-	1	Enquire
16	1R12652422AE	ASSY BRACKET DOOR LINKAGE RH	1R12652422AE ASSY BRACKET DOOR LINKAGE RH	-	1	Enquire
16	1R12652423AE	ASSY BRACKET DOOR LINKAGE LH	1R12652423AE ASSY BRACKET DOOR LINKAGE LH	-	1	Enquire
17	700819	Screw, flg, M5x8	700819 Screw, flg, M5x8	-	2	Enquire
18	6582287	CLIP-LINKAGE	6582287 CLIP-LINKAGE	-	1	Enquire
19	1R12650326AA	Door Link, Handle RH	1R12650326AA Door Link, Handle RH	-	1	Enquire
19	1R12650325AA	Door Link, Handle LH	1R12650325AA Door Link, Handle LH	-	1	Enquire
20	1R12652420AB	LINK ASSY DOOR LATCH	1R12652420AB LINK ASSY DOOR LATCH	-	1	Enquire
21	1R12652130AB	LINK DOOR LOCK RH	1R12652130AB LINK DOOR LOCK RH RHD	-	1	Enquire
21	1R12652131AB	LINK DOOR LOCK LH	1R12652131AB LINK DOOR LOCK LH LHD	-	1	Enquire
22	5R13656364AA	Security shield, door lock	5R13656364AA Security shield, door lock RHD	-	1	Enquire
22	5R13656365AA	Security shield, door lock	5R13656365AA Security shield, door lock LHD	-	1	Enquire
23	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	1	Enquire
24	699642	PLASTIC BUSH - LINK ROD	699642 PLASTIC BUSH - LINK ROD	-	2	Enquire
25	4R12656217AAN	KEY ASSY-TO NUMBER	4R12656217AAN KEY ASSY-TO NUMBER Up to (V) 501285	-	1	Enquire
25	4R12656217AA	Key Assy	4R12656217AA Key Assy From (V) 501286	-	1	Enquire
25	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	2	Enquire
25	699813	M8 NYLON WASHER	699813 M8 NYLON WASHER	-	2	Enquire
26	1R12652444AB	LOCK SET RHD	1R12652444AB LOCK SET RHD RHD Up to (V) 501285	-	1	Enquire
26	1R12652445AB	LOCK SET LHD	1R12652445AB LOCK SET LHD LHD Up to (V) 501285	-	1	Enquire
26	4R12652444AA	LOCK SET RHD	4R12652444AA LOCK SET RHD From (V) 501286	-	1	Enquire
26	4R12652445AA	LOCK SET LHD	4R12652445AA LOCK SET LHD From (V) 501286	-	1	Enquire
26	1R12654906AB	TORSION SPRING - DOOR LOCK LEVER	1R12654906AB TORSION SPRING - DOOR LOCK LEVER	-	2	Enquire
26	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A'	-	2	Enquire
26	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	-	4	Enquire
26	699208	Tefoil and PTFE spray	699208 Tefoil and PTFE spray	-	-	Enquire
