Front Body Support Structure

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Front Body Support Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12200210AJ STRUT TOWER - RH MACHINING DETAIL Enquire To Order
Photo Part No Description Price (each) Stock
1R12200209AJ STRUT TOWER - LH MACHINING DETAIL Enquire To Order
Photo Part No Description Price (each) Stock
1R12160624AH ASSY STRUT TOWER SUPPORT RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12160625AH ASSY STRUT TOWER SUP SUPPORT LH Enquire To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
1R12161798AB NUTPLATE - STRUT TOWER SUPPORT OUTER Enquire To Order
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
1R12161229AB NUTPLATE - STRUT TOWER SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
1R122110697 ASSY ENGINE CRADLE- PAINTED AND WAXED Enquire To Order
Photo Part No Description Price (each) Stock
700217 BOLT M10x90 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
1R12201230AA DOWEL - DIAM 10 X 30 LONG Enquire To Order
694858 LOCTITE 648 50ML BOTTLE Enquire To Order
Photo Part No Description Price (each) Stock
700219 BOLT M12x50 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700988 BOLT M12 x 90 FLG HD Enquire To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
700985 SCREW-M12 x 30 FLGHD GRD 10.9 ADH Enquire To Order
Photo Part No Description Price (each) Stock
1R12161017AA NUTPLATE - FRONT SUBFRAME LOWER LH Enquire To Order
Photo Part No Description Price (each) Stock
1R12161016AA NUTPLATE - FRONT SUBFRAME LOWER RH Enquire To Order
Photo Part No Description Price (each) Stock
5R135S021AA UNDERPANEL - VENTILATED Enquire To Order
5R135S021AA UNDERPANEL - VENTILATED Enquire To Order
Photo Part No Description Price (each) Stock
703730 Screw, M8 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
700224 SCREW M8x30 HEX FLG8 Enquire To Order
Photo Part No Description Price (each) Stock
1R12201059AB NUT PLATE - MOUNTING RAIL Enquire To Order
Photo Part No Description Price (each) Stock
1R12103709AC Assy Panel, Steering Rack Enquire To Order
Photo Part No Description Price (each) Stock
703730 Screw, M8 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
1R12162405AD ASSY STRUT BRACE Enquire To Order
Photo Part No Description Price (each) Stock
703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE Enquire To Order
700151 SCREW M8x45 HEX FLG8 Enquire To Order
700225 BOLT M8X50 HEX FLG HEAD GRD 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
1R12632221AC BRACKET-APRON SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking Enquire To Order
View All

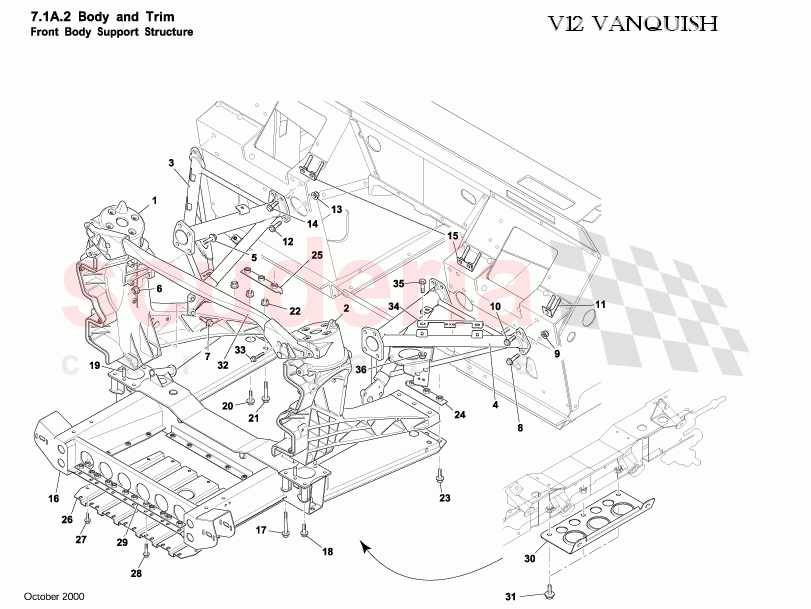

Front Body Support Structure of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12200210AJ
STRUT TOWER - RH MACHINING DETAIL 		- 1 Enquire
2 1R12200209AJ
STRUT TOWER - LH MACHINING DETAIL 		- 1 Enquire
3 1R12160624AH
ASSY STRUT TOWER SUPPORT RH 		- 1 Enquire
4 1R12160625AH
ASSY STRUT TOWER SUP SUPPORT LH 		- 1 Enquire
5 700212
BOLT M12x45 HEX FLG 		- 8 Enquire
6 700147
NUT M12x1.75 HEX FLG 		- 8 Enquire
7 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		- 6 Enquire
8 700212
BOLT M12x45 HEX FLG 		- 2 Enquire
9 700147
NUT M12x1.75 HEX FLG 		- 2 Enquire
10 700212
BOLT M12x45 HEX FLG 		- 2 Enquire
11 1R12161798AB
NUTPLATE - STRUT TOWER SUPPORT OUTER 		- 2 Enquire
12 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		- 4 Enquire
13 700147
NUT M12x1.75 HEX FLG 		- 4 Enquire
14 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 4 Enquire
15 1R12161229AB
NUTPLATE - STRUT TOWER SUPPORT 		- 2 Enquire
16 1R122110697
ASSY ENGINE CRADLE- PAINTED AND WAXED 		- 1 Enquire
17 700217
BOLT M10x90 HEX FLG 		- 4 Enquire
18 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 4 Enquire
19 1R12201230AA
DOWEL - DIAM 10 X 30 LONG 		- 4 Enquire
19 694858
LOCTITE 648 50ML BOTTLE 		- - Enquire
20 700219
BOLT M12x50 HEX FLG 		- 2 Enquire
21 700988
BOLT M12 x 90 FLG HD 		- 4 Enquire
22 700147
NUT M12x1.75 HEX FLG 		- 6 Enquire
23 700985
SCREW-M12 x 30 FLGHD GRD 10.9 ADH 		- 6 Enquire
24 1R12161017AA
NUTPLATE - FRONT SUBFRAME LOWER LH 		- 1 Enquire
25 1R12161016AA
NUTPLATE - FRONT SUBFRAME LOWER RH 		- 1 Enquire
26 5R135S021AA
UNDERPANEL - VENTILATED
Vanquish S From (V) 501506 		- 1 Enquire
26 5R135S021AA
UNDERPANEL - VENTILATED 		- 1 Enquire
27 703730
Screw, M8 x 16, Hex Flange Head 		- 18 Enquire
28 700224
SCREW M8x30 HEX FLG8 		- 12 Enquire
29 1R12201059AB
NUT PLATE - MOUNTING RAIL 		- 1 Enquire
30 1R12103709AC
Assy Panel, Steering Rack 		- 1 Enquire
31 703730
Screw, M8 x 16, Hex Flange Head 		- 3 Enquire
32 1R12162405AD
ASSY STRUT BRACE 		- 1 Enquire
33 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		- 2 Enquire
33 700151
SCREW M8x45 HEX FLG8 		- 2 Enquire
33 700225
BOLT M8X50 HEX FLG HEAD GRD 10.9 		- 2 Enquire
34 1R12632221AC
BRACKET-APRON SUPPORT 		- 4 Enquire
35 703265
Screw, M6 x 16, Hex Flange Head 		- 8 Enquire
36 703163
Nut, M6, Hex Flange Head, Locking 		- 8 Enquire
