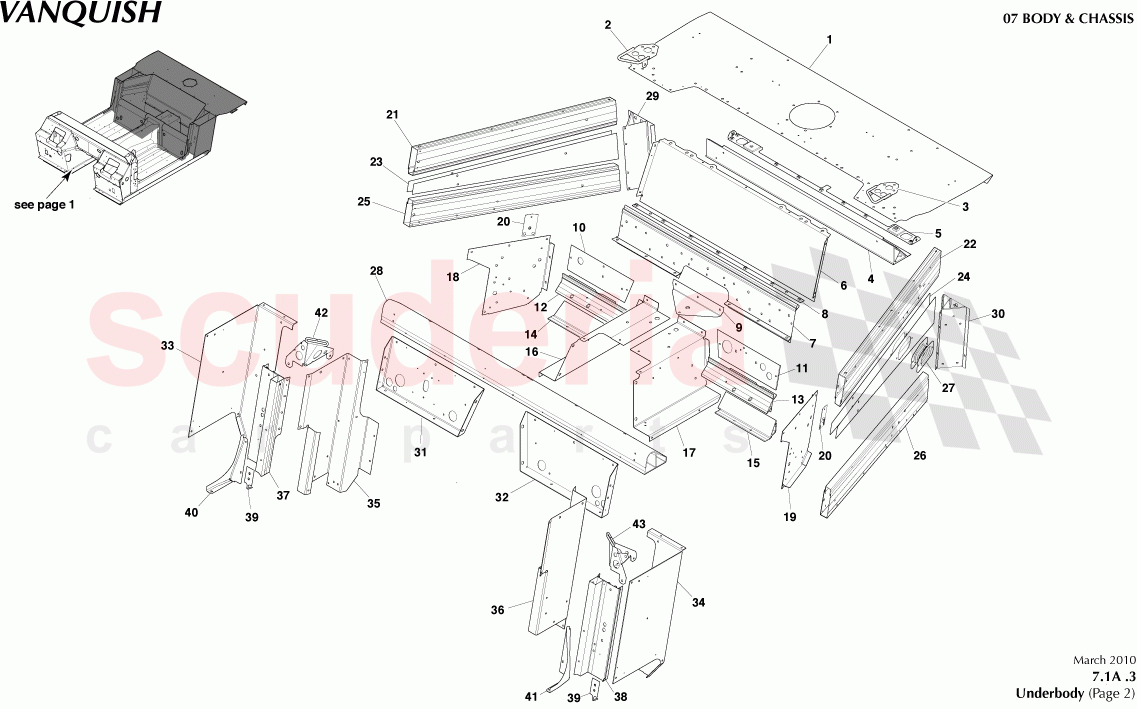

Aston Martin Vanquish (2001-2007) - Underbody 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12160564AK	PANEL-TANKBAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12742748AA	BRACKET-GUIDE FRT SEAT BELT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12742749AA	BRACKET-GUIDE FRT SEAT BELT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160347AG	TANKBAY CROSSMEMBER -MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160952AD	NUTPLATE - TANKBAY CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160562AF	Panel, Seatback	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165716AB	X Member, Seatback	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160949AC	NUTPLATE - SEAT BACK CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160950AF	NUTPLATE - REAR BELTS CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12165715AA	Panel, Torque cell rear, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162255AF	Panel, Torque cell rear, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160546AE	SUBFRAME MTG REAR UPPER RH-MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160547AE	SUBFRAME MTG REAR UPPER LH-MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161462AC	SUBFRAME MTG REAR LOWER RG-MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161461AC	SUBFRAME MTG REAR LOWER LH-MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160568AJ	Panel, Tunnel, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160569AH	Panel, Tunnel, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160566AG	Panel, Torque cell side, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160567AG	Panel, Torque cell side, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161420AC	Nutplate, Rear Belt, outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160540AJ	TANKBAY SIDEMEMBER UPPER RH-MCNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160541AJ	TANKBAY SIDEMEMBER UPPER LH-MCHG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162264AG	Panel, Tankside, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12162265AC	Panel, Tankside, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160542AJ	TANKBAY SIDEMEMBER LOWER RH-MCNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160543AJ	TANKBAY SIDEMEMBER LOWER LH-MCHG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343261AD	Protector, outer Fuel Filler Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160342AK	X Member, B Post	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160346AF	TANKBAY UPRIGHT RH -MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160345AF	TANKBAY UPRIGHT LH -MACHINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160956AH	Panel, Heelboard, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160957AH	Panel, Heelboard, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160554AF	PANEL - B POST OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160555AF	PANEL - B POST OUTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160552AF	PANEL - B POST INNER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160553AF	PANEL - B POST INNER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160340AG	B Post, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160341AG	B Post, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12161015AC	NUTPLATE - B POST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12631200AE	PANEL-REAR QUARTER INNER LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12631201AE	PANEL-REAR QUARTER INNER LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12742746AB	ASSY-FRT SEAT BELT D LOOP RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12742747AB	ASSY-FRT SEAT BELT D LOOP LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12160564AK	PANEL-TANKBAY	1R12160564AK PANEL-TANKBAY Structural Cat. A only	-	1	Enquire
2	1R12742748AA	BRACKET-GUIDE FRT SEAT BELT RH	1R12742748AA BRACKET-GUIDE FRT SEAT BELT RH Structural Cat. A only	-	1	Enquire
3	1R12742749AA	BRACKET-GUIDE FRT SEAT BELT LH	1R12742749AA BRACKET-GUIDE FRT SEAT BELT LH Structural Cat. A only	-	1	Enquire
4	1R12160347AG	TANKBAY CROSSMEMBER -MACHINING	1R12160347AG TANKBAY CROSSMEMBER -MACHINING Structural Cat. A only	-	1	Enquire
5	1R12160952AD	NUTPLATE - TANKBAY CROSSMEMBER	1R12160952AD NUTPLATE - TANKBAY CROSSMEMBER Structural Cat. A only	-	1	Enquire
6	1R12160562AF	Panel, Seatback	1R12160562AF Panel, Seatback Structural Cat. A only	-	1	Enquire
7	3R12165716AB	X Member, Seatback	3R12165716AB X Member, Seatback Structural Cat. A only	-	2	Enquire
8	1R12160949AC	NUTPLATE - SEAT BACK CROSSMEMBER	1R12160949AC NUTPLATE - SEAT BACK CROSSMEMBER Structural Cat. A only	-	1	Enquire
9	1R12160950AF	NUTPLATE - REAR BELTS CENTRE	1R12160950AF NUTPLATE - REAR BELTS CENTRE Structural Cat. A only	-	1	Enquire
10	3R12165715AA	Panel, Torque cell rear, RHS	3R12165715AA Panel, Torque cell rear, RHS Structural Cat. A only	-	1	Enquire
11	1R12162255AF	Panel, Torque cell rear, LHS	1R12162255AF Panel, Torque cell rear, LHS Structural Cat. A only	-	2	Enquire
12	1R12160546AE	SUBFRAME MTG REAR UPPER RH-MACHINING	1R12160546AE SUBFRAME MTG REAR UPPER RH-MACHINING Structural Cat. A only	-	1	Enquire
13	1R12160547AE	SUBFRAME MTG REAR UPPER LH-MACHINING	1R12160547AE SUBFRAME MTG REAR UPPER LH-MACHINING Structural Cat. A only	-	1	Enquire
14	1R12161462AC	SUBFRAME MTG REAR LOWER RG-MACHINING	1R12161462AC SUBFRAME MTG REAR LOWER RG-MACHINING Structural Cat. A only	-	1	Enquire
15	1R12161461AC	SUBFRAME MTG REAR LOWER LH-MACHINING	1R12161461AC SUBFRAME MTG REAR LOWER LH-MACHINING Structural Cat. A only	-	1	Enquire
16	1R12160568AJ	Panel, Tunnel, RHS	1R12160568AJ Panel, Tunnel, RHS Structural Cat. A only	-	1	Enquire
17	1R12160569AH	Panel, Tunnel, LHS	1R12160569AH Panel, Tunnel, LHS Structural Cat. A only	-	1	Enquire
18	1R12160566AG	Panel, Torque cell side, RHS	1R12160566AG Panel, Torque cell side, RHS Structural Cat. A only	-	1	Enquire
19	1R12160567AG	Panel, Torque cell side, LHS	1R12160567AG Panel, Torque cell side, LHS Structural Cat. A only	-	1	Enquire
20	1R12161420AC	Nutplate, Rear Belt, outer	1R12161420AC Nutplate, Rear Belt, outer Structural Cat. A only	-	2	Enquire
21	1R12160540AJ	TANKBAY SIDEMEMBER UPPER RH-MCNG	1R12160540AJ TANKBAY SIDEMEMBER UPPER RH-MCNG Structural Cat. A only	-	1	Enquire
22	1R12160541AJ	TANKBAY SIDEMEMBER UPPER LH-MCHG	1R12160541AJ TANKBAY SIDEMEMBER UPPER LH-MCHG Structural Cat. A only	-	1	Enquire
23	1R12162264AG	Panel, Tankside, RHS	1R12162264AG Panel, Tankside, RHS Structural Cat. A only	-	1	Enquire
24	1R12162265AC	Panel, Tankside, LHS	1R12162265AC Panel, Tankside, LHS Structural Cat. A only	-	1	Enquire
25	1R12160542AJ	TANKBAY SIDEMEMBER LOWER RH-MCNG	1R12160542AJ TANKBAY SIDEMEMBER LOWER RH-MCNG Structural Cat. A only	-	1	Enquire
26	1R12160543AJ	TANKBAY SIDEMEMBER LOWER LH-MCHG	1R12160543AJ TANKBAY SIDEMEMBER LOWER LH-MCHG Structural Cat. A only	-	1	Enquire
27	1R12343261AD	Protector, outer Fuel Filler Pipe	1R12343261AD Protector, outer Fuel Filler Pipe Structural Cat. A only	-	1	Enquire
28	1R12160342AK	X Member, B Post	1R12160342AK X Member, B Post Structural Cat. A only	-	1	Enquire
29	1R12160346AF	TANKBAY UPRIGHT RH -MACHINING	1R12160346AF TANKBAY UPRIGHT RH -MACHINING Structural Cat. A only	-	1	Enquire
30	1R12160345AF	TANKBAY UPRIGHT LH -MACHINING	1R12160345AF TANKBAY UPRIGHT LH -MACHINING Structural Cat. A only	-	1	Enquire
31	1R12160956AH	Panel, Heelboard, RHS	1R12160956AH Panel, Heelboard, RHS Structural Cat. A only	-	1	Enquire
32	1R12160957AH	Panel, Heelboard, LHS	1R12160957AH Panel, Heelboard, LHS Structural Cat. A only	-	1	Enquire
33	1R12160554AF	PANEL - B POST OUTER RH	1R12160554AF PANEL - B POST OUTER RH Structural Cat. A only	-	1	Enquire
34	1R12160555AF	PANEL - B POST OUTER LH	1R12160555AF PANEL - B POST OUTER LH Structural Cat. A only	-	1	Enquire
35	1R12160552AF	PANEL - B POST INNER RH	1R12160552AF PANEL - B POST INNER RH Structural Cat. A only	-	1	Enquire
36	1R12160553AF	PANEL - B POST INNER LH	1R12160553AF PANEL - B POST INNER LH Structural Cat. A only	-	1	Enquire
37	1R12160340AG	B Post, RH	1R12160340AG B Post, RH Structural Cat. A only	-	1	Enquire
38	1R12160341AG	B Post, LH	1R12160341AG B Post, LH Structural Cat. A only	-	1	Enquire
39	1R12161015AC	NUTPLATE - B POST	1R12161015AC NUTPLATE - B POST Structural Cat. A only	-	2	Enquire
40	1R12631200AE	PANEL-REAR QUARTER INNER LOWER RH	1R12631200AE PANEL-REAR QUARTER INNER LOWER RH Structural Cat. A only	-	1	Enquire
41	1R12631201AE	PANEL-REAR QUARTER INNER LOWER LH	1R12631201AE PANEL-REAR QUARTER INNER LOWER LH Structural Cat. A only	-	1	Enquire
42	1R12742746AB	ASSY-FRT SEAT BELT D LOOP RH	1R12742746AB ASSY-FRT SEAT BELT D LOOP RH Structural Cat. A only	-	1	Enquire
43	1R12742747AB	ASSY-FRT SEAT BELT D LOOP LH	1R12742747AB ASSY-FRT SEAT BELT D LOOP LH Structural Cat. A only	-	1	Enquire
