Rear Trim (2 plus 2) of Aston Martin Aston Martin Vanquish (2001-2007)

View All

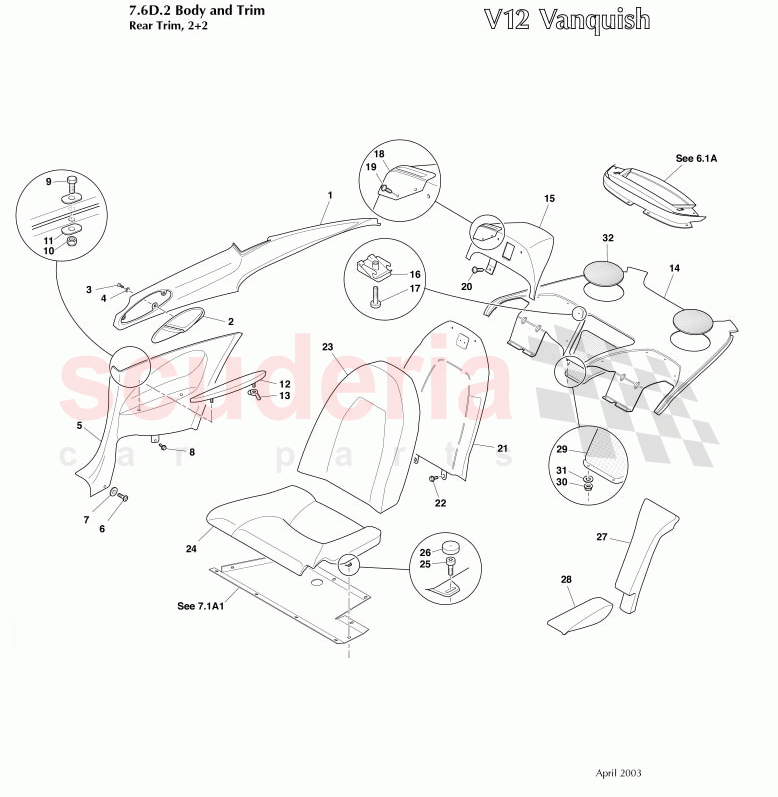

Aston Martin Vanquish (2001-2007) - Rear Trim (2 plus 2)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12831270AAW	TRIM REAR QUARTER UPPER RH ASSY	Enquire	To Order
	1R12831271AAW	TRIM REAR QUARTER UPPER LH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1324858AAW	FRONT SEAT BELT ESCUTCHEON RH TRMMED	Enquire	To Order
	5R1324859AAW	FRONT SEAT BELT ESCUTCHEON LH TRMMED	Enquire	To Order
	1R12833306AA	BEZEL SEATBELT FRT RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699791	Washer, nylon, M5	Enquire	To Order
	699806	NYLON WASHER-WHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831272AFW	TRIM REAR QUARTER LOWER RH ASSY	Enquire	To Order
	1R12831273AFW	TRIM REAR QUARTER LOWER LH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700614	SCREW M6x35 PAN BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699586	SCREW M8 x 20 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	693432	SCREW M5 x 25 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697470	NUT M5 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697514	WASHER OVAL 1 x 1/2 x 7/32	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830836AAW	DOOR ARMREST RH TRIMMED	Enquire	To Order
	1R12830837AAW	DOOR ARMREST LH TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694045	NUT M5 - WING GRD 4 ZINC PLT.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835632AAW	ASSY REAR PARCEL SHELF NON TETHER 2+2	Enquire	To Order
	3R12835633AAW	ASSY REAR PARCEL SHELF TETHER 2+2	Enquire	To Order
	1R12834179AAW	ASSY REAR PARCEL SHELF-STD ICE NON TETHER (2+2)	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12833552ABW	FAIRING REAR SEAT RH ASSY COMPLETE	Enquire	To Order
	1R12833553ABW	FAIRING REAR SEAT LH ASSY COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699691	CAPTIVE 'U' NUT M4 LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695613	SCREW M4 X 16 PAN GRD 4.8 ZINC PLATE CROSS RECESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13611B90AAW	REAR SEAT BELT ESCUTCHEON RH 2+2 - TRIMMED	Enquire	To Order
	5R13611B91AAW	Escutcheon, rear seatbelt trimmed, LH	Enquire	To Order
	1R12833300AD	BEZEL SEATBELT RR RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699695	SCREW N04x10 FLANGE POZI ST SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700100	SCREW M4x12 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12831124AA	FRAME REAR SEAT BACK RH SUBSTRATE	Enquire	To Order
	3R12831125AA	FRAME REAR SEAT BACK LH SUBSTRATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831274ABW	SEAT BACK REAR RH ASSY	Enquire	To Order
	1R12831275ABW	SEAT BACK REAR LH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831278ABW	SEAT CUSHION REAR RH ASSY	Enquire	To Order
	1R12831279ABW	SEAT CUSHION REAR LH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699698	SCREW M8x20 SOC CAP HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699663	KNOB M8 SELF ASSY KNURLED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831281ADW	TRIM INFILL CENTRE REAR SEAT UPPER COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831280ACW	ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833301AC	SPEAKER GRILLE SUBWOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707620	Nut-M4 HEX FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375509AB	Bezel assy, bass driver, satin chrome	Enquire	To Order
	3R12375508AB	2+2 BASS DRIVER BEZEL ASSY-BLACK	Enquire	To Order
	700430	SCREW M4 x 25 STAINLESS STEEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12831270AAW	TRIM REAR QUARTER UPPER RH ASSY	1R12831270AAW TRIM REAR QUARTER UPPER RH ASSY	-	1	Enquire
1	1R12831271AAW	TRIM REAR QUARTER UPPER LH ASSY	1R12831271AAW TRIM REAR QUARTER UPPER LH ASSY	-	1	Enquire
2	5R1324858AAW	FRONT SEAT BELT ESCUTCHEON RH TRMMED	5R1324858AAW FRONT SEAT BELT ESCUTCHEON RH TRMMED Vanquish S From (V) 501506	-	1	Enquire
2	5R1324859AAW	FRONT SEAT BELT ESCUTCHEON LH TRMMED	5R1324859AAW FRONT SEAT BELT ESCUTCHEON LH TRMMED Vanquish S From (V) 501506	-	1	Enquire
2	1R12833306AA	BEZEL SEATBELT FRT RH	1R12833306AA BEZEL SEATBELT FRT RH Up to (V) 501285	-	1	Enquire
2	1R12833305AA	BEZEL SEATBELT FRT LH	1R12833305AA BEZEL SEATBELT FRT LH Up to (V) 501285	-	1	Enquire
2	4R12833306AA	BEZEL SEATBELT FRT RH	4R12833306AA BEZEL SEATBELT FRT RH From (V) 501286	-	1	Enquire
2	4R12833305AA	BEZEL SEATBELT FRT LH	4R12833305AA BEZEL SEATBELT FRT LH From (V) 501286	-	1	Enquire
3	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T	-	6	Enquire
4	699791	Washer, nylon, M5	699791 Washer, nylon, M5	-	2	Enquire
4	699806	NYLON WASHER-WHITE	699806 NYLON WASHER-WHITE	-	6	Enquire
5	1R12831272AFW	TRIM REAR QUARTER LOWER RH ASSY	1R12831272AFW TRIM REAR QUARTER LOWER RH ASSY	-	1	Enquire
5	1R12831273AFW	TRIM REAR QUARTER LOWER LH ASSY	1R12831273AFW TRIM REAR QUARTER LOWER LH ASSY	-	1	Enquire
6	700614	SCREW M6x35 PAN BLK	700614 SCREW M6x35 PAN BLK	-	2	Enquire
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
8	699586	SCREW M8 x 20 PAN HEAD	699586 SCREW M8 x 20 PAN HEAD	-	6	Enquire
9	693432	SCREW M5 x 25 HEX	693432 SCREW M5 x 25 HEX	-	10	Enquire
10	697470	NUT M5 NYLOC	697470 NUT M5 NYLOC	-	10	Enquire
11	697514	WASHER OVAL 1 x 1/2 x 7/32	697514 WASHER OVAL 1 x 1/2 x 7/32	-	20	Enquire
12	1R12830836AAW	DOOR ARMREST RH TRIMMED	1R12830836AAW DOOR ARMREST RH TRIMMED	-	1	Enquire
12	1R12830837AAW	DOOR ARMREST LH TRIMMED	1R12830837AAW DOOR ARMREST LH TRIMMED	-	1	Enquire
13	694045	NUT M5 - WING GRD 4 ZINC PLT.	694045 NUT M5 - WING GRD 4 ZINC PLT.	-	4	Enquire
14	3R12835632AAW	ASSY REAR PARCEL SHELF NON TETHER 2+2	3R12835632AAW ASSY REAR PARCEL SHELF NON TETHER 2+2 From (V) 500516-21 + 526 onwards	-	1	Enquire
14	3R12835633AAW	ASSY REAR PARCEL SHELF TETHER 2+2	3R12835633AAW ASSY REAR PARCEL SHELF TETHER 2+2 From (V) 500516-21 + 526 onwards	-	1	Enquire
14	1R12834179AAW	ASSY REAR PARCEL SHELF-STD ICE NON TETHER (2+2)	1R12834179AAW ASSY REAR PARCEL SHELF-STD ICE NON TETHER (2+2) Up to (V) 500515 + 500522-525	-	1	Enquire
14	1R12834181AAW	Rear parcel shelf (Premium ICE non tether)	1R12834181AAW Rear parcel shelf (Premium ICE non tether) Up to (V) 500515 + 500522-525	-	1	Enquire
14	1R12834180AAW	Rear parcel shelf (Standard ICE tether)	1R12834180AAW Rear parcel shelf (Standard ICE tether) Up to (V) 500515 + 500522-525	-	1	Enquire
14	1R12834182AAW	ASSY REAR PARCEL SHELF PREMIUM ICE TETHER (2+2)	1R12834182AAW ASSY REAR PARCEL SHELF PREMIUM ICE TETHER (2+2) Up to (V) 500515 + 500522-525	-	1	Enquire
14	5R1346668CAW	ASSY REAR PARCEL SHELF NON TETHER 2+2	5R1346668CAW ASSY REAR PARCEL SHELF NON TETHER 2+2 Vanquish S From (V) 501506	-	1	Enquire
14	5R1346668AAW	ASSY REAR PARCEL SHELF 2+2 TETHER	5R1346668AAW ASSY REAR PARCEL SHELF 2+2 TETHER Vanquish S From (V) 501506	-	1	Enquire
14	1R12834659AB	BRACKET - PARCEL SHELF	1R12834659AB BRACKET - PARCEL SHELF	-	2	Enquire
15	1R12833552ABW	FAIRING REAR SEAT RH ASSY COMPLETE	1R12833552ABW FAIRING REAR SEAT RH ASSY COMPLETE	-	1	Enquire
15	1R12833553ABW	FAIRING REAR SEAT LH ASSY COMPLETE	1R12833553ABW FAIRING REAR SEAT LH ASSY COMPLETE	-	1	Enquire
16	699691	CAPTIVE 'U' NUT M4 LOCKING	699691 CAPTIVE 'U' NUT M4 LOCKING	-	10	Enquire
17	695613	SCREW M4 X 16 PAN GRD 4.8 ZINC PLATE CROSS RECESS	695613 SCREW M4 X 16 PAN GRD 4.8 ZINC PLATE CROSS RECESS	-	2	Enquire
18	5R13611B90AAW	REAR SEAT BELT ESCUTCHEON RH 2+2 - TRIMMED	5R13611B90AAW REAR SEAT BELT ESCUTCHEON RH 2+2 - TRIMMED Vanquish S From (V) 501506	-	1	Enquire
18	5R13611B91AAW	Escutcheon, rear seatbelt trimmed, LH	5R13611B91AAW Escutcheon, rear seatbelt trimmed, LH Vanquish S From (V) 501506	-	1	Enquire
18	1R12833300AD	BEZEL SEATBELT RR RH	1R12833300AD BEZEL SEATBELT RR RH Up to (V) 501285	-	1	Enquire
18	1R12833299AD	BEZEL SEATBELT RR LH	1R12833299AD BEZEL SEATBELT RR LH Up to (V) 501285	-	1	Enquire
18	4R12833300AA	BEZEL SEATBELT REAR RH	4R12833300AA BEZEL SEATBELT REAR RH From (V) 501286	-	1	Enquire
18	4R12833299AA	BEZEL SEATBELT REAR LH	4R12833299AA BEZEL SEATBELT REAR LH From (V) 501286	-	1	Enquire
19	699695	SCREW N04x10 FLANGE POZI ST SCREW	699695 SCREW N04x10 FLANGE POZI ST SCREW	-	4	Enquire
20	700100	SCREW M4x12 PAN	700100 SCREW M4x12 PAN	-	10	Enquire
21	3R12831124AA	FRAME REAR SEAT BACK RH SUBSTRATE	3R12831124AA FRAME REAR SEAT BACK RH SUBSTRATE See sect 7.7B.1A	-	1	Enquire
21	3R12831125AA	FRAME REAR SEAT BACK LH SUBSTRATE	3R12831125AA FRAME REAR SEAT BACK LH SUBSTRATE See sect 7.7B.1A	-	1	Enquire
22	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG See sect 7.7B.1A	-	4	Enquire
23	1R12831274ABW	SEAT BACK REAR RH ASSY	1R12831274ABW SEAT BACK REAR RH ASSY See sect 7.7B.1A	-	1	Enquire
23	1R12831275ABW	SEAT BACK REAR LH ASSY	1R12831275ABW SEAT BACK REAR LH ASSY See sect 7.7B.1A	-	1	Enquire
24	1R12831278ABW	SEAT CUSHION REAR RH ASSY	1R12831278ABW SEAT CUSHION REAR RH ASSY See sect 7.7B.1A	-	1	Enquire
24	1R12831279ABW	SEAT CUSHION REAR LH ASSY	1R12831279ABW SEAT CUSHION REAR LH ASSY See sect 7.7B.1A	-	1	Enquire
25	699698	SCREW M8x20 SOC CAP HD	699698 SCREW M8x20 SOC CAP HD See sect 7.7B.1A	-	2	Enquire
26	699663	KNOB M8 SELF ASSY KNURLED	699663 KNOB M8 SELF ASSY KNURLED See sect 7.7B.1A	-	2	Enquire
27	1R12831281ADW	TRIM INFILL CENTRE REAR SEAT UPPER COMP	1R12831281ADW TRIM INFILL CENTRE REAR SEAT UPPER COMP	-	1	Enquire
28	1R12831280ACW	ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	1R12831280ACW ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	-	1	Enquire
29	1R12833301AC	SPEAKER GRILLE SUBWOOFER	1R12833301AC SPEAKER GRILLE SUBWOOFER	-	1	Enquire
30	707620	Nut-M4 HEX FLANGED	707620 Nut-M4 HEX FLANGED	-	8	Enquire
31	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	4	Enquire
32	3R12375509AB	Bezel assy, bass driver, satin chrome	3R12375509AB Bezel assy, bass driver, satin chrome From (V) 500516-21 + 526 onwards	-	2	Enquire
32	3R12375508AB	2+2 BASS DRIVER BEZEL ASSY-BLACK	3R12375508AB 2+2 BASS DRIVER BEZEL ASSY-BLACK From (V) 500516-21 + 526 onwards	-	2	Enquire
32	700430	SCREW M4 x 25 STAINLESS STEEL	700430 SCREW M4 x 25 STAINLESS STEEL From (V) 500516-21 + 526 onwards	-	6	Enquire
32	700431	SCREW M4 x 25 BLACK	700431 SCREW M4 x 25 BLACK From (V) 500516-21 + 526 onwards	-	6	Enquire
32	1R12831176AD	SPEAKER GRILLE REAR	1R12831176AD SPEAKER GRILLE REAR Up to (V) 500515 + 500522-525	-	2	Enquire
32	1R12214230AA	SEAL - SIDERAIL LAMP	1R12214230AA SEAL - SIDERAIL LAMP	-	2	Enquire
