Find Your Part

Facia and Trim 2 of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Facia and Trim 2

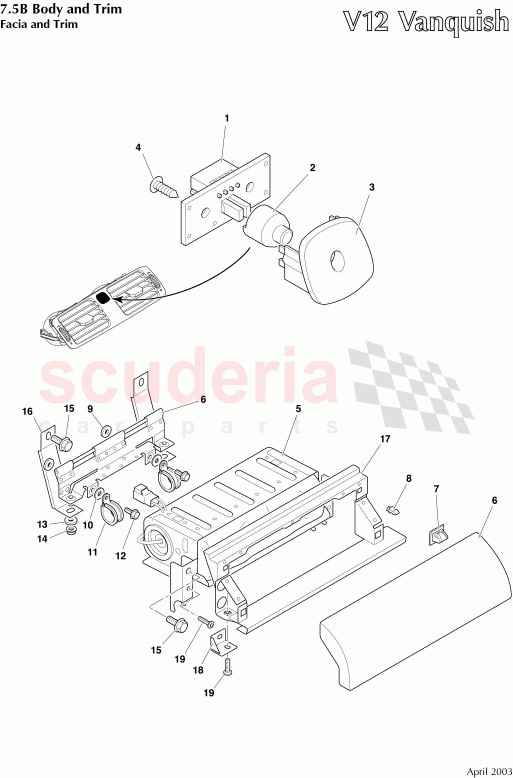

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12374820AA	LED PCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374819AA	Light guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374818AA	Housing, LED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697551	SCREW S.F.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order
	700253	PATCHLOCK M8x20 HEX	Enquire	To Order
	1R12743556AB	AIRBAG MODULE - PASSENGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831263AEW	AIR BAG DOOR PASS RHD TRIMMED ASSY	Enquire	To Order
	1R12831264AEW	AIRBAG DOOR PASS LHD TRIMMED ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910191	LATCH-FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910206	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12744197AA	SPACER	Enquire	To Order
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12302186AA	P CLIP 16/15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700253	PATCHLOCK M8x20 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831868AE	STRAP-AIRBAG SUPPORT	Enquire	To Order
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831908AK	BRACKET - AIRBAG MOUNTING RHD	Enquire	To Order
	1R12831909AK	BRACKET - AIRBAG MOUNTING LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834280AA	Bracket, airbag mounting frame to structure, RH	Enquire	To Order
	1R12834281AA	Bracket, airbag mounting frame to structure, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699823	SCREW TORX HD M5x12	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12374630AA	LED SUPPORT KIT	1R12374630AA LED SUPPORT KIT PATS warning light	-	1	Enquire
1	1R12374820AA	LED PCB	1R12374820AA LED PCB	-	1	Enquire
2	1R12374819AA	Light guide	1R12374819AA Light guide	-	1	Enquire
3	1R12374818AA	Housing, LED	1R12374818AA Housing, LED	-	1	Enquire
4	697551	SCREW S.F.	697551 SCREW S.F.	-	2	Enquire
5	697286	Washer M6 Large OD	697286 Washer M6 Large OD PAB module attach	-	4	Enquire
5	700253	PATCHLOCK M8x20 HEX	700253 PATCHLOCK M8x20 HEX PAB module attach	-	4	Enquire
5	1R12743556AB	AIRBAG MODULE - PASSENGER	1R12743556AB AIRBAG MODULE - PASSENGER	-	1	Enquire
6	1R12831263AEW	AIR BAG DOOR PASS RHD TRIMMED ASSY	1R12831263AEW AIR BAG DOOR PASS RHD TRIMMED ASSY RHD	-	1	Enquire
6	1R12831264AEW	AIRBAG DOOR PASS LHD TRIMMED ASSY	1R12831264AEW AIRBAG DOOR PASS LHD TRIMMED ASSY LHD	-	1	Enquire
7	1R126910191	LATCH-FEMALE	1R126910191 LATCH-FEMALE	-	2	Enquire
8	1R126910206	STRIKER	1R126910206 STRIKER	-	2	Enquire
9	1R12744197AA	SPACER	1R12744197AA SPACER PAB module attach	-	1	Enquire
9	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head PAB module attach	-	2	Enquire
10	697286	Washer M6 Large OD	697286 Washer M6 Large OD	-	2	Enquire
11	1R12302186AA	P CLIP 16/15	1R12302186AA P CLIP 16/15	-	2	Enquire
12	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	2	Enquire
13	697286	Washer M6 Large OD	697286 Washer M6 Large OD	-	2	Enquire
14	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
15	700253	PATCHLOCK M8x20 HEX	700253 PATCHLOCK M8x20 HEX	-	2	Enquire
16	1R12831868AE	STRAP-AIRBAG SUPPORT	1R12831868AE STRAP-AIRBAG SUPPORT PAB module attach	-	2	Enquire
16	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE PAB module attach	-	2	Enquire
17	1R12831908AK	BRACKET - AIRBAG MOUNTING RHD	1R12831908AK BRACKET - AIRBAG MOUNTING RHD RHD	-	1	Enquire
17	1R12831909AK	BRACKET - AIRBAG MOUNTING LHD	1R12831909AK BRACKET - AIRBAG MOUNTING LHD LHD	-	1	Enquire
18	1R12834280AA	Bracket, airbag mounting frame to structure, RH	1R12834280AA Bracket, airbag mounting frame to structure, RH	-	1	Enquire
18	1R12834281AA	Bracket, airbag mounting frame to structure, LH	1R12834281AA Bracket, airbag mounting frame to structure, LH	-	1	Enquire
19	699823	SCREW TORX HD M5x12	699823 SCREW TORX HD M5x12	-	4	Enquire
