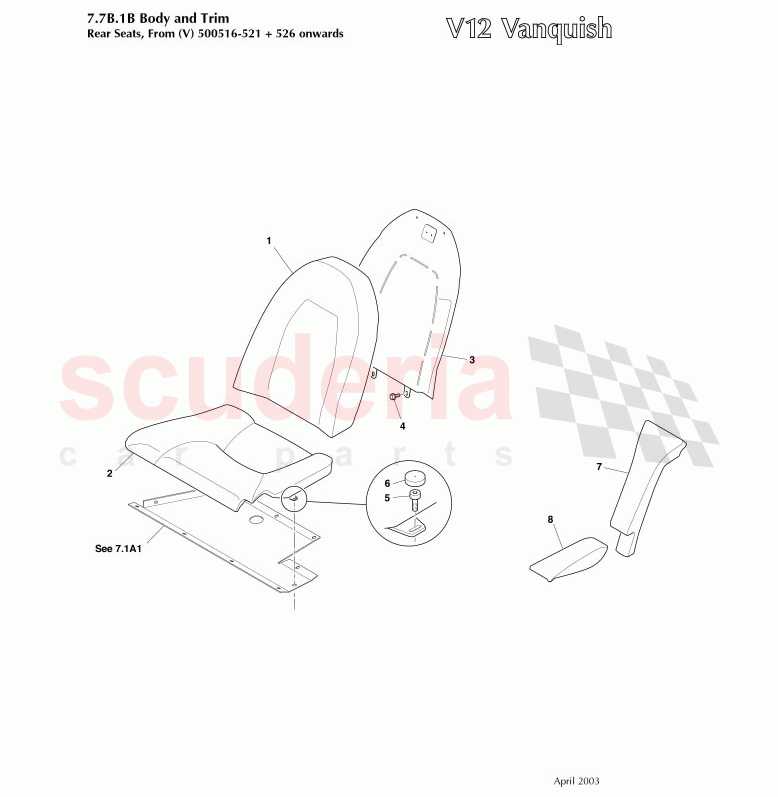

Aston Martin Vanquish (2001-2007) - Rear Seats and Belts 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12745188AAW	ASSEMBLY SQUAB REAR SEAT RH	Enquire	To Order
	1R12745189AAW	ASSEMBLY SQUAB REAR SEAT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12745300ABW	Rear seat assy, complete, RH	Enquire	To Order
	1R12745301ABW	Rear seat assy, complete, LH	Enquire	To Order
	1R12745306ABW	Cushion assy, rear seat, RH	Enquire	To Order

...and 49 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12835712AA	FRAME REAR SEAT BACK RH SUBSTRATE	Enquire	To Order
	3R12835713AA	FRAME REAR SEAT BACK LH SUBSTRATE	Enquire	To Order
	3R12831124AA	FRAME REAR SEAT BACK RH SUBSTRATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699698	SCREW M8x20 SOC CAP HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699663	KNOB M8 SELF ASSY KNURLED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831281ADW	TRIM INFILL CENTRE REAR SEAT UPPER COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831280ADW	ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	Enquire	To Order
	3R12165706AA	STUD PLATE ISOFIX MOUNTING	Enquire	To Order
	3R12165430AA	BRACKET ISOFIX MOUNTING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12745186AAW	Rear seat assy, complete, RH	1R12745186AAW Rear seat assy, complete, RH Plain leather option	-	1	Enquire
-	1R12745187AAW	Rear seat assy, complete, LH	1R12745187AAW Rear seat assy, complete, LH Plain leather option	-	1	Enquire
1	1R12745188AAW	ASSEMBLY SQUAB REAR SEAT RH	1R12745188AAW ASSEMBLY SQUAB REAR SEAT RH Plain leather option	-	1	Enquire
1	1R12745189AAW	ASSEMBLY SQUAB REAR SEAT LH	1R12745189AAW ASSEMBLY SQUAB REAR SEAT LH Plain leather option	-	1	Enquire
2	1R12745300ABW	Rear seat assy, complete, RH	1R12745300ABW Rear seat assy, complete, RH Perforated leather option-Japan	-	1	Enquire
2	1R12745301ABW	Rear seat assy, complete, LH	1R12745301ABW Rear seat assy, complete, LH Perforated leather option-Japan	-	1	Enquire
2	1R12745306ABW	Cushion assy, rear seat, RH	1R12745306ABW Cushion assy, rear seat, RH Perforated leather option-Japan	-	1	Enquire
2	1R12745307ABW	Cushion assy, rear seat, LH	1R12745307ABW Cushion assy, rear seat, LH Perforated leather option-Japan	-	1	Enquire
2	1R12745752ABW	Rear seat assy, complete, RH ISO	1R12745752ABW Rear seat assy, complete, RH ISO Perforated leather option-USA	-	1	Enquire
2	1R12745753ABW	Rear seat assy, complete, LH ISO	1R12745753ABW Rear seat assy, complete, LH ISO Perforated leather option-USA	-	1	Enquire
2	1R12745758AAW	Squab assy, rear seat, RH ISO	1R12745758AAW Squab assy, rear seat, RH ISO Perforated leather option-USA	-	1	Enquire
2	1R12745759AAW	Squab assy, rear seat, LH ISO	1R12745759AAW Squab assy, rear seat, LH ISO Perforated leather option-USA	-	1	Enquire
2	1R12744384ABW	ASSY CUSHION REAR SEAT RH	1R12744384ABW ASSY CUSHION REAR SEAT RH Perforated leather option-USA	-	1	Enquire
2	1R12744385ABW	ASSY CUSHION REAR SEAT LH	1R12744385ABW ASSY CUSHION REAR SEAT LH Perforated leather option-USA	-	1	Enquire
2	1R12745322ABW	Rear seat assy, complete, RH	1R12745322ABW Rear seat assy, complete, RH Plain leather option-Japan	-	1	Enquire
2	1R12745323ABW	Rear seat assy, complete, LH	1R12745323ABW Rear seat assy, complete, LH Plain leather option-Japan	-	1	Enquire
2	1R12745328ABW	Cushion assy, rear seat, RH	1R12745328ABW Cushion assy, rear seat, RH Plain leather option-Japan	-	1	Enquire
2	1R12745329ABW	Cushion assy, rear seat, LH	1R12745329ABW Cushion assy, rear seat, LH Plain leather option-Japan	-	1	Enquire
2	1R12745324AAW	Squab assy, rear seat, RH	1R12745324AAW Squab assy, rear seat, RH Plain leather option-Japan	-	1	Enquire
2	1R12745325AAW	Squab assy, rear seat, LH	1R12745325AAW Squab assy, rear seat, LH Plain leather option-Japan	-	1	Enquire
2	3R127460367AAW	Cushion cover, rear seat, sport, LH	3R127460367AAW Cushion cover, rear seat, sport, LH Perforated leather option	-	1	Enquire
2	3R12746032AAW	Rear seat assy, complete, sport, RH	3R12746032AAW Rear seat assy, complete, sport, RH Perforated leather option	-	1	Enquire
2	3R12746033AAW	Rear seat assy, complete, sport, LH	3R12746033AAW Rear seat assy, complete, sport, LH Perforated leather option	-	1	Enquire
2	3R12746036AAW	CUSHION COVER REAR SEAT	3R12746036AAW CUSHION COVER REAR SEAT Perforated leather option	-	1	Enquire
2	3R12746034AAW	SQUAB COVER REAR SEAT	3R12746034AAW SQUAB COVER REAR SEAT Perforated leather option	-	1	Enquire
2	3R12746035AAW	SQUAB COVER REAR SEAT	3R12746035AAW SQUAB COVER REAR SEAT Perforated leather option	-	1	Enquire
2	1R12744376AAW	REAR SEAT COMPLETE ASSY RH	1R12744376AAW REAR SEAT COMPLETE ASSY RH Perforated leather option	-	1	Enquire
2	1R12744377AAW	REAR SEAT COMPLETE ASSY LH	1R12744377AAW REAR SEAT COMPLETE ASSY LH Perforated leather option	-	1	Enquire
2	1R12744384ABW	ASSY CUSHION REAR SEAT RH	1R12744384ABW ASSY CUSHION REAR SEAT RH Perforated leather option	-	1	Enquire
2	1R12744385ABW	ASSY CUSHION REAR SEAT LH	1R12744385ABW ASSY CUSHION REAR SEAT LH Perforated leather option	-	1	Enquire
2	1R12744378AAW	ASSY SQUAB REAR SEAT RH	1R12744378AAW ASSY SQUAB REAR SEAT RH Perforated leather option	-	1	Enquire
2	1R12744379AAW	ASSY SQUAB - REAR SEAT LH	1R12744379AAW ASSY SQUAB - REAR SEAT LH Perforated leather option	-	1	Enquire
2	1R12745754ABW	Rear seat assy, complete, RH ISO	1R12745754ABW Rear seat assy, complete, RH ISO Plain leather option-USA	-	1	Enquire
2	1R12745755ABW	Rear seat assy, complete, LH ISO	1R12745755ABW Rear seat assy, complete, LH ISO Plain leather option-USA	-	1	Enquire
2	1R12745760AAW	Squab assy, rear seat, RH ISO	1R12745760AAW Squab assy, rear seat, RH ISO Plain leather option-USA	-	1	Enquire
2	1R12745761AAW	Squab assy, rear seat, LH ISO	1R12745761AAW Squab assy, rear seat, LH ISO Plain leather option-USA	-	1	Enquire
2	1R12745190ABW	ASSEMBLY CUSHION REAR SEAT - RH	1R12745190ABW ASSEMBLY CUSHION REAR SEAT - RH Plain leather option-USA	-	1	Enquire
2	1R12745191ABW	ASSEMBLY CUSHION REAR SEAT LH	1R12745191ABW ASSEMBLY CUSHION REAR SEAT LH Plain leather option-USA	-	1	Enquire
2	1R12745144AAW	Rear seat assy, complete, RH	1R12745144AAW Rear seat assy, complete, RH Alcantara option-Japan	-	1	Enquire
2	1R12745145AAW	Rear seat assy, complete, LH	1R12745145AAW Rear seat assy, complete, LH Alcantara option-Japan	-	1	Enquire
2	1R12745304AAW	Cushion assy, rear seat, RH	1R12745304AAW Cushion assy, rear seat, RH Alcantara option-Japan	-	1	Enquire
2	1R12745305AAW	Cushion assy, rear seat, LH	1R12745305AAW Cushion assy, rear seat, LH Alcantara option-Japan	-	1	Enquire
2	1R12745756ABW	Rear seat assy, complete, RH ISO	1R12745756ABW Rear seat assy, complete, RH ISO Alcantara option-USA	-	1	Enquire
2	1R12745757ABW	Rear seat assy, complete, LH ISO	1R12745757ABW Rear seat assy, complete, LH ISO Alcantara option-USA	-	1	Enquire
2	1R12745762AAW	Squab assy, rear seat, RH ISO	1R12745762AAW Squab assy, rear seat, RH ISO Alcantara option-USA	-	1	Enquire
2	1R12745763AAW	Squab assy, rear seat, LH ISO	1R12745763AAW Squab assy, rear seat, LH ISO Alcantara option-USA	-	1	Enquire
2	1R12745190ABW	ASSEMBLY CUSHION REAR SEAT - RH	1R12745190ABW ASSEMBLY CUSHION REAR SEAT - RH Plain leather option	-	1	Enquire
2	1R12745191ABW	ASSEMBLY CUSHION REAR SEAT LH	1R12745191ABW ASSEMBLY CUSHION REAR SEAT LH Plain leather option	-	1	Enquire
2	1R12743154ABW	Cushion assy, rear seat, RH	1R12743154ABW Cushion assy, rear seat, RH Alcantara option-USA	-	1	Enquire
2	1R12743155ABW	Cushion assy, rear seat, LH	1R12743155ABW Cushion assy, rear seat, LH Alcantara option-USA	-	1	Enquire
2	1R12743150AAW	Rear seat assy, complete, RH	1R12743150AAW Rear seat assy, complete, RH Alcantara option	-	1	Enquire
2	1R12743151AAW	Rear seat assy, complete, LH	1R12743151AAW Rear seat assy, complete, LH Alcantara option	-	1	Enquire
2	1R12743154ABW	Cushion assy, rear seat, RH	1R12743154ABW Cushion assy, rear seat, RH Alcantara option	-	1	Enquire
2	1R12743155ABW	Cushion assy, rear seat, LH	1R12743155ABW Cushion assy, rear seat, LH Alcantara option	-	1	Enquire
2	1R12743152AAW	ASSY SQUAB REAR SEAT RH	1R12743152AAW ASSY SQUAB REAR SEAT RH Alcantara option	-	1	Enquire
2	1R12743153AAW	ASSY SQUAB - REAR SEAT LH	1R12743153AAW ASSY SQUAB - REAR SEAT LH Alcantara option	-	1	Enquire
3	3R12835712AA	FRAME REAR SEAT BACK RH SUBSTRATE	3R12835712AA FRAME REAR SEAT BACK RH SUBSTRATE USA	-	1	Enquire
3	3R12835713AA	FRAME REAR SEAT BACK LH SUBSTRATE	3R12835713AA FRAME REAR SEAT BACK LH SUBSTRATE USA	-	1	Enquire
3	3R12831124AA	FRAME REAR SEAT BACK RH SUBSTRATE	3R12831124AA FRAME REAR SEAT BACK RH SUBSTRATE	-	1	Enquire
3	3R12831125AA	FRAME REAR SEAT BACK LH SUBSTRATE	3R12831125AA FRAME REAR SEAT BACK LH SUBSTRATE	-	1	Enquire
4	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	4	Enquire
5	699698	SCREW M8x20 SOC CAP HD	699698 SCREW M8x20 SOC CAP HD	-	2	Enquire
6	699663	KNOB M8 SELF ASSY KNURLED	699663 KNOB M8 SELF ASSY KNURLED	-	2	Enquire
7	1R12831281ADW	TRIM INFILL CENTRE REAR SEAT UPPER COMP	1R12831281ADW TRIM INFILL CENTRE REAR SEAT UPPER COMP	-	1	Enquire
8	1R12831280ADW	ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	1R12831280ADW ASSY TRIM INFILL CENTRE REAR SEAT LOWER COMPLETE	-	1	Enquire
8	3R12165706AA	STUD PLATE ISOFIX MOUNTING	3R12165706AA STUD PLATE ISOFIX MOUNTING	-	4	Enquire
8	3R12165430AA	BRACKET ISOFIX MOUNTING	3R12165430AA BRACKET ISOFIX MOUNTING	-	4	Enquire
8	700407	GROMMET SEMI BLIND TYPE PVC BLACK	700407 GROMMET SEMI BLIND TYPE PVC BLACK	-	8	Enquire
8	700130	NUT M8 HEX P/T PLAS8	700130 NUT M8 HEX P/T PLAS8	-	8	Enquire
