Trunk Lid of Aston Martin Aston Martin Vanquish (2001-2007)

View All

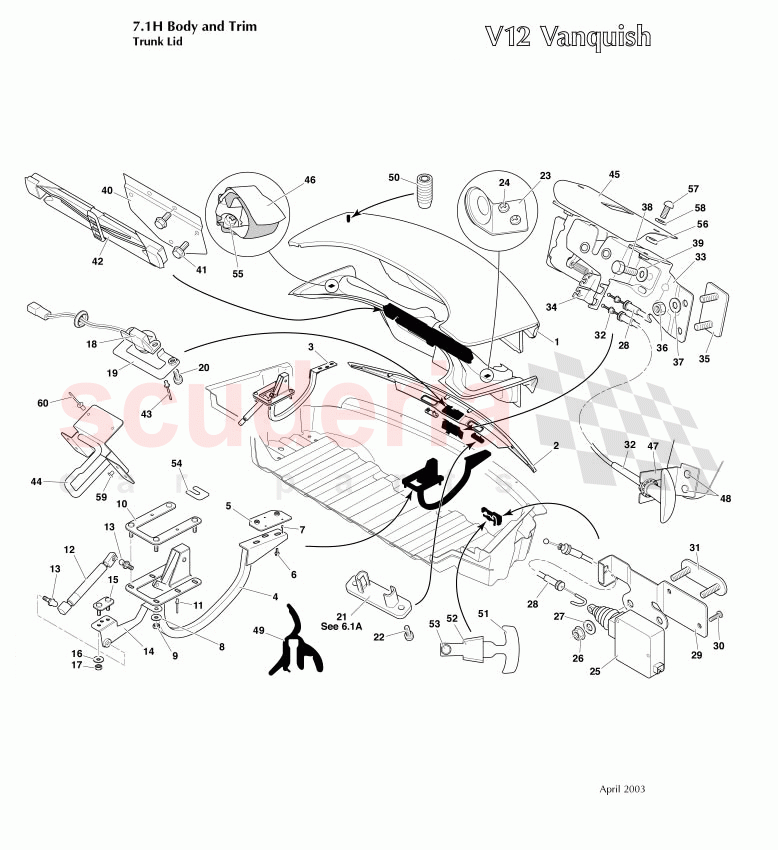

Aston Martin Vanquish (2001-2007) - Trunk Lid

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5R1340110BB	Deck lid assy, complete - Canada	Enquire	To Order
	5R1340110AA	ASSY DECK LID COMPLETE	Enquire	To Order
	1R12671162AD	ASSY DECK LID COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1313551AA	SEAL - FINISHER - TRUNK LID	Enquire	To Order
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	Enquire	To Order
	5R1313550AB	ASSY FINISHER - TRUNK LID	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12670814AF	ASSY HINGE-DECK LID RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12670815AF	ASSY HINGE-DECK LID LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12670313AB	REINF - HINGE DECK- LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699638	RIVET - OVAL ALU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12674744AB	Stud plate, deck lid hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700013	RIVET - OVAL STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12670813AB	GAS STRUT - DECK LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12674296AA	BRACKET - GAS STRUT - DECK LID RH	Enquire	To Order

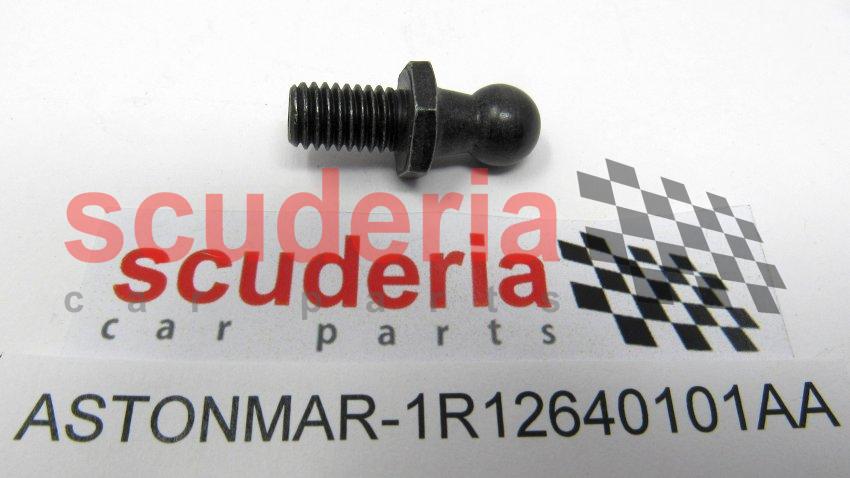

	1R12640101AA	Ball Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12674297AA	BRACKET - GAS STRUT DECK LID LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12671706AB	FIXING PLATE - GAS STRUT BRACKET LH	Enquire	To Order
	1R12671707AB	FIXING PLATE - GAS STRUT BRACKET RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700237	WASHER PLAIN 6.4x19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372679AA	SWITCH - DECK LID RELEASE	Enquire	To Order
	1R123710452	SWITCH-BOOT LID RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1317640AA	DECK LID RELEASE SWITCH BRACKET	Enquire	To Order
	1R12671742AB	BRACKET DECK LID RELEASE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700241	Screw, M4 x 10 pan torx	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700055	SCREW M4x16 SKT BTTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12672641AA	BRACKET-UMBRELLA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707515	SCREW M5 X 16 PAN HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126710147	ACTUATOR-BOOT LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697441	WASHER M6 PLAIN `A'	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92026	ACTUATOR-CBL RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12222418AD	BRACKET ACTUATOR DECK LID LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700243	SCREW-THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12222628AA	STUD PLATE ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12672209AD	CABLE-MANUAL REL- DECK LID	Enquire	To Order
	1R12834795AB	CABLE MANUAL - RELEASE DECK LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1343200AA	Bracket, deck lid latch - Canada	Enquire	To Order
	1R12222194AG	BRKT - DECK LID LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126710148	BOOT LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

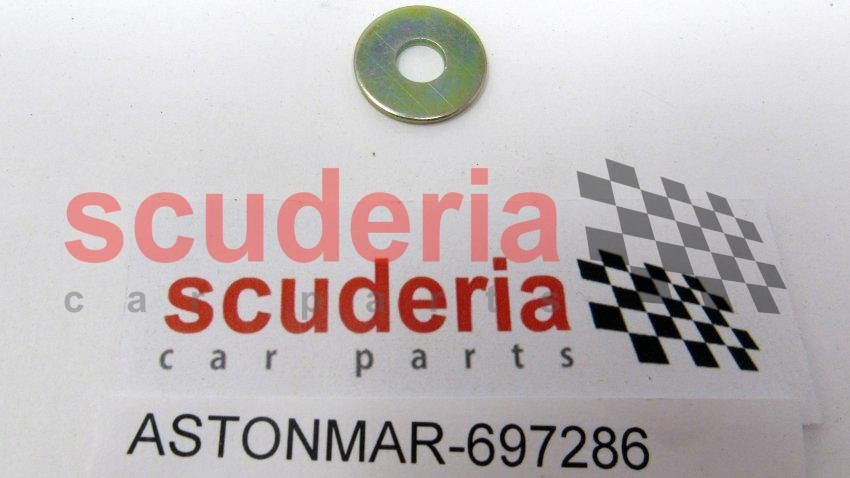

	697286	Washer M6 Large OD	Enquire	To Order
	1R12222195AA	STUD PLT-DECK LID LATCH BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697441	WASHER M6 PLAIN `A'	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700244	Washer, plain, 6.4 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12672657AC	MOUNTING PLATE - WARNING TRIANGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707515	SCREW M5 X 16 PAN HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319G329AA	WARNING TRIANGLE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700271	RIVET 3.2x11.5 ALLOY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12672417AC	ASSY STRIKER D/LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833768AB	BOOT LOCK COVER PLT	Enquire	To Order
	700272	WASHER M4x9x0.8	Enquire	To Order
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83123578AA	UMBRELLA VELCRO STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12674331AA	BRACKET - MANUAL REL DECK LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700163	RIVET	Enquire	To Order
	699715	S/ADHESIVE PIPE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12770120AB	TRUNK SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834774AA	UMBRELLA-VANQUISH	Enquire	To Order
	1X4316C618AC	Buffer, trunk lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R835443526AB	Emergency pull tag, deck lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12835157AB	RETAINER - EMERGENCY BOOT RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700385	CLIP/TIE-HOOD REL CBL TO PAS HOSE	Enquire	To Order
	700408	HOLE PLUG (JETPRESS) PART NO. PLB046 BLK)	Enquire	To Order
	1R123710233	BOOT AJAR SWITCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12673964AA	SHIM DECK LID HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707515	SCREW M5 X 16 PAN HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12744197AA	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700013	RIVET - OVAL STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883401	SUPPORT PLATE ASSY- REAR No.PLATE-USA	Enquire	To Order
	4G430110303	SUPPORT PLATE ASSY - REAR NO. PLATE	Enquire	To Order
	5500001410PK	POP-RVT 1/8x5/16(20)	Enquire	To Order

...and 4 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5R1340110BB	Deck lid assy, complete - Canada	5R1340110BB Deck lid assy, complete - Canada Vanquish S From (V) 501506	-	1	Enquire
1	5R1340110AA	ASSY DECK LID COMPLETE	5R1340110AA ASSY DECK LID COMPLETE Vanquish S From (V) 501506	-	1	Enquire
1	1R12671162AD	ASSY DECK LID COMP	1R12671162AD ASSY DECK LID COMP	-	1	Enquire
2	5R1313551AA	SEAL - FINISHER - TRUNK LID	5R1313551AA SEAL - FINISHER - TRUNK LID Vanquish S From (V) 501506	-	1	Enquire
2	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel Vanquish S From (V) 501506	-	1	Enquire
2	5R1313550AB	ASSY FINISHER - TRUNK LID	5R1313550AB ASSY FINISHER - TRUNK LID Vanquish S From (V) 501506	-	1	Enquire
2	702929	M6 SQ HD 19mm LONG	702929 M6 SQ HD 19mm LONG Vanquish S From (V) 501506	-	4	Enquire
2	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged Vanquish S From (V) 501506	-	4	Enquire
2	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT Vanquish S From (V) 501506	-	4	Enquire
2	5R1313550PIA2	DOUBLE SIDED TAPE 3M 5361	5R1313550PIA2 DOUBLE SIDED TAPE 3M 5361 Vanquish S From (V) 501506	-	-	Enquire
2	4R12830005AA	TRUNK LID FINISHER ASSY	4R12830005AA TRUNK LID FINISHER ASSY Up to (V) 501285	-	1	Enquire
2	1R12834650AC	Finisher, trunk lid, satin chrome	1R12834650AC Finisher, trunk lid, satin chrome Up to (V) 501285	-	1	Enquire
2	4R12830005AA	TRUNK LID FINISHER ASSY	4R12830005AA TRUNK LID FINISHER ASSY From (V) 501286	-	1	Enquire
2	4R12834650AA	Finisher, trunk lid, satin chrome	4R12834650AA Finisher, trunk lid, satin chrome From (V) 501286	-	1	Enquire
3	1R12670814AF	ASSY HINGE-DECK LID RH	1R12670814AF ASSY HINGE-DECK LID RH	-	1	Enquire
4	1R12670815AF	ASSY HINGE-DECK LID LH	1R12670815AF ASSY HINGE-DECK LID LH	-	1	Enquire
5	1R12670313AB	REINF - HINGE DECK- LID	1R12670313AB REINF - HINGE DECK- LID	-	2	Enquire
6	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	4	Enquire
7	699638	RIVET - OVAL ALU	699638 RIVET - OVAL ALU	-	6	Enquire
8	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	4	Enquire
9	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	-	8	Enquire
10	1R12674744AB	Stud plate, deck lid hinge	1R12674744AB Stud plate, deck lid hinge	-	2	Enquire
11	700013	RIVET - OVAL STEEL	700013 RIVET - OVAL STEEL	-	4	Enquire
12	1R12670813AB	GAS STRUT - DECK LID	1R12670813AB GAS STRUT - DECK LID	-	2	Enquire
13	1R12674296AA	BRACKET - GAS STRUT - DECK LID RH	1R12674296AA BRACKET - GAS STRUT - DECK LID RH	-	1	Enquire
13	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	-	4	Enquire
14	1R12674297AA	BRACKET - GAS STRUT DECK LID LH	1R12674297AA BRACKET - GAS STRUT DECK LID LH	-	1	Enquire
15	1R12671706AB	FIXING PLATE - GAS STRUT BRACKET LH	1R12671706AB FIXING PLATE - GAS STRUT BRACKET LH	-	1	Enquire
15	1R12671707AB	FIXING PLATE - GAS STRUT BRACKET RH	1R12671707AB FIXING PLATE - GAS STRUT BRACKET RH	-	1	Enquire
16	700237	WASHER PLAIN 6.4x19	700237 WASHER PLAIN 6.4x19	-	8	Enquire
17	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	-	4	Enquire
18	1R12372679AA	SWITCH - DECK LID RELEASE	1R12372679AA SWITCH - DECK LID RELEASE Up to (V) 501285	-	1	Enquire
18	1R123710452	SWITCH-BOOT LID RELEASE	1R123710452 SWITCH-BOOT LID RELEASE From (V) 501286	-	1	Enquire
19	5R1317640AA	DECK LID RELEASE SWITCH BRACKET	5R1317640AA DECK LID RELEASE SWITCH BRACKET From (V) 501506 up to (V) 501948	-	1	Enquire
19	1R12671742AB	BRACKET DECK LID RELEASE SWITCH	1R12671742AB BRACKET DECK LID RELEASE SWITCH	-	1	Enquire
20	700241	Screw, M4 x 10 pan torx	700241 Screw, M4 x 10 pan torx	-	2	Enquire
21	1R12370506AA	LAMP - LICENCE PLATE	1R12370506AA LAMP - LICENCE PLATE	-	2	Enquire
22	700055	SCREW M4x16 SKT BTTN	700055 SCREW M4x16 SKT BTTN	-	4	Enquire
23	1R12672641AA	BRACKET-UMBRELLA	1R12672641AA BRACKET-UMBRELLA	-	1	Enquire
24	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	5	Enquire
25	1R126710147	ACTUATOR-BOOT LID	1R126710147 ACTUATOR-BOOT LID	-	1	Enquire
26	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	-	8	Enquire
27	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A'	-	8	Enquire
28	92026	ACTUATOR-CBL RELEASE	92026 ACTUATOR-CBL RELEASE	-	1	Enquire
29	1R12222418AD	BRACKET ACTUATOR DECK LID LATCH	1R12222418AD BRACKET ACTUATOR DECK LID LATCH	-	1	Enquire
30	700243	SCREW-THREAD FORMING	700243 SCREW-THREAD FORMING	-	2	Enquire
31	1R12222628AA	STUD PLATE ACTUATOR BRACKET	1R12222628AA STUD PLATE ACTUATOR BRACKET	-	1	Enquire
32	1R12672209AD	CABLE-MANUAL REL- DECK LID	1R12672209AD CABLE-MANUAL REL- DECK LID 2 plus 2	-	1	Enquire
32	1R12834795AB	CABLE MANUAL - RELEASE DECK LID	1R12834795AB CABLE MANUAL - RELEASE DECK LID 2 plus 0	-	1	Enquire
33	5R1343200AA	Bracket, deck lid latch - Canada	5R1343200AA Bracket, deck lid latch - Canada Vanquish S From (V) 501506	-	1	Enquire
33	1R12222194AG	BRKT - DECK LID LATCH	1R12222194AG BRKT - DECK LID LATCH	-	1	Enquire
34	1R126710148	BOOT LATCH	1R126710148 BOOT LATCH	-	1	Enquire
35	697286	Washer M6 Large OD	697286 Washer M6 Large OD Used as spacers for latch	-	2	Enquire
35	1R12222195AA	STUD PLT-DECK LID LATCH BRKT	1R12222195AA STUD PLT-DECK LID LATCH BRKT	-	2	Enquire
36	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	-	6	Enquire
37	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A'	-	6	Enquire
38	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
39	700244	Washer, plain, 6.4 x 19	700244 Washer, plain, 6.4 x 19	-	2	Enquire
40	1R12672657AC	MOUNTING PLATE - WARNING TRIANGLE	1R12672657AC MOUNTING PLATE - WARNING TRIANGLE	-	1	Enquire
41	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	2	Enquire
42	AD4319G329AA	WARNING TRIANGLE ASSY	AD4319G329AA WARNING TRIANGLE ASSY	-	1	Enquire
43	700271	RIVET 3.2x11.5 ALLOY	700271 RIVET 3.2x11.5 ALLOY	-	6	Enquire
44	1R12672417AC	ASSY STRIKER D/LID	1R12672417AC ASSY STRIKER D/LID	-	1	Enquire
45	1R12833768AB	BOOT LOCK COVER PLT	1R12833768AB BOOT LOCK COVER PLT	-	1	Enquire
45	700272	WASHER M4x9x0.8	700272 WASHER M4x9x0.8	-	2	Enquire
45	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
45	699638	RIVET - OVAL ALU	699638 RIVET - OVAL ALU	-	2	Enquire
45	699299	ANTI-FLUTTER ADHESIVE	699299 ANTI-FLUTTER ADHESIVE	-	-	Enquire
46	83123578AA	UMBRELLA VELCRO STRAP	83123578AA UMBRELLA VELCRO STRAP	-	1	Enquire
47	1R12674331AA	BRACKET - MANUAL REL DECK LID	1R12674331AA BRACKET - MANUAL REL DECK LID	-	1	Enquire
48	700163	RIVET	700163 RIVET	-	2	Enquire
48	699715	S/ADHESIVE PIPE CLIP	699715 S/ADHESIVE PIPE CLIP	-	7	Enquire
49	1R12770120AB	TRUNK SEAL	1R12770120AB TRUNK SEAL	-	1	Enquire
50	1R12834774AA	UMBRELLA-VANQUISH	1R12834774AA UMBRELLA-VANQUISH	-	1	Enquire
50	1X4316C618AC	Buffer, trunk lid	1X4316C618AC Buffer, trunk lid	-	2	Enquire
51	1R835443526AB	Emergency pull tag, deck lid	1R835443526AB Emergency pull tag, deck lid	-	1	Enquire
52	1R12835157AB	RETAINER - EMERGENCY BOOT RELEASE	1R12835157AB RETAINER - EMERGENCY BOOT RELEASE	-	1	Enquire
53	700385	CLIP/TIE-HOOD REL CBL TO PAS HOSE	700385 CLIP/TIE-HOOD REL CBL TO PAS HOSE	-	1	Enquire
53	700408	HOLE PLUG (JETPRESS) PART NO. PLB046 BLK)	700408 HOLE PLUG (JETPRESS) PART NO. PLB046 BLK)	-	1	Enquire
53	1R123710233	BOOT AJAR SWITCH	1R123710233 BOOT AJAR SWITCH	-	1	Enquire
53	699969PK	RIVET-R LOK PACK 10	699969PK RIVET-R LOK PACK 10	-	1	Enquire
54	1R12673964AA	SHIM DECK LID HINGE	1R12673964AA SHIM DECK LID HINGE	-	6	Enquire
55	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	1	Enquire
56	1R12744197AA	SPACER	1R12744197AA SPACER	-	2	Enquire
57	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON	-	2	Enquire
58	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
59	700013	RIVET - OVAL STEEL	700013 RIVET - OVAL STEEL	-	4	Enquire
60	7883401	SUPPORT PLATE ASSY- REAR No.PLATE-USA	7883401 SUPPORT PLATE ASSY- REAR No.PLATE-USA Federal	-	1	Enquire
60	4G430110303	SUPPORT PLATE ASSY - REAR NO. PLATE	4G430110303 SUPPORT PLATE ASSY - REAR NO. PLATE Japan	-	1	Enquire
60	5500001410PK	POP-RVT 1/8x5/16(20)	5500001410PK POP-RVT 1/8x5/16(20) Japan	-	4	Enquire
60	3R12835705AB	BOOT - CARGO NET	3R12835705AB BOOT - CARGO NET	-	1	Enquire
60	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
60	5500001410PK	POP-RVT 1/8x5/16(20)	5500001410PK POP-RVT 1/8x5/16(20)	-	2	Enquire
60	699109	SCREW No8 x 19mm RSD C/SUNK HD	699109 SCREW No8 x 19mm RSD C/SUNK HD	-	4	Enquire
