Front Bumper and Apron of Aston Martin Aston Martin Vanquish (2001-2007)

View All

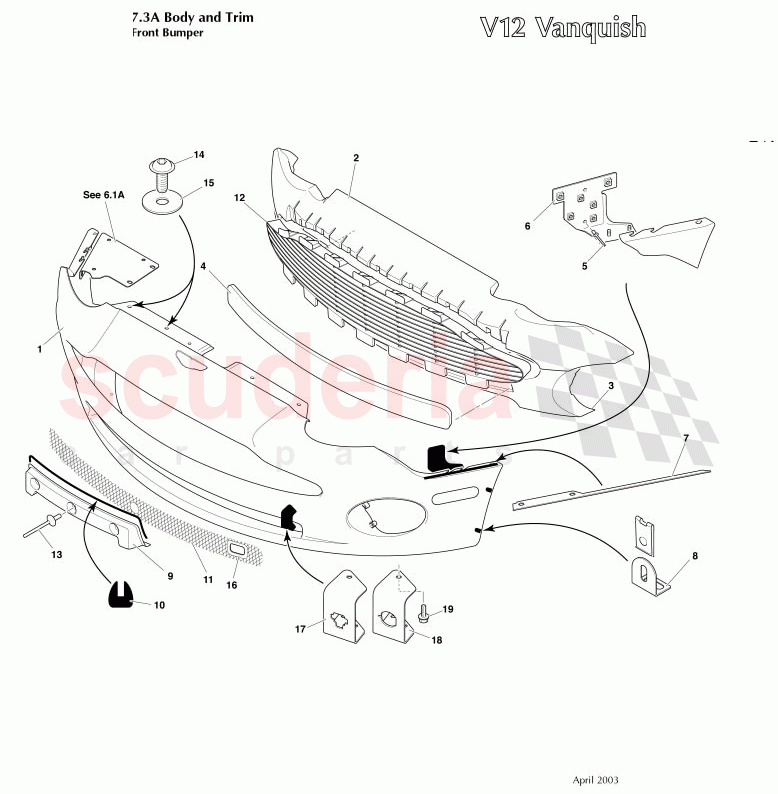

Aston Martin Vanquish (2001-2007) - Front Bumper and Apron

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4R12720819AA	BUMPER ASSY FRONT - FEDERAL	Enquire	To Order
	4R12720172AA	BUMPER ASSY FRONT - EUROPEAN	Enquire	To Order
	4R12720819AA	BUMPER ASSY FRONT - FEDERAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R13171906EA	Foam insert, energy absorbing, front bumper, upper	Enquire	To Order
	1R12721117AJ	FOAM INSERT - EA BUMPER FRONT - UPPER ROW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12720007AF	FOAM INSERT - EA BUMPER FRONT - LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12721709AA	FOAM RETAINER BUMPER FRONT LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12720174AF	SIDE BRACKET BUMPER FRONT RH	Enquire	To Order
	699515	RIVET (HUCK ABP-R8-M3)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12723546AE	SPACER - ROCKER	Enquire	To Order
	1R12720173AF	SIDE BRACKET BUMPER FRONT LH	Enquire	To Order
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

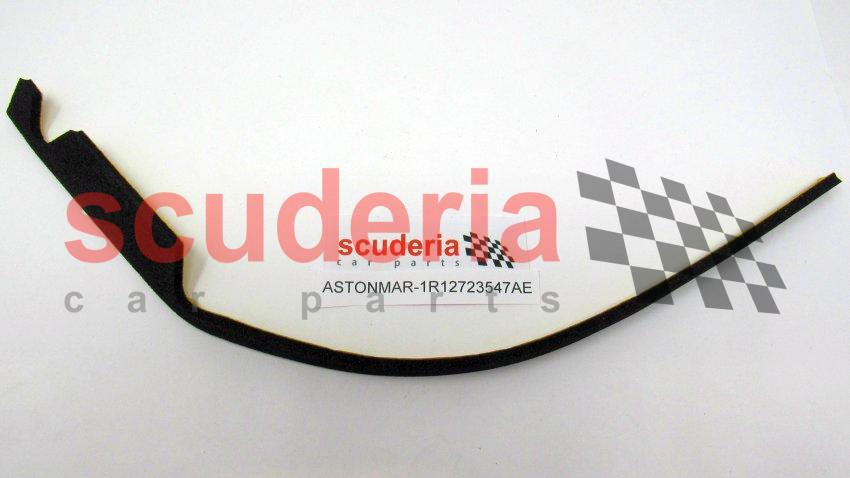

	1R12723547AE	Spacer - Rocker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12721093AB	BRACKET MOUNTING - WHEELHOUSE LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13F17A385AA	LICENCE PLATE BRACKET FRONT	Enquire	To Order
	1R12722002AA	FEDERAL LICENCE PLATE BRACKET	Enquire	To Order
	700409	Gripper bag, heavy duty	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12725376AA	SEAL HOUSING REG PLT	Enquire	To Order
	1R12725400AA	SEAL HOUSING REG PLT	Enquire	To Order
	1R12722730AA	SEAL HOUSING REG PLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R1317D635BA	MESH - ASSY RADIATOR	Enquire	To Order
	5R1317D635AA	MESH - RADIATOR LOWER	Enquire	To Order
	1R12715276AB	MESH - ASSEMBLY RADIATOR LOWER (COLD CLIMATE)	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R138190AAW	GRILLE - RADIATOR HP PAINTED	Enquire	To Order
	1R12710135AE	GRILLE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699969PK	RIVET-R LOK PACK 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699818PK	SCREW M6x20 SKT (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12715277AB	FINISHER RADIATOR LOWER MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12325160AB	BRACKET - COLD CLIMATE HEATER SOCKET (220V)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12325179AA	BRACKET - COLD CLIMATE HEATER SOCKET (110V)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1302A34AA	SPLITTER - BUMPER	Enquire	To Order
	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	Enquire	To Order
	699726	GROMMET - TOWING EYE COVER	Enquire	To Order

...and 4 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4R12720819AA	BUMPER ASSY FRONT - FEDERAL	4R12720819AA BUMPER ASSY FRONT - FEDERAL Up to (V) 501285	-	1	Enquire
1	4R12720172AA	BUMPER ASSY FRONT - EUROPEAN	4R12720172AA BUMPER ASSY FRONT - EUROPEAN Up to (V) 501285	-	1	Enquire
1	4R12720819AA	BUMPER ASSY FRONT - FEDERAL	4R12720819AA BUMPER ASSY FRONT - FEDERAL From (V) 501286	-	1	Enquire
1	4R12720172AA	BUMPER ASSY FRONT - EUROPEAN	4R12720172AA BUMPER ASSY FRONT - EUROPEAN From (V) 501286	-	1	Enquire
2	5R13171906EA	Foam insert, energy absorbing, front bumper, upper	5R13171906EA Foam insert, energy absorbing, front bumper, upper Canada Vanquish S from (V) 501506	-	1	Enquire
2	1R12721117AJ	FOAM INSERT - EA BUMPER FRONT - UPPER ROW	1R12721117AJ FOAM INSERT - EA BUMPER FRONT - UPPER ROW	-	1	Enquire
3	1R12720007AF	FOAM INSERT - EA BUMPER FRONT - LOWER	1R12720007AF FOAM INSERT - EA BUMPER FRONT - LOWER	-	1	Enquire
4	1R12721709AA	FOAM RETAINER BUMPER FRONT LOWER	1R12721709AA FOAM RETAINER BUMPER FRONT LOWER	-	1	Enquire
5	1R12720174AF	SIDE BRACKET BUMPER FRONT RH	1R12720174AF SIDE BRACKET BUMPER FRONT RH	-	1	Enquire
5	699515	RIVET (HUCK ABP-R8-M3)	699515 RIVET (HUCK ABP-R8-M3)	-	4	Enquire
6	1R12723546AE	SPACER - ROCKER	1R12723546AE SPACER - ROCKER	-	1	Enquire
6	1R12720173AF	SIDE BRACKET BUMPER FRONT LH	1R12720173AF SIDE BRACKET BUMPER FRONT LH	-	1	Enquire
6	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	4	Enquire
6	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	4	Enquire
7	1R12723547AE	Spacer - Rocker	1R12723547AE Spacer - Rocker	-	1	Enquire
8	1R12721093AB	BRACKET MOUNTING - WHEELHOUSE LINER	1R12721093AB BRACKET MOUNTING - WHEELHOUSE LINER	-	4	Enquire
9	5R13F17A385AA	LICENCE PLATE BRACKET FRONT	5R13F17A385AA LICENCE PLATE BRACKET FRONT ROW Vanquish S From (V) 501506	-	1	Enquire
9	1R12722002AA	FEDERAL LICENCE PLATE BRACKET	1R12722002AA FEDERAL LICENCE PLATE BRACKET Federal/Japan	-	1	Enquire
9	700409	Gripper bag, heavy duty	700409 Gripper bag, heavy duty Federal/Japan	-	1	Enquire
9	697530PK	INSERT-THREADED (5)	697530PK INSERT-THREADED (5) Federal/Japan	-	3	Enquire
9	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG Federal/Japan	-	3	Enquire
9	697286	Washer M6 Large OD	697286 Washer M6 Large OD Federal/Japan	-	3	Enquire
9	1R12632920AA	DOUBLE SIDE TAPE 3M 5361x16WD	1R12632920AA DOUBLE SIDE TAPE 3M 5361x16WD Federal/Japan	-	-	Enquire
9	1R12725340AA	LICENCE PLATE BRACKET FRONT - SWISS	1R12725340AA LICENCE PLATE BRACKET FRONT - SWISS Swiss	-	1	Enquire
9	1R12725378AA	LICENCE PLATE BRACKET FRONT - ITALY	1R12725378AA LICENCE PLATE BRACKET FRONT - ITALY Italy	-	1	Enquire
9	1R12720176AC	LICENCE PLATE BRACKET FRONT	1R12720176AC LICENCE PLATE BRACKET FRONT ROW	-	1	Enquire
10	1R12725376AA	SEAL HOUSING REG PLT	1R12725376AA SEAL HOUSING REG PLT Swiss	-	1	Enquire
10	1R12725400AA	SEAL HOUSING REG PLT	1R12725400AA SEAL HOUSING REG PLT Italy	-	1	Enquire
10	1R12722730AA	SEAL HOUSING REG PLT	1R12722730AA SEAL HOUSING REG PLT ROW	-	1	Enquire
10	699969PK	RIVET-R LOK PACK 10	699969PK RIVET-R LOK PACK 10	-	3	Enquire
11	5R1317D635BA	MESH - ASSY RADIATOR	5R1317D635BA MESH - ASSY RADIATOR Vanquish S From (V) 501506	-	1	Enquire
11	5R1317D635AA	MESH - RADIATOR LOWER	5R1317D635AA MESH - RADIATOR LOWER Vanquish S From (V) 501506	-	1	Enquire
11	1R12715276AB	MESH - ASSEMBLY RADIATOR LOWER (COLD CLIMATE)	1R12715276AB MESH - ASSEMBLY RADIATOR LOWER (COLD CLIMATE)	-	1	Enquire
11	1R12375211AA	110V BLOCK HEATER CORD SET	1R12375211AA 110V BLOCK HEATER CORD SET	-	1	Enquire
11	1R12375210AA	220V BLOCK HEATER CORD SET	1R12375210AA 220V BLOCK HEATER CORD SET	-	1	Enquire
11	1R12710134AC	MESH-RADIATOR LOWER	1R12710134AC MESH-RADIATOR LOWER	-	1	Enquire
11	1R12375275AB	120V EXTENSION CORD	1R12375275AB 120V EXTENSION CORD	-	1	Enquire
11	1R12375274AA	230V EXTENSION CORD	1R12375274AA 230V EXTENSION CORD	-	1	Enquire
11	699806	NYLON WASHER-WHITE	699806 NYLON WASHER-WHITE	-	10	Enquire
11	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	13	Enquire
11	699818PK	SCREW M6x20 SKT (10)	699818PK SCREW M6x20 SKT (10)	-	13	Enquire
11	699819	SCREW M6x25 SKT BUTTON FLANGE	699819 SCREW M6x25 SKT BUTTON FLANGE	-	3	Enquire
11	700035	NYLON WASHER - FOG LAMP SPACER	700035 NYLON WASHER - FOG LAMP SPACER	-	6	Enquire
11	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	6	Enquire
11	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A'	-	8	Enquire
11	697781	NUT M6 FLG	697781 NUT M6 FLG	-	8	Enquire
12	5R138190AAW	GRILLE - RADIATOR HP PAINTED	5R138190AAW GRILLE - RADIATOR HP PAINTED Vanquish S From (V) 501506	-	1	Enquire
12	1R12710135AE	GRILLE - RADIATOR	1R12710135AE GRILLE - RADIATOR	-	1	Enquire
13	699969PK	RIVET-R LOK PACK 10	699969PK RIVET-R LOK PACK 10	-	3	Enquire
14	699818PK	SCREW M6x20 SKT (10)	699818PK SCREW M6x20 SKT (10)	-	4	Enquire
15	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	4	Enquire
16	1R12715277AB	FINISHER RADIATOR LOWER MESH	1R12715277AB FINISHER RADIATOR LOWER MESH	-	1	Enquire
17	1R12325160AB	BRACKET - COLD CLIMATE HEATER SOCKET (220V)	1R12325160AB BRACKET - COLD CLIMATE HEATER SOCKET (220V)	-	1	Enquire
18	1R12325179AA	BRACKET - COLD CLIMATE HEATER SOCKET (110V)	1R12325179AA BRACKET - COLD CLIMATE HEATER SOCKET (110V)	-	1	Enquire
19	5R1302A34AA	SPLITTER - BUMPER	5R1302A34AA SPLITTER - BUMPER Vanquish S From (V) 501506	-	1	Enquire
19	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL Splitter attach	-	13	Enquire
19	699726	GROMMET - TOWING EYE COVER	699726 GROMMET - TOWING EYE COVER	-	1	Enquire
19	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	3	Enquire
19	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	3	Enquire
19	5R13725107AA	PACKER - FRONT BUMPER ASSY	5R13725107AA PACKER - FRONT BUMPER ASSY	-	4	Enquire
19	5R13725108AA	PACKER - FRONT BUMPER ASSY	5R13725108AA PACKER - FRONT BUMPER ASSY	-	4	Enquire
