Fuel Flap Mechanism

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Fuel Flap Mechanism

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12341316AA FUEL FILLER RELEASE SOLENOID ASSY Enquire To Order
Photo Part No Description Price (each) Stock
1R126810181 LATCH ASSY-F/FLR LID Enquire To Order
Photo Part No Description Price (each) Stock
1R12340331AJ FUEL FILLER BEZEL ASSY Enquire To Order
1R12344653AB Bezel assy, fuel filler, chrome 2 Enquire To Order
1R12341317AD PIN - FUEL FILLER RELEASE Enquire To Order
Photo Part No Description Price (each) Stock
1R12341318AJ Bezel, fuel filler, chrome 1 Enquire To Order
1R12344651AB Bezel, fuel filler, chrome 2 Enquire To Order
Photo Part No Description Price (each) Stock
1R12341319AH Lid, fuel filler, chrome 1 Enquire To Order
1R12344652AB Lid, fuel filler, chrome 2 Enquire To Order
Photo Part No Description Price (each) Stock
1R12342116AA FUEL FILLER HINGE PIN Enquire To Order
Photo Part No Description Price (each) Stock
1R12341356AD FUEL FILLER LID SPRING Enquire To Order
Photo Part No Description Price (each) Stock
1R12343294AA FUEL FILLER BUFFER Enquire To Order
Photo Part No Description Price (each) Stock
1R12341322AE BRACKET -FUEL FILLER SOLENOID SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
1R12341323AA SEAL - FUEL FILLER SOLENOID Enquire To Order
700227 TWISTLOCK NUT Enquire To Order
Photo Part No Description Price (each) Stock
1R12344428AA FUEL FILLER LIP STOP Enquire To Order
Photo Part No Description Price (each) Stock
700177 Cap screw, M5 x 6 stainless Enquire To Order
Photo Part No Description Price (each) Stock
699295 M5 NYLON WASHER Enquire To Order
Photo Part No Description Price (each) Stock
699505 Nut, dome head, M5 stainless Enquire To Order
Photo Part No Description Price (each) Stock
700418 Foam pad, 50 x 20 x 5 Enquire To Order
697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 Enquire To Order
View All

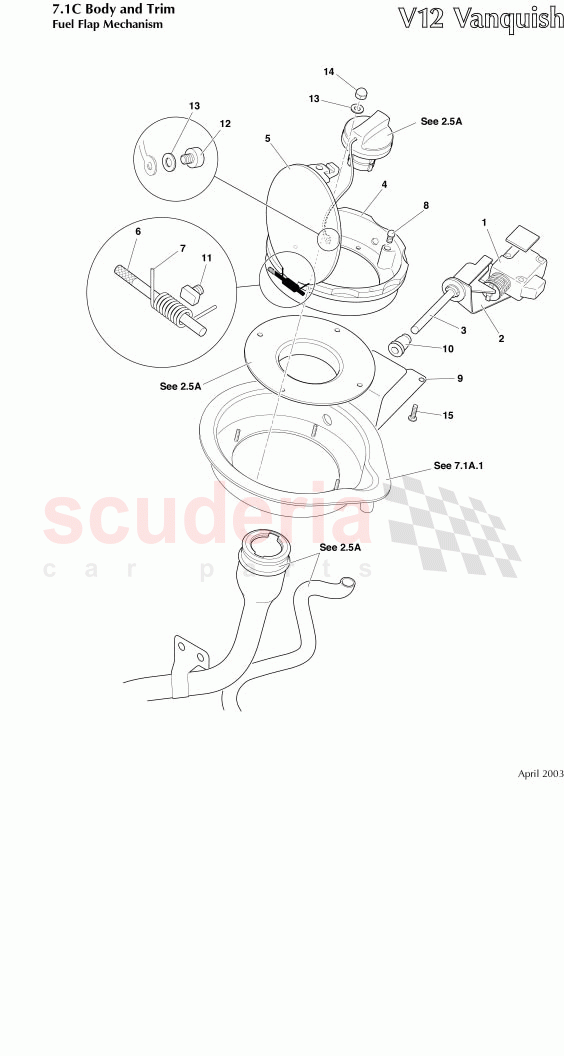

Fuel Flap Mechanism of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12341316AA
FUEL FILLER RELEASE SOLENOID ASSY 		- 1 Enquire
2 1R126810181
LATCH ASSY-F/FLR LID 		- 1 Enquire
3 1R12340331AJ
FUEL FILLER BEZEL ASSY 		- 1 Enquire
3 1R12344653AB
Bezel assy, fuel filler, chrome 2 		- 1 Enquire
3 1R12341317AD
PIN - FUEL FILLER RELEASE 		- 1 Enquire
4 1R12341318AJ
Bezel, fuel filler, chrome 1 		- 1 Enquire
4 1R12344651AB
Bezel, fuel filler, chrome 2 		- 1 Enquire
5 1R12341319AH
Lid, fuel filler, chrome 1 		- 1 Enquire
5 1R12344652AB
Lid, fuel filler, chrome 2 		- 1 Enquire
6 1R12342116AA
FUEL FILLER HINGE PIN 		- 1 Enquire
7 1R12341356AD
FUEL FILLER LID SPRING 		- 1 Enquire
8 1R12343294AA
FUEL FILLER BUFFER 		- 2 Enquire
9 1R12341322AE
BRACKET -FUEL FILLER SOLENOID SUPPORT 		- 1 Enquire
10 1R12341323AA
SEAL - FUEL FILLER SOLENOID 		- 1 Enquire
10 700227
TWISTLOCK NUT 		- 1 Enquire
11 1R12344428AA
FUEL FILLER LIP STOP 		- 1 Enquire
12 700177
Cap screw, M5 x 6 stainless 		- 1 Enquire
13 699295
M5 NYLON WASHER 		- 5 Enquire
14 699505
Nut, dome head, M5 stainless 		- 4 Enquire
15 700418
Foam pad, 50 x 20 x 5 		- 1 Enquire
15 697320
SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 		- 2 Enquire
