Find Your Part

Rear Bumper of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Rear Bumper

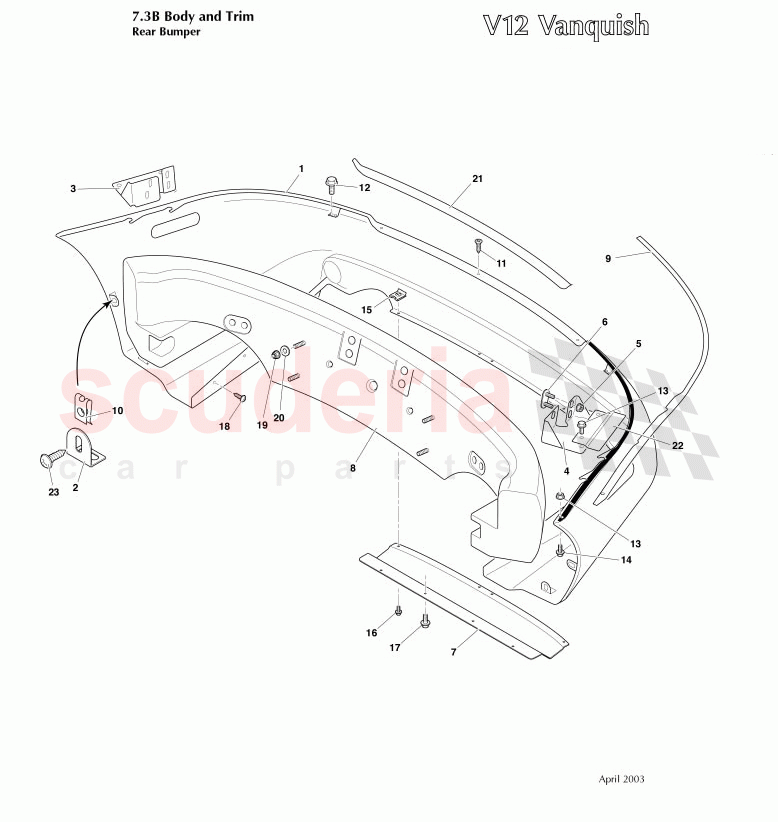

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3R12725699AAW	Bumper Rear, parking, Federal, painted	Enquire	To Order
	1R12725698AAW	Bumper Rear, parking, ROW, painted	Enquire	To Order
	3R12725886AB	REAR BUMPER PARKING FEDERAL	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12721093AB	BRACKET MOUNTING - WHEELHOUSE LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12721144AD	SIDE BRACKET - REAR BUMPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12721145AD	SIDE BRACKET - REAR BUMPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697781	NUT M6 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12721133AB	SUPPORT PLATE - BUMPER SIDE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12722462AA	CLOSING PANEL REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12725433AA	FOAM INSERT REAR BUMPER PARKING	Enquire	To Order
	3R12725433AA	FOAM INSERT REAR BUMPER PARKING	Enquire	To Order
	1R12722542AG	SPACER REAR BUMPER RH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12722543AG	SPACER REAR BUMPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699528	Clip, edge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700249	Screw M4x14 csk hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699296	CLIP ST 4.8 C TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702872	SCREW 4.8 x16 PAN SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697441	WASHER M6 PLAIN `A'	Enquire	To Order
	697441	WASHER M6 PLAIN `A'	Enquire	To Order
	702872	SCREW 4.8 x16 PAN SS	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12724762AA	SIDE BRACKET - BUMPER SUPPORT RH	Enquire	To Order
	1R12724761AA	SIDE BRACKET - BUMPER SUPPORT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1R12725109AAW	Bumper Rear, ROW, painted	1R12725109AAW Bumper Rear, ROW, painted	-	1	Enquire
1	3R12725699AAW	Bumper Rear, parking, Federal, painted	3R12725699AAW Bumper Rear, parking, Federal, painted From (V) 500516-21 + 526 onwards	-	1	Enquire
1	1R12725698AAW	Bumper Rear, parking, ROW, painted	1R12725698AAW Bumper Rear, parking, ROW, painted From (V) 500516-21 + 526 onwards	-	1	Enquire
1	3R12725886AB	REAR BUMPER PARKING FEDERAL	3R12725886AB REAR BUMPER PARKING FEDERAL From (V) 500516-21 + 526 onwards	-	1	Enquire
1	3R12725885AB	REAR BUMPER PARKING	3R12725885AB REAR BUMPER PARKING From (V) 500516-21 + 526 onwards	-	1	Enquire
1	1R12725110AAW	Bumper Rear, Federal, painted	1R12725110AAW Bumper Rear, Federal, painted	-	1	Enquire
1	1R12721092AG	REAR BUMPER-FEDERAL	1R12721092AG REAR BUMPER-FEDERAL	-	1	Enquire
1	1R12720175AG	BUMPER REAR	1R12720175AG BUMPER REAR	-	1	Enquire
2	1R12721093AB	BRACKET MOUNTING - WHEELHOUSE LINER	1R12721093AB BRACKET MOUNTING - WHEELHOUSE LINER	-	8	Enquire
3	1R12721144AD	SIDE BRACKET - REAR BUMPER RH	1R12721144AD SIDE BRACKET - REAR BUMPER RH	-	1	Enquire
4	1R12721145AD	SIDE BRACKET - REAR BUMPER LH	1R12721145AD SIDE BRACKET - REAR BUMPER LH	-	1	Enquire
5	697781	NUT M6 FLG	697781 NUT M6 FLG	-	16	Enquire
6	1R12721133AB	SUPPORT PLATE - BUMPER SIDE BRACKET	1R12721133AB SUPPORT PLATE - BUMPER SIDE BRACKET	-	4	Enquire
7	1R12722462AA	CLOSING PANEL REAR BUMPER	1R12722462AA CLOSING PANEL REAR BUMPER	-	1	Enquire
8	3R12725433AA	FOAM INSERT REAR BUMPER PARKING	3R12725433AA FOAM INSERT REAR BUMPER PARKING Canada Vanquish S from (V) 501506	-	1	Enquire
8	3R12725433AA	FOAM INSERT REAR BUMPER PARKING	3R12725433AA FOAM INSERT REAR BUMPER PARKING From (V) 500516-21 + 526 onwards	-	1	Enquire
8	1R12722542AG	SPACER REAR BUMPER RH	1R12722542AG SPACER REAR BUMPER RH USA/Canada	-	1	Enquire
8	1R12720008AE	FOAM INSERT EA BUMPER REAR	1R12720008AE FOAM INSERT EA BUMPER REAR	-	1	Enquire
8	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	10	Enquire
9	1R12722543AG	SPACER REAR BUMPER LH	1R12722543AG SPACER REAR BUMPER LH USA/Canada	-	1	Enquire
10	699528	Clip, edge	699528 Clip, edge USA/Canada	-	2	Enquire
11	700249	Screw M4x14 csk hd	700249 Screw M4x14 csk hd USA/Canada	-	5	Enquire
12	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head USA/Canada	-	4	Enquire
13	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG USA/Canada	-	6	Enquire
14	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head USA/Canada	-	2	Enquire
15	699296	CLIP ST 4.8 C TYPE	699296 CLIP ST 4.8 C TYPE USA/Canada	-	4	Enquire
16	702872	SCREW 4.8 x16 PAN SS	702872 SCREW 4.8 x16 PAN SS USA/Canada	-	4	Enquire
17	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head USA/Canada	-	4	Enquire
18	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL USA/Canada	-	6	Enquire
19	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC USA/Canada	-	4	Enquire
20	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A' USA/Canada	-	4	Enquire
20	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A' ROW	-	10	Enquire
20	702872	SCREW 4.8 x16 PAN SS	702872 SCREW 4.8 x16 PAN SS ROW	-	10	Enquire
20	697781	NUT M6 FLG	697781 NUT M6 FLG ROW	-	10	Enquire
20	699296	CLIP ST 4.8 C TYPE	699296 CLIP ST 4.8 C TYPE ROW	-	10	Enquire
20	699528	Clip, edge	699528 Clip, edge ROW	-	4	Enquire
20	1R12775398AA	REAR BUMPER SEAL FINISHED	1R12775398AA REAR BUMPER SEAL FINISHED	-	1	Enquire
21	1R12771998AD	REAR BUMPER SEAL	1R12771998AD REAR BUMPER SEAL	-	1	Enquire
22	1R12724762AA	SIDE BRACKET - BUMPER SUPPORT RH	1R12724762AA SIDE BRACKET - BUMPER SUPPORT RH	-	1	Enquire
22	1R12724761AA	SIDE BRACKET - BUMPER SUPPORT LH	1R12724761AA SIDE BRACKET - BUMPER SUPPORT LH	-	1	Enquire
23	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	-	4	Enquire
