Aston Martin Vanquish (2001-2007) - Rear Seats and Belts 2

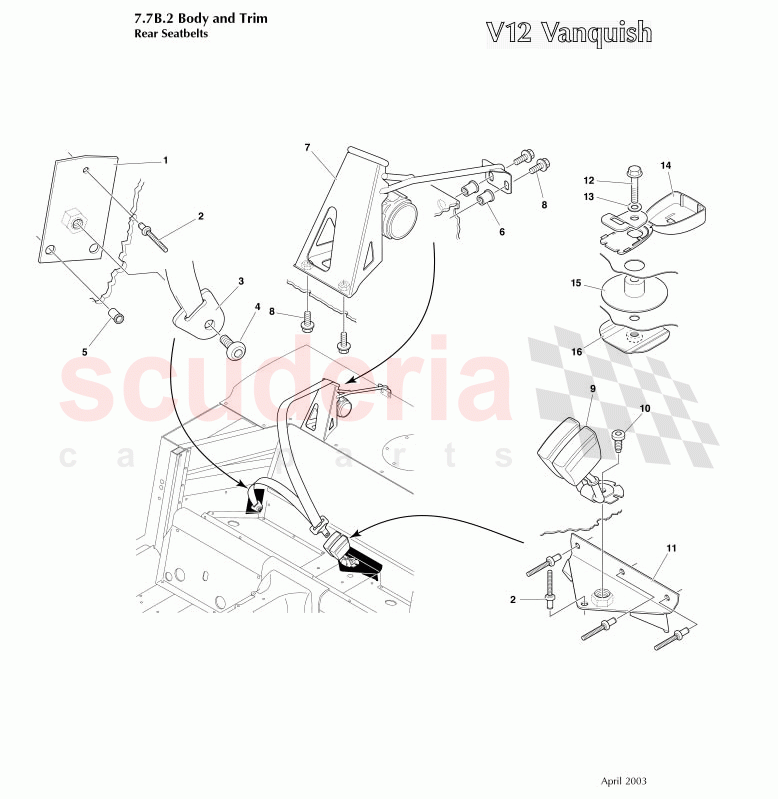

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12161420AB	Nut plate, rear seat belts outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699277	Monobolt, 1/4"	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12743251AA	SEAT BELT RETRACTOR REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699799	RIVNUT M8 STEEL XYLAN COATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699274	RIVNUT-M8 STEEL- XYLAN COATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12743896AC	ASSY RETRACTR MNT	Enquire	To Order
	1R12743897AC	ASSY RETRACT MNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700615	SCREW M8x16 PILOT GRD 10.9	Enquire	To Order
	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12743632AA	SEAT BELT - REAR BUCKLE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12160950AD	Nut plate, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833737AA	BOLT 1 3/4x5/16 UNC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084919	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8085842	CHILD TETHER KIT ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	Enquire	To Order
	4R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	Enquire	To Order
	1R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12836216AA	PLATE - CHILD TETHER - LOWER RH	Enquire	To Order
	700225	BOLT M8X50 HEX FLG HEAD GRD 10.9	Enquire	To Order
	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12161420AB	Nut plate, rear seat belts outer	1R12161420AB Nut plate, rear seat belts outer	-	2	Enquire
2	699277	Monobolt, 1/4"	699277 Monobolt, 1/4"	-	6	Enquire
3	1R12743251AA	SEAT BELT RETRACTOR REAR	1R12743251AA SEAT BELT RETRACTOR REAR	-	2	Enquire
5	699799	RIVNUT M8 STEEL XYLAN COATED	699799 RIVNUT M8 STEEL XYLAN COATED	-	4	Enquire
6	699274	RIVNUT-M8 STEEL- XYLAN COATED	699274 RIVNUT-M8 STEEL- XYLAN COATED	-	4	Enquire
7	1R12743896AC	ASSY RETRACTR MNT	1R12743896AC ASSY RETRACTR MNT	-	1	Enquire
7	1R12743897AC	ASSY RETRACT MNT	1R12743897AC ASSY RETRACT MNT	-	1	Enquire
8	700615	SCREW M8x16 PILOT GRD 10.9	700615 SCREW M8x16 PILOT GRD 10.9	-	4	Enquire
8	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
9	1R12743632AA	SEAT BELT - REAR BUCKLE ASSY	1R12743632AA SEAT BELT - REAR BUCKLE ASSY	-	1	Enquire
11	1R12160950AD	Nut plate, centre	1R12160950AD Nut plate, centre	-	1	Enquire
12	1R12833737AA	BOLT 1 3/4x5/16 UNC	1R12833737AA BOLT 1 3/4x5/16 UNC Australia	-	2	Enquire
13	8084919	Washer	8084919 Washer Australia	-	2	Enquire
14	8085842	CHILD TETHER KIT ASY	8085842 CHILD TETHER KIT ASY Australia	-	2	Enquire
15	4R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	4R12833772AA ASSY PLATE - CHILD TETHER - UPPER Australia From (V) 501286 2+0	-	1	Enquire
15	4R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	4R12833772AA ASSY PLATE - CHILD TETHER - UPPER Australia From (V) 501286 2+2	-	2	Enquire
15	1R12833772AA	ASSY PLATE - CHILD TETHER - UPPER	1R12833772AA ASSY PLATE - CHILD TETHER - UPPER Australia Up to (V) 501285	-	2	Enquire
16	4R12836216AA	PLATE - CHILD TETHER - LOWER RH	4R12836216AA PLATE - CHILD TETHER - LOWER RH Australia From (V) 501286 2+0	-	1	Enquire
16	700225	BOLT M8X50 HEX FLG HEAD GRD 10.9	700225 BOLT M8X50 HEX FLG HEAD GRD 10.9 Australia From (V) 501286 2+0	-	1	Enquire
16	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 Australia From (V) 501286 2+0	-	1	Enquire
16	4R12833773AA	PLATE - CHILD TETHER - LOWER LH	4R12833773AA PLATE - CHILD TETHER - LOWER LH Australia From (V) 501286 2+2	-	2	Enquire
16	4R12836216AA	PLATE - CHILD TETHER - LOWER RH	4R12836216AA PLATE - CHILD TETHER - LOWER RH Australia From (V) 501286 2+2	-	2	Enquire
16	700225	BOLT M8X50 HEX FLG HEAD GRD 10.9	700225 BOLT M8X50 HEX FLG HEAD GRD 10.9 Australia From (V) 501286 2+2	-	2	Enquire
16	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 Australia From (V) 501286 2+2	-	2	Enquire
16	1R12833773AA	ASSY PLATE - CHILD TETHER - LOWER	1R12833773AA ASSY PLATE - CHILD TETHER - LOWER Australia Up to (V) 501285	-	2	Enquire
16	697624	SCREW No8 x 25 RSD CSK HEAD BLACK	697624 SCREW No8 x 25 RSD CSK HEAD BLACK Australia	-	2	Enquire
16	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Australia	-	4	Enquire
