Upper Trim and Roof Lining of Aston Martin Aston Martin Vanquish (2001-2007)

View All

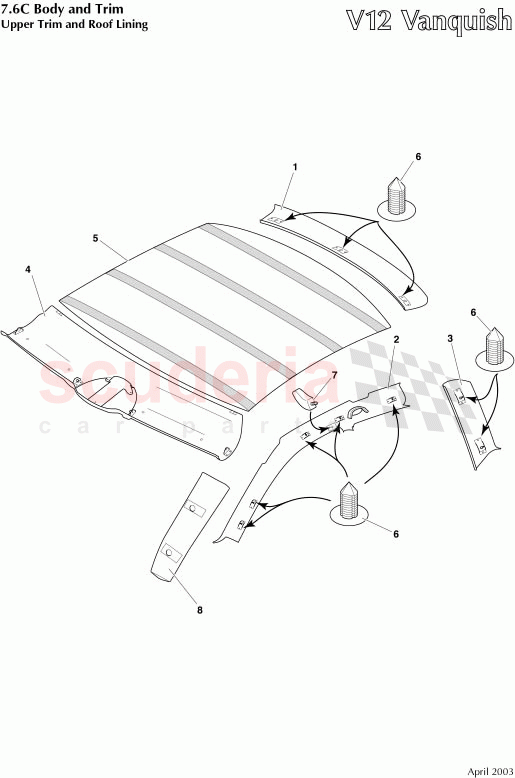

Aston Martin Vanquish (2001-2007) - Upper Trim and Roof Lining

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	696680	TAPE SELF ADHESIVE 35x50M	Enquire	To Order
	1R12834373AAW	ASSY REAR HEADER TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13519B80AAW	ASSY TRIMMED SIDE RAIL RH	Enquire	To Order
	5R13519B81AAW	ASSY TRIMMED SIDE RAIL LH	Enquire	To Order
	1R12834072ACW	ASSY TRIMMED SIDE RAIL RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	696680	TAPE SELF ADHESIVE 35x50M	Enquire	To Order
	1R12213000ABW	ASSY B POST TRIM RH	Enquire	To Order
	1R12213001ABW	ASSY B POST TRIM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834813ADW	ASSY TRIM FRT HEADER HOMELINK + MIC	Enquire	To Order
	1R12834812ADW	ASSY TRIM FRONT HEADER - STD + MICROPHONE	Enquire	To Order
	1R12834191ADW	Trim assy, front header, homelink	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12830040AB	HEAD LINING CARRIER	Enquire	To Order
	1R12830041ABW	HEAD LINING TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832028ACW	ASSY 'A' POST UPPER TRIM RH	Enquire	To Order
	1R12832029ACW	ASSY 'A' POST UPPER TRIM LH	Enquire	To Order
	8090178	FIXING - FIR TREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699873	WASHER PLAIN 5.3x13	Enquire	To Order
	700106	SCREW No6x13 S/TAPP	Enquire	To Order
	5480002835	POP-RIVET 1/8 x .35 DOME HEAD. STEEL	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12215165AA	A PILLAR IMPACT FOAM LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	696680	TAPE SELF ADHESIVE 35x50M	696680 TAPE SELF ADHESIVE 35x50M	-	1	Enquire
1	1R12834373AAW	ASSY REAR HEADER TRIMMED	1R12834373AAW ASSY REAR HEADER TRIMMED	-	1	Enquire
2	5R13519B80AAW	ASSY TRIMMED SIDE RAIL RH	5R13519B80AAW ASSY TRIMMED SIDE RAIL RH Vanquish S From (V) 501506	-	1	Enquire
2	5R13519B81AAW	ASSY TRIMMED SIDE RAIL LH	5R13519B81AAW ASSY TRIMMED SIDE RAIL LH Vanquish S From (V) 501506	-	1	Enquire
2	1R12834072ACW	ASSY TRIMMED SIDE RAIL RH	1R12834072ACW ASSY TRIMMED SIDE RAIL RH	-	1	Enquire
2	1R12834073ACW	ASSY TRIMMED SIDE PANEL LH	1R12834073ACW ASSY TRIMMED SIDE PANEL LH	-	1	Enquire
3	696680	TAPE SELF ADHESIVE 35x50M	696680 TAPE SELF ADHESIVE 35x50M	-	1	Enquire
3	1R12213000ABW	ASSY B POST TRIM RH	1R12213000ABW ASSY B POST TRIM RH	-	1	Enquire
3	1R12213001ABW	ASSY B POST TRIM LH	1R12213001ABW ASSY B POST TRIM LH	-	1	Enquire
4	1R12834813ADW	ASSY TRIM FRT HEADER HOMELINK + MIC	1R12834813ADW ASSY TRIM FRT HEADER HOMELINK + MIC	-	1	Enquire
4	1R12834812ADW	ASSY TRIM FRONT HEADER - STD + MICROPHONE	1R12834812ADW ASSY TRIM FRONT HEADER - STD + MICROPHONE	-	1	Enquire
4	1R12834191ADW	Trim assy, front header, homelink	1R12834191ADW Trim assy, front header, homelink	-	1	Enquire
4	1R12834190ADW	ASSY TRIM - FRONT HEADER - STD	1R12834190ADW ASSY TRIM - FRONT HEADER - STD	-	1	Enquire
5	1R12830040AB	HEAD LINING CARRIER	1R12830040AB HEAD LINING CARRIER	-	1	Enquire
5	1R12830041ABW	HEAD LINING TRIM	1R12830041ABW HEAD LINING TRIM	-	1	Enquire
6	1R12832028ACW	ASSY 'A' POST UPPER TRIM RH	1R12832028ACW ASSY 'A' POST UPPER TRIM RH	-	1	Enquire
6	1R12832029ACW	ASSY 'A' POST UPPER TRIM LH	1R12832029ACW ASSY 'A' POST UPPER TRIM LH	-	1	Enquire
6	8090178	FIXING - FIR TREE	8090178 FIXING - FIR TREE	-	17	Enquire
7	699873	WASHER PLAIN 5.3x13	699873 WASHER PLAIN 5.3x13 Between coat hook and cant rail	-	2	Enquire
7	700106	SCREW No6x13 S/TAPP	700106 SCREW No6x13 S/TAPP Coat hook attach	-	2	Enquire
7	5480002835	POP-RIVET 1/8 x .35 DOME HEAD. STEEL	5480002835 POP-RIVET 1/8 x .35 DOME HEAD. STEEL	-	1	Enquire
7	1R12215164AA	A PILLAR IMPACT FOAM RH	1R12215164AA A PILLAR IMPACT FOAM RH	-	1	Enquire
7	1R12830039ABW	Trim assy, headlining	1R12830039ABW Trim assy, headlining	-	1	Enquire
7	1R12830224AAW	Trim, cant rail, RH	1R12830224AAW Trim, cant rail, RH	-	1	Enquire
7	1R12830223AAW	Trim, cant rail, LH	1R12830223AAW Trim, cant rail, LH	-	1	Enquire
7	1R12830220AAW	A PILLAR TRIM RHS	1R12830220AAW A PILLAR TRIM RHS	-	1	Enquire
7	1R12830219AAW	A PILLAR TRIM LHS	1R12830219AAW A PILLAR TRIM LHS	-	1	Enquire
7	1R12831448AAW	Trim, B pillar, RH	1R12831448AAW Trim, B pillar, RH	-	1	Enquire
7	1R12830447AAW	Trim, B pillar, LH	1R12830447AAW Trim, B pillar, LH	-	1	Enquire
7	1R12830221AAW	Trim, C pillar, RH	1R12830221AAW Trim, C pillar, RH	-	1	Enquire
7	1R12830222AAW	Trim, C pillar, LH	1R12830222AAW Trim, C pillar, LH	-	1	Enquire
7	1R12831487AAW	Leather skin assy	1R12831487AAW Leather skin assy	-	1	Enquire
7	1R12834074AAW	COAT HOOK - TRIMMED	1R12834074AAW COAT HOOK - TRIMMED	-	2	Enquire
8	1R12215165AA	A PILLAR IMPACT FOAM LH	1R12215165AA A PILLAR IMPACT FOAM LH	-	1	Enquire
