Heat Deflectors And Shields 2

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Heat Deflectors and Shields 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12160347AG TANKBAY CROSSMEMBER -MACHINING Enquire To Order
Photo Part No Description Price (each) Stock
1R12160952AD NUTPLATE - TANKBAY CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
1R12162364AJ SIDE PANEL - LCD UNDERSIDE RH Enquire To Order
703121 Screw, M8 x 25, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
1R12162365AH SIDE PANEL - LCD UNDERSIDE LH Enquire To Order
Photo Part No Description Price (each) Stock
703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED Enquire To Order
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED Enquire To Order
Photo Part No Description Price (each) Stock
699274 RIVNUT-M8 STEEL- XYLAN COATED Enquire To Order
Photo Part No Description Price (each) Stock
702972 Screw, M8 x 14 Enquire To Order
Photo Part No Description Price (each) Stock
1R12352816AG REAR HANGER - REINF BRACKET RH Enquire To Order
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
1R12352817AG REAR HANGER - REINF BRACKET LH Enquire To Order
Photo Part No Description Price (each) Stock
1R12102930AE OUTLET MUFFLER RH Enquire To Order
700162 RIVET POP 4.9mm Enquire To Order
Photo Part No Description Price (each) Stock
1R12102931AE OUTLET MUFFLER LH Enquire To Order
Photo Part No Description Price (each) Stock
700162 RIVET POP 4.9mm Enquire To Order
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED Enquire To Order
Photo Part No Description Price (each) Stock
1R12272948AA HEATSHIELD SUBFRAME MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
1R12160584AF ASSY-TANK SHEAR PNL Enquire To Order
Photo Part No Description Price (each) Stock
700162 RIVET POP 4.9mm Enquire To Order
Photo Part No Description Price (each) Stock
1R12103352AD INSULATION TANKBAY PANEL Enquire To Order
Photo Part No Description Price (each) Stock
1R12103353AE SECURING PANEL - TANKBAY INSULATION Enquire To Order
Photo Part No Description Price (each) Stock
1R12371081AA HEATSHIELD - ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
1R12370806AA DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG Enquire To Order
Photo Part No Description Price (each) Stock
1R12372293AB BRACKET-ALTERNATOR COOLING DUCT Enquire To Order
Photo Part No Description Price (each) Stock
697659 CLIP HOSE-SPR/LOADED Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
1R12341851AC SUPPORT FUEL TANK BOTTOM Enquire To Order
View All

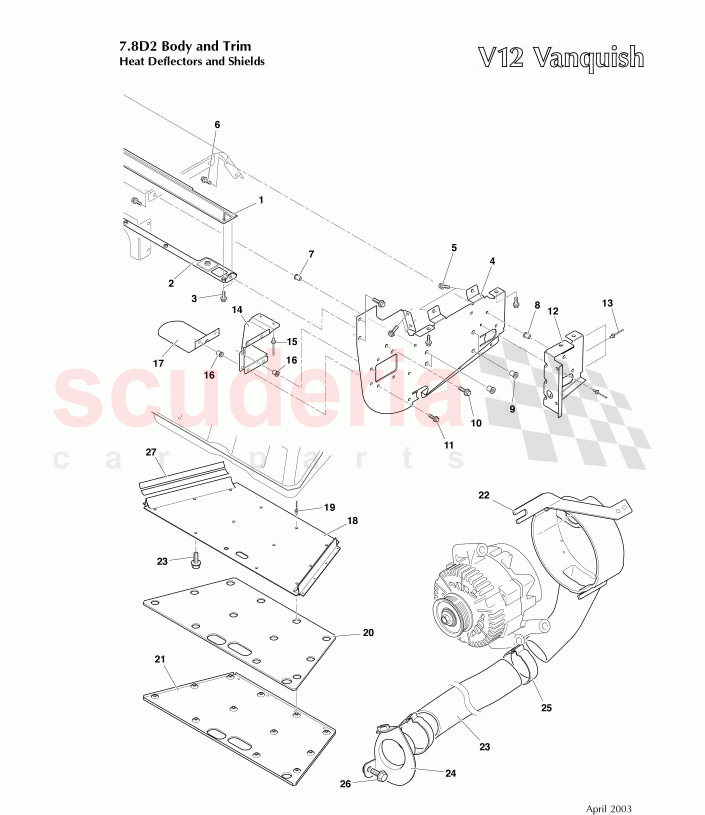

Heat Deflectors and Shields 2 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12160347AG
TANKBAY CROSSMEMBER -MACHINING 		- 1 Enquire
2 1R12160952AD
NUTPLATE - TANKBAY CROSSMEMBER 		- 1 Enquire
3 1R12162364AJ
SIDE PANEL - LCD UNDERSIDE RH 		- 1 Enquire
3 703121
Screw, M8 x 25, Hex Flange Head 		- 4 Enquire
4 1R12162365AH
SIDE PANEL - LCD UNDERSIDE LH 		- 1 Enquire
5 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		- 20 Enquire
6 700606
Screw, M6 x 12, Hex Flange Head 		- 4 Enquire
7 699282
RIVNUT - M6 STEEL - XYLAN COATED 		- 6 Enquire
8 699282
RIVNUT - M6 STEEL - XYLAN COATED 		- 6 Enquire
9 699274
RIVNUT-M8 STEEL- XYLAN COATED 		- 12 Enquire
10 702972
Screw, M8 x 14 		- 2 Enquire
11 1R12352816AG
REAR HANGER - REINF BRACKET RH 		- 1 Enquire
11 703265
Screw, M6 x 16, Hex Flange Head 		- 4 Enquire
12 1R12352817AG
REAR HANGER - REINF BRACKET LH 		- 1 Enquire
13 1R12102930AE
OUTLET MUFFLER RH 		- 1 Enquire
13 700162
RIVET POP 4.9mm 		- 8 Enquire
14 1R12102931AE
OUTLET MUFFLER LH 		- 1 Enquire
15 700162
RIVET POP 4.9mm 		- 4 Enquire
16 699282
RIVNUT - M6 STEEL - XYLAN COATED 		- 12 Enquire
17 1R12272948AA
HEATSHIELD SUBFRAME MOUNTING 		- 2 Enquire
18 1R12160584AF
ASSY-TANK SHEAR PNL 		- 1 Enquire
19 700162
RIVET POP 4.9mm 		- 8 Enquire
20 1R12103352AD
INSULATION TANKBAY PANEL 		- 1 Enquire
21 1R12103353AE
SECURING PANEL - TANKBAY INSULATION 		- 1 Enquire
22 1R12371081AA
HEATSHIELD - ALTERNATOR 		- 1 Enquire
23 1R12370806AA
DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG 		- 1 Enquire
24 1R12372293AB
BRACKET-ALTERNATOR COOLING DUCT 		- 1 Enquire
25 697659
CLIP HOSE-SPR/LOADED 		- 2 Enquire
26 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
27 1R12341851AC
SUPPORT FUEL TANK BOTTOM 		- 4 Enquire
28 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		- 10 Enquire
