Carpets of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Carpets

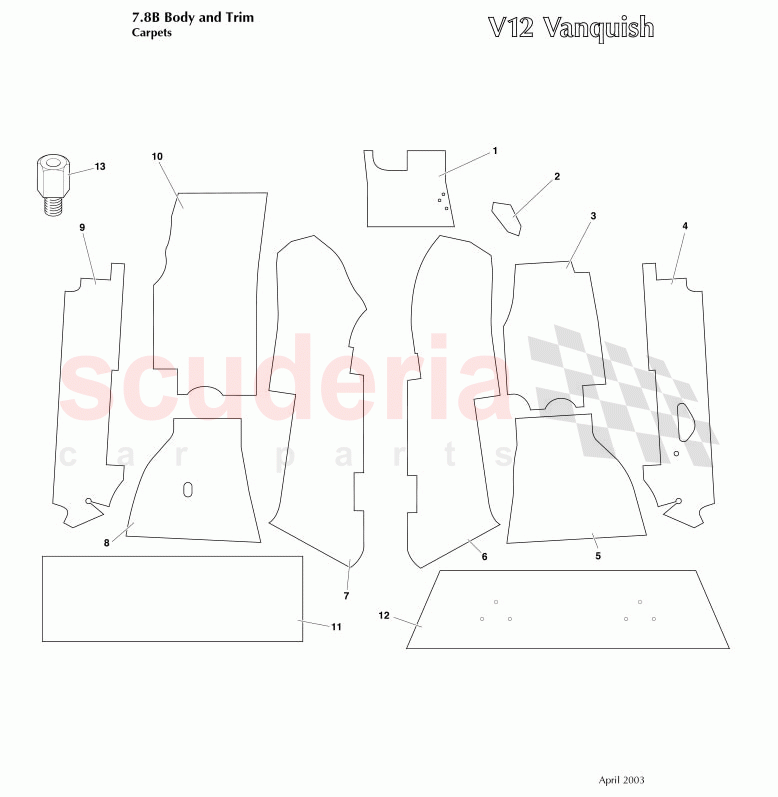

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12834516ACW	Carpet, toeboard, driver	Enquire	To Order
	1R12834517AAW	CARPET TOEBOARD DRIVER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834552AAW	Carpet, footrest	Enquire	To Order
	1R12834553AAW	Carpet, footrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834518ABW	ASSY CARPET FRONT FOOTWELL RH RHD	Enquire	To Order
	1R12834520ABW	ASSY CARPET FRONT FOOTWELL RH LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12835337AAW	Carpet assy, sill, RH	Enquire	To Order
	1R12834500ABW	ASSY CARPET SILL RH RHD	Enquire	To Order
	1R12834502ABW	ASSY CARPET SILL RH LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834526AAW	ASSY CARPET REAR FOOTWELL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834508ABW	ASSY CARPET CONSOLE SIDE RH RHD	Enquire	To Order
	1R12834510ABW	Carpet, assy console side, RH	Enquire	To Order
	6R13834508AAW	ASSY CARPET CONSOLE SIDE RH RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834509ABW	ASSY CARPET CONSOLE SIDE LH RHD	Enquire	To Order
	1R12834511ABW	Carpet, assy console side, LH	Enquire	To Order
	6R13834509AAW	ASSY CARPET CONSOLE SIDE LH RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834527AAW	ASSY CARPET REAR FOOTWELL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834501ABW	ASSY CARPET SILL LH RHD	Enquire	To Order
	1R12834503ABW	ASSY CARPET SILL LH LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834519ABW	ASSY CARPET FRONT FOOTWELL LH RHD	Enquire	To Order
	1R12834521ABW	ASSY CARPET FRONT FOOTWELL LH LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834623AAW	Carpet, luggage deck lid inner	Enquire	To Order
	693845	FASTENER 2BA x 1 TENAX No18 CHROME	Enquire	To Order
	11078	Fastener, Tenax, button	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12835704AAW	Carpet, under seat shear panel Plus 0	Enquire	To Order
	1R12833651ABW	Carpet, rear bulkhead trim panel	Enquire	To Order
	1R12833488ACW	Carpet, under seat shear panel Plus 0	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834085AA	BEZEL SWITCH SURRND HEELBOARD	Enquire	To Order
	1R12834084AA	BASE SWITCH SURRND HEELBOARD	Enquire	To Order
	1R12835073AA	ADAPTOR STAND OFF CARPET TO TUB	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3R12835090ABW	COMPLETE CARPET KIT 2+0 (03MY)	3R12835090ABW COMPLETE CARPET KIT 2+0 (03MY) From (V) 500516-21 + 526 onwards	-	1	Enquire
-	1R12835090ABW	COMPLETE CARPET KIT 2+0	1R12835090ABW COMPLETE CARPET KIT 2+0 Up to (V) 500515 + 500522-525	-	1	Enquire
-	1R12835088ACW	COMPLETE CARPET KIT RHD	1R12835088ACW COMPLETE CARPET KIT RHD RHD Up to (V) 501948	-	1	Enquire
-	1R12835089ACW	COMPLETE CARPET KIT LHD	1R12835089ACW COMPLETE CARPET KIT LHD LHD Up to (V) 501948	-	1	Enquire
-	6R13835088AAW	Carpet kit, complete	6R13835088AAW Carpet kit, complete RHD From (V) 501949	-	1	Enquire
-	6R13835089AAW	COMPLETE CARPET KIT LHD	6R13835089AAW COMPLETE CARPET KIT LHD LHD From (V) 501949	-	1	Enquire
-	1R12835091ABW	Carpet kit, complete	1R12835091ABW Carpet kit, complete ALL	-	1	Enquire
1	1R12834516ACW	Carpet, toeboard, driver	1R12834516ACW Carpet, toeboard, driver RHD	-	1	Enquire
1	1R12834517AAW	CARPET TOEBOARD DRIVER LHD	1R12834517AAW CARPET TOEBOARD DRIVER LHD LHD	-	1	Enquire
2	1R12834552AAW	Carpet, footrest	1R12834552AAW Carpet, footrest RHD	-	1	Enquire
2	1R12834553AAW	Carpet, footrest	1R12834553AAW Carpet, footrest LHD	-	1	Enquire
3	1R12834518ABW	ASSY CARPET FRONT FOOTWELL RH RHD	1R12834518ABW ASSY CARPET FRONT FOOTWELL RH RHD RHD	-	1	Enquire
3	1R12834520ABW	ASSY CARPET FRONT FOOTWELL RH LHD	1R12834520ABW ASSY CARPET FRONT FOOTWELL RH LHD LHD	-	1	Enquire
4	1R12835337AAW	Carpet assy, sill, RH	1R12835337AAW Carpet assy, sill, RH Australia	-	1	Enquire
4	1R12834500ABW	ASSY CARPET SILL RH RHD	1R12834500ABW ASSY CARPET SILL RH RHD RHD	-	1	Enquire
4	1R12834502ABW	ASSY CARPET SILL RH LHD	1R12834502ABW ASSY CARPET SILL RH LHD LHD	-	1	Enquire
5	1R12834526AAW	ASSY CARPET REAR FOOTWELL RH	1R12834526AAW ASSY CARPET REAR FOOTWELL RH	-	1	Enquire
6	1R12834508ABW	ASSY CARPET CONSOLE SIDE RH RHD	1R12834508ABW ASSY CARPET CONSOLE SIDE RH RHD RHD Up to (V) 501948	-	1	Enquire
6	1R12834510ABW	Carpet, assy console side, RH	1R12834510ABW Carpet, assy console side, RH LHD Up to (V) 501948	-	1	Enquire
6	6R13834508AAW	ASSY CARPET CONSOLE SIDE RH RHD	6R13834508AAW ASSY CARPET CONSOLE SIDE RH RHD RHD From (V) 501949	-	1	Enquire
6	6R13834510AAW	ASSY CARPET CONSOLE SIDE RH LHD	6R13834510AAW ASSY CARPET CONSOLE SIDE RH LHD LHD From (V) 501949	-	1	Enquire
7	1R12834509ABW	ASSY CARPET CONSOLE SIDE LH RHD	1R12834509ABW ASSY CARPET CONSOLE SIDE LH RHD RHD Up to (V) 501948	-	1	Enquire
7	1R12834511ABW	Carpet, assy console side, LH	1R12834511ABW Carpet, assy console side, LH LHD Up to (V) 501948	-	1	Enquire
7	6R13834509AAW	ASSY CARPET CONSOLE SIDE LH RHD	6R13834509AAW ASSY CARPET CONSOLE SIDE LH RHD RHD From (V) 501949	-	1	Enquire
7	6R13834511AAW	ASSY CARPET CONSOLE SIDE LH LHD	6R13834511AAW ASSY CARPET CONSOLE SIDE LH LHD LHD From (V) 501949	-	1	Enquire
8	1R12834527AAW	ASSY CARPET REAR FOOTWELL LH	1R12834527AAW ASSY CARPET REAR FOOTWELL LH	-	1	Enquire
9	1R12834501ABW	ASSY CARPET SILL LH RHD	1R12834501ABW ASSY CARPET SILL LH RHD RHD	-	1	Enquire
9	1R12834503ABW	ASSY CARPET SILL LH LHD	1R12834503ABW ASSY CARPET SILL LH LHD LHD	-	1	Enquire
10	1R12834519ABW	ASSY CARPET FRONT FOOTWELL LH RHD	1R12834519ABW ASSY CARPET FRONT FOOTWELL LH RHD RHD	-	1	Enquire
10	1R12834521ABW	ASSY CARPET FRONT FOOTWELL LH LHD	1R12834521ABW ASSY CARPET FRONT FOOTWELL LH LHD LHD	-	1	Enquire
11	1R12834623AAW	Carpet, luggage deck lid inner	1R12834623AAW Carpet, luggage deck lid inner	-	1	Enquire
11	693845	FASTENER 2BA x 1 TENAX No18 CHROME	693845 FASTENER 2BA x 1 TENAX No18 CHROME	-	4	Enquire
11	11078	Fastener, Tenax, button	11078 Fastener, Tenax, button	-	4	Enquire
11	11079	Fastener, Tenax, nut	11079 Fastener, Tenax, nut	-	4	Enquire
12	3R12835704AAW	Carpet, under seat shear panel Plus 0	3R12835704AAW Carpet, under seat shear panel Plus 0 From (V) 500516-21 + 526 onwards	-	1	Enquire
12	1R12833651ABW	Carpet, rear bulkhead trim panel	1R12833651ABW Carpet, rear bulkhead trim panel From (V) 500516-21 + 526 onwards	-	1	Enquire
12	1R12833488ACW	Carpet, under seat shear panel Plus 0	1R12833488ACW Carpet, under seat shear panel Plus 0 Up to (V) 500515 + 500522-525	-	1	Enquire
12	699281	Washer, M8 x 25 x 1.5 dacromet coated	699281 Washer, M8 x 25 x 1.5 dacromet coated	-	1	Enquire
12	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
12	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	1	Enquire
12	699769	WASHER RETAINING M6	699769 WASHER RETAINING M6	-	4	Enquire
12	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	6	Enquire
13	1R12834085AA	BEZEL SWITCH SURRND HEELBOARD	1R12834085AA BEZEL SWITCH SURRND HEELBOARD	-	1	Enquire
13	1R12834084AA	BASE SWITCH SURRND HEELBOARD	1R12834084AA BASE SWITCH SURRND HEELBOARD	-	1	Enquire
13	1R12835073AA	ADAPTOR STAND OFF CARPET TO TUB	1R12835073AA ADAPTOR STAND OFF CARPET TO TUB	-	4	Enquire
13	699217	KEIPER J CLIP RETAINER	699217 KEIPER J CLIP RETAINER	-	4	Enquire
