Weatherstrip Seals - Dynamic Weatherstrips, Volante of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Weatherstrip Seals - Dynamic Weatherstrips, Volante

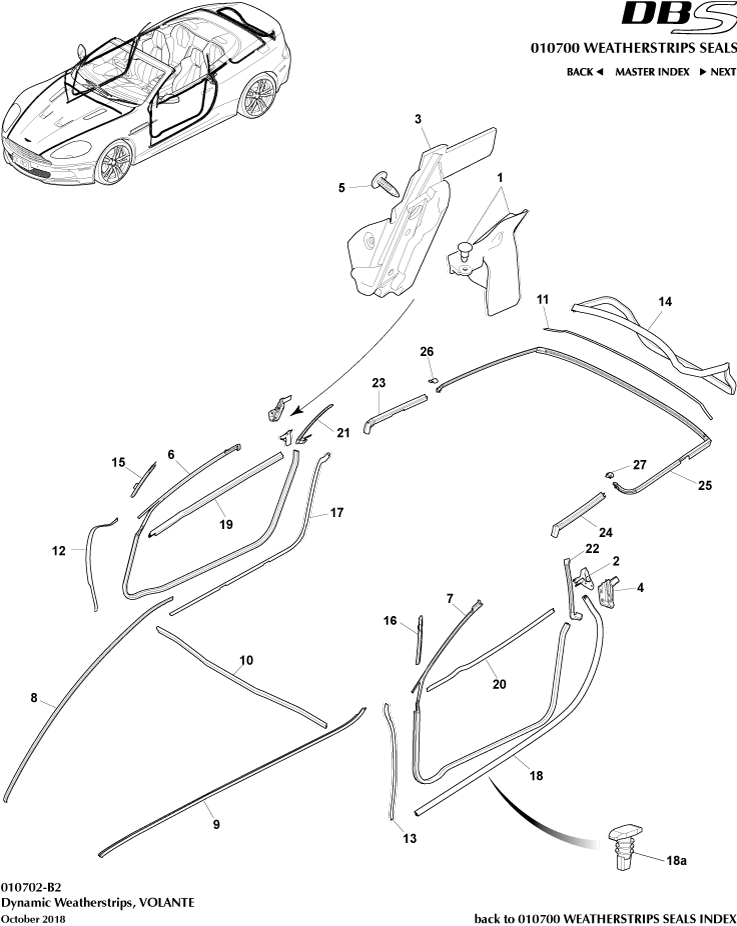

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4320920AC	MLDG ASY FRT DR TR R	4G4320920AC MLDG ASY FRT DR TR R -	-	1	Enquire
2	4G4320921AC	MLDG ASY FRT DR TR R	4G4320921AC MLDG ASY FRT DR TR R -	-	1	Enquire
3	4G43L30254AA	Weatherstrip Assy, Quarter Window Upper, RH	4G43L30254AA Weatherstrip Assy, Quarter Window Upper, RH -	-	1	Enquire
4	4G43L30255AA	Weatherstrip Assy, Quarter Window Upper, LH	4G43L30255AA Weatherstrip Assy, Quarter Window Upper, LH -	-	1	Enquire
5	702213	Pin, Push-in	702213 Pin, Push-in -	-	2	Enquire
6	4G43F20708BF	DR PRIM SEAL RH	4G43F20708BF DR PRIM SEAL RH -	-	1	Enquire
7	4G43F20709BF	DR PRIM SEAL LH	4G43F20709BF DR PRIM SEAL LH -	-	1	Enquire
8	4G4316A014AE	WTHR STP HOOD/FDR RH	4G4316A014AE WTHR STP HOOD/FDR RH -	-	1	Enquire
9	4G4316A015AE	WTHR STP HOOD/FDR LH	4G4316A015AE WTHR STP HOOD/FDR LH -	-	1	Enquire
10	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	4G4316K816AC WEATHERSTRIP EXTRUSION HOOD REAR -	-	1	Enquire
12	4G43F20556AF	Seal Margin Front Door RH	4G43F20556AF Seal Margin Front Door RH -	-	1	Enquire
13	4G43F20557AF	Seal, Margin, Front Door, LH	4G43F20557AF Seal, Margin, Front Door, LH -	-	1	Enquire
14	4G43F43720AH	W/STRIP EXT TRNK LID	4G43F43720AH W/STRIP EXT TRNK LID -	-	1	Enquire
15	9G43F21510BB	W/STRIP-FRT DR GLS	9G43F21510BB W/STRIP-FRT DR GLS -	-	1	Enquire
16	9G43F21511BB	W/STRIP-FRT DR GLS	9G43F21511BB W/STRIP-FRT DR GLS -	-	1	Enquire
17	4G43L25324AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR RH	4G43L25324AA MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR RH -	-	1	Enquire
18	4G43L25325AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR LH	4G43L25325AA MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR LH -	-	1	Enquire
18a	4G43L25324BA	Clip, Weather Strip Retention	4G43L25324BA Clip, Weather Strip Retention -	-	2	Enquire
19	4G43F20570AD	DR WAIST SEAL INR RH	4G43F20570AD DR WAIST SEAL INR RH -	-	1	Enquire
20	4G43F20571AD	DR WAIST SEAL INR LH	4G43F20571AD DR WAIST SEAL INR LH -	-	1	Enquire
21	4G43L20708BB	WTHR STRIP ASSY B/PT	4G43L20708BB WTHR STRIP ASSY B/PT -	-	1	Enquire
22	4G43L20709BB	WTHR STRIP ASY B PST	4G43L20709BB WTHR STRIP ASY B PST -	-	1	Enquire
23	4G43L29730AD	Weather Strip, Quarter Window Inner, RH	4G43L29730AD Weather Strip, Quarter Window Inner, RH -	-	1	Enquire
24	4G43L29731AD	Weatherstrip, Quarter Window Inner, LH	4G43L29731AD Weatherstrip, Quarter Window Inner, LH -	-	1	Enquire
25	9G43L51452AC	WEATHER STRIP ASSEMBLY TONNEAU TO BODY	9G43L51452AC WEATHER STRIP ASSEMBLY TONNEAU TO BODY -	-	1	Enquire
26	9G43L53984AB	TONNEAU FLIP SEAL RH	9G43L53984AB TONNEAU FLIP SEAL RH -	-	1	Enquire
27	9G43L53985AB	TONNEAU FLIP SEAL LH	9G43L53985AB TONNEAU FLIP SEAL LH -	-	1	Enquire
