Body Structure - Body Dash and Cowl, Volante of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Body Structure - Body Dash and Cowl, Volante

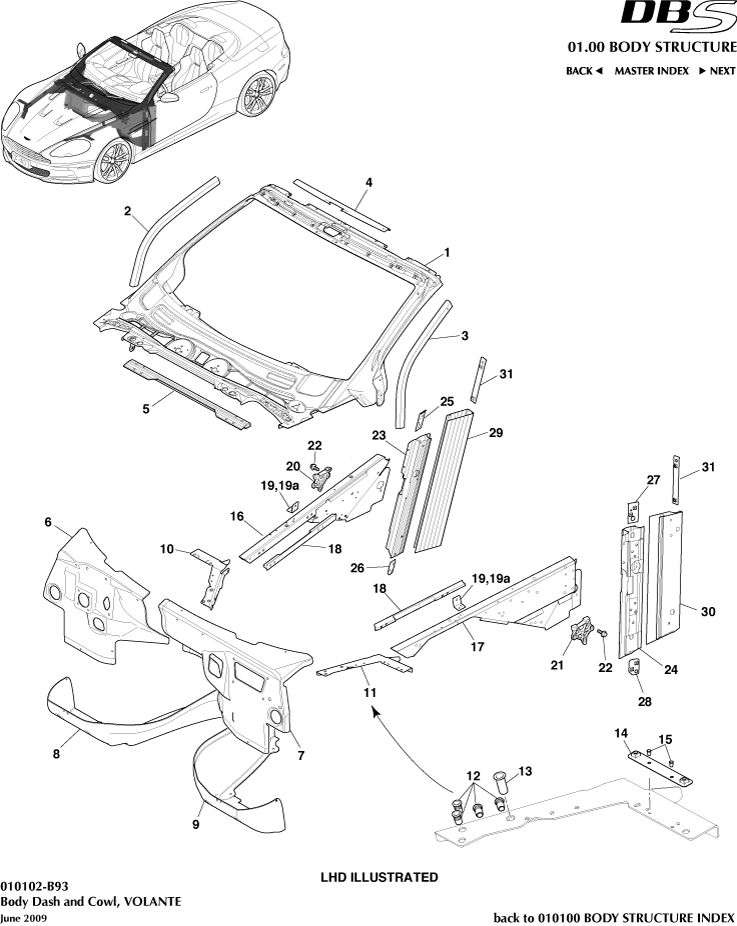

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y13W030BC	H/LAMP LHS LHD	SY9Y13W030BC H/LAMP LHS LHD Structural Cat. A only	-	1	Enquire
-	6G33F01760BB	PANEL DASH UPPER RH	6G33F01760BB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
-	6G33F01761BB	PANEL DASH UPPER LH	6G33F01761BB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
-	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind Structural Cat. A only	-	A/R	Enquire
-	6G3351081AA	RIVNUT M6	6G3351081AA RIVNUT M6 Structural Cat. A only	-	A/R	Enquire
-	6G3315960AB	STUD M6x20 CLINCH	6G3315960AB STUD M6x20 CLINCH Structural Cat. A only	-	A/R	Enquire
1	6G33L03014AE	FRAME ASSEMBLY WINDSHIELD	6G33L03014AE FRAME ASSEMBLY WINDSHIELD Structural Cat. A only	-	1	Enquire
4	4G43L03444AB	Reinf Windshield Header	4G43L03444AB Reinf Windshield Header Structural Cat. A only	-	1	Enquire
5	6G3310414AB	MBR FRT CS AT DH	6G3310414AB MBR FRT CS AT DH Structural Cat. A only	-	1	Enquire
6	6G33F01760AB	PANEL DASH UPPER RH	6G33F01760AB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
7	6G33F01761AB	PANEL DASH UPPER LH	6G33F01761AB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
8	9G33F01612AB	PANEL DASH SIDE RH	9G33F01612AB PANEL DASH SIDE RH Structural Cat. A only	-	1	Enquire
9	6G33F01613AC	PNL DH SD LH	6G33F01613AC PNL DH SD LH Structural Cat. A only	-	1	Enquire
10	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH Structural Cat. A only	-	1	Enquire
11	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH Structural Cat. A only	-	1	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 4 per striker plate,Structural Cat. A only	-	8	Enquire
13	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 1 per striker plate	-	2	Enquire
14	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET Structural Cat. A only	-	2	Enquire
15	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 2 per nut plate,Structural Cat. A only	-	4	Enquire
16	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 Structural Cat. A only	-	1	Enquire
17	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 Structural Cat. A only	-	1	Enquire
18	GO6G3317F790AC	NUTPLATE SHOTGUN M10	GO6G3317F790AC NUTPLATE SHOTGUN M10 Structural Cat. A only	-	2	Enquire
19	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A only	-	2	Enquire
20	GO8G4316A681AB	REINF HOOD HNGE BODY	GO8G4316A681AB REINF HOOD HNGE BODY Structural Cat. A only	-	1	Enquire
21	GO8G4316A682AB	RH REINF HOOD HINGE ON BODY LH	GO8G4316A682AB RH REINF HOOD HINGE ON BODY LH Structural Cat. A only	-	1	Enquire
22	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm 3 reinf hood hinge,Structural Cat. A only	-	6	Enquire
23	SY9Y10036AB	SHIM MONOCOQUE	SY9Y10036AB SHIM MONOCOQUE Structural Cat. A only	-	1	Enquire
24	SY9Y69321HDW	SUNVISOR LH CANADA A	SY9Y69321HDW SUNVISOR LH CANADA A Structural Cat. A only	-	1	Enquire
25	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A only	-	1	Enquire
26	6G3315110AA	NUTPLATE A POST LWR	6G3315110AA NUTPLATE A POST LWR Structural Cat. A only	-	1	Enquire
27	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
28	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
29	GOAG33F02662AA	EXTRUSION FRONT BODY PILLAR LOWER RH	GOAG33F02662AA EXTRUSION FRONT BODY PILLAR LOWER RH Structural Cat. A only	-	1	Enquire
30	GOAG33F02663AA	EXT FRT BDY PLR LWR	GOAG33F02663AA EXT FRT BDY PLR LWR Structural Cat. A only	-	1	Enquire
31	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A only	-	2	Enquire
