Body Structure - Body Rear End, Volante of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Body Structure - Body Rear End, Volante

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

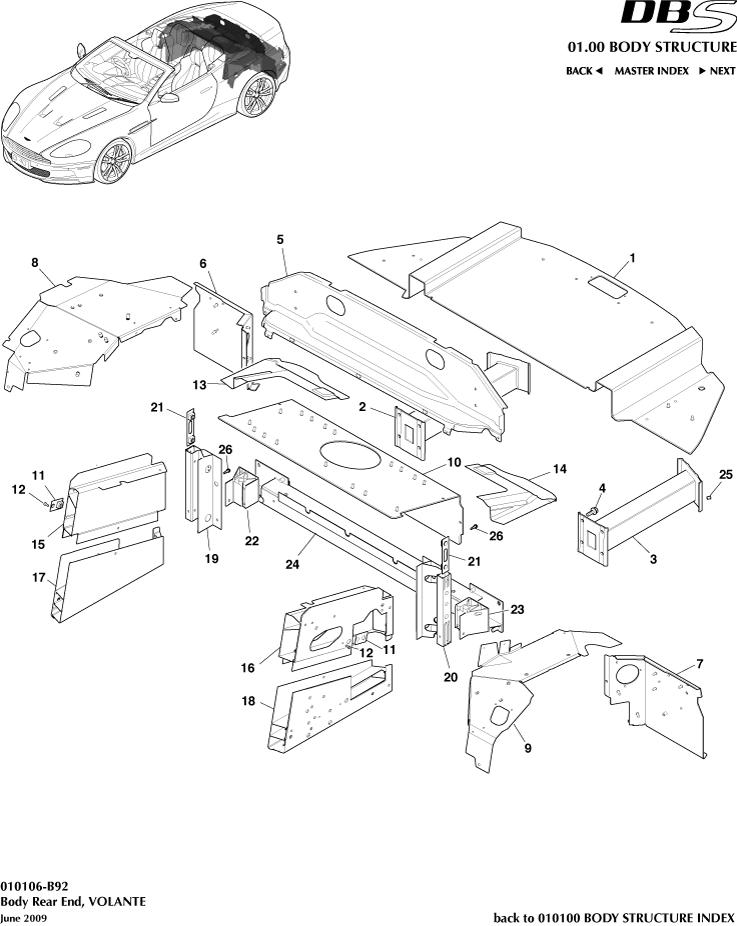

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4347124AA	PNL FLR TRUNK	8G4347124AA PNL FLR TRUNK Structural Cat. A only	-	1	Enquire
2	9G4317F034AA	ABS ASY BMPR RR RH	9G4317F034AA ABS ASY BMPR RR RH Structural Cat. A only	-	1	Enquire
3	9G4317F035AA	ABS ASY BMPR RR LH	9G4317F035AA ABS ASY BMPR RR LH Structural Cat. A only	-	1	Enquire
4	700115	SCREW M8x25 HEX FLG	700115 SCREW M8x25 HEX FLG -	-	8	Enquire
5	SY9Y16006JC	FENDER FRONT LH	SY9Y16006JC FENDER FRONT LH Structural Cat. A only	-	1	Enquire
6	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	9G43L10514AD PANEL REAR FLOOR SIDE OUTER RIGHT HAND Structural Cat. A only	-	1	Enquire
7	SY9Y23942FCW	DOOR ASSY TRIM RH	SY9Y23942FCW DOOR ASSY TRIM RH Structural Cat. A only	-	1	Enquire
8	SY9Y23924AC	DR APPLIQUE RH - BC	SY9Y23924AC DR APPLIQUE RH - BC Structural Cat. A only	-	1	Enquire
9	SY9Y23943ECW	DOOR ASSY TRIM LH	SY9Y23943ECW DOOR ASSY TRIM LH Structural Cat. A only	-	1	Enquire
10	670224977	COVER	670224977 COVER Structural Cat. A only	-	1	Enquire
11	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	2	Enquire
12	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	2	Enquire
13	9G4324442AA	Cap, centre body pillar, RH	9G4324442AA Cap, centre body pillar, RH Structural Cat. A only	-	1	Enquire
14	9G4324443AA	Cap, Centre Body Pillar, LH	9G4324443AA Cap, Centre Body Pillar, LH Structural Cat. A only	-	1	Enquire
15	SY9Y04317ICW	PASS OUTBRD PAD	SY9Y04317ICW PASS OUTBRD PAD Structural Cat. A only	-	1	Enquire
16	SY9Y04790WCW	IP MAIN ASSEMBLY LHD	SY9Y04790WCW IP MAIN ASSEMBLY LHD Structural Cat. A only	-	1	Enquire
17	SY7Y13068AF	FENDER CARRIER RH	SY7Y13068AF FENDER CARRIER RH Structural Cat. A only	-	1	Enquire
18	22AB052GP	PNL FNDR FRT HEADLAMP MTG INR RH	22AB052GP PNL FNDR FRT HEADLAMP MTG INR RH Structural Cat. A only	-	1	Enquire
19	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
20	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
21	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
22	RY63624B74AB	MBR BRC RR SHOCKTWR	RY63624B74AB MBR BRC RR SHOCKTWR Structural Cat. A only	-	1	Enquire
23	SY9Y20123LC	DOOR ASSY LH	SY9Y20123LC DOOR ASSY LH Structural Cat. A only	-	1	Enquire
24	8G4340338AA	REINF LWR BK CTR PNL	8G4340338AA REINF LWR BK CTR PNL Structural Cat. A only	-	1	Enquire
25	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni -	-	4	Enquire
26	6G33375732AA	SCR SS HEX FL HD	6G33375732AA SCR SS HEX FL HD -	-	4	Enquire
