Body Structure - Body Rear End, Coupe of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Body Structure - Body Rear End, Coupe

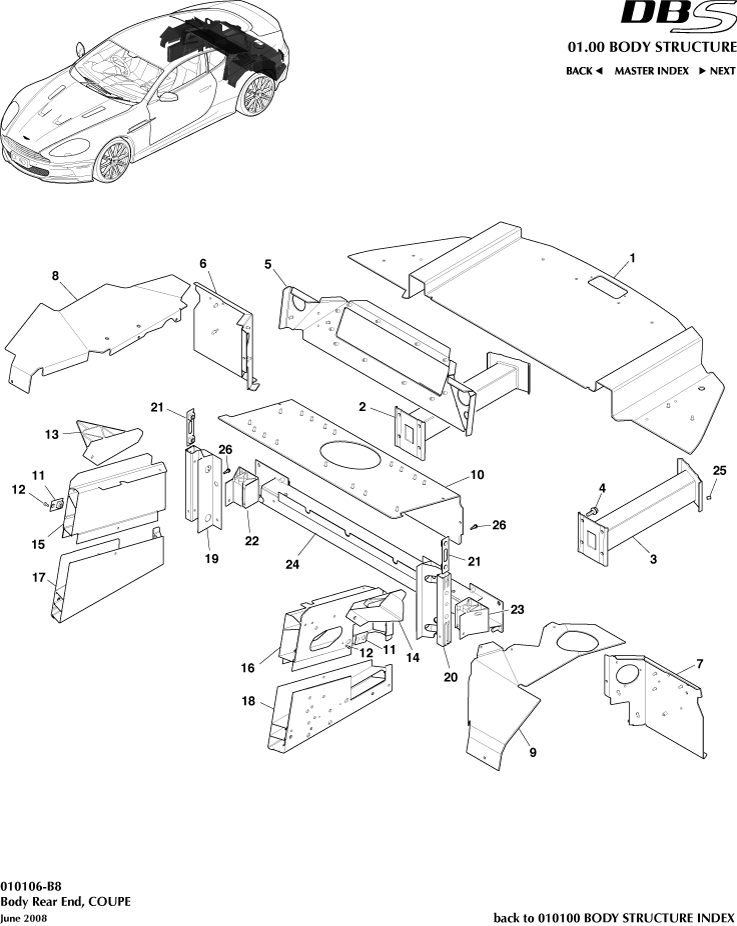

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4347124AA	PNL FLR TRUNK	8G4347124AA PNL FLR TRUNK Structural Cat. A only	-	1	Enquire
2	8G4317F034AA	ABS ASY BMPR RR RH	8G4317F034AA ABS ASY BMPR RR RH Structural Cat. A only	-	1	Enquire
3	8G4317F035AA	ABS ASY BMPR RR LH	8G4317F035AA ABS ASY BMPR RR LH Structural Cat. A only	-	1	Enquire
4	700115	SCREW M8x25 HEX FLG	700115 SCREW M8x25 HEX FLG -	-	8	Enquire
5	8G43C40334GA	Panel, Upper Back, Centre	8G43C40334GA Panel, Upper Back, Centre Structural Cat. A only	-	1	Enquire
6	8G43C10514AA	PNL RR FLR SD OTR RH	8G43C10514AA PNL RR FLR SD OTR RH Structural Cat. A only	-	1	Enquire
7	8G43C10515AA	Panel, Rear Floor Outer Side, LH	8G43C10515AA Panel, Rear Floor Outer Side, LH Structural Cat. A only	-	1	Enquire
8	8G43C279A54GB	PANEL QUARTER WHEEL HOUSE INNER REAR RH	8G43C279A54GB PANEL QUARTER WHEEL HOUSE INNER REAR RH Structural Cat. A only	-	1	Enquire
9	8G43C279A55GA	PANEL QUARTER WHEEL HOUSE INNER REAR LH	8G43C279A55GA PANEL QUARTER WHEEL HOUSE INNER REAR LH Structural Cat. A only	-	1	Enquire
10	670224977	COVER	670224977 COVER Structural Cat. A only	-	1	Enquire
11	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	2	Enquire
12	SY9Y69320LDW	SUNVISOR RH USA LIPS	SY9Y69320LDW SUNVISOR RH USA LIPS -	-	2	Enquire
13	SY9Y10571AA	WISHBONE COVER LH	SY9Y10571AA WISHBONE COVER LH Structural Cat. A only	-	1	Enquire
14	SY9Y69320ODW	SUNVISOR RH CHINA LI	SY9Y69320ODW SUNVISOR RH CHINA LI Structural Cat. A only	-	1	Enquire
15	8G43C10282AC	MEMBER FLOOR SIDE UPPER RH	8G43C10282AC MEMBER FLOOR SIDE UPPER RH Structural Cat. A only	-	1	Enquire
16	SY9Y69320JDW	SUNVISOR RH USA ALCA	SY9Y69320JDW SUNVISOR RH USA ALCA Structural Cat. A only	-	1	Enquire
17	SY9Y23943FCW	DOOR ASSY TRIM LH	SY9Y23943FCW DOOR ASSY TRIM LH Structural Cat. A only	-	1	Enquire
18	22AB052GP	PNL FNDR FRT HEADLAMP MTG INR RH	22AB052GP PNL FNDR FRT HEADLAMP MTG INR RH Structural Cat. A only	-	1	Enquire
19	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
20	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
21	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
22	SY9Y120609WA	AM003 DUP OWN BRA	SY9Y120609WA AM003 DUP OWN BRA Structural Cat. A only	-	1	Enquire
23	SY9Y17682AC	EXTERIOR MIRROR RH	SY9Y17682AC EXTERIOR MIRROR RH Structural Cat. A only	-	1	Enquire
24	8G4340338AB	Reinforced lower back centre panel	8G4340338AB Reinforced lower back centre panel Structrual Cat. A only	-	1	Enquire
25	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni -	-	4	Enquire
26	6G33375732AA	SCR SS HEX FL HD	6G33375732AA SCR SS HEX FL HD -	-	4	Enquire
