Find Your Part

Volante Roof - Volante Roof Assembly of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Volante Roof - Volante Roof Assembly

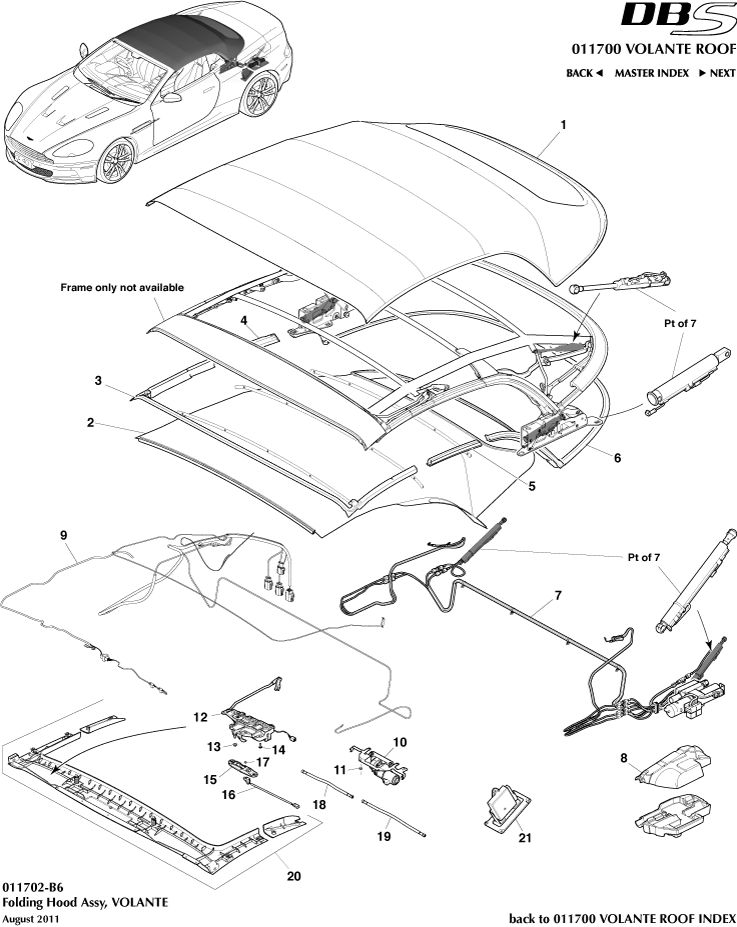

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G4370351BA	Canopy Cover Kit, Atlantic Blue	9G4370351BA Canopy Cover Kit, Atlantic Blue Atlantic Blue	-	1	Enquire
-	9G4370351CA	CANOPY COVER CG JAVA KIT	9G4370351CA CANOPY COVER CG JAVA KIT Java/ Sandstone	-	1	Enquire
-	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	9G4370351DA CANOPY COVER CG WESTMINSTER GREEN KIT Westminster Green	-	1	Enquire
-	9G4370351EA	CANOPY COVER CG TITAN GREY KIT	9G4370351EA CANOPY COVER CG TITAN GREY KIT Titan Grey	-	1	Enquire
-	9G4370351FA	CANOPY COVER CG BURGUNDY KIT	9G4370351FA CANOPY COVER CG BURGUNDY KIT Burgundy	-	1	Enquire
-	9G4370351HA	CPY CVR CG GREN RED	9G4370351HA CPY CVR CG GREN RED Grenadine Red	-	1	Enquire
-	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY Ivory	-	1	Enquire
-	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW Moon Shadow	-	1	Enquire
-	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY Tailors Grey	-	1	Enquire
-	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan New Light Tan	-	1	Enquire
-	4G43765011AD	STRIKER HEADER LH	4G43765011AD STRIKER HEADER LH attached to BIW	-	1	Enquire
-	4G4356051AA	Hole Cover Plug, Black	4G4356051AA Hole Cover Plug, Black Obsidian Black	-	1	Enquire
-	4G4356051BA	Hole Cover Plug, Ivory	4G4356051BA Hole Cover Plug, Ivory Ivory	-	1	Enquire
-	4G4356051CA	Hole Cover Plug, Moon Shadow	4G4356051CA Hole Cover Plug, Moon Shadow Moon shadow	-	1	Enquire
-	4G4356051DA	Hole Cover Plug, Tailor Grey	4G4356051DA Hole Cover Plug, Tailor Grey Tailors grey	-	1	Enquire
-	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	4G439310506 ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE 1 litre bottle	-	A/R	Enquire
2	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black Obsidian Black	-	1	Enquire
7	9G439G803AA	Hydraulic Pump Assy, Includes All Cylinders & Hoses	9G439G803AA Hydraulic Pump Assy, Includes All Cylinders & Hoses -	-	1	Enquire
11	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Latch Motor assy	-	4	Enquire
13	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per Latch assy	-	1	Enquire
14	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per Latch assy	-	3	Enquire
15	4G43765010AD	STRIKER HEADER RH	4G43765010AD STRIKER HEADER RH attached to BIW	-	1	Enquire
17	670134575	FRONT DOME-LIGHT BLACK	670134575 FRONT DOME-LIGHT BLACK -	-	1	Enquire
18	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH -	-	1	Enquire
19	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH -	-	1	Enquire
