Aston Martin GT DBS (2007-2012) - Body Structure - EV Structure, Volante, page 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

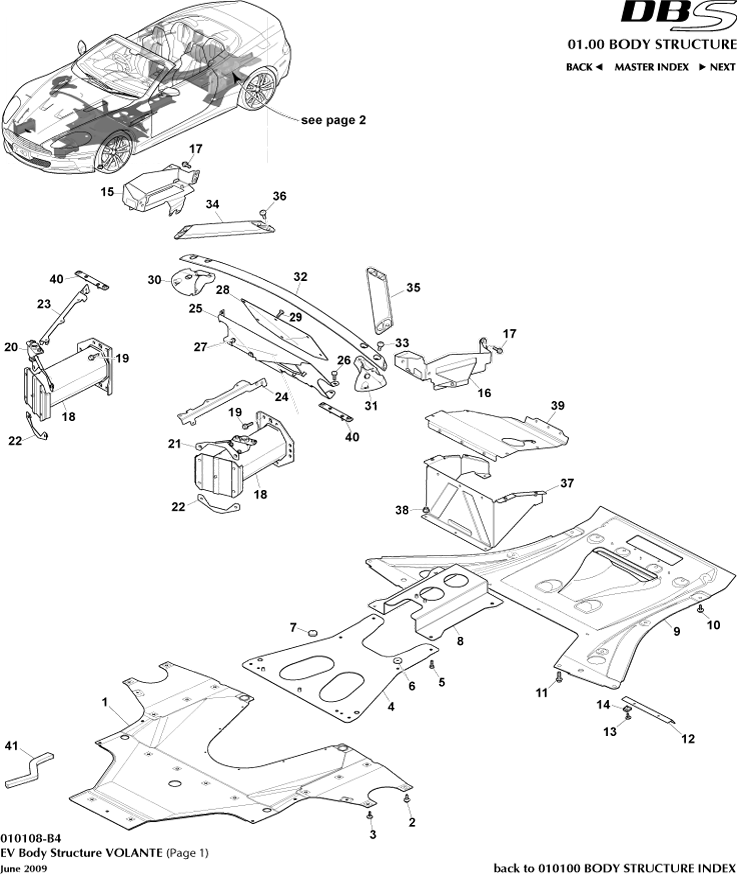

Body Structure - EV Structure, Volante, page 1 of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front
- 		- 1 Enquire
2 703268
Screw and Washer, M8 x 21
- 		- 14 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
- 		- 2 Enquire
5 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
- 		- 8 Enquire
8 4G43111K37AE
Tunnel Reinforcement, Centre
- 		- 1 Enquire
9 AD33L17C857AB
SHIELD RR BMPR OPG
- 		- 1 Enquire
10 703268
Screw and Washer, M8 x 21
- 		- 17 Enquire
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
- 		- 2 Enquire
12 9G4344210AA
SPOILER ASSY REAR
- 		- 1 Enquire
13 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
- 		- 2 Enquire
14 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
-
ARRIVING SOON 		- 2 Enquire
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
6 per brkt 		- 12 Enquire
19 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can 		- 12 Enquire
20 8D3313068AB
PNL HD/LP MTNG RH
- 		- 1 Enquire
21 8D3313069AB
PNL HD/LP MNTG LH
- 		- 1 Enquire
22 4G436367912AC
NUT PLT ASY FRT CRSH
- 		- 2 Enquire
26 702637
SCREW M6X20 SKT HD
- 		- 6 Enquire
29 702637
SCREW M6X20 SKT HD
- 		- 7 Enquire
33 702209
Bolt, M10 x 25, Torque Drive
- 		- 4 Enquire
34 4G43F00198AD
REINF BDY FRT CS BAR
- 		- 1 Enquire
35 4G43F00199AD
REINF BDY FRT CS BAR
- 		- 1 Enquire
36 SY9YC27847FC
PNL BDYSD LH FED SC
4 per Crush Bar 		- 8 Enquire
37 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH
- 		- 1 Enquire
39 7G4310N660AC
PANEL BATTERY COVER RH
- 		- 1 Enquire
40 8D33199901AA
NUTPLATE HEAD LAMP BRACKET
- 		- 2 Enquire
