Aston Martin GT DBS (2007-2012) - Security Locks and Handles - Tonneau Latching System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

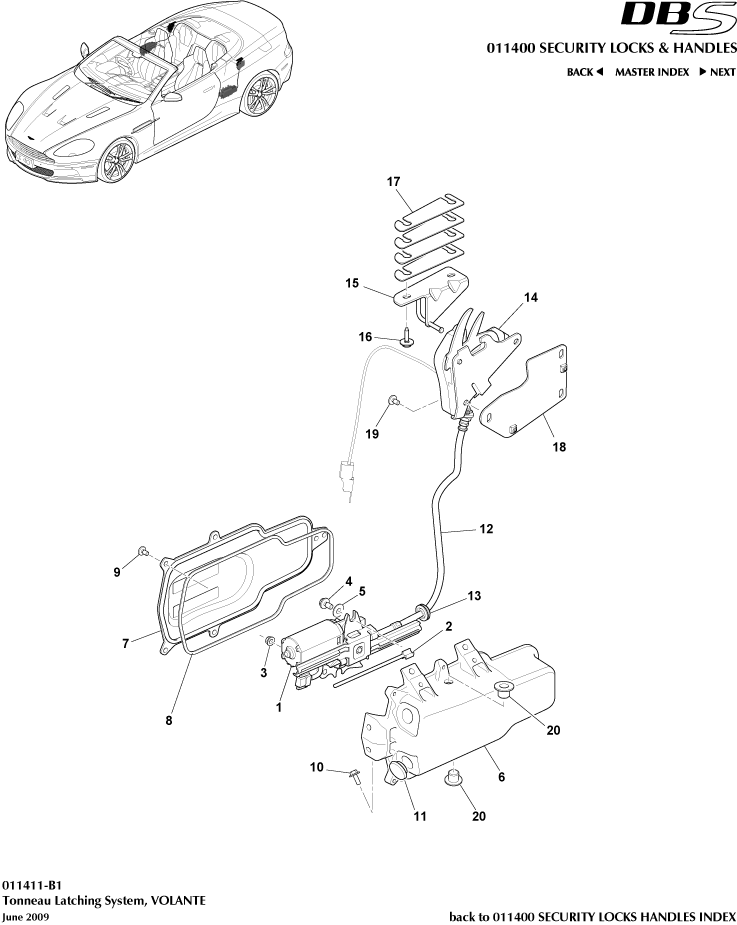

Security Locks and Handles - Tonneau Latching System of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43239600AA
Tonneau Motor Cable Guide Clip
Order with motor 		- 2 Enquire
- 4G439310903
Cable Guide
- 		- 2 Enquire
- 4G439611273
TON LTCH ENCLSR RH
- 		- 1 Enquire
- 4G4354796AB
Latch, Tonneau, RH
- 		- 1 Enquire
- 4G4353974AD
STRIKER ASSY TONNEAU COVER RH
- 		- 1 Enquire
- 4G43L43160AC
RH TONNEAU LATCH MOUNTING PLATE
- 		- 1 Enquire
1 4G433710477
Motor Tonneau Latch
Cable guide clip required 		- 2 Enquire
2 4G4353923AA
WORM CABLE
- 		- 2 Enquire
4 703151
Screw M6x16 Washer Hex HD Chrome Free
- 		- 6 Enquire
5 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
- 		- 6 Enquire
6 4G439611272
Enclosure, Tonneau Latch Motor Assy
- 		- 1 Enquire
7 4G4353548AC
Lid, Tonneau Latch Motor Assy
- 		- 2 Enquire
8 13AA332CP
STRIKER - DOOR
- 		- 2 Enquire
9 701574
Screw, M6 x 12, Pan Head
- 		- 7 Enquire
10 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
- 		- 6 Enquire
11 4G43301347AA
BLACK TPR BODY PLUG 20mm
- 		- 2 Enquire
12 4G4353922AB
Tonneau Latch Motor Drive Cable
- 		- 2 Enquire
13 4G436C691AD
Grommet Sleeve, Cable
- 		- 2 Enquire
14 4G4354797AB
Latch, Tonneau, LH
- 		- 1 Enquire
15 4G4353975AD
STRIKER ASSY TONNEAU COVER LH
- 		- 1 Enquire
16 703152
SCREW/WSHR M6x20 HEX PILOT CHROME FREE
- 		- 6 Enquire
17 4G43431F59AC
LOWER TONNEAU STRIKER SHIM 1mm
- 		- A/R Enquire
18 4G43L43161AC
LH TONNEAU LATCH MOUNTING PLATE
- 		- 1 Enquire
19 703143
BUTTON TORX WASHER CHROME FREE
- 		- 4 Enquire
20 6G3325919AA
Rubber Plug, 12mm, Black Thermoplastic
- 		- A/R Enquire
