Exterior Trim - Trunk Lid Trim, Volante

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Exterior Trim - Trunk Lid Trim, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

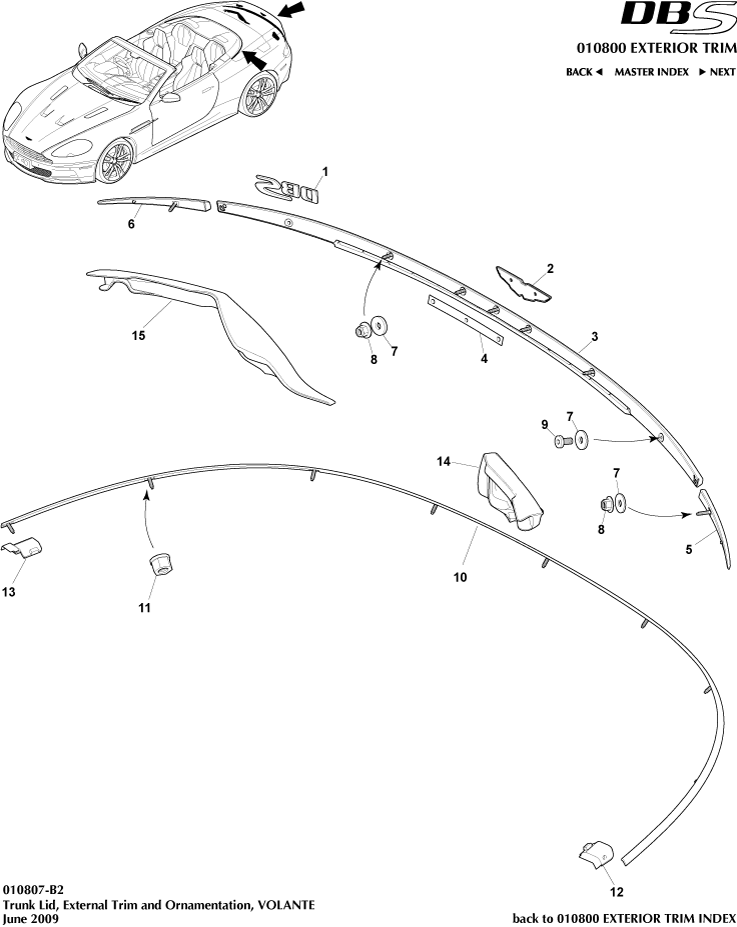

Exterior Trim - Trunk Lid Trim, Volante of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33001B40BA
DBS BADGE - RED S
DBS Ultimate 		- 1 Enquire
- CG33407A74AA
BADGE ASSY AML
Dragon 88 		- 1 Enquire
1 8D33001B40AA
DBS BADGE (VH300)
- 		- 1 Enquire
2 8D33407A74AA
BADGE ASSY AML
- 		- 1 Enquire
3 8D3313554AC
DECKLID FIN CTR
- 		- 1 Enquire
4 8D3313554BA
BACK PLATE DECK LID FINISHER
- 		- 1 Enquire
5 8D3313556AE
DECKLID FIN LH
- 		- 1 Enquire
6 8D3313555AE
DECKLID FIN RH
- 		- 1 Enquire
7 697528PK
Washer-M5 Large OD Pack of 20
- 		- 8 Enquire
8 703165
NUT M5 HEX FLG PLAS CHROME FREE
- 		- 7 Enquire
9 6G3346058AA
Screw, M5 x 10 Pan Head Flange Torx
- 		- 4 Enquire
10 4G431228494CH
TONNEAU FIN SCALP
- 		- 1 Enquire
11 4G43NTC7314AA
NUT - PLASTIC M5 SELF LOCKING
- 		- 9 Enquire
12 9G43L53985AB
TONNEAU FLIP SEAL LH
- 		- 1 Enquire
13 9G43L53984AB
TONNEAU FLIP SEAL RH
- 		- 1 Enquire
14 4G4313414AA
SEAL LAMP RR ASSY CONV LH
- 		- 1 Enquire
15 4G4313413AA
SEAL LAMP RR ASSY CONV RH
- 		- 1 Enquire
