Exterior Trim - Bodyside & Quarter Trim , Volante

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Exterior Trim - Bodyside & Quarter Trim , Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

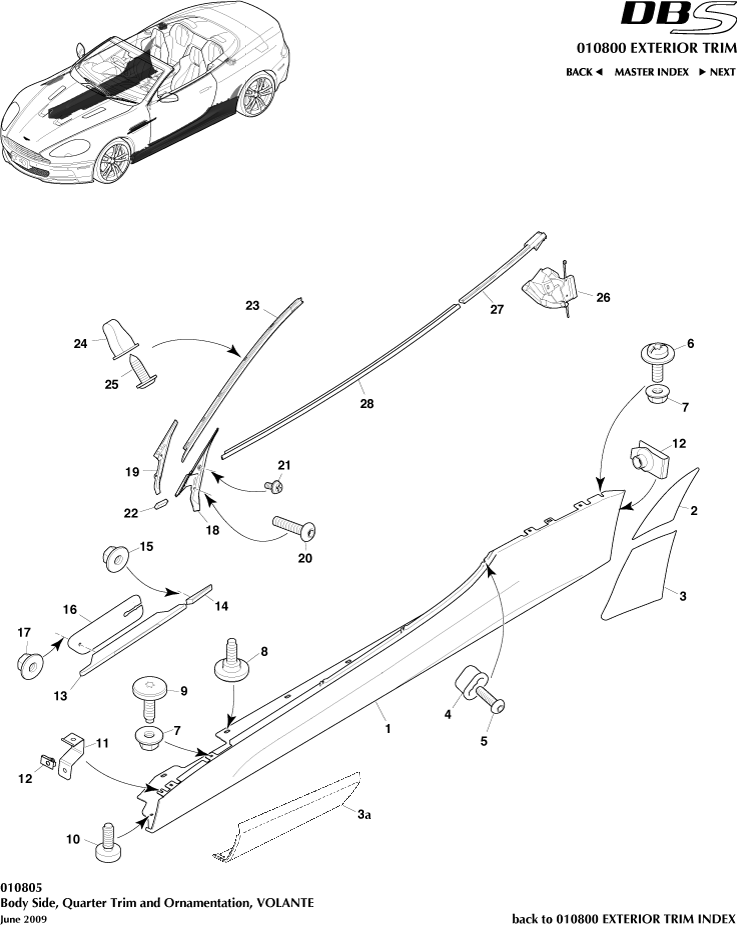

Exterior Trim - Bodyside & Quarter Trim , Volante of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3310630AB
Tape, Rear quarter, RH
- 		- 1 Enquire
- 8D3310626AB
SILL REAR TAPE RH
- 		- 1 Enquire
- 8G4310627AA
SILL FRT TAPE LH
From 09MY 		- 1 Enquire
- 4G4310626AA
SILL FRONT TAPE RH
Up To 09MY 		- 1 Enquire
- 8G4310626AB
SILL FRT TAPE RH
From 09MY 		- 1 Enquire
- 8D33018K28AC
SIDE STRAKE DOOR RH
- 		- 1 Enquire
- 4G43519A37BH
A-PILLAR FINISHER RH
- 		- 1 Enquire
- 4G43A410K24BD
BRKT PNL C-POST LAND
- 		- 1 Enquire
- 9G431228494CA
Weatherstrip, Rear Quarter Glass outer, RH
- 		- 1 Enquire
- 4G43F20562AG
DR WAIST SEAL OTR RH
- 		- 1 Enquire
2 8D3310631AB
Tape, Rear quarter, LH
- 		- 1 Enquire
3 8D3310627AB
SILL REAR TAPE LH
- 		- 1 Enquire
3a 4G4310627AA
SILL FRONT TAPE LH 350X175MM
Up To 09MY 		- 1 Enquire
4 4G4348954AA
SILL ANTI STRIP LOCKNUT
- 		- 1 Enquire
5 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
- 		- 6 Enquire
7 703749
Nut, M6, Hex Flange Head
- 		- 4 Enquire
10 6G430516BBA
Screw, M6 x 16, Self Tapping
- 		- 14 Enquire
15 703165
NUT M5 HEX FLG PLAS CHROME FREE
- 		- 4 Enquire
17 702944
Nut, M6, Hex Flanged Head
- 		- 4 Enquire
20 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head
- 		- 2 Enquire
23 4G43519A36BH
A-PILLAR FINISHER LH
- 		- 1 Enquire
24 7G43143002AA
GROMMET NUT 4.2
- 		- 26 Enquire
25 4G4351757AA
Screw M4 Self Tap M4 (Mini C Rail)
- 		- 36 Enquire
26 4G43A410K25BD
BRKT PNL C-POST LAND
- 		- 1 Enquire
27 9G431228495CA
Weatherstrip Rear Quarter Glass Outer LH
- 		- 1 Enquire
28 4G43F20563AG
DR WAIST SEAL OTR LH
- 		- 1 Enquire
