Bumpers And Number Plates - Rear Bumper

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Bumpers and Number Plates - Rear Bumper

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

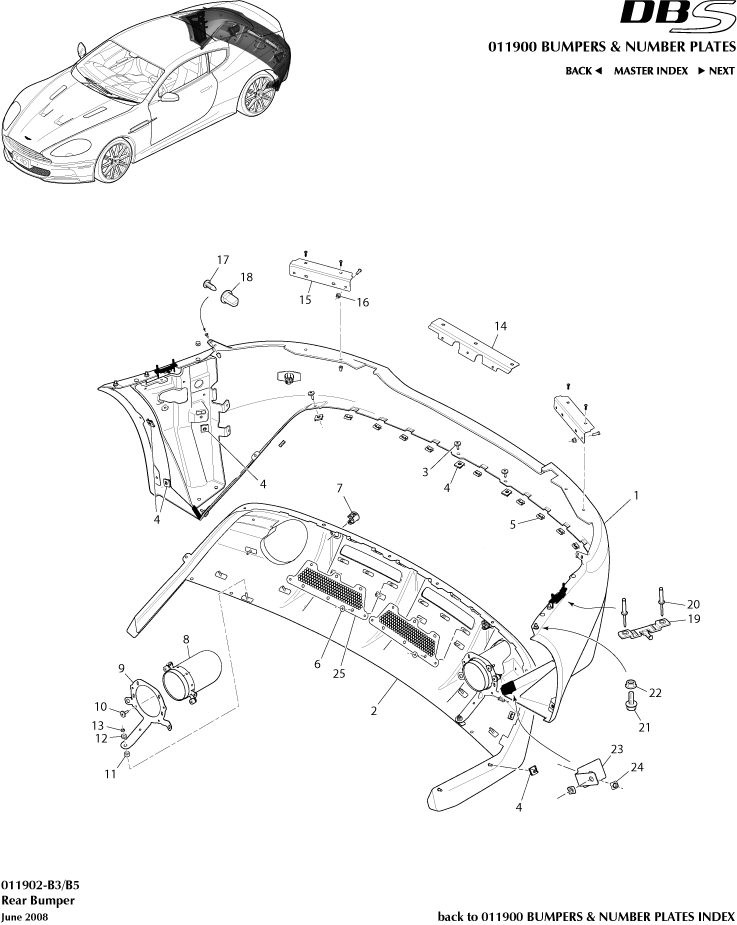

Bumpers and Number Plates - Rear Bumper of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3317K835DD
COVER ASSY RR BMPR
FED 		- 1 Enquire
- CD335K238BB
Exhaust Finisher
Carbon Edition, DBS Ultimate 		- 2 Enquire
1 8D3317K835CD
COVER ASSY RR BMPR
ROW 		- 1 Enquire
2 8D3317E955AE
DIFF REAR BUMPER
- 		- 1 Enquire
3 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 12 Enquire
4 701491
NUT M6 J TYPE
- 		- 12 Enquire
5 4G438191AA
CLIP BUMPER RAD GRL
- 		- 10 Enquire
6 702944
Nut, M6, Hex Flanged Head
- 		- 12 Enquire
7 6M2T15K872AA
BRKT PRK AID SNS INR
- 		- 2 Enquire
8 8D335K238AC
EXHAUST FINISHER
- 		- 2 Enquire
9 8D3317G758AC
BRKT REAR DIFF RH
- 		- 2 Enquire
10 5R13FA0036AA
Screw and Washer M6x28 Pan hd
- 		- 4 Enquire
11 6G335K239CA
TAILPIPE MTG ISO OTR
- 		- 4 Enquire
12 6G335K239BA
TAILPIPE MTG ISO INR
- 		- 4 Enquire
13 702295
Nut, M5, Hex Flange Head
- 		- 4 Enquire
14 4G4317B681AG
BUMPER MTG BRKT-CTR
- 		- 1 Enquire
15 4G4317B930AA
Bracket, Bumper Mounting, Outer
- 		- 2 Enquire
16 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE
- 		- 4 Enquire
17 4G4351757AA
Screw M4 Self Tap M4 (Mini C Rail)
- 		- 2 Enquire
18 701656
RETAINER
- 		- 2 Enquire
19 4G43023A50AC
EXTERIOR FENDER CLIP
- 		- 2 Enquire
20 701580
Rivet, Dome Head
- 		- 4 Enquire
21 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 4 Enquire
22 702944
Nut, M6, Hex Flanged Head
- 		- 4 Enquire
23 8D3317B938AB
BRKT BMPR DIFF TO RWARCH
- 		- 2 Enquire
24 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 2 Enquire
25 8D33501T0AB
MESH RR LWR
- 		- 2 Enquire
