Interior Trim - Door Trim of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Interior Trim - Door Trim

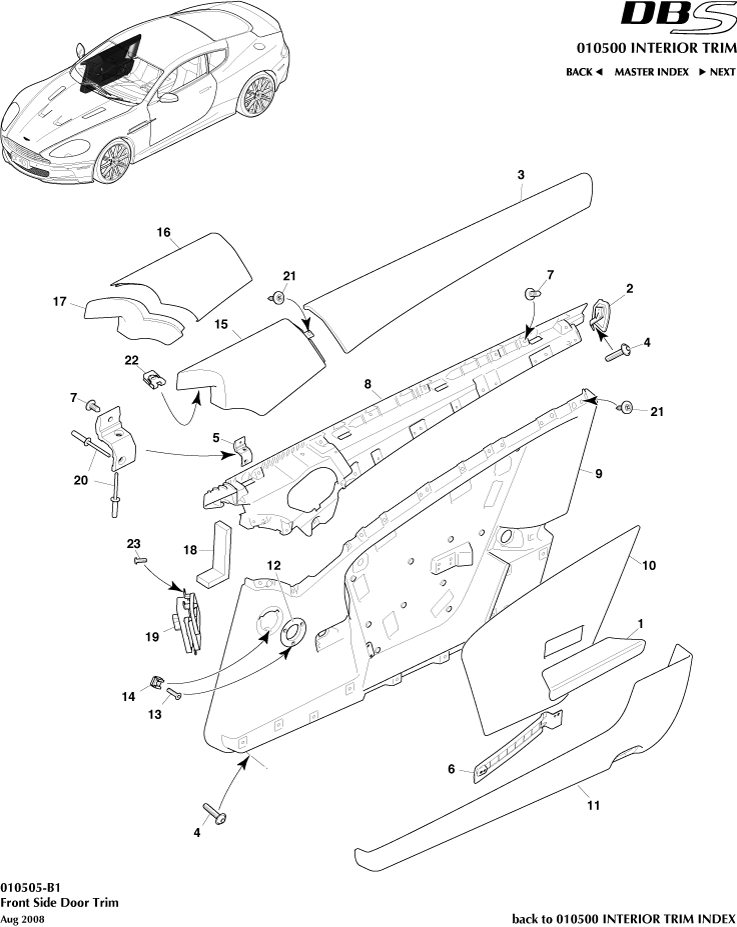

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3323942AAW	PNL ASY FRT DR TR CO RH	8D3323942AAW PNL ASY FRT DR TR CO RH LHD	-	1	Enquire
-	SY9Y20557AB	FRONT DOOR MARGIN LH	SY9Y20557AB FRONT DOOR MARGIN LH RHD	-	1	Enquire
-	9D3323942EAW	PNL ASY FRT DR TR CO RH	9D3323942EAW PNL ASY FRT DR TR CO RH LHD 9.5MY	-	1	Enquire
-	9D3323942FAW	PNL ASY FRT DR TR CO RH	9D3323942FAW PNL ASY FRT DR TR CO RH RHD 9.5MY	-	1	Enquire
-	9D3323942GAW	PNL ASY FRT DR TR CO RH	9D3323942GAW PNL ASY FRT DR TR CO RH LHD 9.5MY	-	1	Enquire
-	SY9Y10707AA	GRAVEL DEFLECTOR LH	SY9Y10707AA GRAVEL DEFLECTOR LH RHD 9.5MY	-	1	Enquire
-	8D3323943AAW	PNL ASY FRT DR TR CO LH	8D3323943AAW PNL ASY FRT DR TR CO LH LHD	-	1	Enquire
-	SY9Y043D45BA	HVAC BRACKET R	SY9Y043D45BA HVAC BRACKET R RHD	-	1	Enquire
-	SY9Y20570AA	FRT DR INR WAIST RH	SY9Y20570AA FRT DR INR WAIST RH LHD 9.5MY	-	1	Enquire
-	SY9Y69320EDW	SUNVISOR RH ECE LHD	SY9Y69320EDW SUNVISOR RH ECE LHD RHD 9.5MY	-	1	Enquire
-	SY9Y10007BA	DRIVER DOOR OPEN SD	SY9Y10007BA DRIVER DOOR OPEN SD LHD 9.5MY	-	1	Enquire
-	SY9Y69321FDW	SUNVISOR LH W/O LABE	SY9Y69321FDW SUNVISOR LH W/O LABE RHD 9.5MY	-	1	Enquire
-	SY9Y10006AB	INTERIOR DOOR OPEN S	SY9Y10006AB INTERIOR DOOR OPEN S RHD Carbon Edition / DBS Ultimate	-	1	Enquire
-	SY9Y10006BA	DRIVER DOOR OPEN SD	SY9Y10006BA DRIVER DOOR OPEN SD RHD Carbon Edition / DBS Ultimate	-	1	Enquire
-	SY9YC025B39DAW	A PILLAR ASSY LH FED	SY9YC025B39DAW A PILLAR ASSY LH FED LHD Carbon Edition / DBS Ultimate	-	1	Enquire
-	SY9Y14300BA	12V PSS ASSEMBLY	SY9Y14300BA 12V PSS ASSEMBLY LHD Carbon Edition / DBS Ultimate	-	1	Enquire
-	8D3324071AD	Pad Assy, Door Arm Rest Upper LH	8D3324071AD Pad Assy, Door Arm Rest Upper LH -	-	1	Enquire
-	8D33237A77AAW	CAP FRT DR TR RR LH	8D33237A77AAW CAP FRT DR TR RR LH -	-	1	Enquire
-	9D3323928AAW	LEATHER TOP ROLL RHS	9D3323928AAW LEATHER TOP ROLL RHS 9.5MY	-	1	Enquire
-	8D3323929ABW	PNL ASSY DR TR ALPQ LH	8D3323929ABW PNL ASSY DR TR ALPQ LH -	-	1	Enquire
-	9D3323929AAW	LEATHER TOP ROLL LHS	9D3323929AAW LEATHER TOP ROLL LHS 9.5MY	-	1	Enquire
-	4G4324242AFW	Insert Assy, Front Door Armrest, RH	4G4324242AFW Insert Assy, Front Door Armrest, RH -	-	1	Enquire
-	MY63L515A47CA	RR ROPS CVR LH	MY63L515A47CA RR ROPS CVR LH 9.5MY	-	1	Enquire
-	4G4323901AB	PANEL DOOR TRIM UPPER LH	4G4323901AB PANEL DOOR TRIM UPPER LH -	-	1	Enquire
-	MY83600C64PCW	VAL ASY CUSH RH	MY83600C64PCW VAL ASY CUSH RH 9.5MY	-	1	Enquire
-	9D3323936AAW	PNL ASSY FRT DR TR LWR RHS	9D3323936AAW PNL ASSY FRT DR TR LWR RHS 9.5MY	-	1	Enquire
-	SY9Y042A75ECW	CNSL PNL CENTRE ASSY	SY9Y042A75ECW CNSL PNL CENTRE ASSY -	-	1	Enquire
-	9D3323937AAW	PNL ASSY FRT DR TR LWR LHS	9D3323937AAW PNL ASSY FRT DR TR LWR LHS 9.5MY	-	1	Enquire
-	9D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	9D3323864AAW INSERT ASSEMBLY DOOR TRIM PANEL - RH 9.5MY	-	1	Enquire
-	SY9Y17552BB	GRILLE VANES DARK	SY9Y17552BB GRILLE VANES DARK -	-	1	Enquire
-	9D3323865AAW	INSERT ASSEMBLY DOOR TRIM PANEL - LH	9D3323865AAW INSERT ASSEMBLY DOOR TRIM PANEL - LH 9.5MY	-	1	Enquire
-	8D3323719AAW	PKT ASSY DR	8D3323719AAW PKT ASSY DR -	-	1	Enquire
-	8D33C18979AB	GRILLE RADIO SPKR LH	8D33C18979AB GRILLE RADIO SPKR LH Up To 9.5MY	-	1	Enquire
-	9D33C18978BA	RH FRONT DOOR B&O SPEAKER GRILLE BLACK	9D33C18978BA RH FRONT DOOR B&O SPEAKER GRILLE BLACK From 9.5MY, Black	-	1	Enquire
-	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	9D33C18979AB Speaker Assy, LH Side Door Top Speaker Grille silver From 9.5MY, Silver	-	1	Enquire
-	9D33C18979BA	LEFT HAND SIDE DOOR TOP SPEAKER GRILLE BLACK	9D33C18979BA LEFT HAND SIDE DOOR TOP SPEAKER GRILLE BLACK From 9.5MY, Black	-	1	Enquire
-	GD33120609NA	DUP OWNERS GUIDE	GD33120609NA DUP OWNERS GUIDE From 9.5MY	-	1	Enquire
-	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	4G4302276AB Seal Venair Outlet Duct Door Lower LH -	-	1	Enquire
-	9D3314540AA	DRIVERS WINDOW LIFT SWITCH	9D3314540AA DRIVERS WINDOW LIFT SWITCH 9.5MY	-	1	Enquire
-	SY9Y69320PDW	SUNVISOR RH TAIWAN A	SY9Y69320PDW SUNVISOR RH TAIWAN A -	-	1	Enquire
-	9D3314717AA	PASSENGER WINDOW LIFT SWITCH	9D3314717AA PASSENGER WINDOW LIFT SWITCH 9.5MY	-	1	Enquire
1	8D3324070AD	Pad Assy, Door Arm Rest Upper RH	8D3324070AD Pad Assy, Door Arm Rest Upper RH -	-	1	Enquire
2	8D33237A76AAW	CAP FRT DR TR RR RH	8D33237A76AAW CAP FRT DR TR RR RH -	-	1	Enquire
3	8D3323928ABW	PNL ASSY DR TR ALPQ RH	8D3323928ABW PNL ASSY DR TR ALPQ RH -	-	1	Enquire
5	4G4320838AC	RETAINER DOOR TRIM UPPER	4G4320838AC RETAINER DOOR TRIM UPPER -	-	8	Enquire
6	4G4324243AFW	Insert Assy, Front Door Armrest, LH	4G4324243AFW Insert Assy, Front Door Armrest, LH -	-	1	Enquire
7	701441	SCREW M4.2x13 FLGBLK	701441 SCREW M4.2x13 FLGBLK -	-	22	Enquire
8	4G4323900AB	PANEL DOOR TRIM UPPER RH	4G4323900AB PANEL DOOR TRIM UPPER RH -	-	1	Enquire
9	SY9Y17529BA	WIPER BLADE LHS LHD	SY9Y17529BA WIPER BLADE LHS LHD -	-	1	Enquire
10	8D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	8D3323864AAW INSERT ASSEMBLY DOOR TRIM PANEL - RH -	-	1	Enquire
11	8D3323718AAW	PKT ASSY DR	8D3323718AAW PKT ASSY DR -	-	1	Enquire
12	SY9Y3600PCW	STEERING WHEEL	SY9Y3600PCW STEERING WHEEL -	-	2	Enquire
13	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black -	-	6	Enquire
14	SY6Y7Z390AA	CNTR & CA ASY-GR SHT	SY6Y7Z390AA CNTR & CA ASY-GR SHT -	-	6	Enquire
15	8D33C18978AB	GRILLE RADIO SPKR RH	8D33C18978AB GRILLE RADIO SPKR RH Up To 9.5MY	-	1	Enquire
16	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	9D33C18978AB Speaker Assy, RH Side Door Top Speaker Grille silver From 9.5MY, Silver	-	1	Enquire
17	SY9Y23942ECW	DOOR ASSY TRIM RH	SY9Y23942ECW DOOR ASSY TRIM RH From 9.5MY	-	1	Enquire
18	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH -	-	1	Enquire
19	9G3314540AA	Switchpack, Window Lift, Drivers Side	9G3314540AA Switchpack, Window Lift, Drivers Side -	-	1	Enquire
20	701655	Rivet, 4.8 x 6.3-12.7	701655 Rivet, 4.8 x 6.3-12.7 -	-	16	Enquire
21	701157	SCREW&WSHR 4.2x16	701157 SCREW&WSHR 4.2x16 -	-	14	Enquire
22	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 -	-	6	Enquire
23	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP -	-	8	Enquire
